Product Introduction

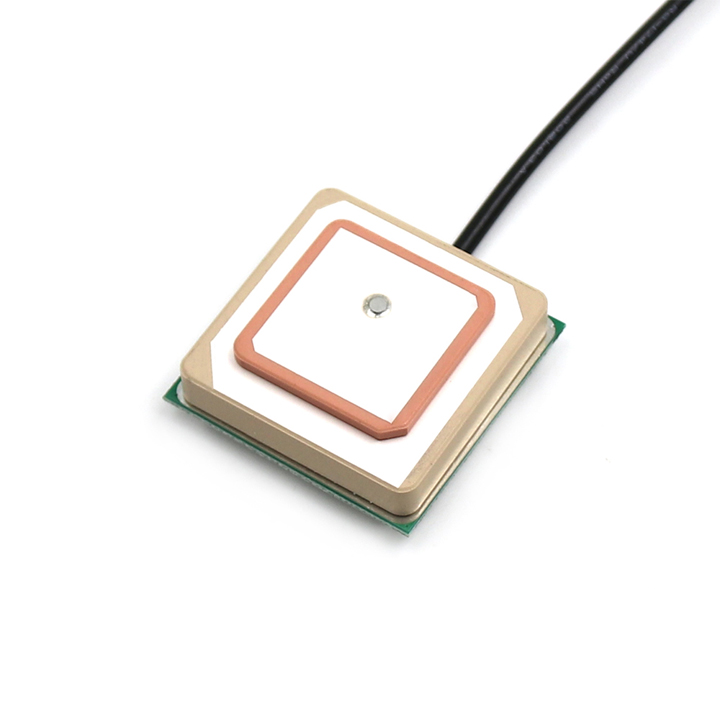

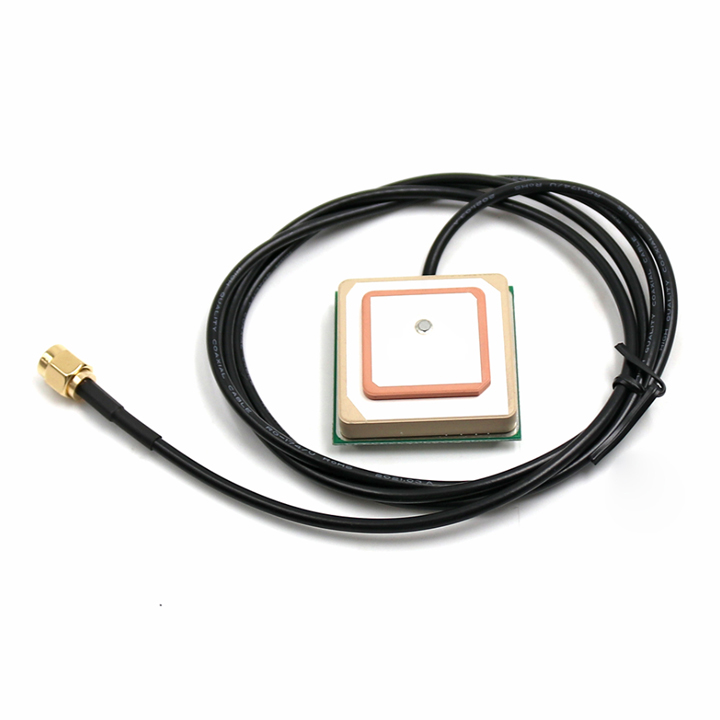

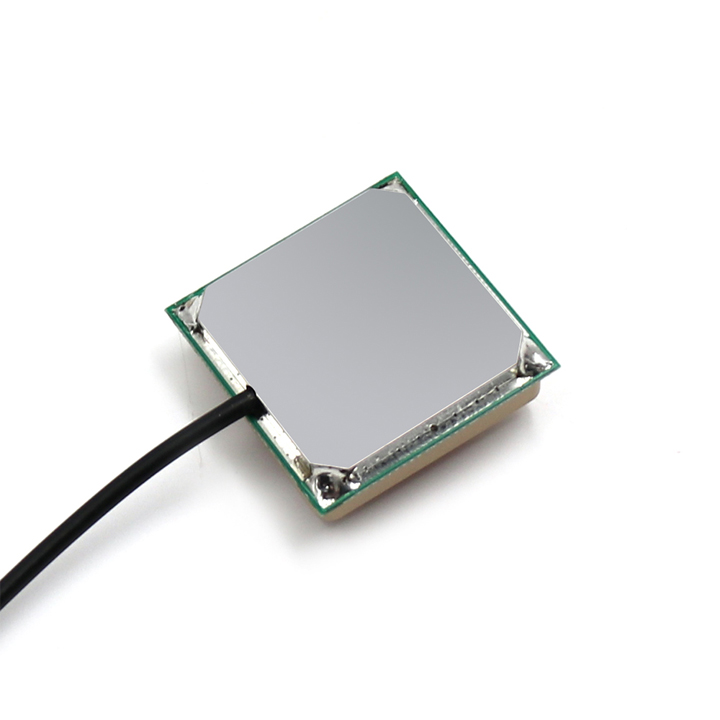

The MT-T042 is a GNSS active antenna that delivers high gain, miniaturization, high sensitivity, multi-system compatibility, and strong reliability—effectively meeting user requirements.
- It adopts a single-feed-point design and fully symmetrical antenna structure, resulting in an extremely stable phase center that reduces measurement errors between antenna pairs.
- With high gain and a low standing wave ratio, it provides distinct reception for low-elevation-angle signals and maintains normal satellite acquisition even under severe occlusion.
- It is equipped with an anti-multipath choke plate and incorporates an anti-surge design, which efficiently suppresses out-of-band strong interference signals and ensures the antenna’s reliability.
Application Area
This antenna covers active reception for BDS B1, GPS L1/L5, and GLONASS L1 bands. It meets the current requirements for multi-system compatibility and active GNSS measurement equipment, and is compatible with a range of satellite navigation receivers. It is suitable for fields such as precision agriculture and marine surveying, and can also be applied in military sectors based on specific application conditions.

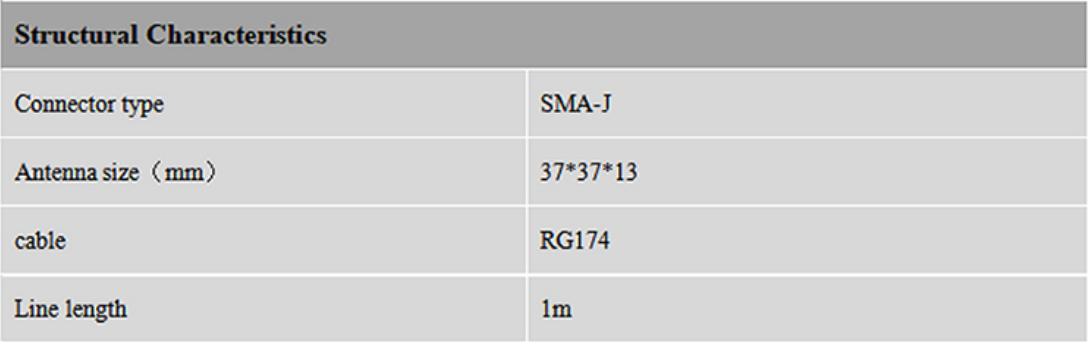

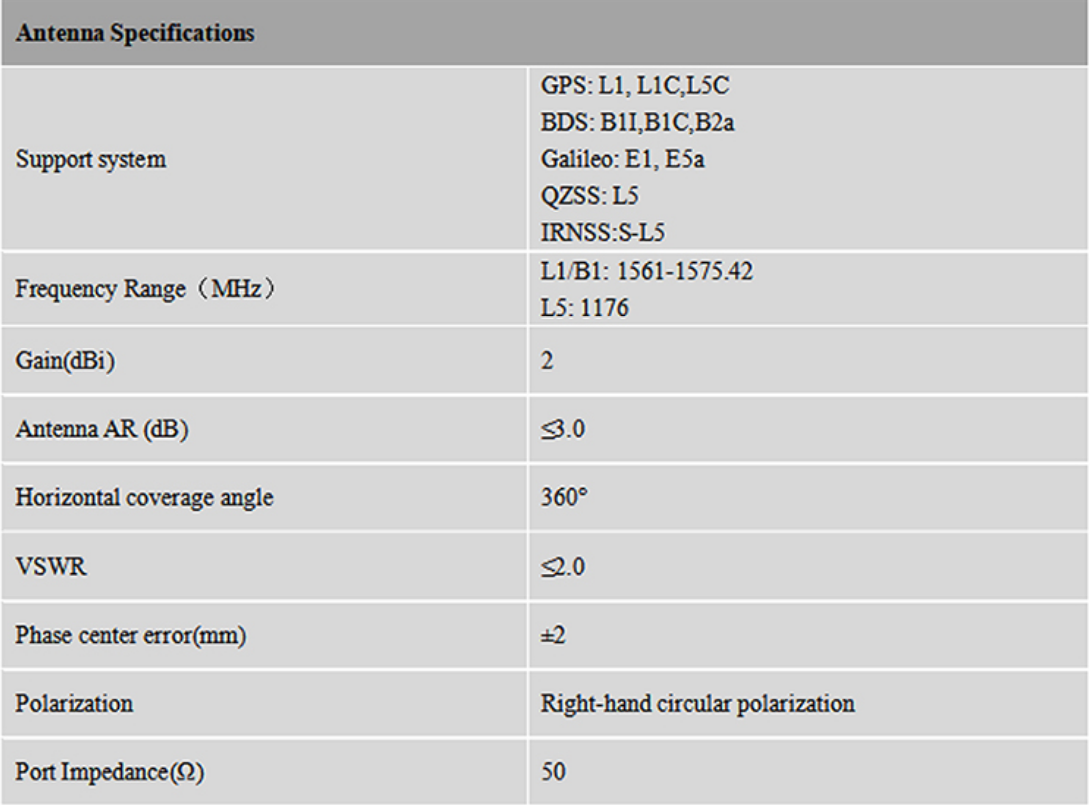

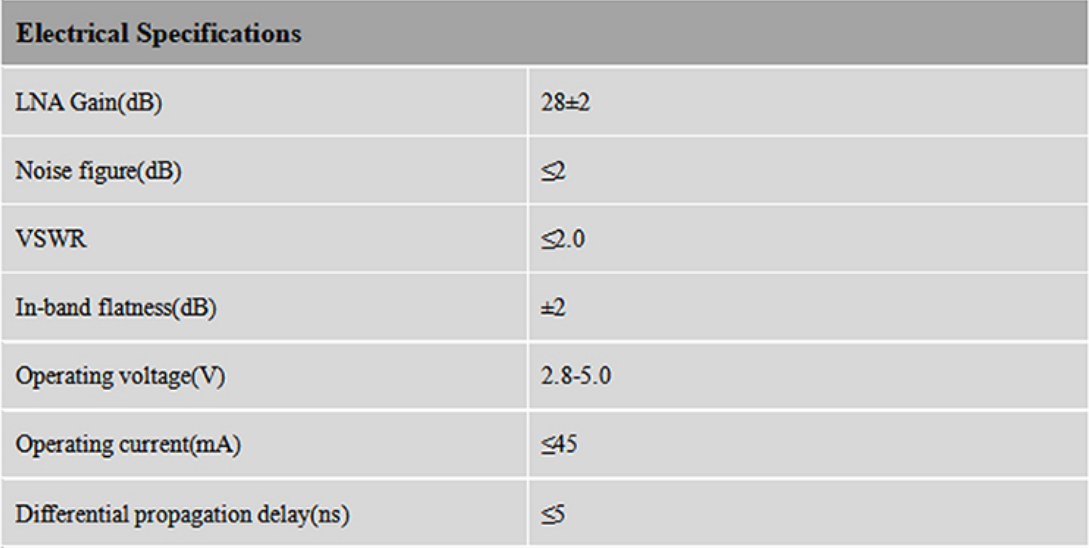

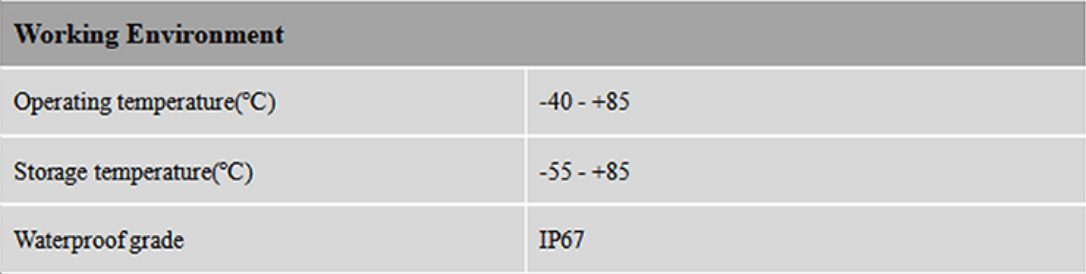

Specifications

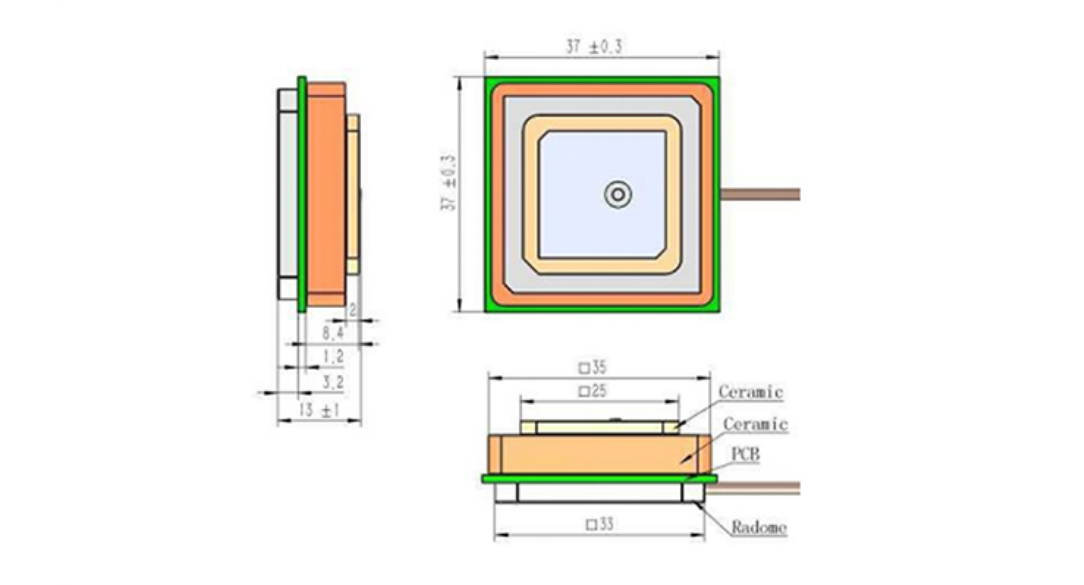

Product Dimension
