1. Characteristics of Ceramic Antenna

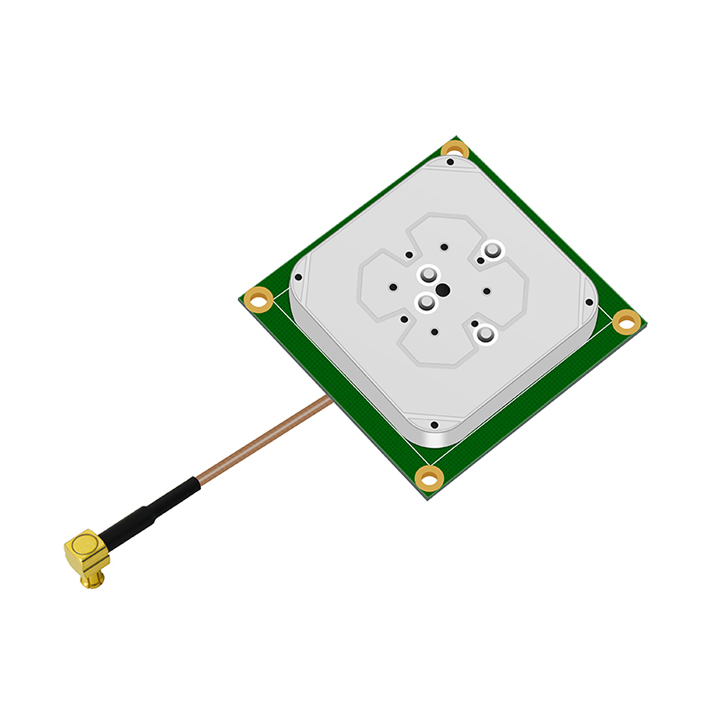

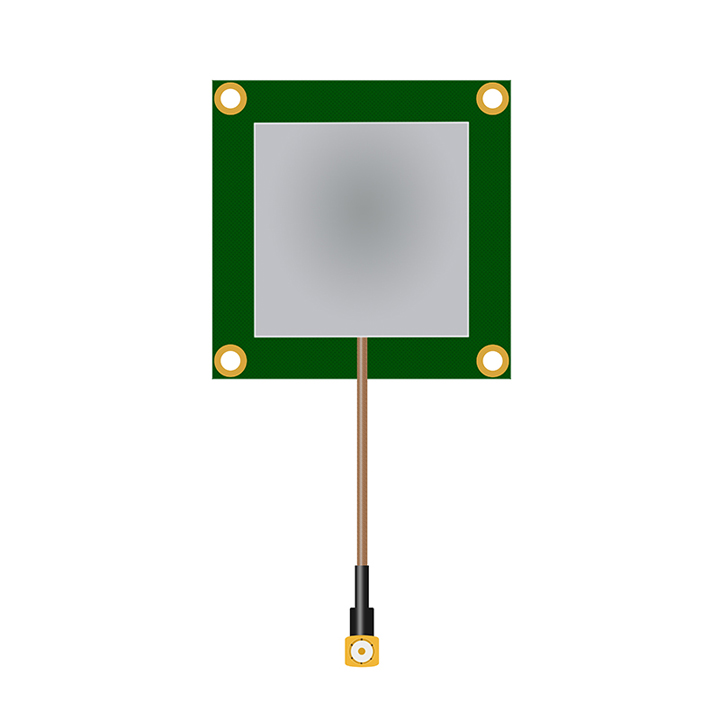

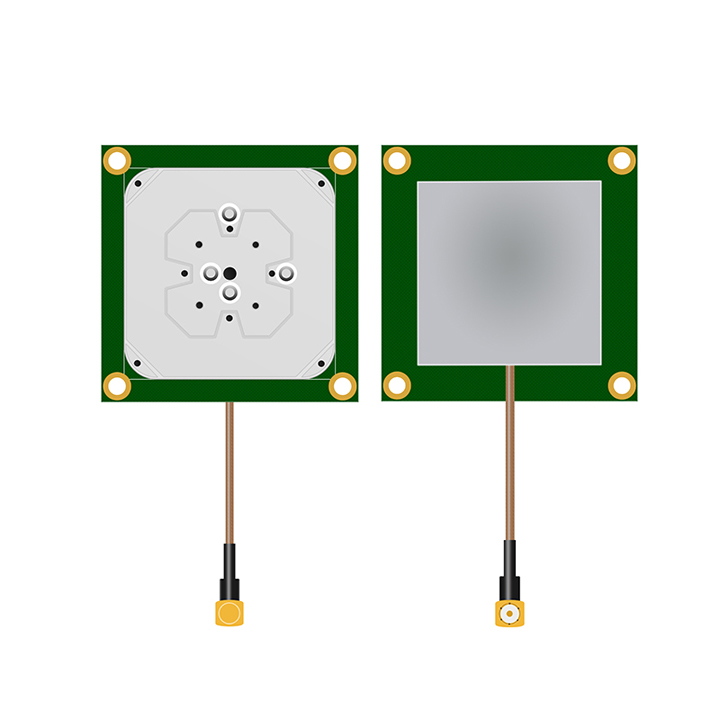

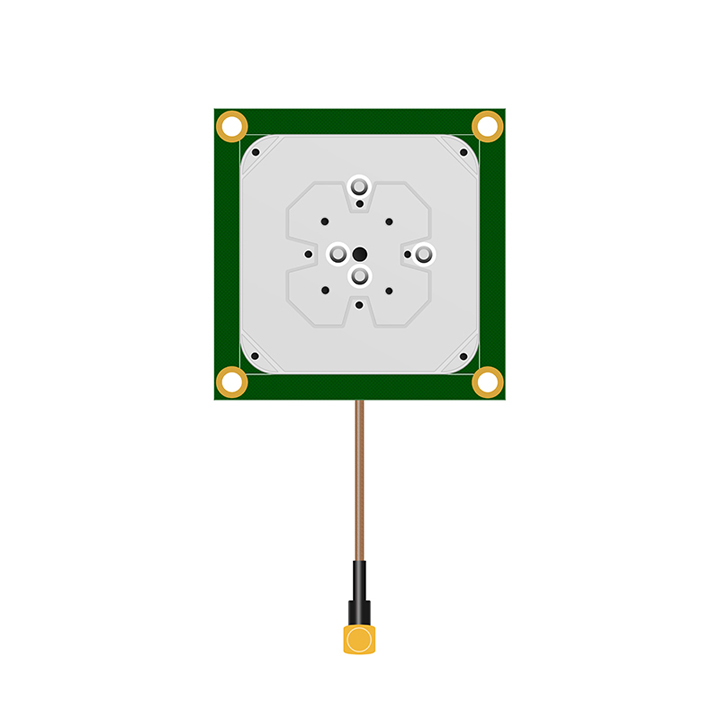

RTK GNSS Antenna MT-T414

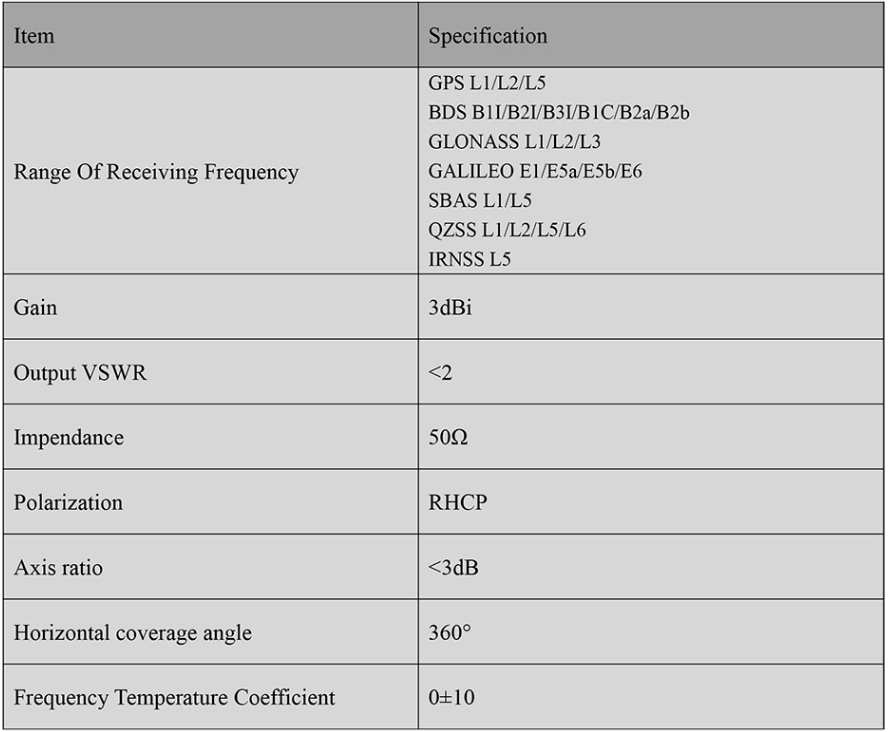

The RTK GNSS Antenna MT-T414 is a high-precision positioning component tailored for demanding professional scenarios, combining exceptional signal capture capability with reliable performance to meet rigorous accuracy requirements. It supports full-frequency coverage of multiple global GNSS constellations (including GPS, BeiDou, GLONASS, Galileo, and QZSS), ensuring stable connectivity even in complex environments such as urban high-rise clusters, mountainous areas, or dense vegetation—making it a top choice for land surveying, precision construction, geospatial mapping, and autonomous vehicle positioning systems.

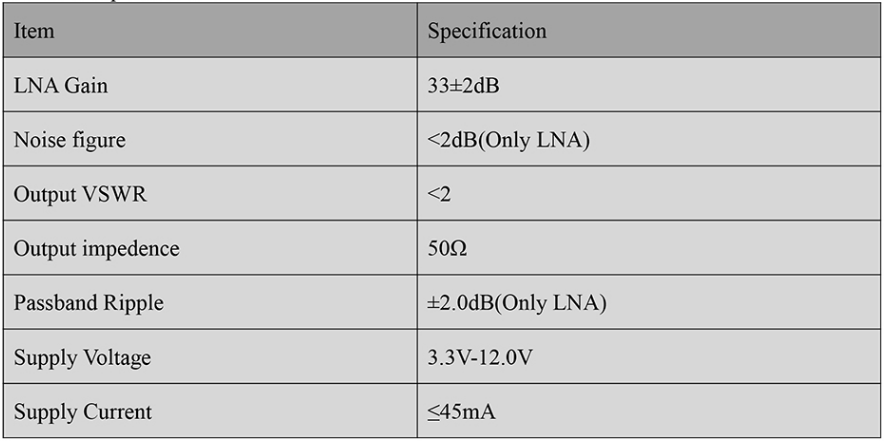

Equipped with a high-gain low-noise amplifier (LNA) and advanced anti-multipath interference technology, the MT-T414 effectively reduces signal distortion and maintains centimeter-level positioning accuracy, a critical factor for mission-critical tasks. Its rugged, weather-resistant housing (compliant with IP67/IP68 standards) enables long-term operation in harsh outdoor conditions, while the compact design allows for easy integration with RTK receivers, UAVs, or vehicle-mounted terminals. With optimized phase center stability and consistent impedance matching, the MT-T414 delivers consistent, high-quality performance, making it a dependable solution for professional GNSS positioning applications.
