Home » Unmanned System Products » RTK GNSS Antenna MT-T423
RTK GNSS Antenna MT-T422
Back to products
RTK GNSS Antenna MXW-4020

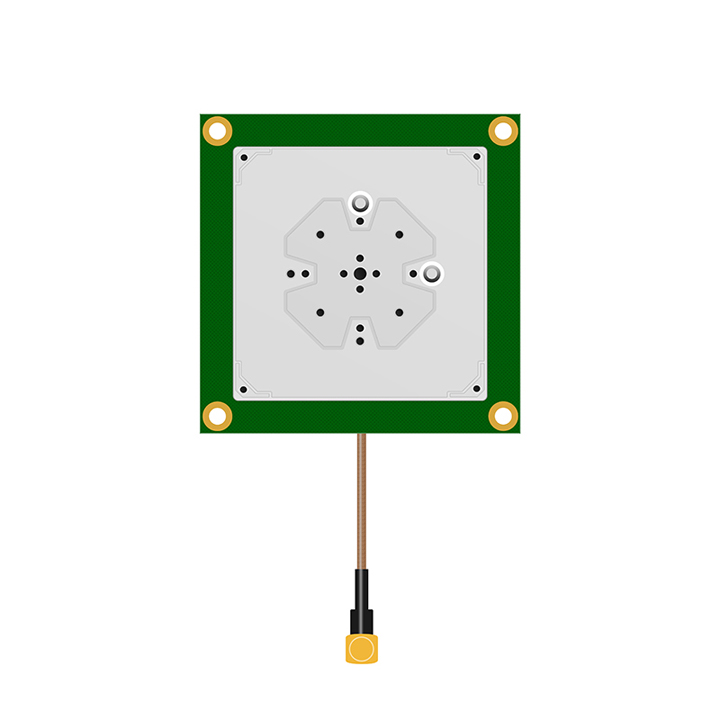

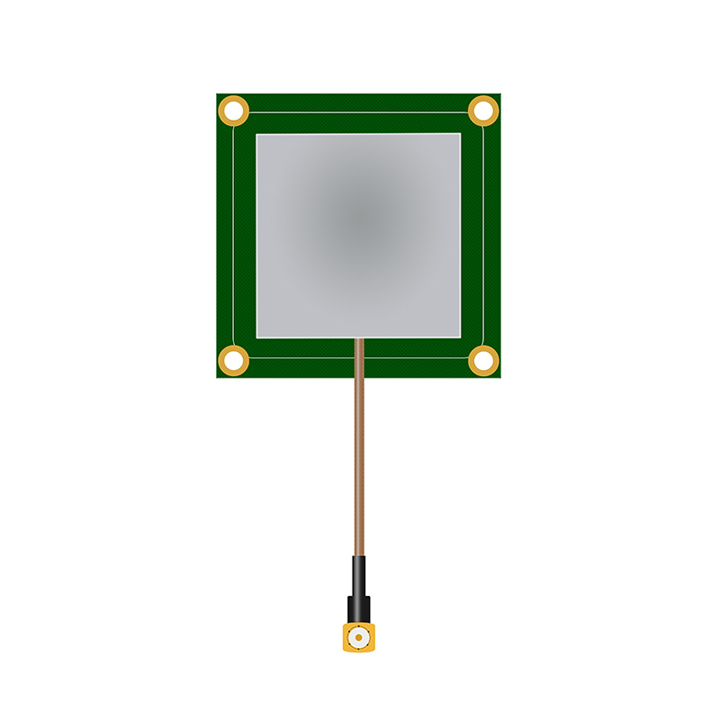

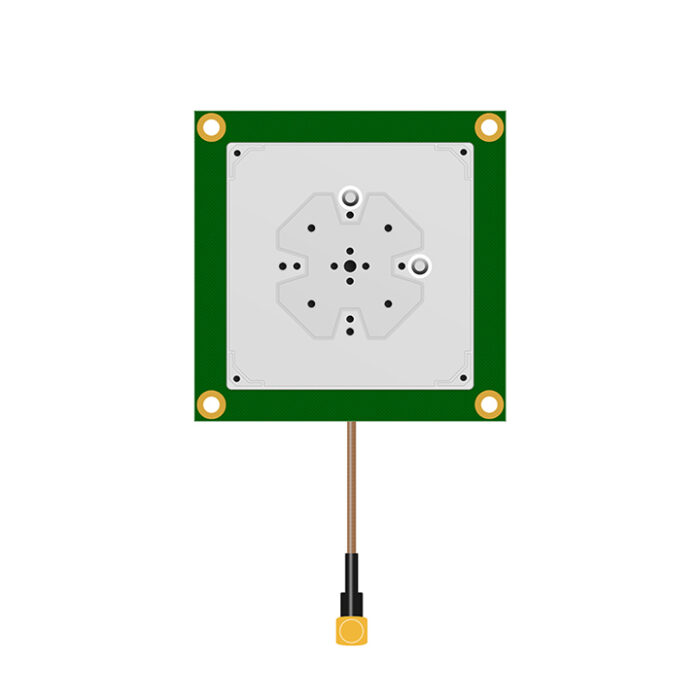

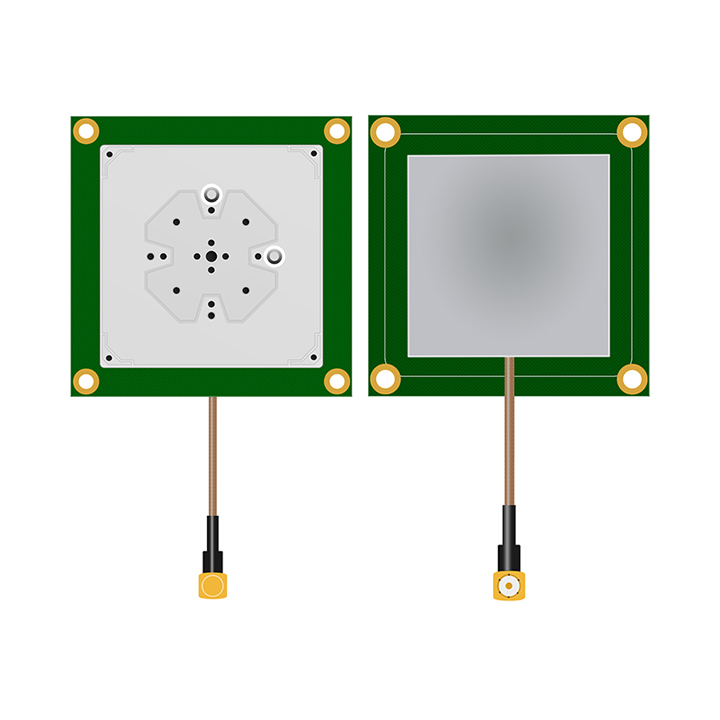

RTK GNSS Antenna MT-T423

The RTK GNSS Antenna MT-T423 is a high-performance positioning solution engineered for precision-focused applications. It supports multi-constellation reception, including GPS, GLONASS, Beidou, and Galileo, ensuring stable signal acquisition even in complex environments like urban canyons or remote outdoor areas. Equipped with advanced RTK (Real-Time Kinematic) technology, the antenna delivers centimeter-level positioning accuracy, making it ideal for professional uses such as surveying, mapping, precision agriculture, and unmanned vehicle navigation.​
Its rugged design features IP67 waterproof and dustproof protection, enabling reliable operation in harsh weather conditions—from heavy rain to extreme temperatures. The compact form factor and flexible mounting options (compatible with standard brackets) also enhance its adaptability, allowing seamless integration into various devices or field setups. With low power consumption and excellent anti-interference capabilities, the MT-T423 balances high performance with long-term operational efficiency, meeting the demands of both industrial and commercial precision positioning tasks.
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

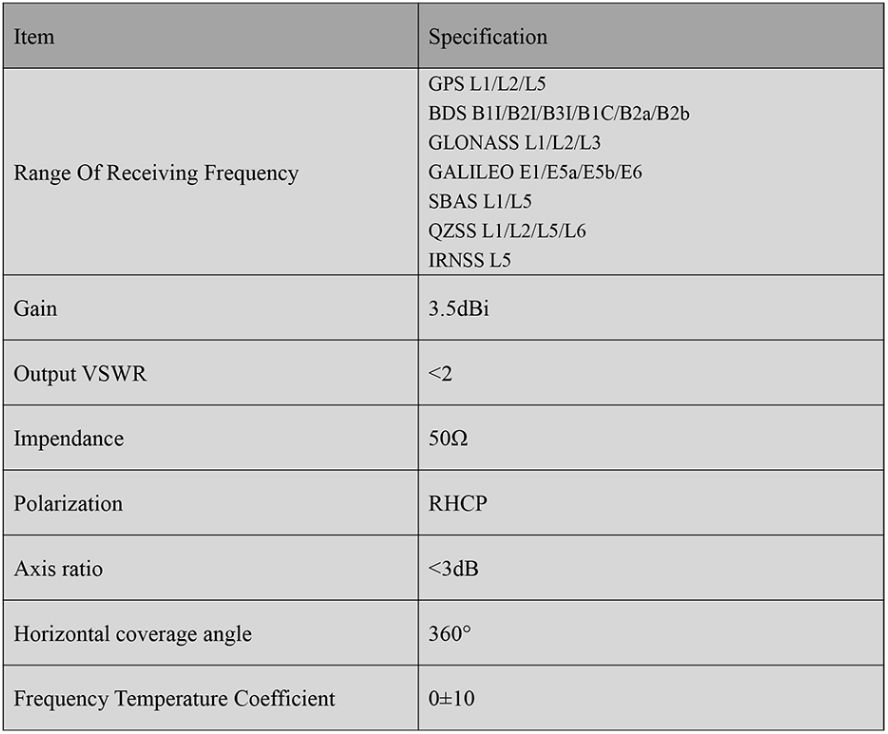

1. Characteristics of Ceramic AntennaRTK GNSS Antenna MT-T423

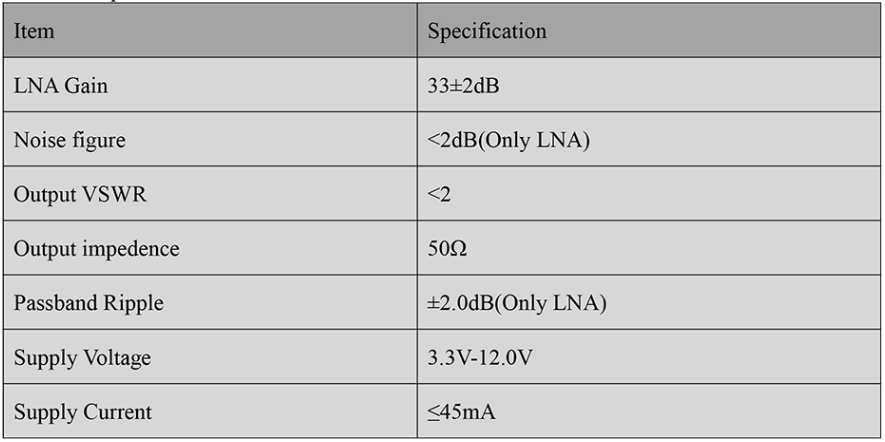

2. LNA SpecificationRTK GNSS Antenna MT-T423

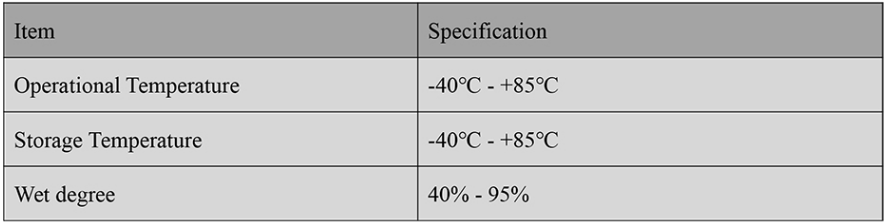

3. Work EnvironmentRTK GNSS Antenna MT-T423

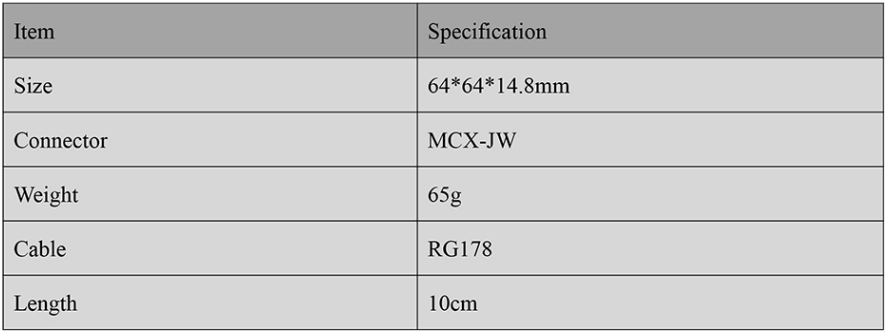

4. Structural CharacteristicsRTK GNSS Antenna MT-T423

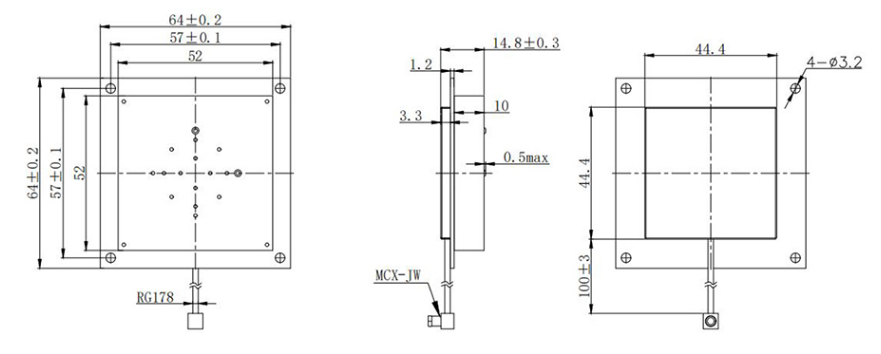

5. Structural DiagramRTK GNSS Antenna MT-T423
