Home » Unmanned System Products » RTK GNSS Board MP-250
RTK GNSS Board MG-550
Back to products
RTK GNSS Board MP-250Q

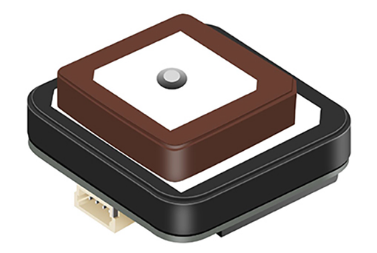

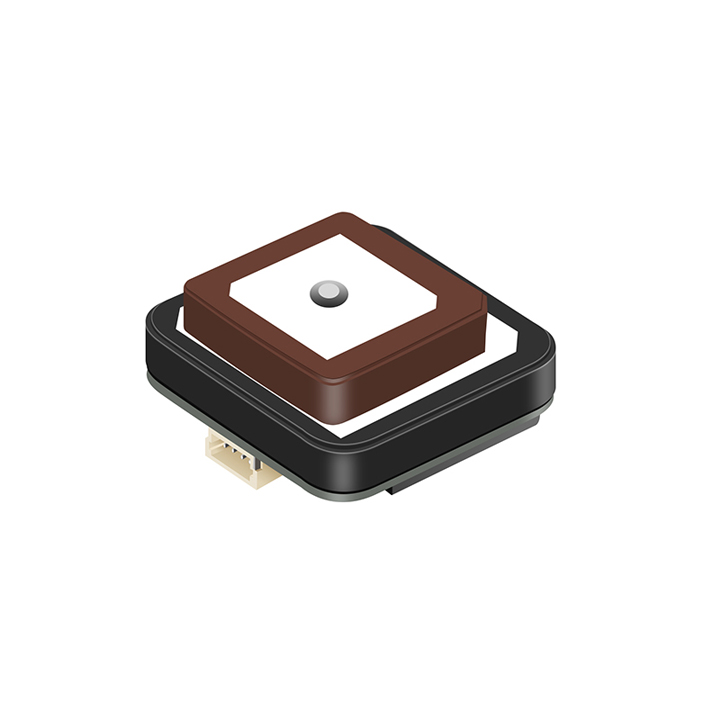

RTK GNSS Board MP-250

The RTK GNSS Board MP-250 is a versatile, cost-effective high-precision positioning module designed for a broad spectrum of professional and industrial applications—where a balance of accuracy, reliability, and ease of integration is key. Powered by mature Real-Time Kinematic (RTK) technology, this board delivers consistent centimeter-level positioning accuracy, leveraging optimized signal filtering and error-correction algorithms to minimize disruptions from ionospheric/tropospheric interference, urban multipath, and weak satellite signals.

Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

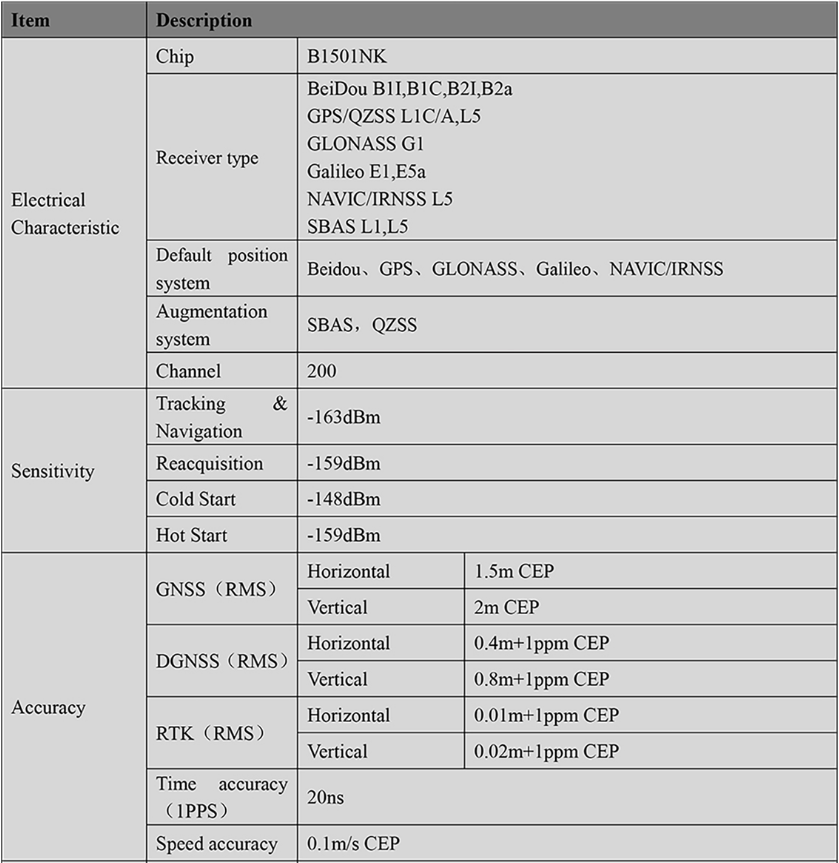

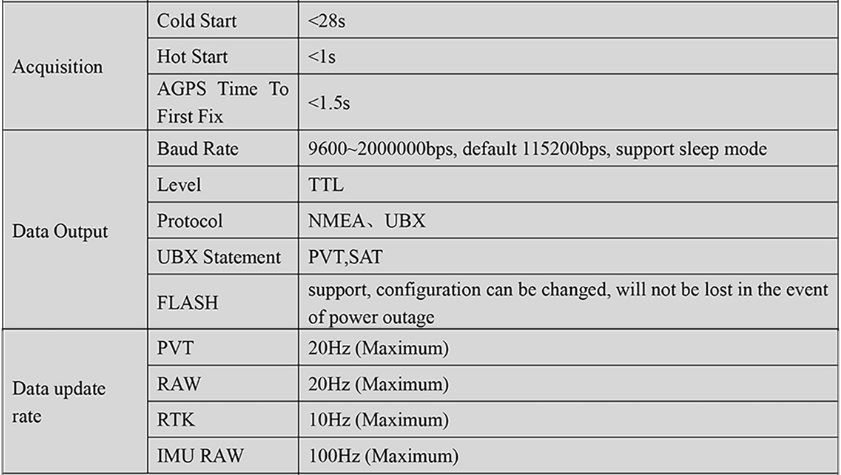

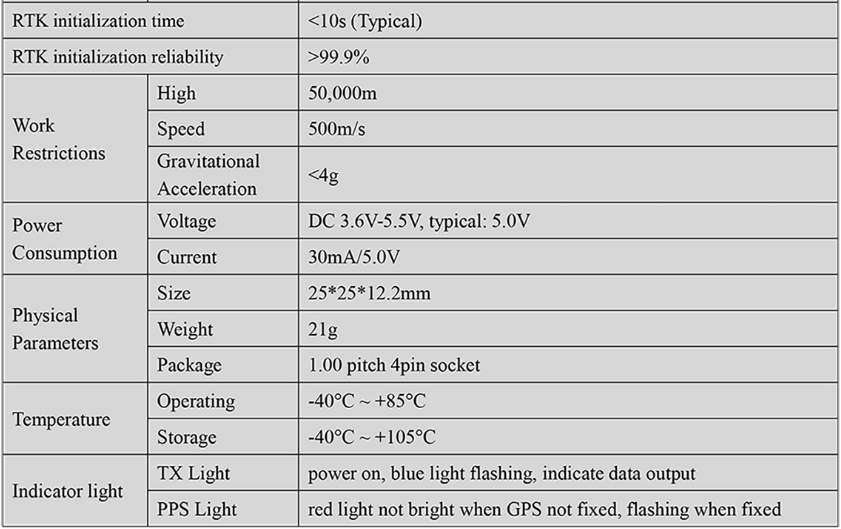

Table 1-1 MP-250 module main performance indicatorsRTK GNSS Board MP-250 RTK GNSS Board MP-250 RTK GNSS Board MP-250

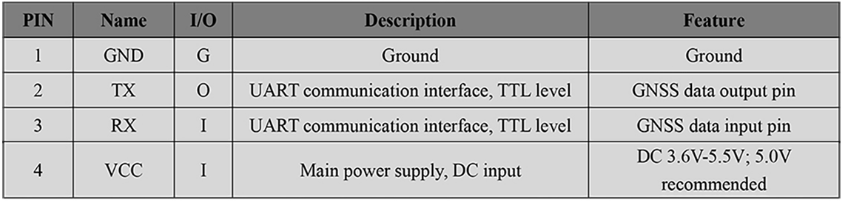

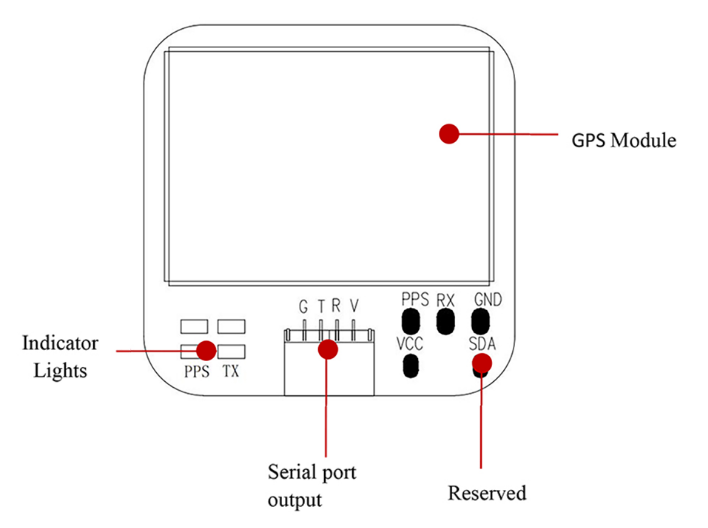

Pin DefinitionRTK GNSS Board MP-250

RTK GNSS Board MP-250

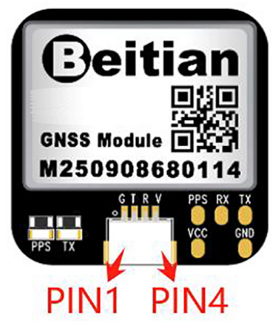

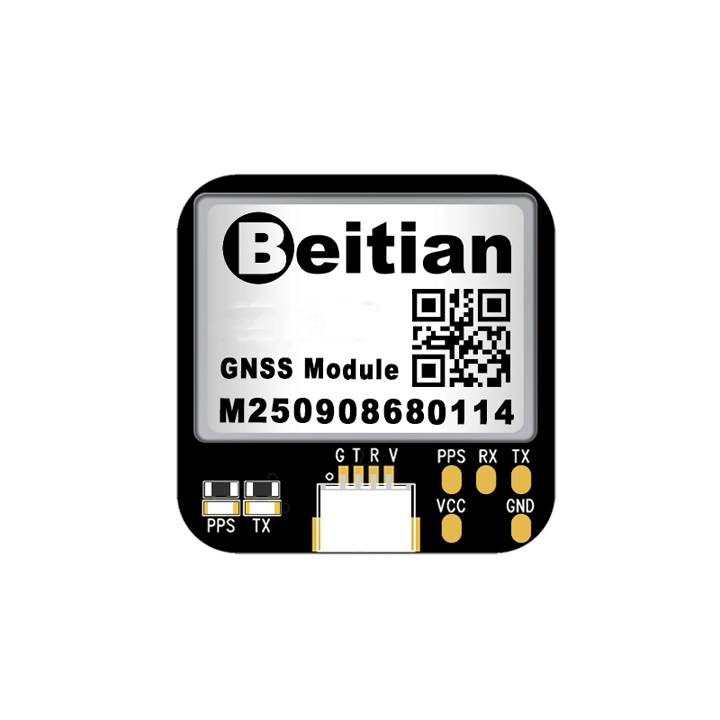

Rear View

RTK GNSS Board MP-250

LED

  1. The TX indicator (a blue light) flashes immediately upon power-up, which serves as a clear signal that the board is actively outputting data.
  2. The PPS light remains off in the pre-positioning phase; once the board achieves 3D positioning, the light will automatically start flashing to indicate successful positioning status.

Application

Internet of Things
tracker
Car navigation
Wearables

Functional Frame DiagramRTK GNSS Board MP-250

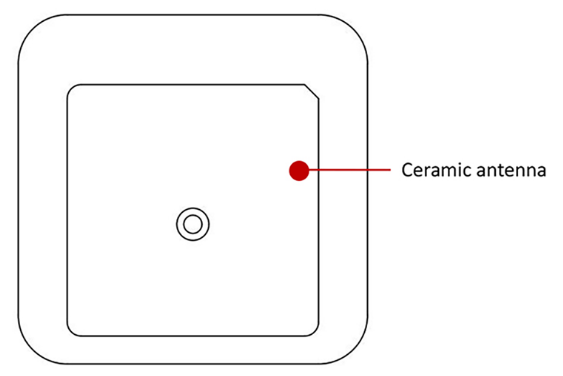

(Front view)

RTK GNSS Board MP-250

(Rear view)
Figure 1-2 MP-250 module functional block diagram

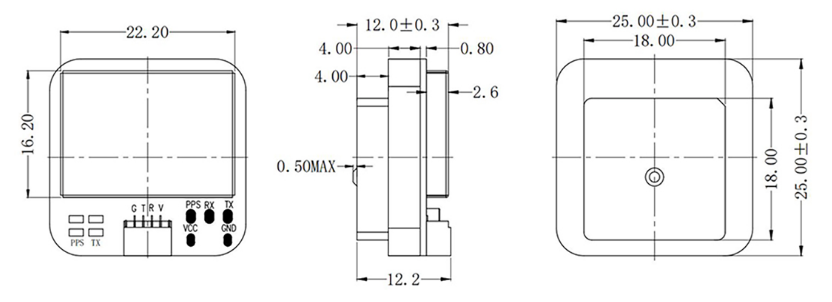

DimensionRTK GNSS Board MP-250

Figure 1-3 Module size diagram
