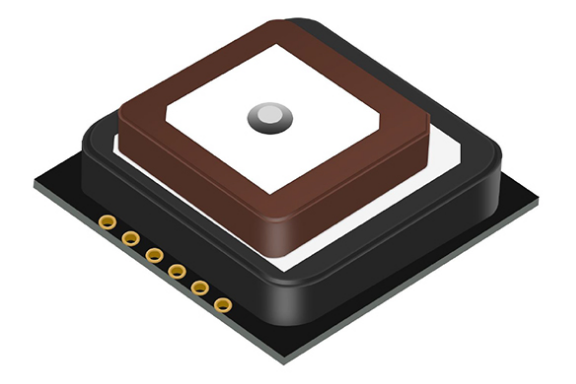

RTK GNSS Board MP-280

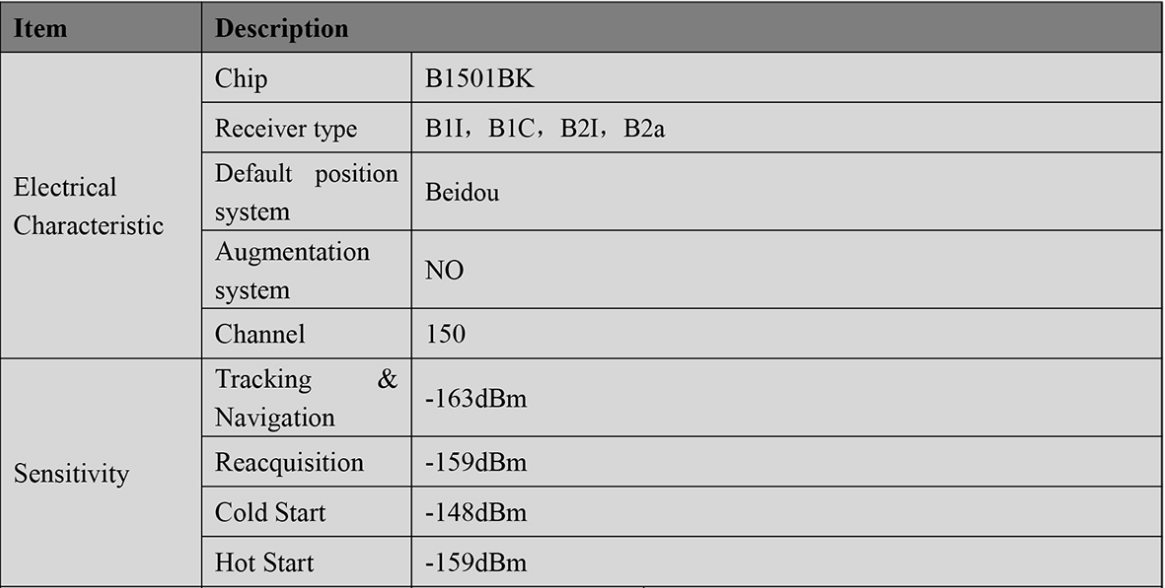

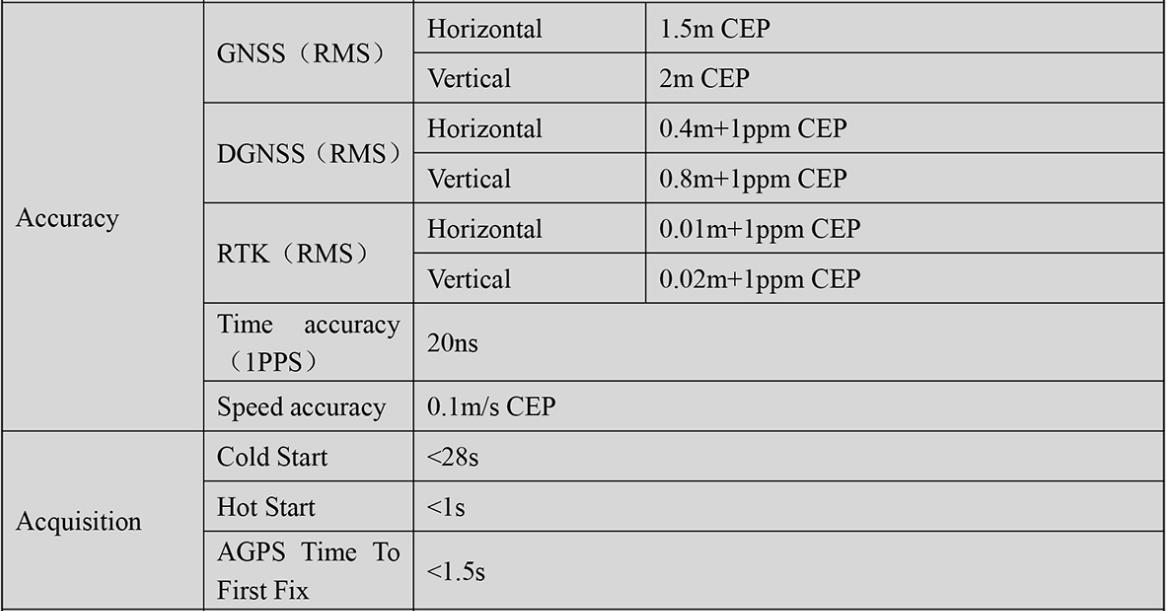

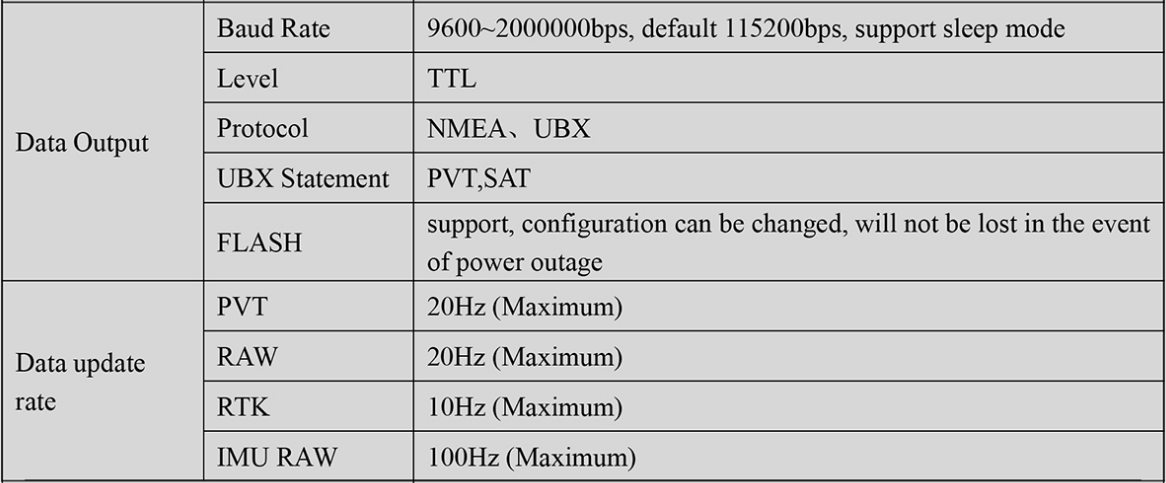

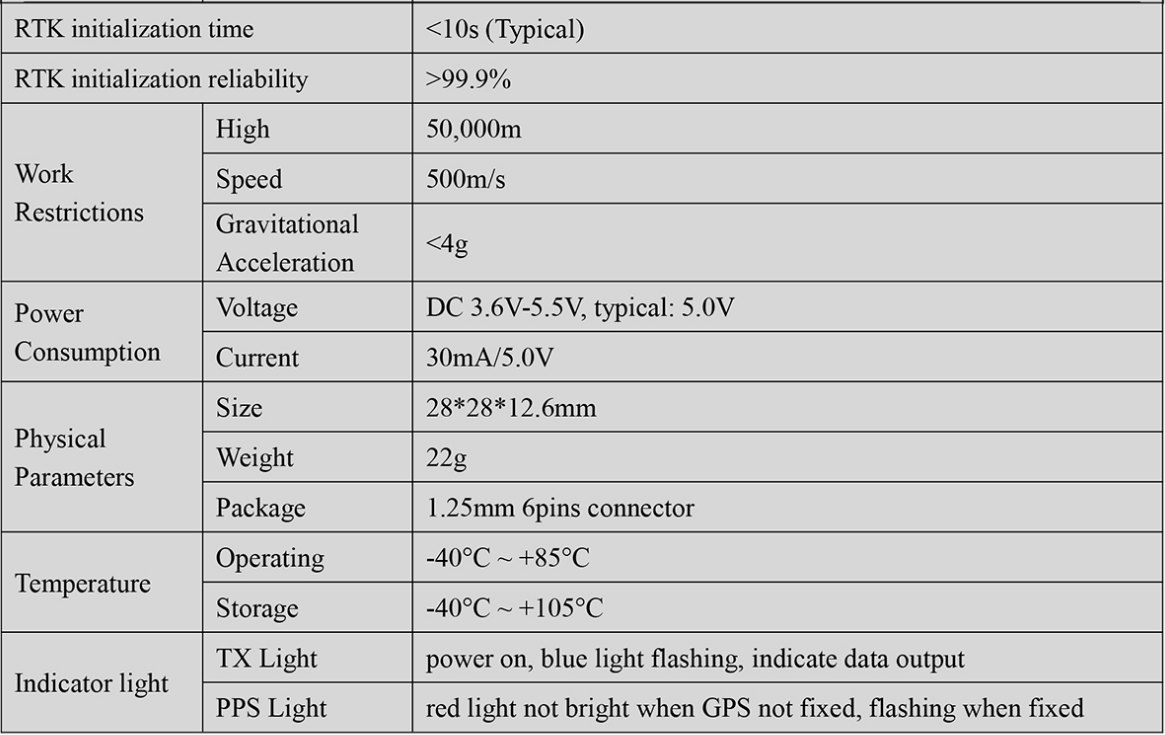

Table 1-1 MPD-280 module main performance indicators

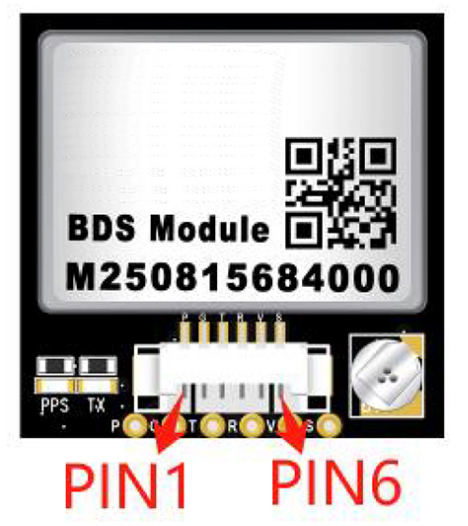

Pin Definition

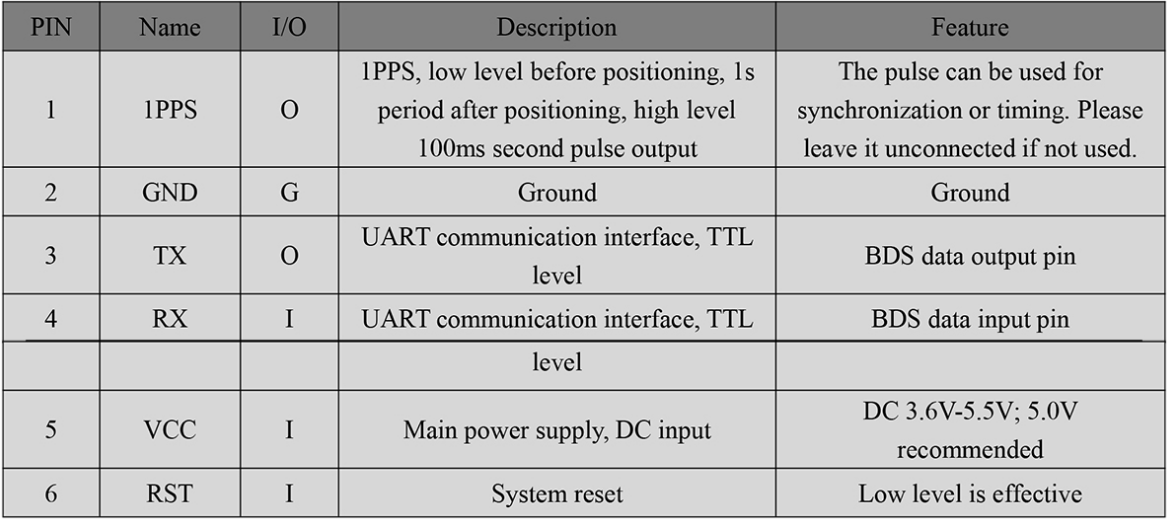

Table 1-1 Module pin definition

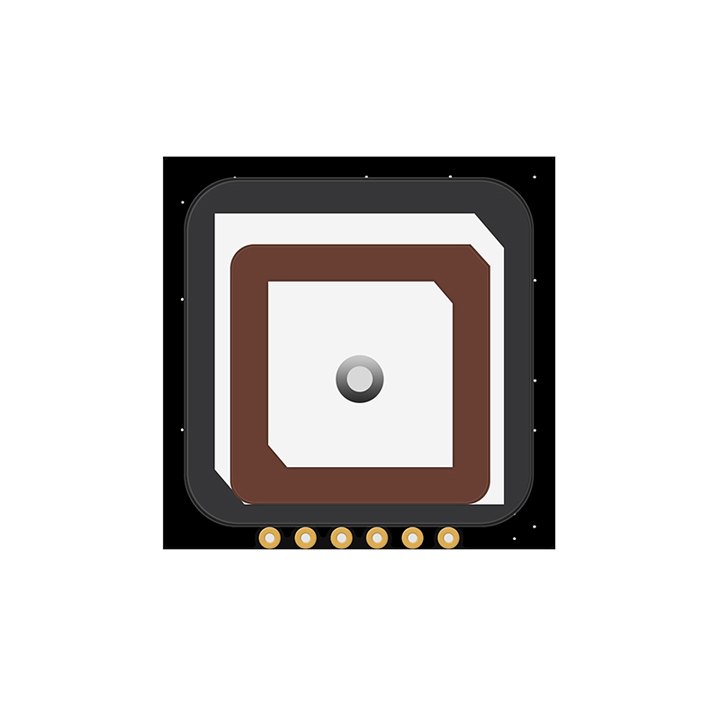

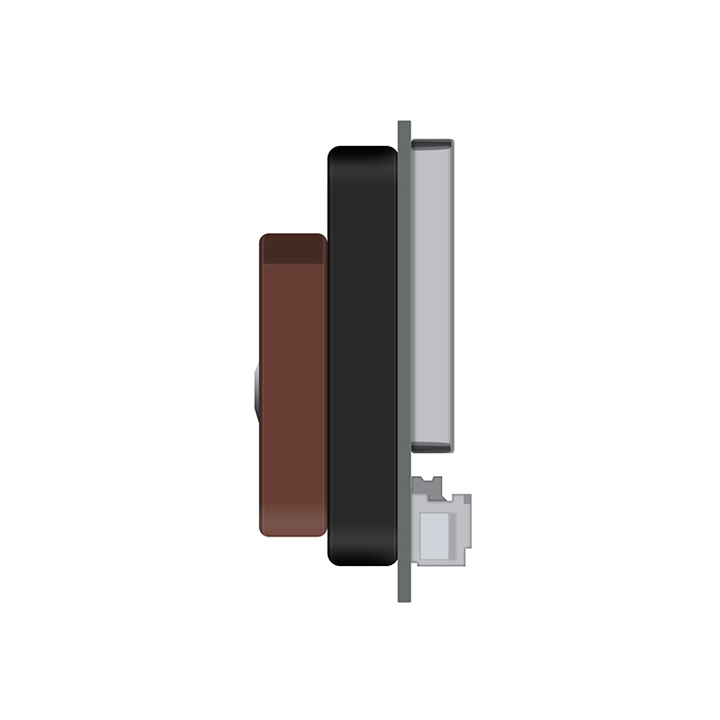

Rear View

LED

1. For the TX indicator, the blue light flashes upon power-on, signifying data output.
2. The PPS light remains off prior to positioning. Once 3D positioning is achieved, it begins to flash.

Application

Internet of Things
tracker
Car navigation
Wearables

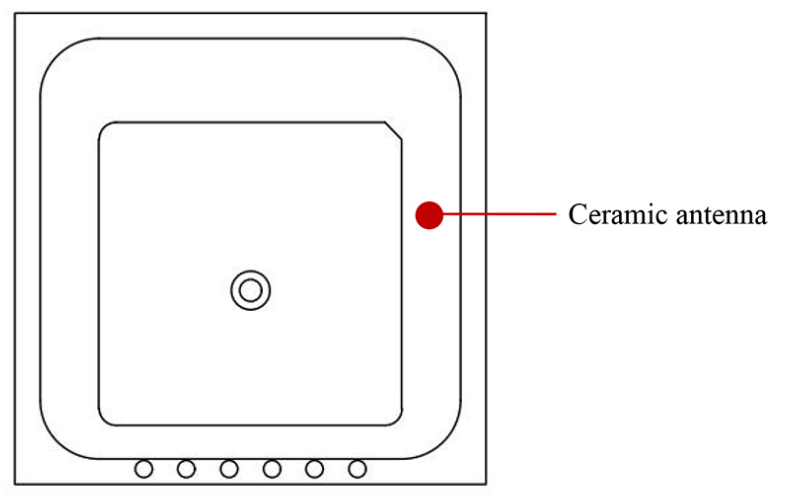

Functional Frame Diagram

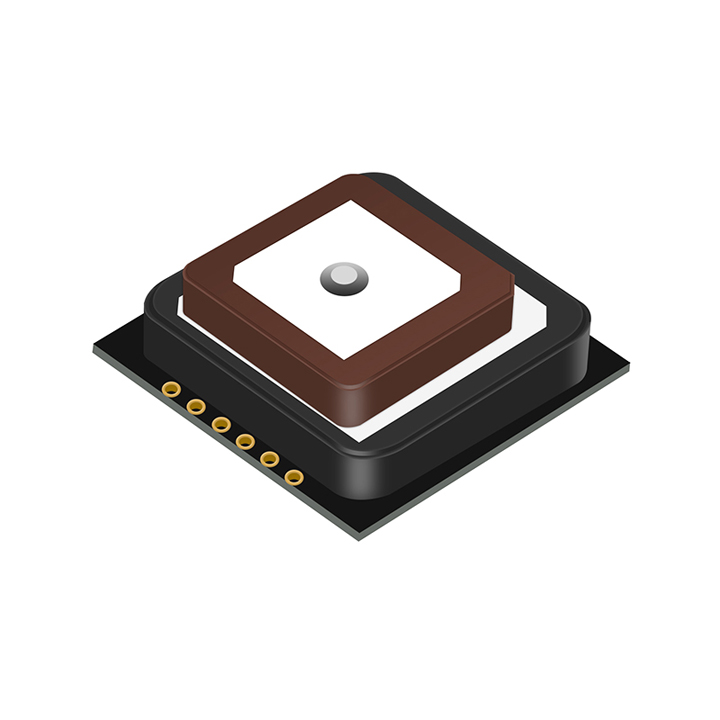

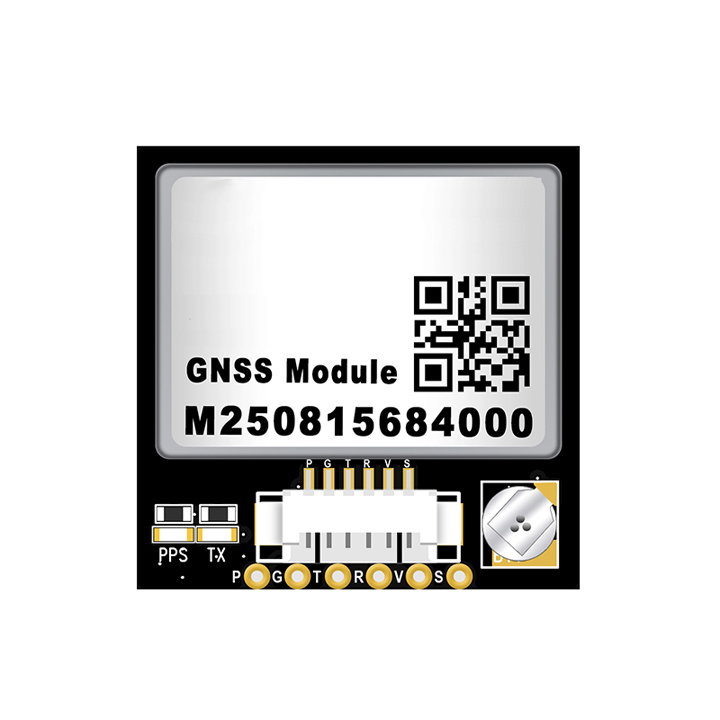

(Front view)

(Rear view)

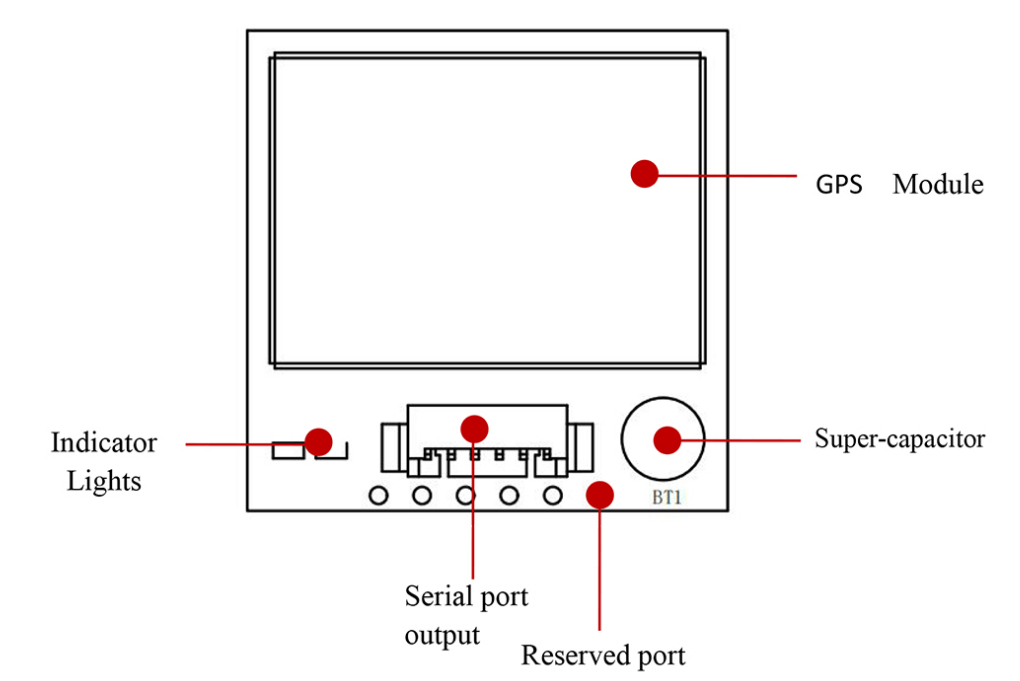

Figure 1-2 MPD-280 module functional block diagram

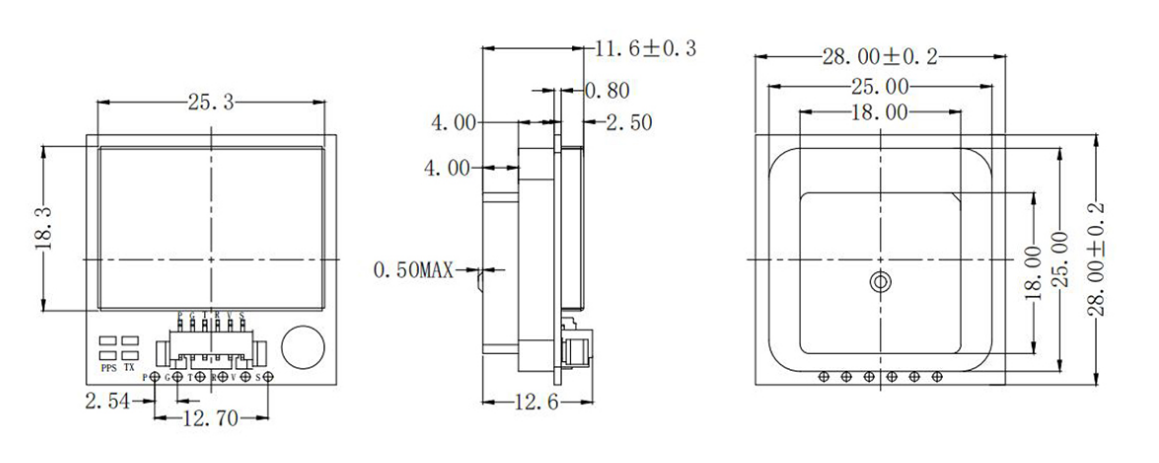

Dimension
