Table 1-1 MP-357Q module main performance indicators

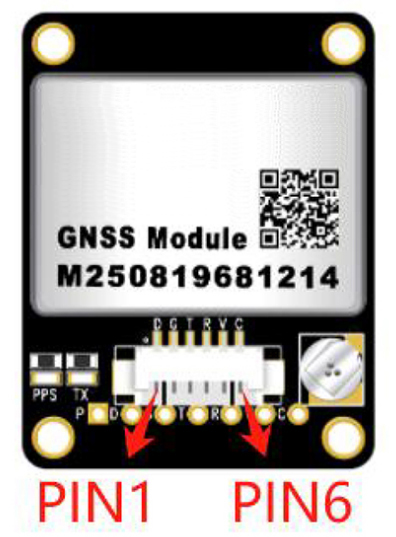

Pin Definition
Table 1-1 Module pin definition
Rear View
The position of the electronic compass ICQMC5883 , indicating the direction:
LED
- TX Indicator: The blue TX (Transmit) indicator flashes upon power-on, serving as a visual cue to confirm active data output from the module.
- PPS Indicator: The PPS (Pulse Per Second) indicator remains off prior to the module achieving positioning lock. Once 3D positioning is successfully established, the PPS indicator will begin to flash steadily.
Application
Internet of Things
tracker
Car navigation
Wearables
Functional Frame Diagram
(Front view)
(Rear view)
Figure 1-2 MP-357Q module functional block diagram
Dimension
Figure 1-3 Module size diagram
