Small Radio Altimeter MY-1000

The MY-1000 altimeter is a radar altimeter specially designed for a specific type of target missile aircraft; as a compact, full-function radio altimeter that complies with aerospace standards, it serves as a key component for longitudinal altitude channel control and can be widely used in cruise missiles and UAVs to measure height relative to sea level or the ground. The MY-1000 adopts linear modulation coefficient technology adaptive to height changes and echo signal narrow-band receiving technology to enhance the product’s resistance to active interference, uses coherent local oscillator mixing to achieve superior performance in resisting co-frequency asynchronous interference, employs echo signal spectrum front detection technology to improve tracking accuracy, and follows the three design principles of serialization, standardization, and modularization—endowing it with good product inheritance, maturity, and reliability.

Categories: , , , ,
Description

Main Electrical Performance

  • Operating frequency: 4300 ± 100MHz;
  • Radiation power: 20 ~ 24dBmW;
  • Receiving sensitivity: better than – 85dBmW;
  • Height measurement capacity: no less than 3000m;
  • Altimetry accuracy: ±0.6 m, 5m﹤H≤10m; ±(0.3+0.03×H) m, 10m﹤H≤800m;
  • Adaptive flight attitude: ± 30° in pitch and ± 30° in roll;
  • Horizontal velocity: 0-3 mach;
  • The DC power consumption is not more than 0.365 a;
  • Working temperature: – 40 ～+ 60 ℃
  • Output form: altimeter voltage.



Mechanical Parameters

Dimension and weight of each part of altimeter

Serial number Name Size Weight(kg)

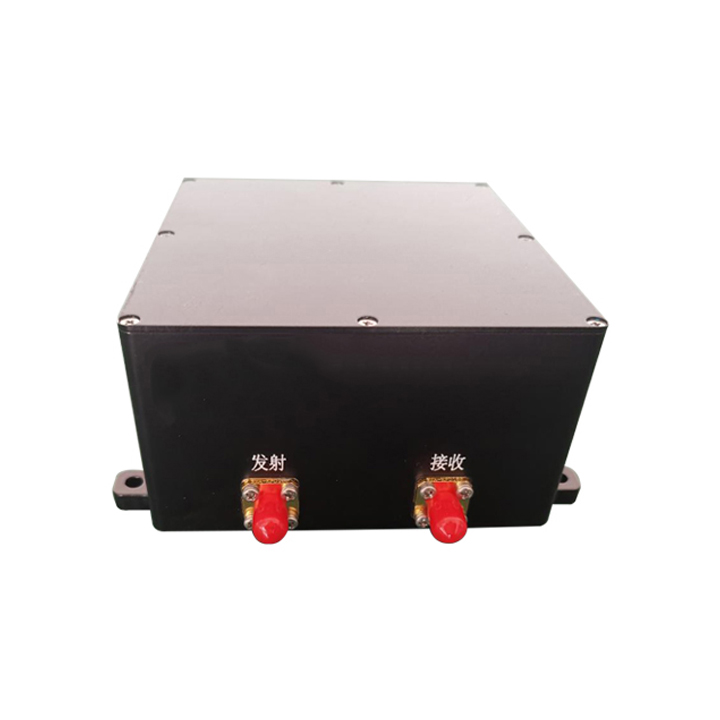

1 Measurement and control unit Body size: 103mm×97mm×55mm ≤0.75

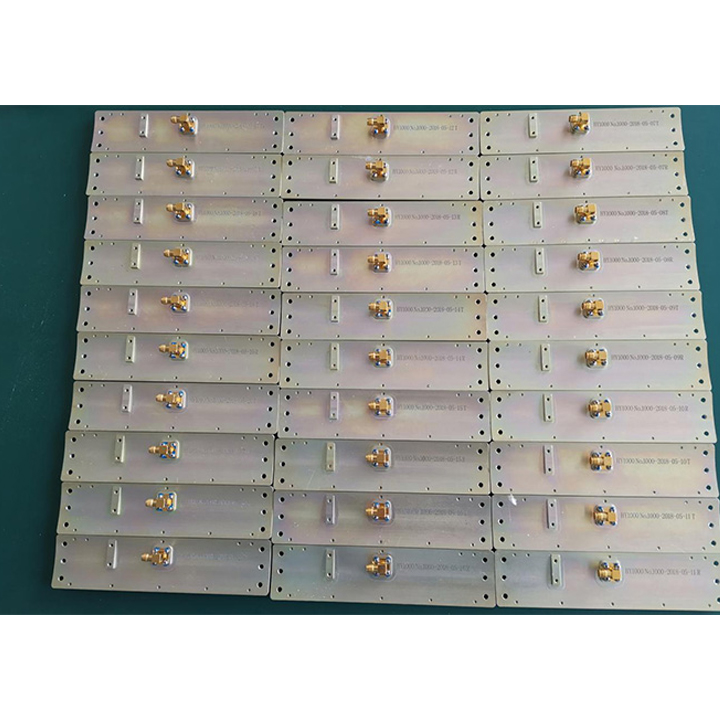

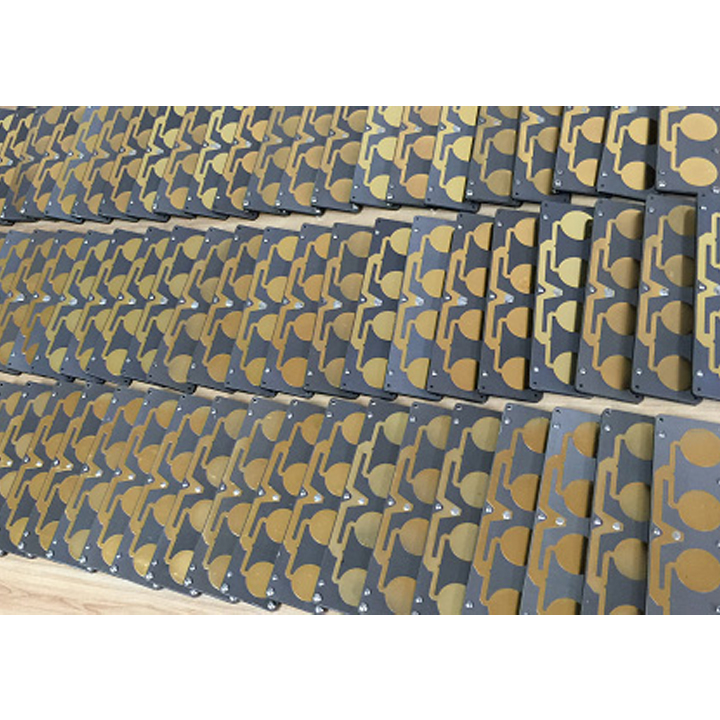

2 Antenna 170mm×40mm×6mm; (without SMA connector) ≤0.15×2
3 Feeder Transmission feeder length: 1000mm ≤0.15
4 Feeder Receiving feeder length: 1000mm ≤0.15
