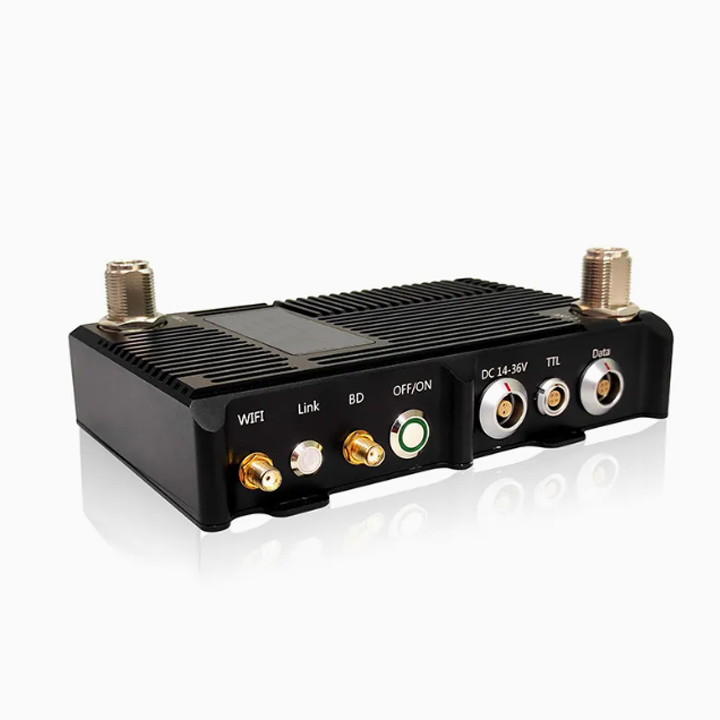

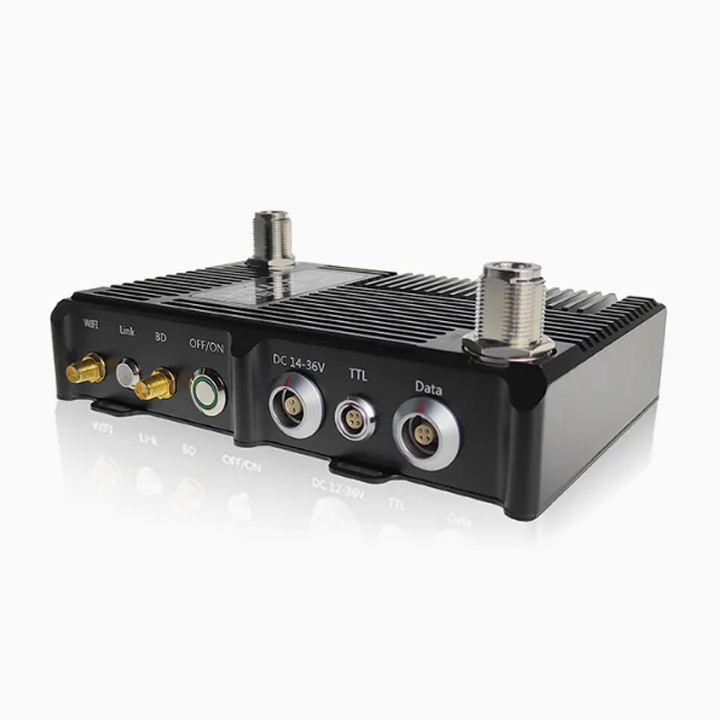

Small Size Self-Organizing Radio Station for Unmanned Systems China Moneypro Mu08 Unmanned Mesh Radio

Small Size Self-Organizing Radio Station for Unmanned Systems China Moneypro Mu08 Unmanned Mesh Radio

The China Moneypro Mu08 Unmanned Mesh Radio is a compact, self-organizing radio station tailored for unmanned systems (UAVs, UGVs, USVs) requiring flexible, resilient communication. Boasting a small form factor ideal for space-constrained platforms, it leverages advanced mesh networking technology to enable automatic node self-organization and dynamic path optimization—ensuring uninterrupted connectivity even in complex or changing environments. Designed for seamless integration with unmanned systems, this radio supports reliable data transmission, real-time command feedback, and multi-node collaboration, making it a trusted solution for missions like search and rescue, perimeter surveillance, and tactical operations where robust, self-sustaining communication is critical.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MU08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 187*137*65mm
Power Consumption ≤ 80W
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 8W (4W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤ 1.4kg (Host Only)
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MU08 Unmanned System Mesh Radio

Compact Size
2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area or 30KM Air-to-Ground Transmission Distance

Mesh Radio – Typical System Solution

Small Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh RadioSmall Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh RadioSmall Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh Radio

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W Ă— 2 (4W Ă— 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 30W
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type Ă— 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 187 × 137 × 35mm
Weight
≤ 1400g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

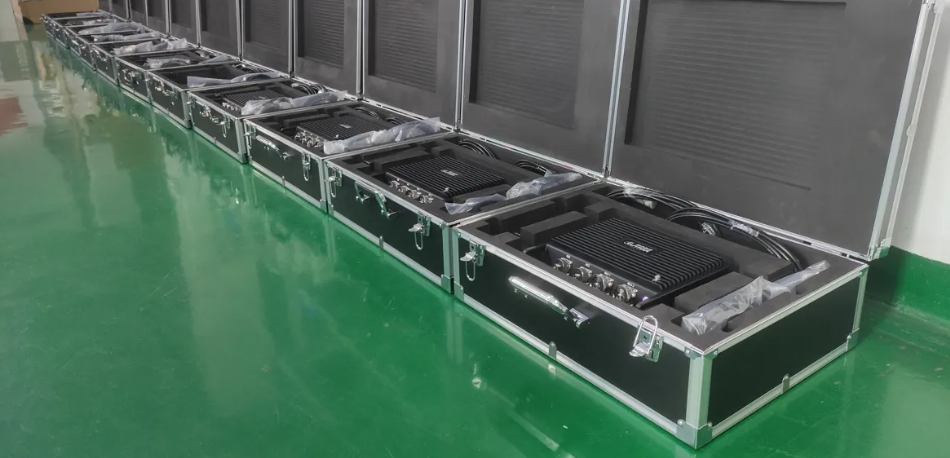

Packing & Delivery

Small Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh RadioSmall Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh Radio

Application

IP Mesh Radio Application Case

Small Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh Radio

Small Size Self-Organizing Radio Station for Unmanned Systems Suntor Mu08 Unmanned Mesh Radio
