SMARTmesh series wireless broadband ad hoc network Features
RF Performance:
● Long distance, high speed, low latency
● Anti-interference COFDM/wideband carrier frequency hopping, which can improve link quality in complex RF environments
● Excellent multi-path and NLOS performance
● Adaptive modulation from QPSK to 64QAM, achieving dynamic link performance optimization through continuous optimization per packet
● Software-defined working channel bandwidth, achieving effective utilization of spectrum
● Software-defined working frequency for global applications
● Convolutional coding, forward error correction (FEC), ACK retransmission, maximum ratio combining, spatial multiplexing and space-time block coding, for robust data transmission in noise spectrum
● Time division duplex (TDD) for bidirectional transmission
Network Performance:
● Self-organizing and self-healing mobile MESH network, multi-hop routing, dynamic topology
● Command and control ultra-reliable low-latency channel (URLLC)
● Optimizing video streaming channels on the same wireless link
● End-to-end IP architecture for unicast and multicast traffic
● Maximum 256-bit AES encryption for in-flight data transmission
● Utilizing the most advanced and scalable SDR communication platform
● Embedded network management APIs
Others:
● Suitable for mobile device applications with small size, light weight and low power consumption – low cost (SWaP-C)
● Ethernet and UART interfaces, enabling easy integration into various system architectures
● Robust and shock-resistant structure, operating within industrial temperature range
SMARTmesh series wireless broadband ad hoc network Technical Indicators
| Overall | |
| SDR platform, waveform | 9363 or 9361 + 7Z020, Mobile Network MANET |
| MIMO technology | Space-time coding, receive diversity, TX/RX beamforming, spatial multiplexing |
| Receiving sensitivity | -103dBm@5MHz BW |
| Working channel bandwidth | 1.25/2.5/5/10/20 MHz, 30/41.25/2.5/5/10/20 MHz can be set; supports transmission and reception, using different channel bandwidths, achieving a combination of broadband and narrowband0 MHz, configurable; 80 MHz CA carrier aggregation (dual antenna, 40 MHz + 40 MHz transmit-receive at different frequencies) optional |
| Transmission rate | 1-130Mbps(20MHz BW)/252Mbps(40MHz BW)/350Mbps (40 MHz + 40 MHz of CA carrier aggregation > adaptive, QoS) |
| Modulation method | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed Settings Optional) |
| RF output power(Supports TPC power self-adaptation, 1dBm adjustable> | 2 watts x 2 / 4 watts x 2 / 5 watts x 2 (Handheld / Portable / Dual-band handheld radio / Module) 10 watts x 2 (Portable / Backpack / Vehicle-mounted / Rack-mounted / Outdoor / Dual-band backpack radio) 20 watts x 2 (Portable / Backpack / Vehicle-mounted / Rack-mounted / Outdoor radio) 40 watts x 2 (Vehicle-mounted / Rack-mounted / Outdoor radio) |
| Single-hop communication distance | 100 – 300 kilometers (full view), 1 – 30 kilometers (urban area) |
| Communication method | Distributed decentralized point-to-point / point-to-multipoint / multipoint-to-multipoint, two-layer or three-layer dynamic routing, multi-hop Relay, star type / linear type / mesh type / mixed dynamic |
| Single-hop delay | Average 10ms (20MHz bandwidth) |
| Security encryption | DES, AES128/256, SM4, SNOW3G/ZUC optional, chip / TF card encryption customization or external secure device |
| Anti-interference working mode | Manual spectrum scanning channel selection, full-band enhanced intelligent frequency selection (spectrum sensing) / full-band Adaptive frequency hopping FHSS / roaming mode, multi-level anti-interference |
| Local/Remote management | Setting of working frequency, channel bandwidth, network ID, transmission power and other parameters, spectrum scanning, network topology, link field strength signal-to-noise ratio, upload and download traffic, distance between nodes, etc. real-time display and statistical recording, GPS/BD/GLONASS positioning electronic map, temperature/voltage/interference monitoring, software upgrade; remote silent and wake-up optional |
| Others | Startup time less than 28 seconds, network entry / update / switching time less than 1 second;Single system user capacity unlimited (more than 256) , self-organizing network jump times unlimited (data 15+ hops, voice 10+ hops, video 8+ hops), total bandwidth loss of more than three hops less than 70%;Automatic carrier tracking, adapt to ±6kHz frequency offset Doppler shift, support mobile communication at a speed of 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Working frequency band selection (70M – 6GHz, adjustable ∠UperCXKu). Supports TDD with either the same frequency for transmission and reception or different frequencies. Single-band 2T2R or dual-band 1T2R. | |
| Frequency band | Frequency range |
| VHF/UHF (MHz) | 360-450/450-550/570-700 800-950, 225-400/225-678 320-470* |
| L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/ 1.5-1.7/1.6-1.8, 1.0-1.5/ 1.1-1.6/1.2-1.7/1.8-2.2* |
| S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/ 2.5-2.7/2.7-2.9/3.2-3.4/ 3.4-3.6/3.6-3.8,1.6-2.3/ 1.7-2.4/1.9-2.7* |
| C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note*: Power varies with volume, size and weight) | |
| China Ministry of Industry and Information Technology (MHz) 336-344/512-592/566-626/606-678/1420-1520/1430-144 | |
| Whole structure | |
| Size/Weight | 19.0×6.8×3.8cm / 769g. 11.1V / 77.7Wh battery handheld radio |
| 27.5×18.9×6.2cm / 4.15kg. 22.2V / 213Wh battery backpack radio | |
| 19.1×18.6×6.3cm / 2.16kg. 10W x 2 / 20W x 2 vehicle radios | |
| 25.8×21.3×6.5cm / 3.95kg. 40(50)W x 2 vehicle radios | |
| 31.6×29.2×11.0cm / 4.35kg. Outdoor radio | |
| 5.1×3.0x0.7cm / 19g. 0.25W x 2 onboard radios, SM-nano | |
| 6.2×4.8×1.1cm / 44g. 0.5(1)W x 2 onboard radios, SM-mini | |
| 11.7×6.2×1.9cm / 149g. 1(2)W x 2 onboard radios – iron gray | |
| 12.2×6.2×2.9cm / 250g. 4(5)W x 2 onboard radios – iron gray | |
| 12.7×11.0x3.3cm / 635g. 10W x 2 / 20W x 2 onboard radios – iron gray | |
| 14.2×13.6×5.0cm / 962g. 10W x 2 / 20W x 2 onboard radios – black | |
| 4 mounting holes, ear / black, iron gray, military green optional | |
| Installation / Color | 4 installation holes, ear type / black, iron gray, military green optional |
| Power supply | |
| Supply voltage | 3.5 – 5VDC, 0.25 watts x 2 modules / airborne, SM-nano |
| 9 – 32VDC, 0.5 watts x 2 modules / airborne, SM-mini | |
| 9 – 39VDC, 1 watt x 2 modules / airborne | |
| 12 – 36VDC, 2 watts x 4 (5) watts x 2 modules / airborne / handheld | |
| 18 – 32VDC, 10 watts x 2 / 20 watts x 2 / 40 (50) watts x 2 modules / airborne / carried / vehicle-mounted / outdoor | |
| Power consumption | Working 1 – 2A / Standby 0.5 – 1A @ 3.5 – 5V, 0.25 watts x 2 modules / airborne, SM-nano |
| Working 0.3 – 0.5A / Standby 0.2 – 0.3A @ 12V, 0.5 watts x 2 modules / airborne, SM-mini | |
| Working 0.5 – 1A / Standby 0.4 – 0.6A @ 12V. 1 watt x 2 modules / airborne | |
| Working 1 – 2A / Standby 0.5 – 0.7A @ 12V. 2 watts x 2 / 4 (5) watts x 2 modules / airborne / handheld | |
| Working 3 – 6A / Standby 0.7 – 0.9A @ 16.8V. 10 watts x 2 airborne / carried / vehicle-mounted / outdoor | |
| Working 6 – 7A / Standby 0.7 – 0.9A @ 20V, 20 / 40 (50) watts x 2 modules / airborne / carried / vehicle-mounted / outdoor | |
| Power Supply Selection | Power supply via snap-on battery or main cable |
| Battery | 8 – 10 / 6 – 8 hours for 114 / 77.7Wh (handheld radio) |
| 10 – 12 / 6 – 8 hours for 427 / 213Wh (backpack radio) polymer lithium-ion batteries | |
| Interface | |
| Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP, GPS/BDS,RS232/TTL (UART), Sbus/Bluetooth, 1.2 – 230.4Kbps, DC input |
| Voice intercom / auxiliary interface | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
| Network expansion options | Public network routing/4G LTE private network, wide and narrow integration, satellite, fiber |
| Video expansion option | Low latency HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link status indicator ligh | Red light always on – not connected to network; Red light flashing – booting up / not connected to network |
| Green light always on – connected to network; Green light flashing – voice PTT has been pressed | |
| RSSI Link Indicator Light | Green light always on – excellent link quality; Blue light always on – good link quality |
| Yellow light always on – moderate link quality; Purple light always on – slightly poor link quality | |
| Red light always on – poor link quality; Light off – link interruption | |
| Management interface / control interface | Web-based network management/GUI, provides API secondary development interface /SNMP (or customized) |
| OEM module | |
| Size/Weight | 5.1 x 3.0 x 0.6 cm / 14g, 0.25 watt x 2 modules, SM-nano |
| 6.2 x 4.8 x 1.0 cm / 25g, 0.5 watt x 2 modules, SM-mini | |
| 8.7 x 5.4 x 1.0 cm / 40g, 1 watt x 2 modules | |
| 8.7 x 5.4 x 1.0 cm / 43g, 2 watts x 2 / 4 watts x 2 modules | |
| 12.7 x 11.0 x 3.4 cm / 524g, 10 (20) watts x 2 modules SMA, MMCX(SM-mini),.IPX(SM-nano) | |
| RF | SMP |
| Environment | |
| Working temperature | -40°C ~+80°C |
| Protection level | IP66, IP67/IP68 Customization |
Product Model Approval Certificate of the Radio Management Bureau of the Ministry of Industry and Information Technology of China
2018FP5238、2018FP6081、2021FP0114、2021DP10060、2022FP15779

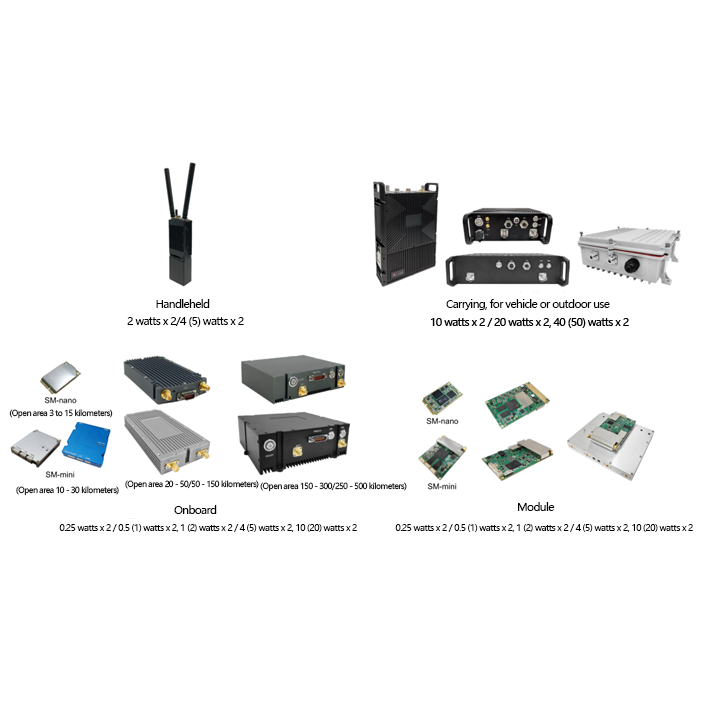

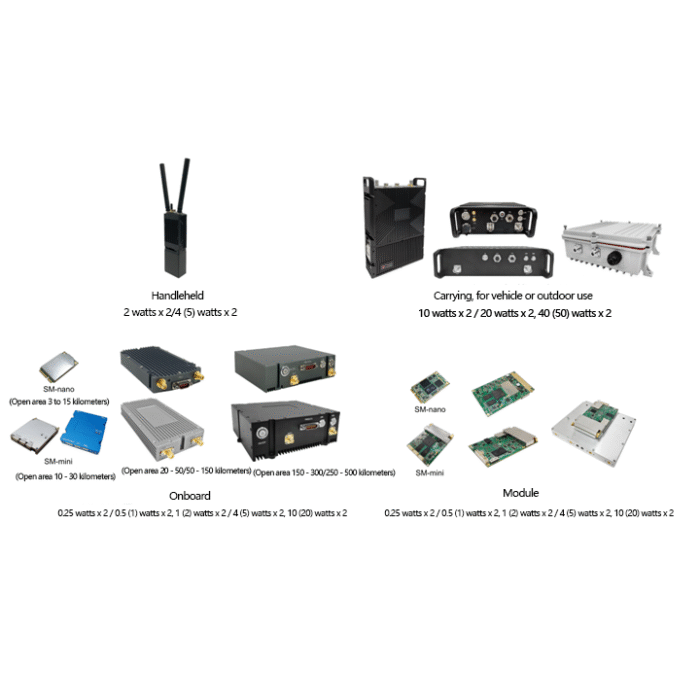

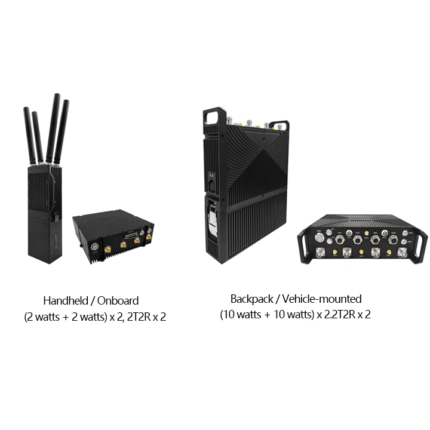

SMARTmesh series wireless broadband ad hoc network Specifications and Models
| Product type | Channel power (Wat) | Working frequency band (MHz) | Built-in WIFI AP | Built-in Positioning module | Built-in video encoding | Built-in Public network/Private network | Display screen | Built-in Optical MODEM |
| HandHeld | 0.25,0.5,1 | 600, U | 0 (None) | 0 (None) | 0 (None) | 0 (None) | 0 (None) | 0 (None) |
| BackPack | 2,4.5 | 1400, L | 1 (There is) | 1 (There is) | HDMI | 4G/5G Module | 2 (2 inches) | 1 (There is) |
| VehiCle | 1,20 | 2300, S | SDI/AV | 4G LTE CPE | 3 (3.2 inches) | |||
| AirBome | 40, 50 | 4500,C | 4 (4 inches) |
SMHH-2×2-1400-1-1-HDMI-4G/5G-0-0 indicates: 2 watts x 2, 1400 MHz, with WIFI AP, with positioning module, built-in HDMI encoding, built-in 4G/5G public network module, without display screen, without optical MODEM handheld radio.
SMBP-10×2-600-1-1-SDI-4G LTE-0-0 indicates: 10 watts x 2, 600 MHz, with WIFI AP, with positioning module, built-in SDI encoding, built-in 4G LTE private network module, without display screen, without optical MODEM backpack radio.

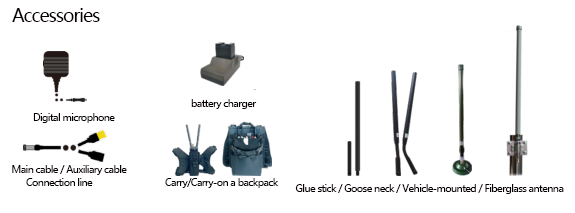

SMARTmesh series wireless broadband ad hoc network Accessories

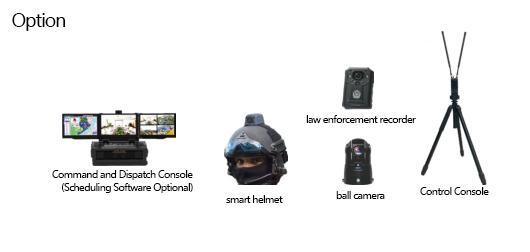

MIMOmesh series wireless broadband ad hoc network Option
