6.38m Monohull Dual-Engine High-Speed Vessel

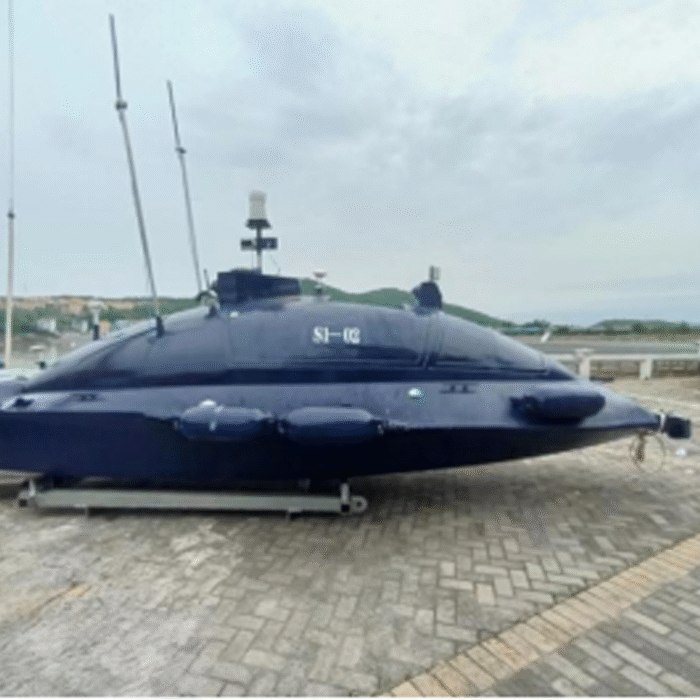

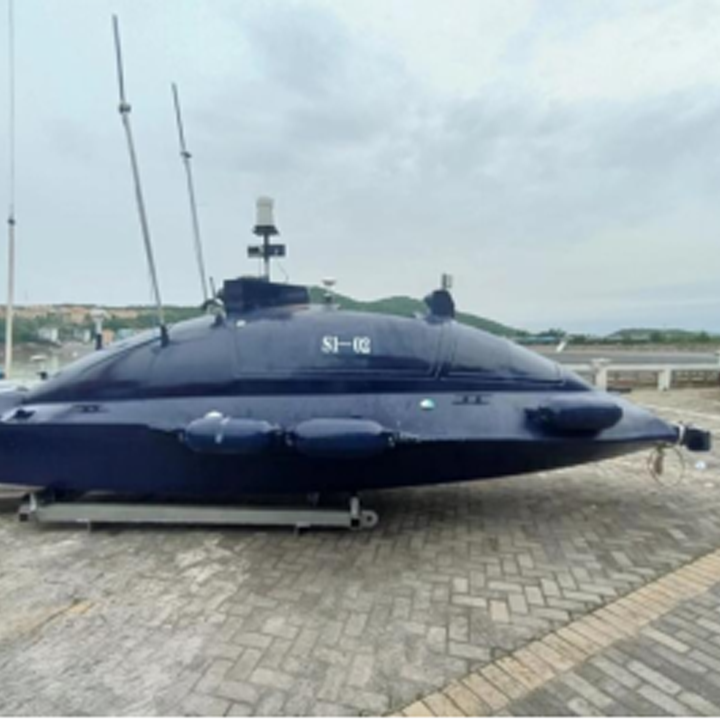

MST07 Suicide Unmanned Surface Vehicle (USV) – Autonomous Explosive Naval Drone Boat

The suicide unmanned boat is a single body high-speed boat. The shape of the boat is shark-like and the line is smooth. The hull is made of glass fiber reinforced composite material (fiberglass), which has excellent durability, corrosion resistance and easy repair. The propulsion is a single engine and single spray pump power system.

Categories: ,
Description

MST07 Suicide Unmanned Surface Vehicle (USV) – Autonomous Explosive Naval Drone Boat Parameters

Overall lenthh LOA 6.5 m
 water line length LWL 6.3 m
 molded breadth B 1.8 m
 moulded depth D 1.1 m
designed draft d ～0.33 m
 load displacement Δ ～1.7 t
The height above the water line h 1.5 m
Host power P 150 kw
Maximum still water speed V 34 kn
Maximum speed at sea V 30 kn
Adaptable sea conditions Level 3
Maximum range 160 n mile

MST07 Suicide Unmanned Surface Vehicle (USV) – Autonomous Explosive Naval Drone Boat Function Indicators

(1) Adaptation to sea conditions: normal navigation and operation can be carried out under sea conditions of class 3 (including Class 3).

(2) Autonomous navigation control accuracy: average track error <5 meters, speed error ≤ 1 knot.

(3) Data monitoring function: implement monitoring of unmanned boat information, including fuel quantity, speed, yaw and roll, etc.

(4) Multiple control modes: manual driving, handheld remote control navigation, base station remote control navigation and autonomous navigation

(5) Photoelectric detection capability: day and night photoelectric detection capability, real-time image back transmission capability.

(6) Autonomous control of navigation safety: equipped with electronic fence, navigation control and operation status monitoring and other safety measures.

(7)Remote communication capability: the communication distance is 20 km, which can meet the requirements of video transmission and remote control.
* Weitong can be installed according to mission requirements.

(8) Forming up capability: capable of forming up with multiple vessels.

(9) It has the function of comprehensive storage of database and log information.

(10)Boat body protection: the boat body is equipped with anti-collision cushion/sphere, which has a certain protective ability.

Suicide Unmanned Surface Vehicle (USV) – Autonomous Explosive Naval Drone Boat
