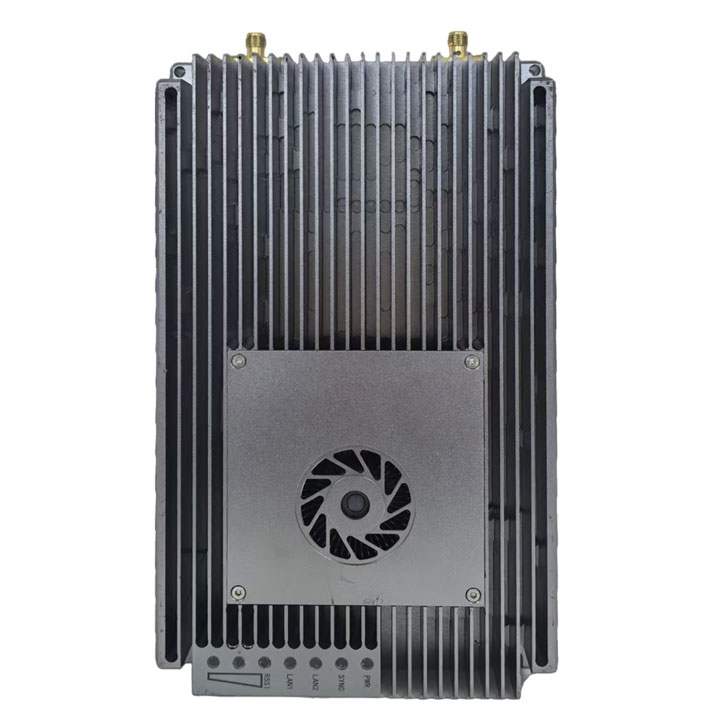

SwiftLink MYD1400-P46 300KM Video and Data Link Module Features
- One solution for video,command and control,and telemetryÂ
- Air-to-ground visibility 200km+ when using omni antennasÂ
- Air-to-ground visibility 300km+ when using directional antennas
- Adaptive channel selection(ACS)
- Real-time interference detection and anti-interference algorithm processing
- Automatic power control(APC)
- Adaptive modulation mode based on Shannon limit(Auto MCS)
- High reliability, good stability, and low delay
- Dual network ports, four serial ports
SwiftLink MYD1400-P46 300KM Video and Data Link Module Parameters
Description
- Working frequency
- 1350~1470MHz
Wireless channel
- Transmission power
- 46dBm(40W)
- Transmission distance
- 300km(Directional antenna) 200km (Omni antenna)
- Channel bandwidth
- 10MHz
- Modulation mode
- QPSK/16QAM
- Receiving sensitivity
- -99dBm@10MHz@QPSK1/3
- Data rate
- Up to 15Mbps@16QAM3/4
- Transmission delay
- 10ms
Interface index
- Radio frequency interface
- SMA*2
- Equipment interface
- Network Port *2 + TTL/RS232 *2 + 422 + SBUS
Electrical specifications
- Overall power consumption
- Air Unit ≤ 200W Ground Unit≤ 20W
- Working voltage
- DC 22~30V,Typical value: 28V@8A
Physical specifications
- Dimension(L*W*H)
- 189mm*110mm*30mm
- Weight
- 624g
- Working temperature
- -40℃~+65℃
