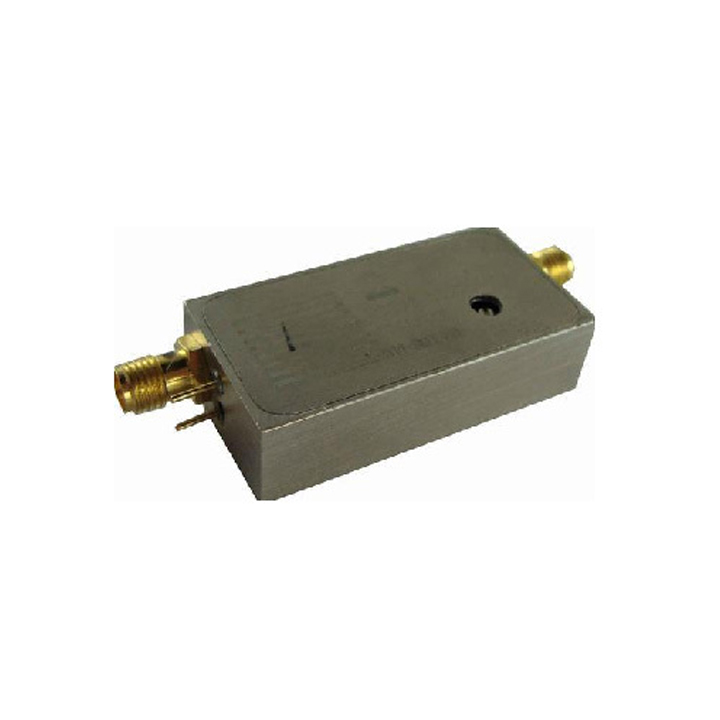

Switch and Phase Shifter
Backed by its experienced microwave team, process team, and management team, Hangtai Technology has been consistently advancing the R&D and production standards of microwave components. The microwave components developed by this division are able to not only fulfill the requirements of the company’s radar and radio altimeter products but also contribute to serving societal needs.
Related products
MDG-100 Radio Height Setting Device
The MDG-100 radio altimeter operates in the C-band and adopts a pulse Doppler working system. Its sensitive device is of the heterodyne type, and the circulator at the antenna terminal uses a transceiver common-mode design. With mature technology, this altimeter is installed on missiles and serves as a control component for altitude fuzes. It features capabilities such as high burst altitude, strong adaptability to high falling speeds, and excellent performance in resisting ground clutter and sea clutter. Additionally, it employs pseudo-random pulse modulation technology: the pulse period varies randomly within a specified range, making it difficult for jammers to identify the initial modulation pulse of the fuze signal and further predict the delayed pulse. This design effectively enhances the altimeter’s resistance to active interference.
MDG-400 Radio Altimeter
The MDG-400 radio altimeter operates in the C-band and adopts a frequency-modulated continuous wave (FMCW) working system, with its antenna utilizing a transmit-receive separation mode. Prior to missile launch, the altimeter (serving as the height-fixing device) is powered on, and it undergoes self-check and height presetting via the communication interface. After the missile is launched, the radio frequency (RF) module is activated, and frequency variation parameters are set based on the preset height. When the preset height is achieved, the altimeter outputs height-fixing command information and telemetry data. The MDG-400 altimeter features mature technology; its adoption of frequency-modulated continuous wave (FMCW) technology endows it with the advantages of compact size and a large height measurement range.
Subminiature Radio Altimeter MY-70B
The MY-70B radio altimeter is a solid-state C-band radio altimeter system based on frequency-modulated continuous wave (FMCW) technology, characterized by constant beat frequency and closed-loop tracking measurement. It maintains a constant beat frequency by servo-controlling the slope of the sawtooth wave that modulates the microwave oscillator, thereby achieving automatic altitude tracking. Under the condition of constant beat frequency, the measured altitude is proportional to the modulation period; thus, altitude information can be obtained by measuring the modulation period, and the system then converts this information into an altitude voltage for output. The MY-70B altimeter possesses excellent anti-jamming performance, owing to its adoption of a narrow-band receiver (with gain adjustable according to altitude) as well as technologies including equivalent spectrum front-end detection, weighted frequency identification, and automatic servo tracking. In terms of component design, its high-frequency components implement microwave integration while its low-frequency components adopt a modular design—these measures collectively enhance the product’s reliability, anti-interference capability, and electromagnetic compatibility. Additionally, the MY-70B altimeter uses RS422 and CAN protocols for its interface output, which further improves the reliability of the product’s data transmission.
Micro Radio Altimeter MY-2001
The MY-2001 altimeter is a new-generation radar altimeter designed for small missile aircraft; as a compact, full-function radio altimeter that meets aerospace standards, it serves as a key component for longitudinal height channel control and can be widely used in cruise missiles and UAVs to measure altitude relative to the sea or ground. The MY-2001 adopts linear modulation coefficient technology adaptive to height changes and echo signal narrow-band receiving technology to enhance the product’s resistance to active interference, uses coherent local oscillator mixing to achieve superior performance in resisting co-frequency asynchronous interference, employs echo signal spectrum front detection technology to improve tracking accuracy, and follows the three design principles of serialization, standardization, and modularization to ensure good product inheritance; moreover, built on a closed-loop tracking system, it integrates digital control technology, microwave integration technology, and hybrid integration technology to realize product miniaturization.
MASS-18 Universal Echo Precision Delay Module (Miniature Universal Continuous Simulation)
The MASS-18 Universal Echo Precision Delay Module, characterized by its miniature design and universal continuous simulation capability, is a high-precision component engineered for precise echo signal delay adjustment in radio frequency (RF) testing scenarios. It specializes in delivering accurate, customizable delay for echo signals across a broad frequency range, making it compatible with diverse RF devices—including radio altimeters, surveillance radars, and communication systems—that require reliable echo signal simulation. Its compact form factor allows easy integration into space-constrained test setups, while the universal continuous simulation function ensures consistent replication of real-world signal delay conditions (such as those caused by varying altitudes or distances). By enabling precise control over echo delay, the module plays a critical role in verifying key performance metrics of target devices, such as signal capture accuracy, delay response, and data processing reliability, thereby supporting the development, calibration, and quality assurance of high-performance RF equipment with flexibility and precision.
Subminiature Radio Altimeter MY-70A
The MY-70A radio altimeter is a solid-state C-band radio altimeter system based on frequency-modulated continuous wave (FMCW) technology, featuring constant beat frequency and closed-loop tracking measurement. It maintains a constant beat frequency by servo-controlling the slope of the sawtooth wave that modulates the microwave oscillator, thereby achieving automatic altitude tracking. Under the condition of a constant beat frequency, the measured altitude is proportional to the modulation period; thus, altitude information can be acquired by measuring the modulation period, and the system then converts this information into an altitude voltage for output. The MY-70A altimeter boasts excellent anti-jamming performance, thanks to its adoption of a narrow-band receiver (with gain adjustable according to altitude), as well as technologies including equivalent spectrum front-end detection, weighted frequency identification, and automatic servo tracking. Additionally, the altimeter’s high-frequency components are implemented with microwave integration, while its low-frequency components utilize a modular design—these measures collectively enhance the product’s reliability, anti-interference capability, and electromagnetic compatibility.
MASS-06 Continuous Echo Simulation Excitation System of Radio Altimeter
The MASS-06 Echo Signal Simulation Excitation System, hereinafter referred to as the "Simulation Excitation Source", is a dedicated equipment designed for the hardware-in-the-loop (HIL) simulation of radio altimeters. It serves as a key component in replicating real-world echo signal scenarios, providing targeted excitation signals that enable the radio altimeter to operate under simulated physical conditions—effectively bridging the gap between theoretical testing and actual operational environments to validate the altimeter’s performance, responsiveness, and reliability.
