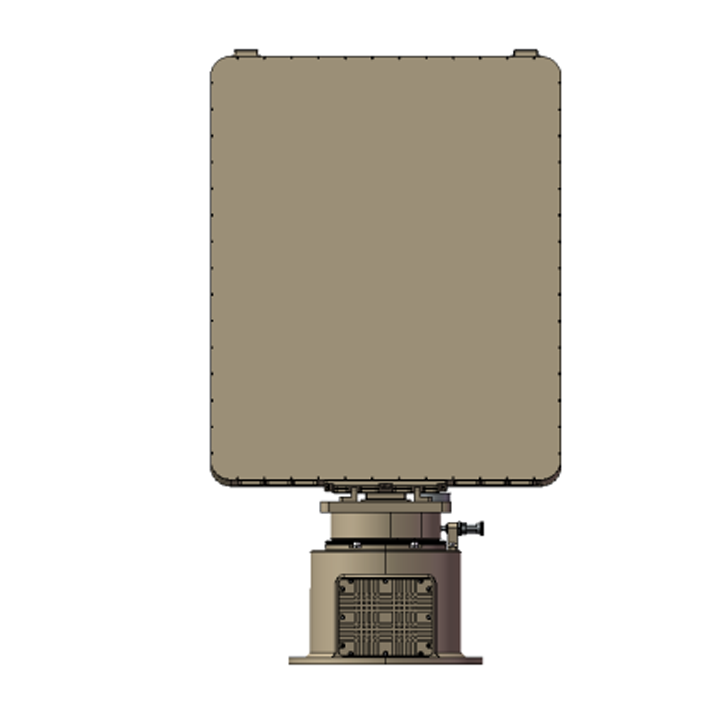

T30 high precision three coordinate active phased array radar Applicable Scenarios
1.Various types of anti-drone airspace support scenarios;
In the anti-drone scenario, the T series is responsible for large-scale airspace search and target tracking tasks. After detecting a target, the T30 radar guides the telephoto photoelectric system or directs the verification/disposal UAV to identify, confirm, and lock onto the target. It then hands over the target to the strike/disposal system for disposal.
In this application scenario, the high data refresh rate of T series radar 2s/1s, high target capacity 500 batches, and high accuracy (azimuth accuracy 0.3, pitch accuracy 0.3, distance accuracy 5 meters) all play a crucial role.
2.Integrated border air defense scenario:
The development of UAV has posed a severe challenge to China’s border security, and put forward the requirements of integrated air-ground supervision for border posts. Active phased array three-coordinate radar + photoelectric integrated equipment + UAV countermeasure system has become the necessary border security equipment.
In this application scenario, many competing radar systems struggle to balance air-to-air detection capabilities with ground detection optimization. However, when focusing on ground detection and clutter processing, they often lose track of aerial targets, failing to achieve both air and ground coverage simultaneously. The T30 radar team employs a proprietary pattern recognition algorithm that optimizes signal processing for both airborne and ground applications. This system automatically selects optimal patterns and parameters for each target, delivering exceptional performance in both air and ground detection capabilities.
It can adapt to the air-sea integrated detection and monitoring mission under the third-level sea condition.
3.Airport anti-animal/anti-bird scenario
China has emphasized ecological protection and bird protection for many years. While the ecology of large birds is gradually recovering and flourishing, flocks of birds also pose a threat to the safety of aircraft takeoff and landing at airports.
As an active phased array radar, T30 has the characteristics of long range, clean clutter filtering, strong detection capability of small targets, strong individual resolution of clustered targets, large target capacity and high tracking accuracy.
The T30 radar has also developed a unique 1s/ circle high speed target tracking operation mode, which is particularly suitable for small high speed target detection needs.
4.Full air surveillance mission for emergency deployment
The ultra-low power of T30 is less than 450W, combined with its large monitoring space of more than 30km and large monitoring height of more than 4500m, T30 has the advantages of high emergency deployment efficiency compared with other radars.
T20 high precision three coordinate active phased array radar Technical Indicators
| order | project | metric | |
| qualification | |||
| 1 | Working frequency band | X | |
| 2 | space coverage | cabrage | -5°~60° |
| position | 360° | ||
| range | 30km | ||
| blind zone | 50m | ||
| altitude | 4500m | ||
| 3 | survey distance | Small rotary-wing drones (RCS=0.01m2) |
≥10km |
| Medium fixed-wing UAV (RCS=1m2) |
≥20km | ||
| personnel | ≥15km | ||
| Small helicopters, vehicles | ≥25km | ||
| 4 | measure accuracy | distance | ≤5m(RMS) |
| Azimuth Angle | ≤0.3°（RMS） | ||
| Pitch Angle | ≤0.3°（RMS） | ||
| 5 | Antenna rotation speed | 20rpm(3s) | |
| 30rpm(2s) | |||
| 60rpm (1s) (upgradable) | |||
| 6 | Keep track of the number of targets | ≥500 batches | |
| 7 | tracing velocity scope | 1m/s~300m/s | |
| Interface-Power supply | |||
| 1 | power supply | DC36~52V (with AC220V-DC48V adapter) | |
| 2 | communication | 10 Gigabit Ethernet connector | |
| 3 | power dissipation | ≤450W | |
| environmental suitability | |||
| 1 | working temperature | -40℃～+55℃ | |
| 2 | Working humidity | ≯90% | |
| 3 | levels of protection | IP66 (host IP67) | |
| Weight and size | ||||
| 1 | weight（kg） | monomer | host | 28 |
| turnstile | 25 | |||
| tripod | 20 | |||
| package | host | 45 | ||
| turnstile | 50 (including all accessories such as adapters) | |||
| tripod | 23 | |||
| 2 | size（mm） | monomer | host | 815*650*100 |
| turnstile | 600*500*450 | |||
| tripod | 1100*450*450 | |||
| package | host | 970*780*250 | ||
| turnstile | 600*520*470 | |||
| tripod | 1100*450*450 | |||
T20 high precision three coordinate active phased array radar Product Advantages
1. Ultra-high data rate and strong tracking capability. The radar supports standard azimuth scanning speed of 180/s, and can be selected for high-speed operation mode of 360/s, which can easily deal with small high-speed targets.
2. Low probability of false alarm. By using the adaptive clutter suppression algorithm, it can automatically match and track the changes of environmental characteristics, and effectively filter the false alarm caused by environmental clutter such as trees, crops, clouds and rain, and waves. It has far better detection performance than similar products under bad weather and complex terrain conditions.
3. Integrated open space. It can simultaneously complete the security of detection airspace and the observation and alert functions of the ground battlefield, complete the battlefield situation awareness in one stop, and maintain the search and tracking of UAVs, personnel and vehicles.
4. Small size and light weight. The radar host is less than 30Kg; two people can carry the whole set of equipment to the high point, complete the erection and carry out the detection work.
5. Ultra-low power consumption and low interception rate. The power consumption of the T30 radar is only 450W, which can be supported by portable outdoor mobile power supply for a long time. The radar has low radiation power and a very low radar signal interception probability, which greatly enhances the radar concealment.
