Home » Unmanned System Products » Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio
China Moneypro Portable Tactical Wireless Transmitter with GPS and Emergency Alert Manpack Mesh Radio
Back to products
China Moneypro Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio

The Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio is an all-in-one tactical solution engineered to meet the rigorous demands of field operations. At its core, it combines high-precision GPS tracking with robust communication capabilities—delivering real-time location data of teams and assets, while enabling seamless voice and data exchange to enhance situational awareness. Powered by mesh radio technology, it creates a self-organizing, self-healing network that maintains connectivity even in remote, obstructed areas or when nodes are disrupted, ensuring uninterrupted collaboration. Its integrated wireless video link supports low-latency, high-definition video transmission, allowing operators to share critical visual intelligence instantly—vital for military missions, law enforcement surveillance, and emergency rescue operations. Designed as a durable manpack, it balances portability with ruggedness, withstanding extreme temperatures, dust, moisture, and physical impacts. This device unifies essential tactical functions into a single, reliable tool, empowering teams to operate efficiently and safely in high-pressure, dynamic environments.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 275*198*52mm
Power Comsuption ≤ 80W
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 8W (4W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 27.50cm * 19.80cm * 5.20cm
Package Gross Weight 3.000kg

Product Description

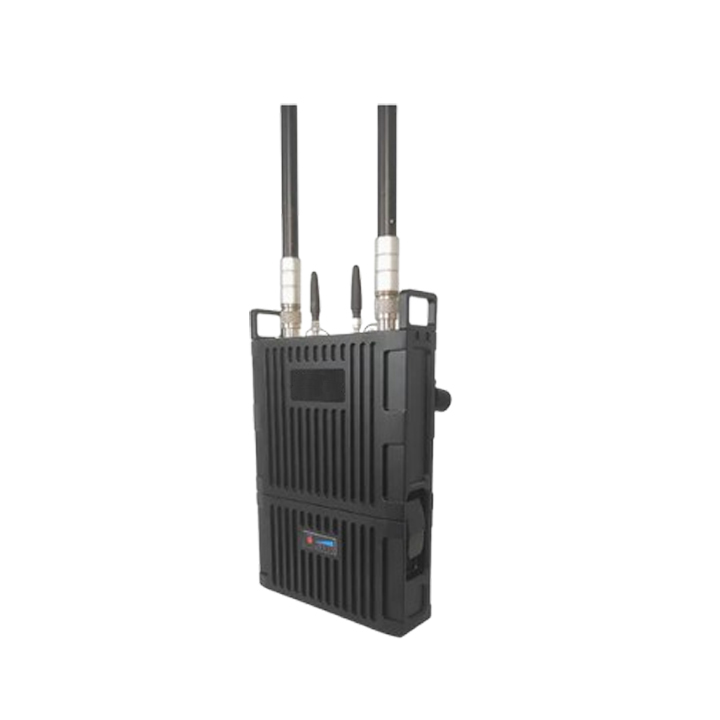

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance
Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio
Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio
Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

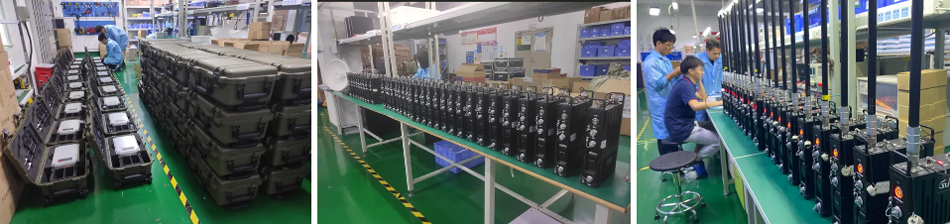

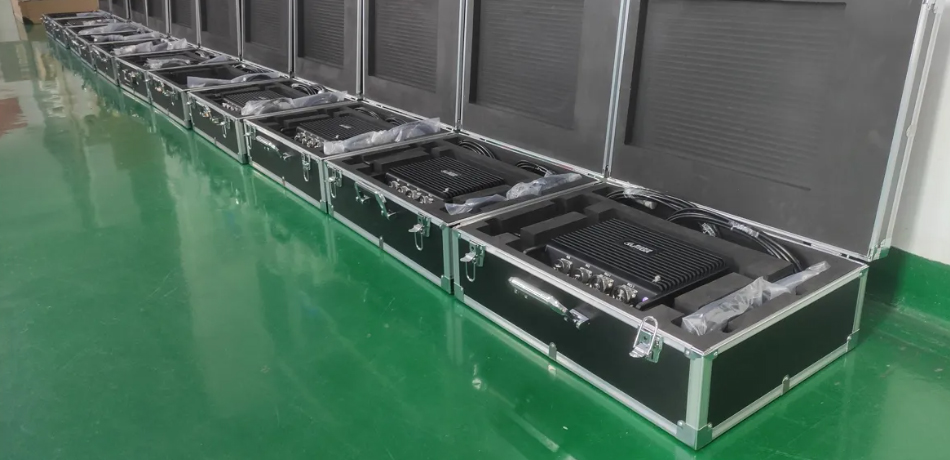

Packing & DeliveryTactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio

Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio

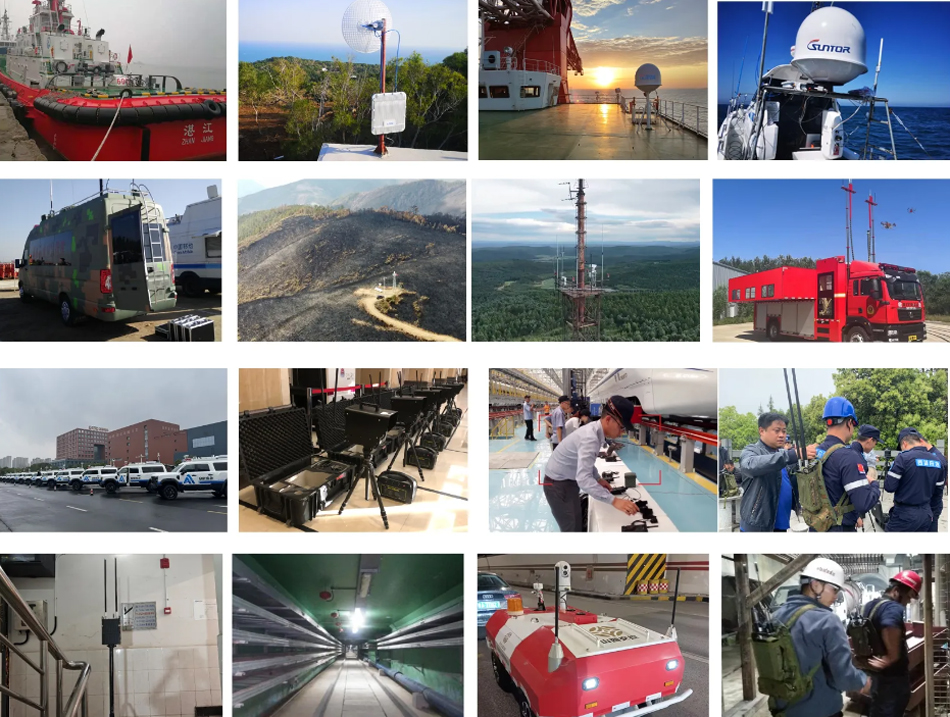

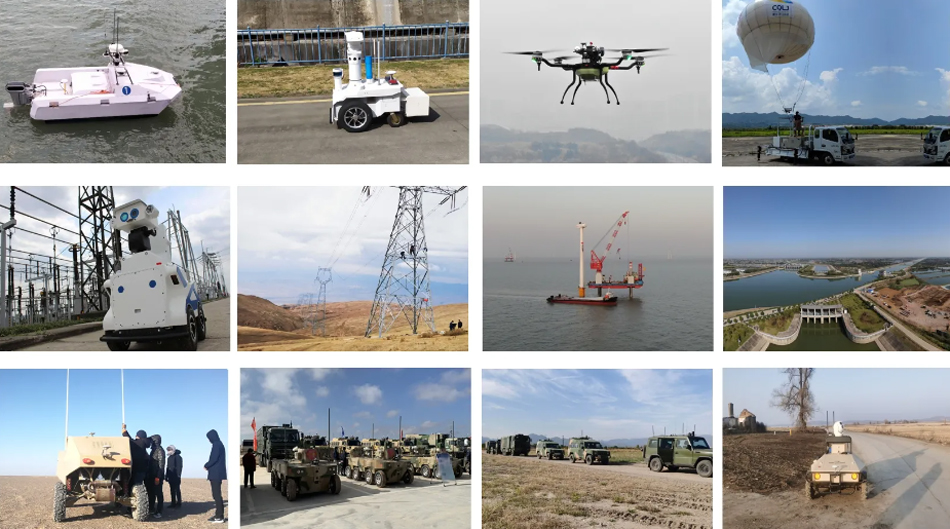

Application

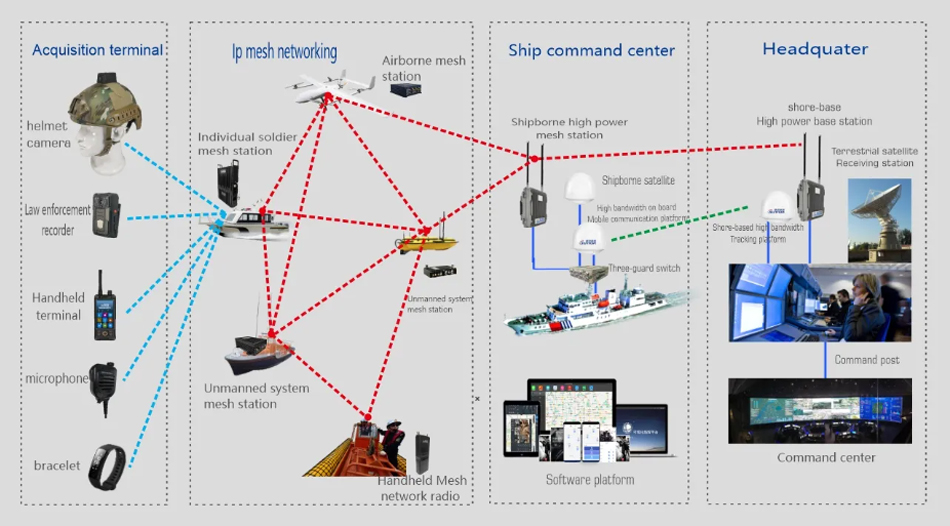

IP Mesh Radio Application Case

Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio

Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio
