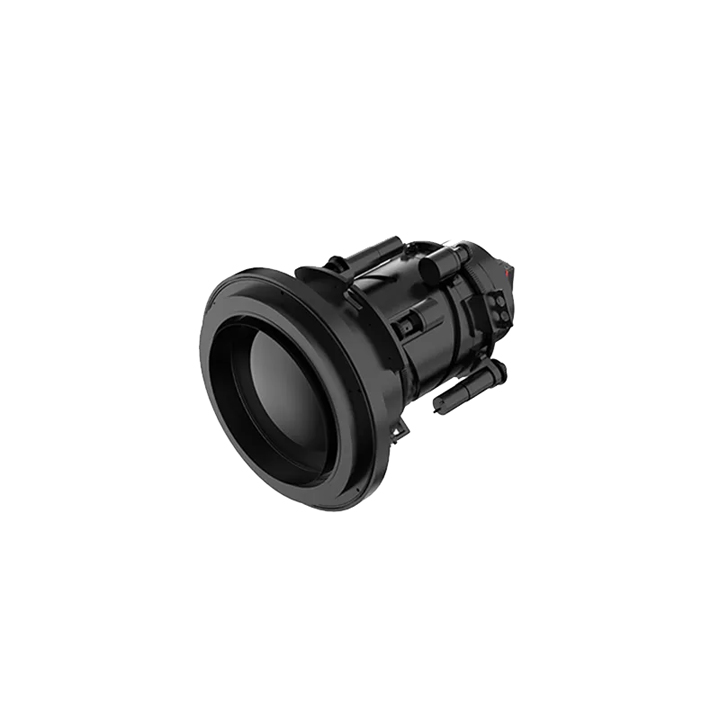

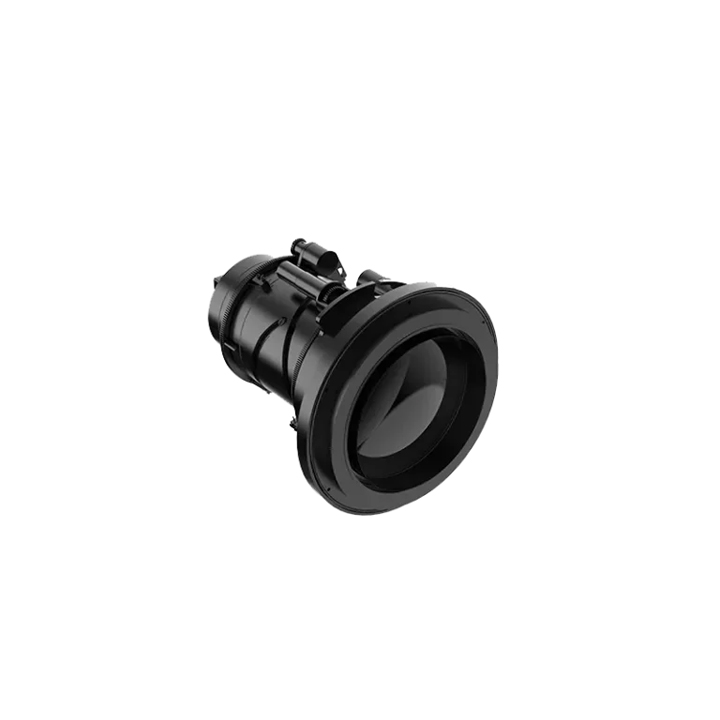

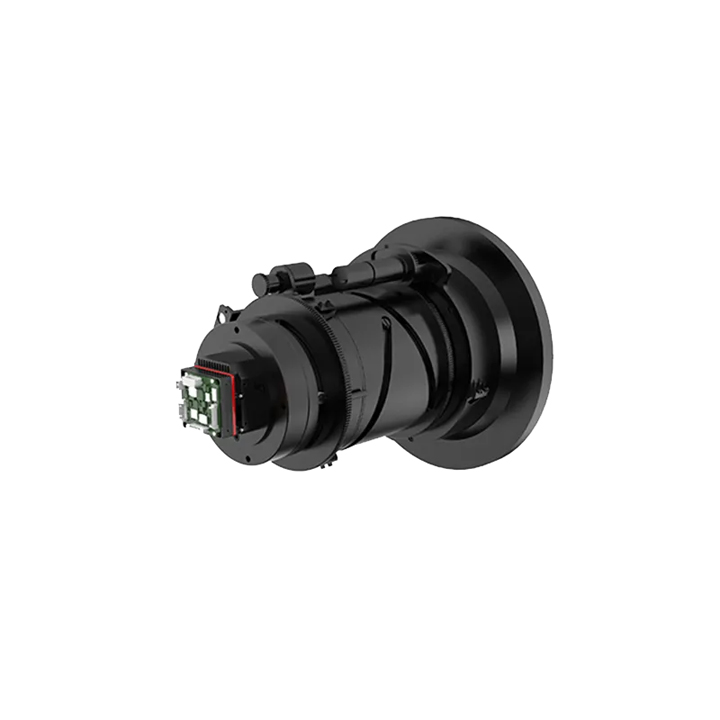

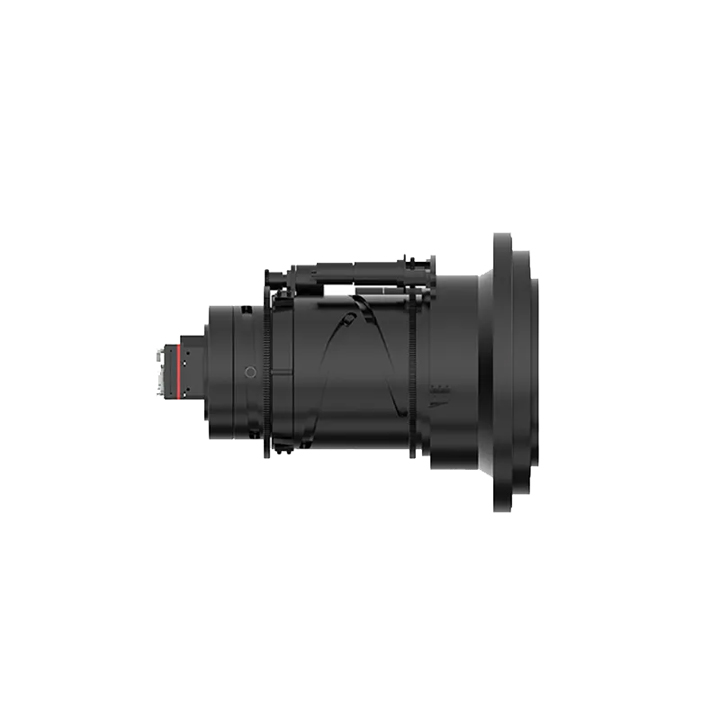

Turing M384 Uncooled Infrared Module (Imaging)

The Turing M384 uncooled infrared module integrates a high-sensitivity VOx infrared detector, delivering a high-performance core, advanced image processing algorithms, and intelligent lens control technology. This combination ensures superior long-range surveillance capabilities. The module is ideal for a variety of applications, including perimeter security, aerial observation, forest fire detection, and maritime monitoring.

Categories: ,
Description

Turing M384 Uncooled Infrared Module – Key Features

1. All-Weather, All-Scenario Ultra-Fast Focusing

  • Optimized lens control technology and continuous zoom lenses ensure full focus across all temperature ranges.
  • Advanced autofocus algorithm enables ultra-fast focusing within 1 second, even in weak-target scenarios.
  • Maintains image clarity during target tracking, linkage magnification, and other dynamic applications.

2. Sharp & High-Quality Infrared Imaging

  • Upgraded next-gen image processing algorithms enhance clarity in challenging environments.
  • Optimized for forests, maritime, sky, and adverse weather conditions (rain, fog, etc.).

3. Flexible & High-Performance Lens Options

  • Supports athermalized prime lenses, electric-focus prime lenses, and continuous zoom lenses.
  • Enables electric focus, continuous zoom, autofocus, and defocus compensation for superior adaptability.

4. Multiple Interfaces for Easy Integration

  • Standard video outputs: BT.601, BT.1120.
  • Expandable interfaces: SDI, USB, Cameralink, HDMI.
  • Provides user-friendly SDKs, reducing development time and costs for seamless integration.

Specification

Electrical Characteristics
Power Consumption ＜1.5w (Typical, at25°C)
Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 384×288
Detector Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤40mK at 25℃, F#1.0
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~8.0× continuous zoom (step size: 0.1)
Image Processing Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform Access Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.
Simultaneous Previewed Videos Up to 8 channels
User Management Up to 20 users, 3 levels: administrator, operator and user
Browser Google, Firefox, Edge, etc.
Intelligent Functions
Intelligent Video Support
Intelligent Alarm Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access
Intelligent Detection Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.
Alarm Linkage Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output
Lens
Lens Type Athermalized/Prime electric focus/Continuous zoom
Focus Mode Manual/Automatic
Electric Focusing Support
Electric Zooming Support
Digital
Power Supply Range 5-24V DC (Recommended voltage of 12V DC)
Digital Video LVCMOS/BT.601/BT.1120
Communication Interface RS-232/UART
Network Type
Power Supply Range 12V DC ±10%
Communication Interface One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
Alarm Interface 1-channel alarm input, 1-channel alarm output
Interface
Analog Video 1-channel PAL system
Environment Adaptability
Operating Temperature -40℃～+70℃
Humidity 5-95%, non-condensing
Product Certification RoHS2.0
PTZ Function
Fire Warning Supports fire point detection.
System Interface
Audio Interface 1-channel audio input, 1-channel audio output
Thermal Imaging
Measurement Range Not support
Measurement Accuracy Not support
Others
Storage Temperature -45℃～+85℃

Application Scenarios

  • Perimeter Surveillance
  • Forest Fire Prevention
  • Urban High-Altitude Observation
  • Security Monitoring
