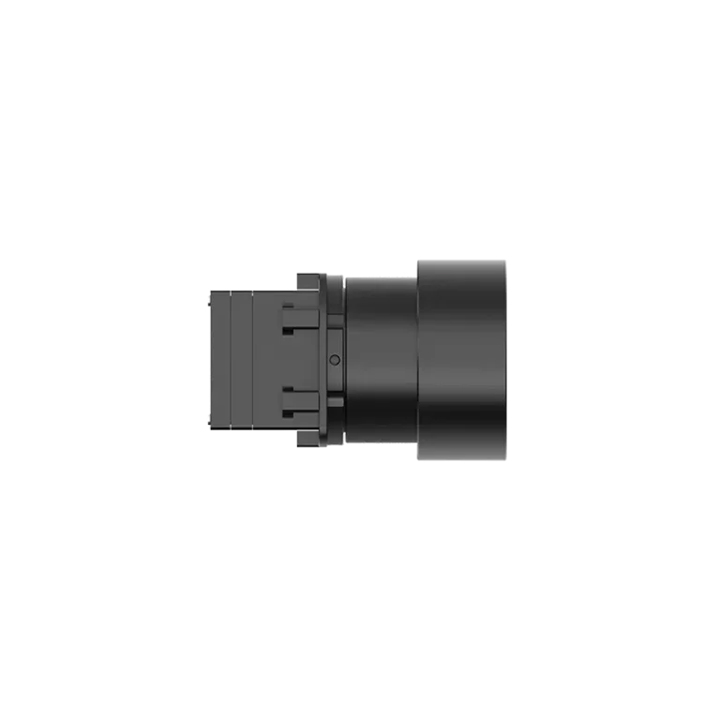

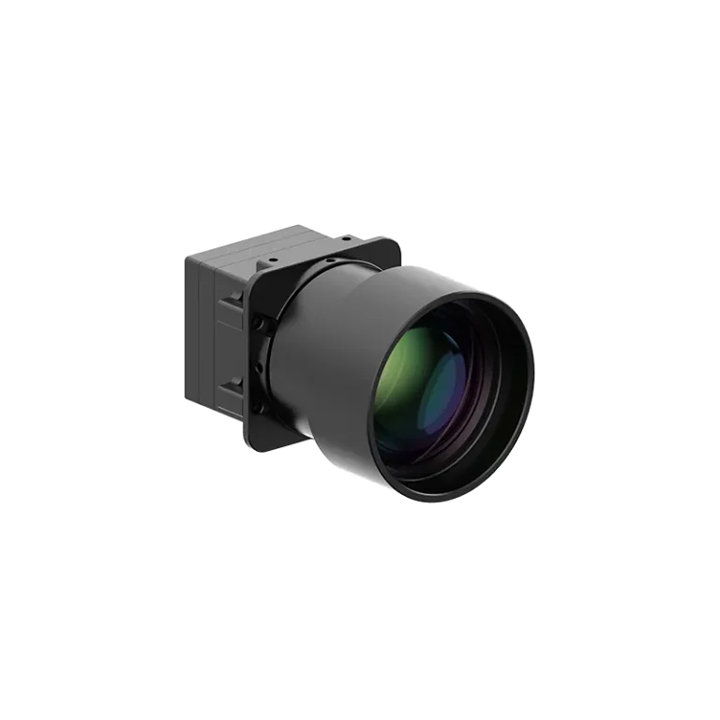

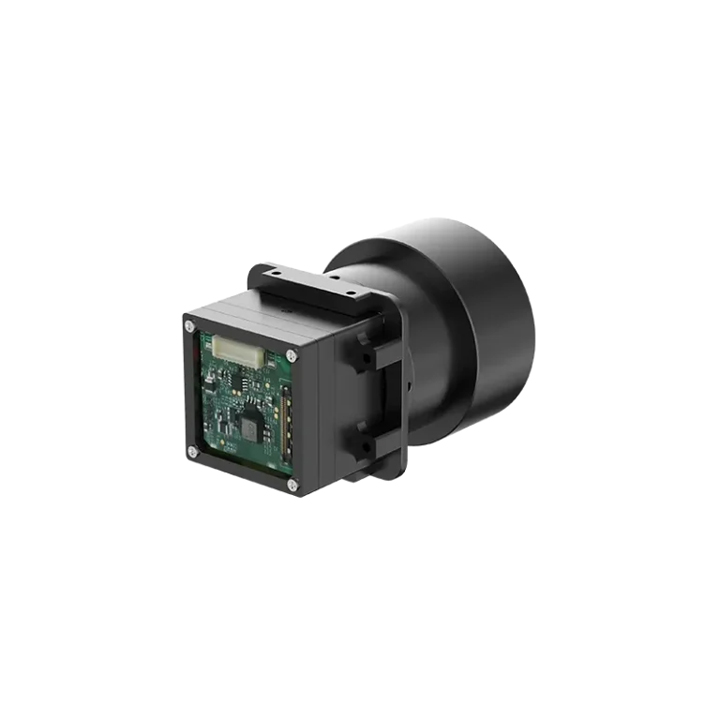

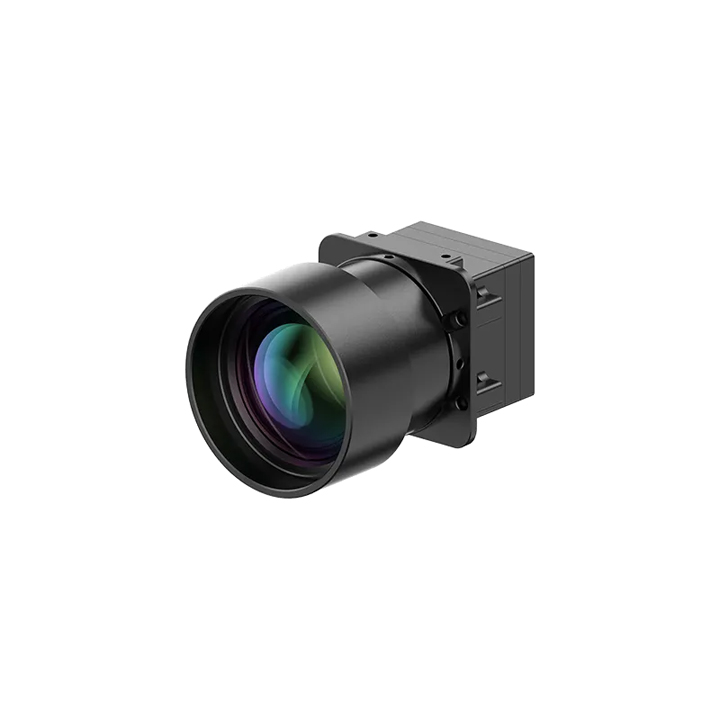

Turing M1280H Uncooled Infrared Module

The outstanding design of the Turing M1280H uncooled infrared module aims to provide great performance and dependability in challenging conditions. The product can consistently provide high-quality infrared photographs in challenging conditions thanks to sophisticated image algorithms. To meet high-performance application needs in sectors like outdoor, security, vehicle-mounted applications, and electro-optical pods, it is outfitted with a variety of extension components and rich lenses.

Categories: ,
Description

Feature

1. Outstanding Imaging Performance

  • High-resolution 1280×1024 infrared detector with 12μm VOx technology
  • Exceptional sensitivity: NETD ≤40mK @25°C, F/1.0 aperture
  • Self-developed detector ensures premium image quality and reliability

2. Rugged & Dependable

  • Military-grade durability: withstands 1000g@0.3ms mechanical shock
  • Robust construction for demanding environments

3. Flexible Integration & Lens Options

  • Multiple output interfaces:
    • Camera Link
    • BT.1120
    • HDMI
    • USB 3.0
  • Comprehensive lens compatibility:
    • Athermalized fixed-focus lenses (various FOVs)
    • Auto-focus zoom lenses for dynamic scenarios

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 1280×1024
Frame Rate 30Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤40mK at 25℃, F#1.0
Thermal Time Constant ≤15ms
Image Adjustment
Brightness/Contrast Adjustment Automatic/Manual brightness and contrast adjustment
Polarity Black-hot/White-hot
Palette Support
Image Correction Automatic/Manual/Background correction is available
Reticle Display/Blank (default)/Move (digital video)
Digital Zoom 1.0~8.0 continuous zoom (step size:0.1)
Image Processing TEC-less temperature control algorithm, Non-uniformity correction, digital filtering noise reduction, and digital detail enhancement
External Synchronization Function Self-synchronization/Internal synchronization/External synchronization/Adaptive synchronization mode
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 6-20V, Typical supply 6V
Typical Power Consumption at 25°C Without Extension Steady status ≤1W
Insulation Protection The enclosure ground is insulated from signal and power ground with an insulation resistance of >10MΩ
Interface
Digital Video BT.1120/LVCMOS
Analog Video none
Serial Communication Interface RS422/RS232/UART
Extension Components Camera Link/BT.1120/HDMI/USB
External Synchronization LVTTL
Physical Characteristics
Dimensions (Without lens and extension components) 32mm×32mm×25.5mm
Weight (3.2mm, without extension components) 43g±5g
Environment Adaptability
Operating Temperature -40°C~+60°C
Storage Temperature -45°C~+70°C
Humidity 5 ~ 95%, non-condensing
Vibration 6.06g, random vibration, three axes, 5min/axis
Impact 1000g@0.3ms, optical axis direction

Application Scenarios

  • Outdoor Observation
  • Security Monitoring
  • UAV
  • Driving Assistance
