Turing M256 Uncooled Infrared Module (Temperature Measurement)

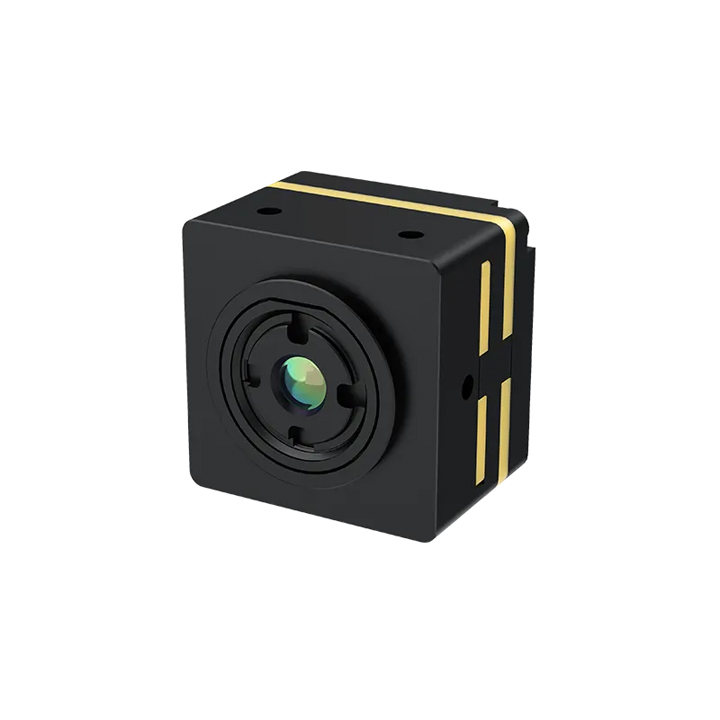

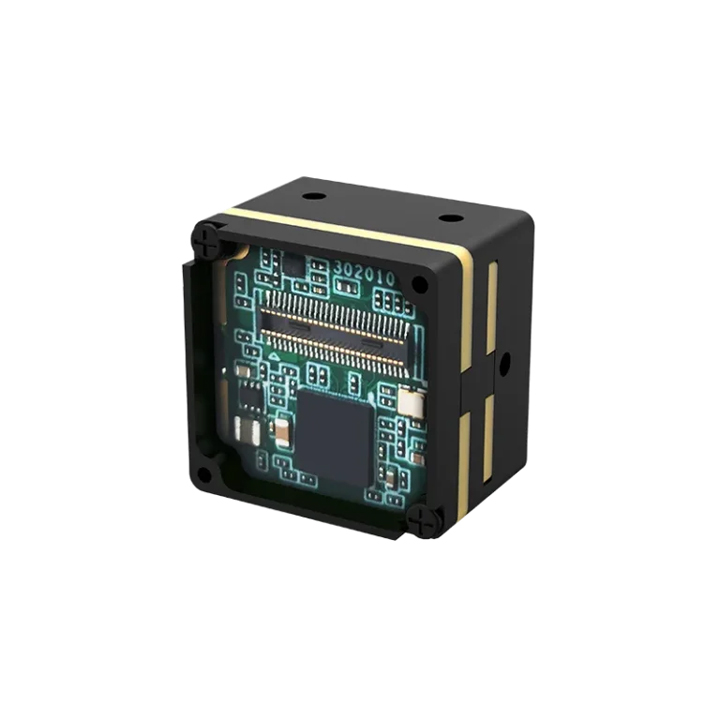

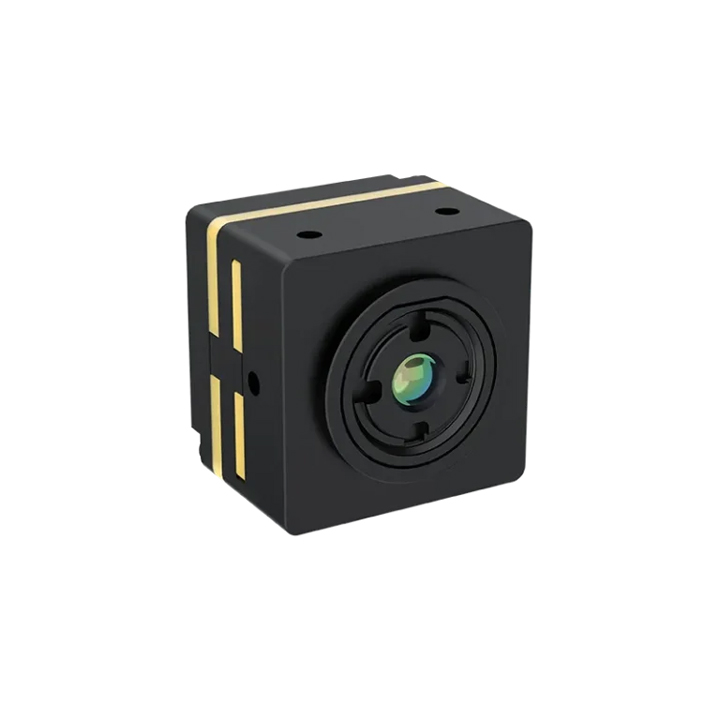

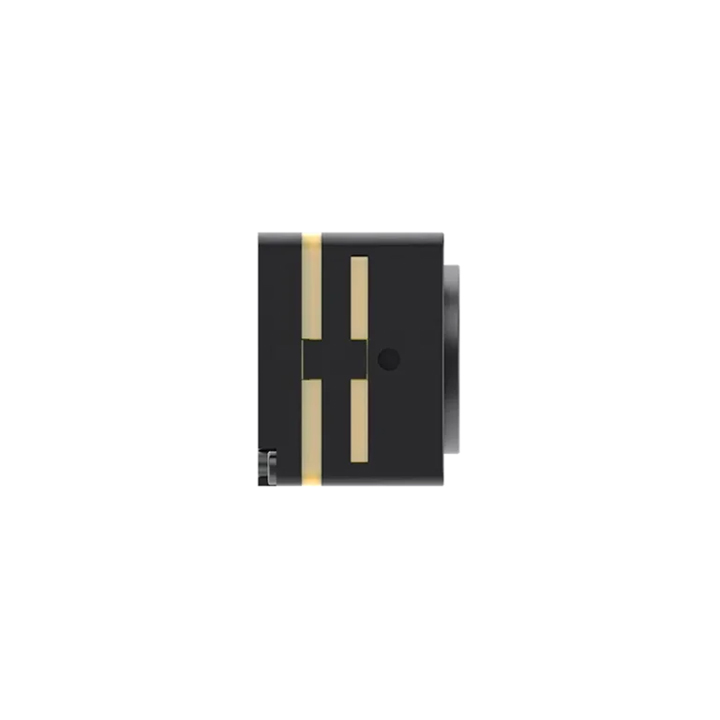

The Turing M256 uncooled infrared module has a state-of-the-art 256×192 wafer detector that measures 18×18 mm. Its integrated architecture allows it to rewrite the OEM module industry’s requirements for weight, size, and power consumption (SWaP³). It is the greatest option for affordable solutions and may be applied to a wide range of domains, including machine vision, power, industrial, and security.

Categories: ,
Description

Feature

1. Seamless System Integration

  • Standardized form factor: 18×18mm compact footprint
  • 256×192 resolution perfectly matches L384 interface specifications
  • Drop-in replacement capability for legacy L384 systems
  • Mechanical/electrical pin-compatible design

2. Advanced Thermographic Performance

  • Expanded measurement range: -20°C to +550°C
  • High thermal sensitivity: ≤50mK
  • Multi-mode operation:
    • Spot temperature measurement
    • Area temperature analysis
    • Thermal alarm thresholds

3. Flexible Configuration Options

  • Adjustable FOV lenses (20°-90°):
    • 90° wide-angle for panoramic monitoring
    • 45° standard for general applications
    • 20° narrow for detailed inspection
  • Dual-interface support:
    • Digital Video Port (DVP): 8/10-bit configurable
    • USB 2.0: 480Mbps high-speed data transfer
  • Optional expansion: I²C control interface

4. Rugged Performance

  • Industrial-grade reliability: -40°C to +85°C operation
  • Low power consumption: <1.8W typical
  • Compact & lightweight: <20g total weight

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 256×192
Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK@25°C
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette It supports multiple types
Reticle Display/Blank/Move
Image Processing Digital filtering noise reduction/Digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension ≤0.3W
Interface
Digital Video CDS3
Serial Communication Interface UART
Extension Components USB2.0
Temperature Measurement Performance
Measurement Range Temperature measurement series: -20℃～+550℃
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C
Physical Characteristics
Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) About 8.7g
Lens Model 2mm, 3.2mm, 7mm, 10mm, and 13mm
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS2.0

Application Scenarios

  • UAV
  • Security Monitoring
  • Industrial Temperature Measurement
  • Machine Vision
