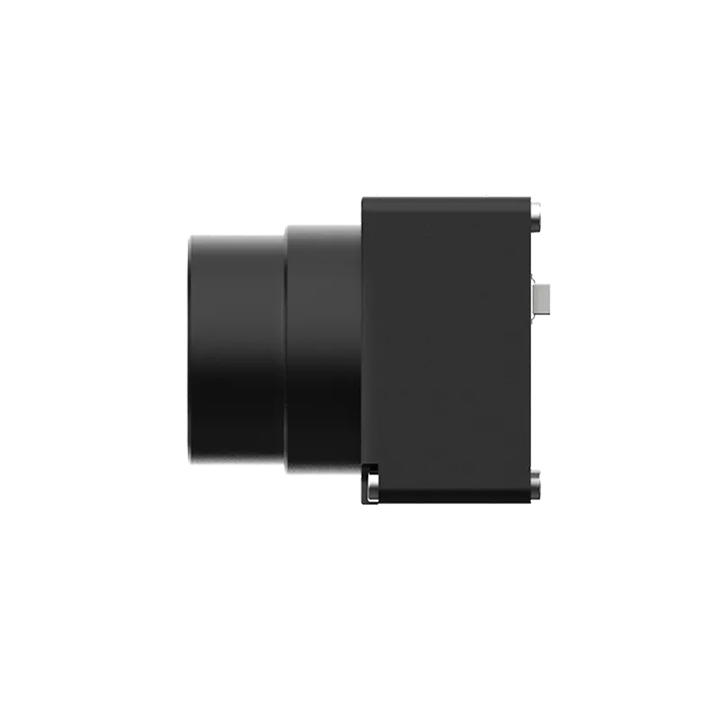

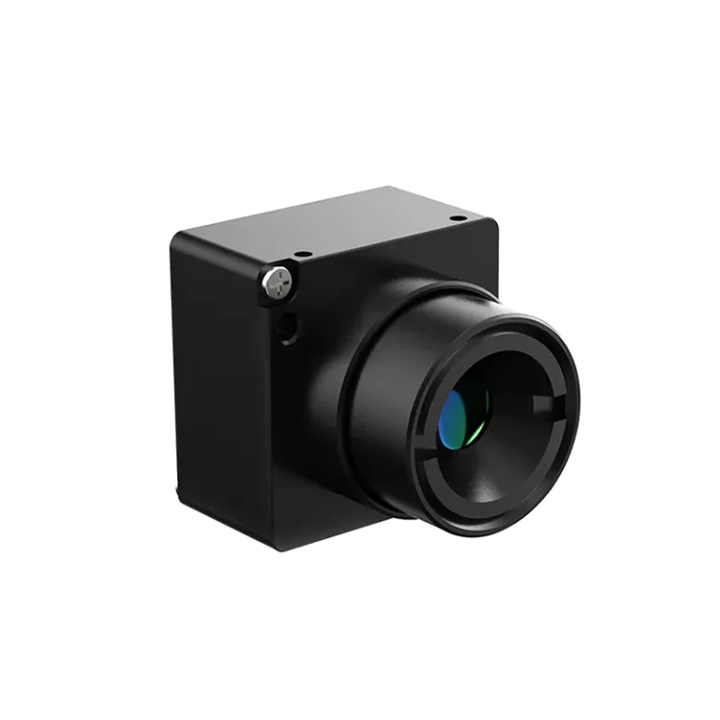

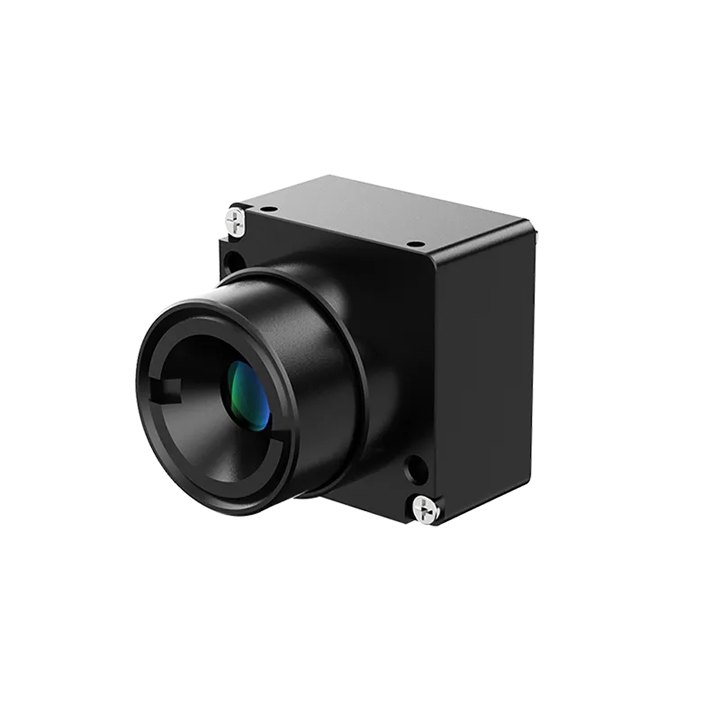

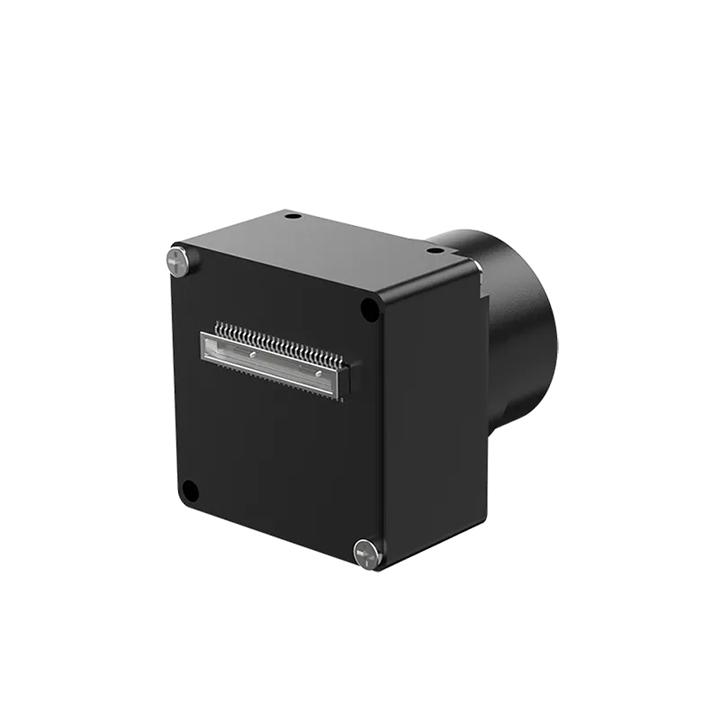

Turing M384 Uncooled Infrared Module (Imaging)

With additional technological advancements, the Turing M384 uncooled infrared module has redefined the new weight, dimensions, and power consumption (SWaP2) standard in the infrared OEM module market. It offers superior compact high-resolution solutions for consumer items and satisfies professional needs in the domains of routine inspection, security, search and rescue, and industrial monitoring.

Categories: ,
Description

Feature

1. Optimized SWaP-C Design

  • Miniature footprint: 18×18mm surface-mount package
  • Lightweight construction: Only 3.5 grams
  • 384×288 resolution uncooled microbolometer
  • Cost-effective solution for high-volume applications

2. Advanced Imaging Performance

  • Shutterless operation with continuous image correction
  • <50ms latency for real-time response
  • Adaptive AGC and 3D digital noise reduction
  • 60Hz high frame rate for smooth video output

3. Flexible System Integration

  • Wide FOV options: 10° (telephoto) to 90° (wide-angle)
  • Multi-interface support:
    • High-speed digital: MIPI CSI-2, USB 2.0
    • Legacy interfaces: BT.656, analog video (PAL/NTSC)
  • Programmable architecture:
    • Field-upgradable firmware
    • Customizable image processing pipelines
    • Configurable GPIOs for system control

4. Application-Optimized Features

  • Low power operation: <1.2W typical
  • Extended temperature range: -40°C to +85°C
  • On-board non-uniformity correction
  • Multiple output formats (RAW/YUV/RGB)

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 384×288
Detector Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8V DC / 1.8V / 3.3V
Typical Power Consumption at 25°C Without Extension ≤0.35W
Interface
Digital Video BT.656/BT.1120/LVCMOS
Serial Communication Interface UART
Extension Components USB 2.0 / Analog video
Temperature Measurement Performance
Measurement Range For measurement series, -20°C~+550°C (+650°C customizable)
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool Temperature measurement series: Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) 3.5g
Lens Model 2.88mm, 5.3mm, 10.4mm, 19mm, expandable to 45mm
Environment Adaptability
Operating Temperature -40°C~+80°C (-20°C~60°C measurement)
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS

Application Scenarios

  • Handheld Device
  • Security Monitoring
  • UAV Pod
  • Machine Vision
