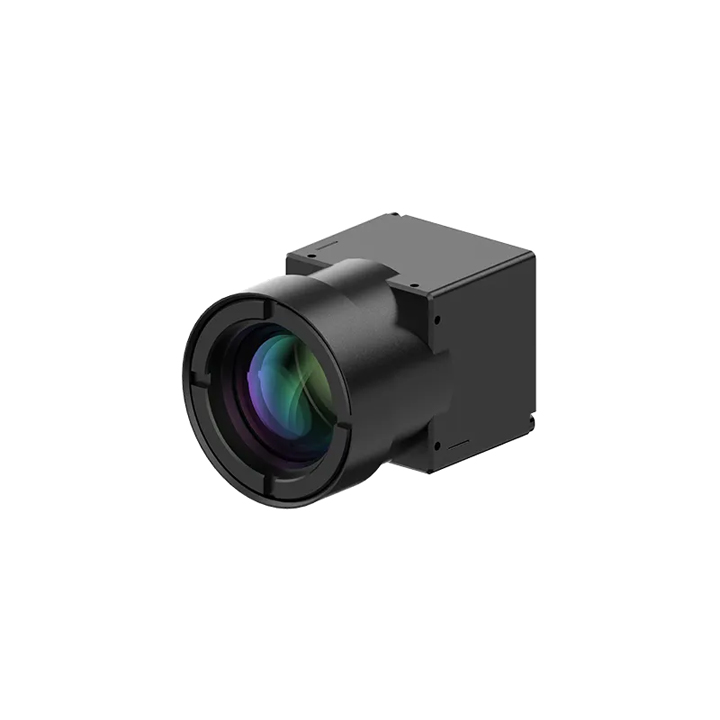

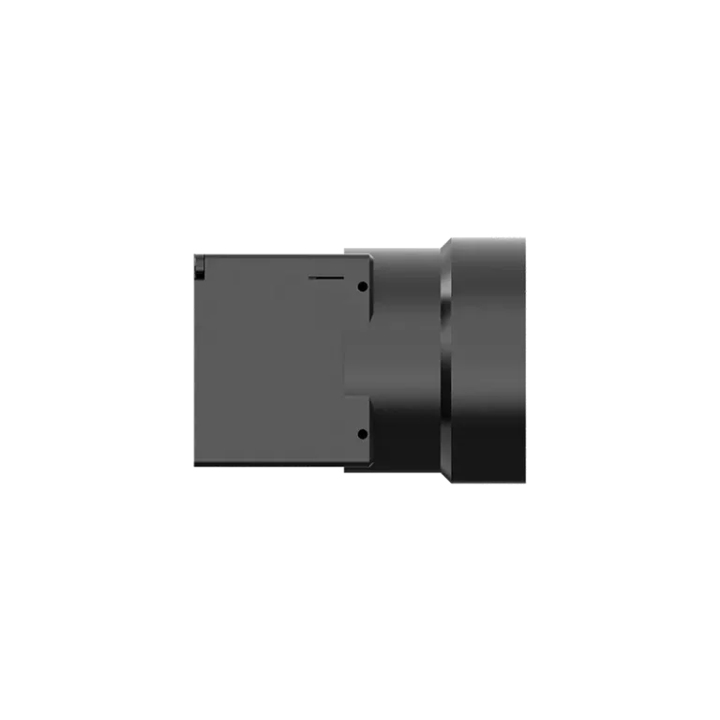

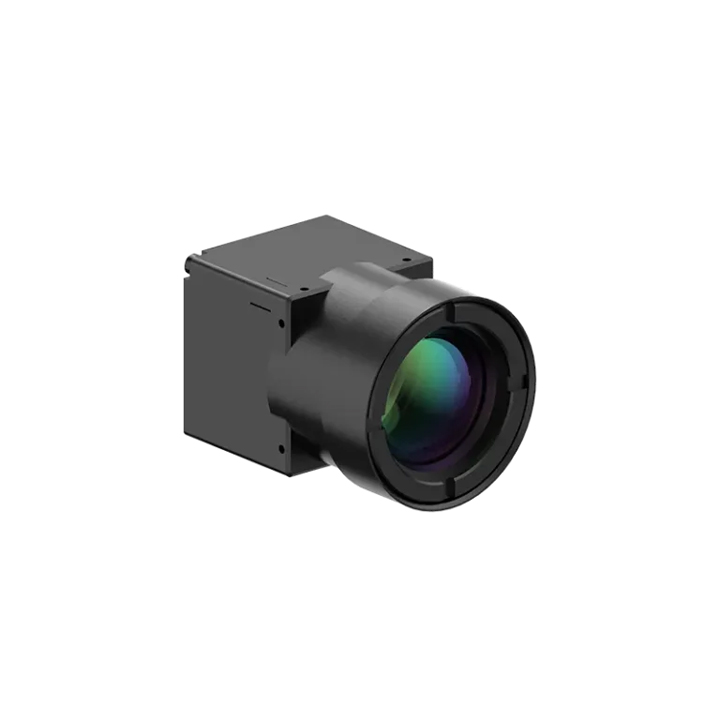

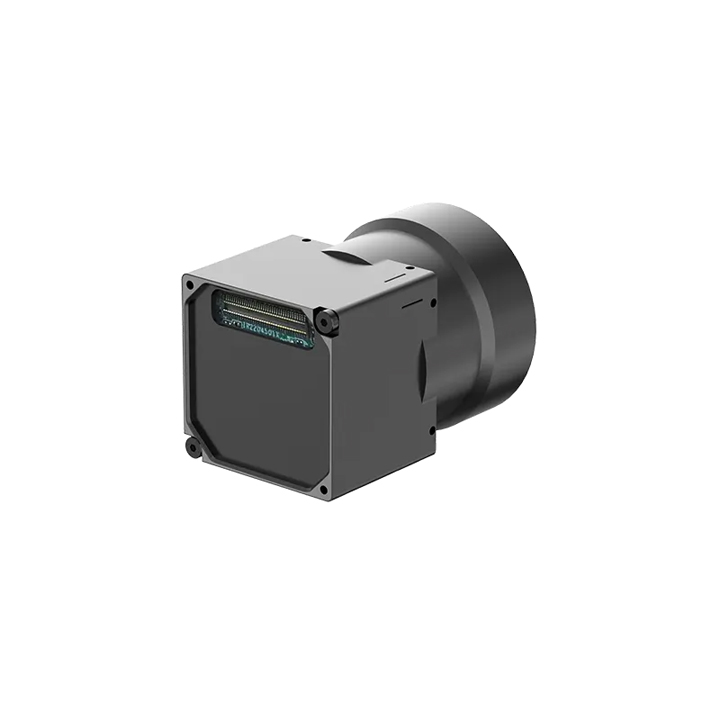

Turing M640 Uncooled Infrared Module (Temperature Measurement)

A 640×512 ceramic-packaged infrared detector is included with the Turing M640 uncooled infrared module. In addition to offering crisp photos and precise temperature readings, it also has different serialized lenses and a variety of user extension components for consumers to choose from. It can be used in a variety of fields, including machine vision, security, and industrial and electrical temperature measurement.

Categories: ,
Description

Feature

1. Comprehensive Lens Solutions

  • 10+ a thermalized lens configurations with varied focal lengths
  • Optimized for applications from close-range inspection (0.5m) to long-range surveillance (1000m+)
  • Includes wide-angle (60°), standard (25°), and telephoto (7°) options

2. Advanced Thermography Capabilities

  • Wide measurement range: -20°C to +550°C
  • High accuracy: ±2°C or ±2% of reading (whichever is greater)
  • Rapid response: <500ms temperature stabilization time
  • Multi-point measurement: Simultaneous monitoring of up to 10 ROI areas

3. Developer-Friendly Integration

  • Multiple interface options:
    • Digital: USB3.0 (5Gbps), MIPI CSI-2, LVDS, Camera Link
    • Analog: DVP (8/10/12-bit), PAL/NTSC composite
  • Comprehensive SDK includes:
    • Cross-platform support (Windows/Linux/Android)
    • Complete API documentation with sample codes
    • Temperature analysis toolkit
    • Custom algorithm integration framework

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 640×512
Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Automatic/Linear
Polarity Black-hot/White-hot
Palette Support
Reticle Display/Blank/Move
Digital Zoom 1.0~4.0× continuous zoom (step size: 0.1)
Image Processing Tecless Scenario-based nonuniformity correction, digital filtering noise reduction, and digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.5~18V DC supported by user extension components, 4~5.5V DC
Typical Power Consumption at 25°C Without Extension ＜0.7W
Power Protection Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS
Analog Video 1-channel PAL system
Serial Communication Interface UART (3.3V)/RS232
Extension Components MIPI/USB/Camera Link/Analog video/BT.656/LVDS
Temperature Measurement Performance
Measurement Range For measurement series,-20°C +150°C,+100°C~+550°C
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 26mm×26mm×19.2mm
Weight (3.2mm, without extension components) 20g±3g
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Vibration 6.06g, random vibration, all axes
Impact 80g, 4ms, final peak sawtooth wave, three axes and six directions

Application Scenarios

  • Industrial Temperature Measurement
  • Electrical Temperature Measurement
  • UAV
  • Security Monitoring
