Turing M640 Uncooled Infrared Module (Imaging)

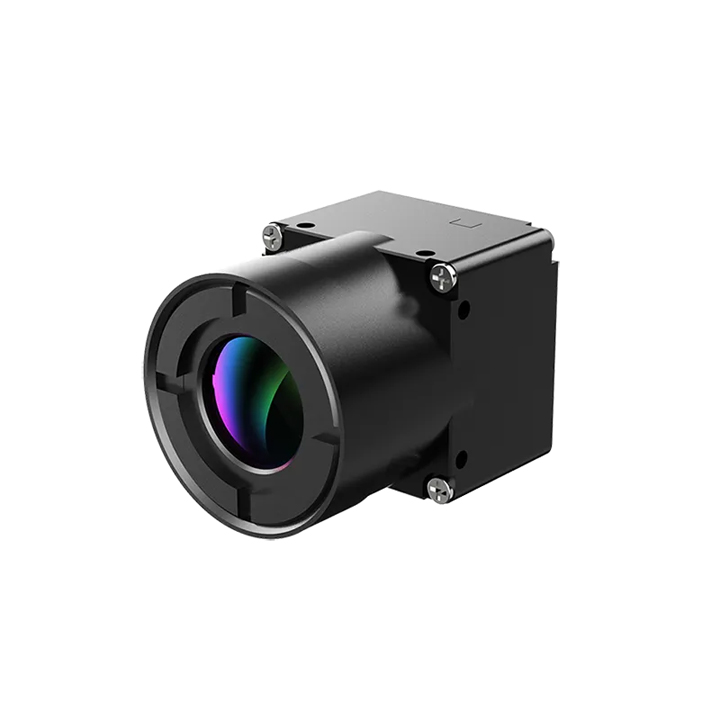

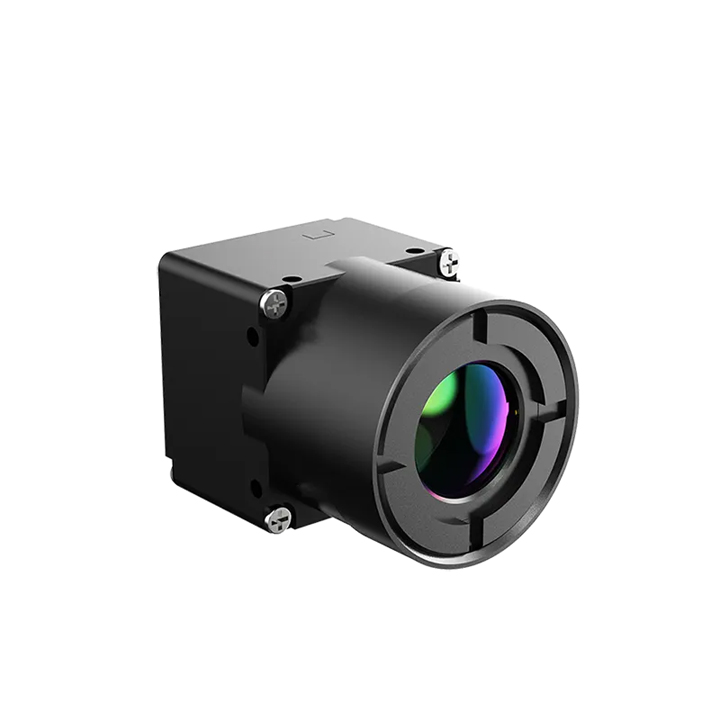

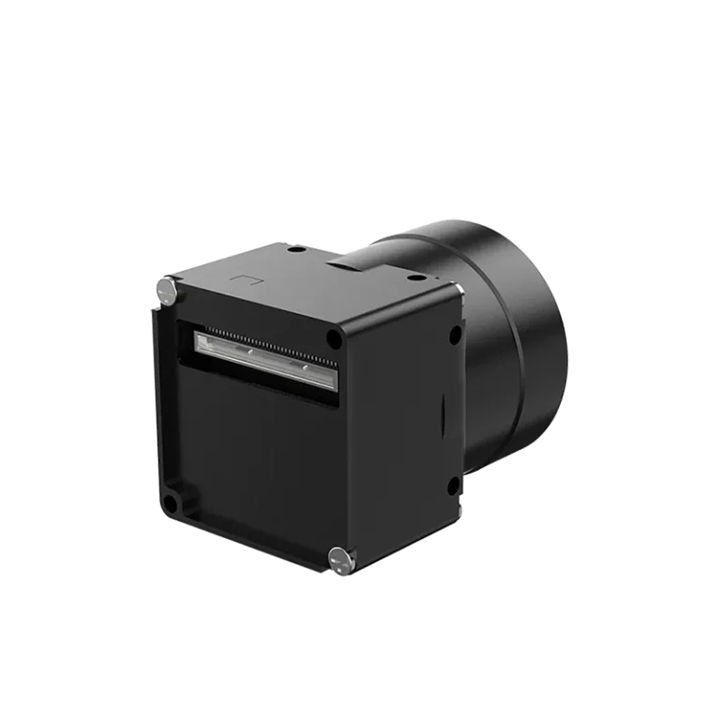

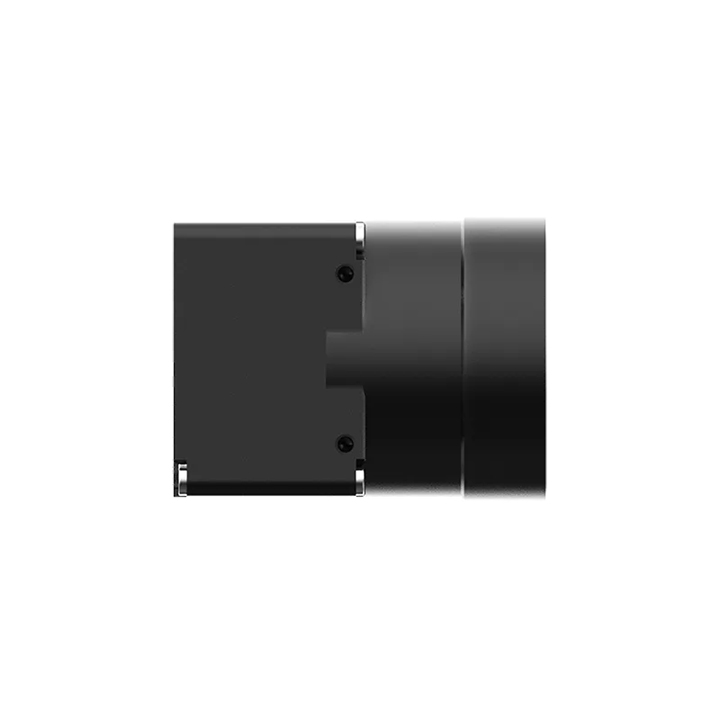

Turing M640 Uncooled Infrared Module (Temperature Measurement)

The Turing M640 uncooled infrared module is made especially for uses where power consumption and size are important considerations.
It offers a variety of lightweight infrared lenses, supports several parallel communication and video output interfaces, and is incredibly compact, light, and power-efficient.
Small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving aids are just a few of the photoelectric items for which this line of imaging-type products can offer complete infrared imaging solutions.

Applications for temperature measurement products are numerous and include machine vision, security measurement, and industrial and electrical temperature measurement.

Categories: ,
Description

Feature

1. Ultra-Lightweight High-Resolution Design

  • 640×512 high-resolution microbolometer array
  • Compact 21×21mm form factor with only 8g weight
  • Military-grade lightweight solution for airborne and portable applications
  • Low-power architecture (<2W typical operation)

2. Premium Imaging & Measurement Performance

  • Advanced image processing with:
    • Real-time dynamic range optimization
    • Smoke/dust penetration enhancement
    • Low-light scene improvement algorithms
  • Wide temperature measurement (-20°C to +650°C)
  • Instant operation: <2s from power-on to accurate measurement
  • Multi-point thermography with ROI analysis

3. Unmatched Configuration Flexibility

  • Ultra-wide FOV options: 10° (narrow) to 130° (super wide-angle)
  • Comprehensive interface support:
    • High-speed digital: MIPI CSI-2 (4-lane), USB 3.0
    • Legacy video: BT.656, analog composite
  • Programmable architecture featuring:
    • Field-configurable operating modes
    • Customizable image processing chain
    • Open SDK for algorithm development

4. Rugged Performance Characteristics

  • Wide operating temperature: -40°C to +85°C
  • Vibration resistant: 5Grms operational
  • Multiple output formats:
    • RAW thermal data
    • Enhanced video streams
    • Temperature matrix output

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 640×512
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Automatic/Linear
Polarity Black-hot/White-hot
Palette Support
Reticle Display/Blank/Move
Image Processing TEC-less temperature control algorithm.Digital filtering noise reduction / digital detail enhancement / histogram stretching
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8～5.2VDC / 1.8V / 3.3V
Typical Power Consumption at 25°C Without Extension 0.35W (Typical, @25°C, Without Extension)
Interface
Digital Video CDS2/CDS3/LVCMOS/MIPI
Serial Communication Interface UART/I2C (optional)
Extension Components USB2.0 / Analog video
Temperature Measurement Performance
Measurement Range For measurement series, -20°C~+150°C, 0℃~+650°C
Measurement Accuracy For temperature measurement series, ±3°C or ±3% at ambient temperature of -20°C~+60°C (±2°C optional)
Measurement Tool Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 21×21mm
Weight (3.2mm, without extension components) 8g
Lens Model 4.1mm, 6.9mm, 9.1mm, 13mm, 25mm, and 45mm
Environment Adaptability
Operating Temperature -40°C~+80°C (-20°C~60°C measurement)
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS

Notes:(1) Refer to the product specification for power supply requirements.

Application Scenarios

  • Industrial Temperature Measurement
  • Security Monitoring
  • UAV Pod
  • Machine Vision
