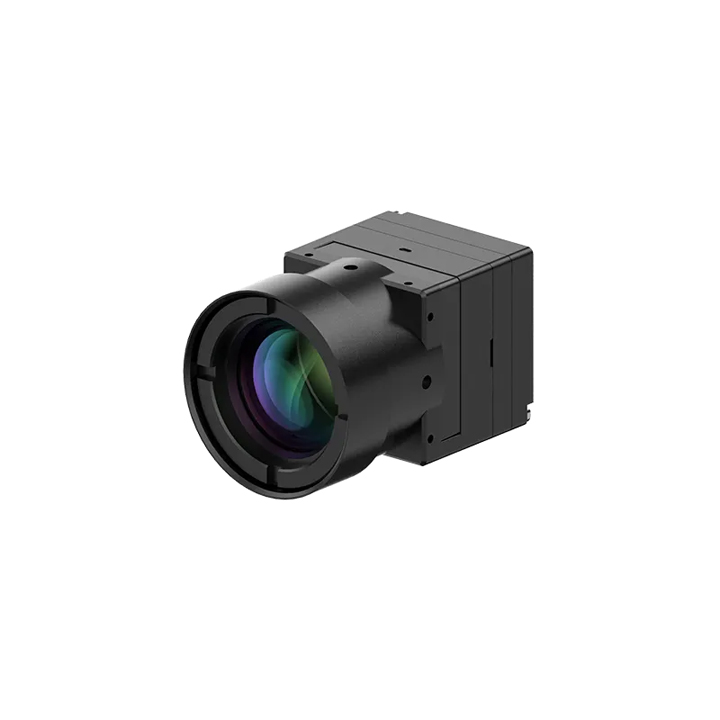

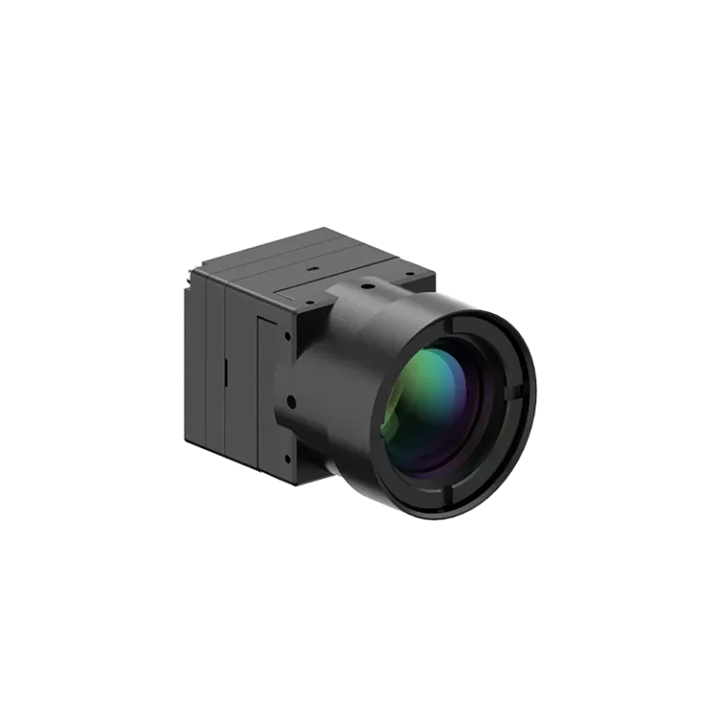

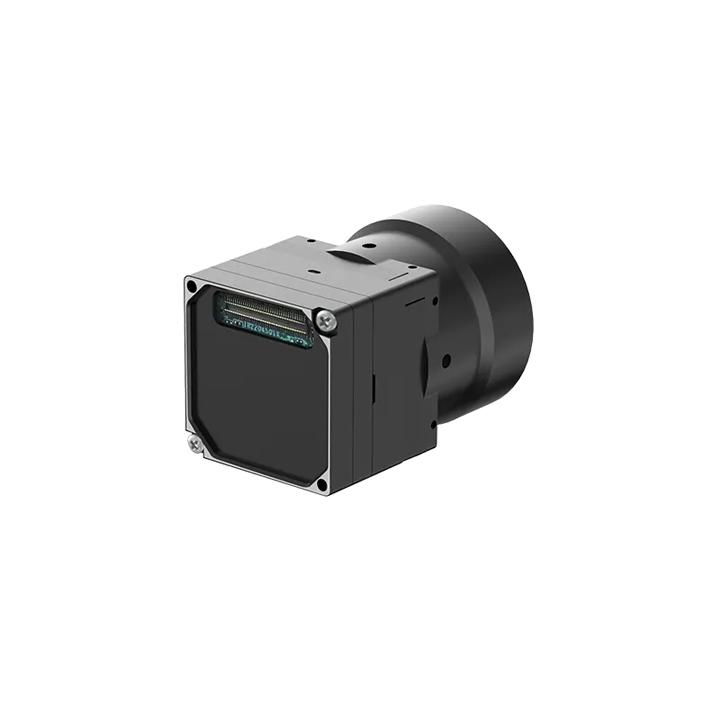

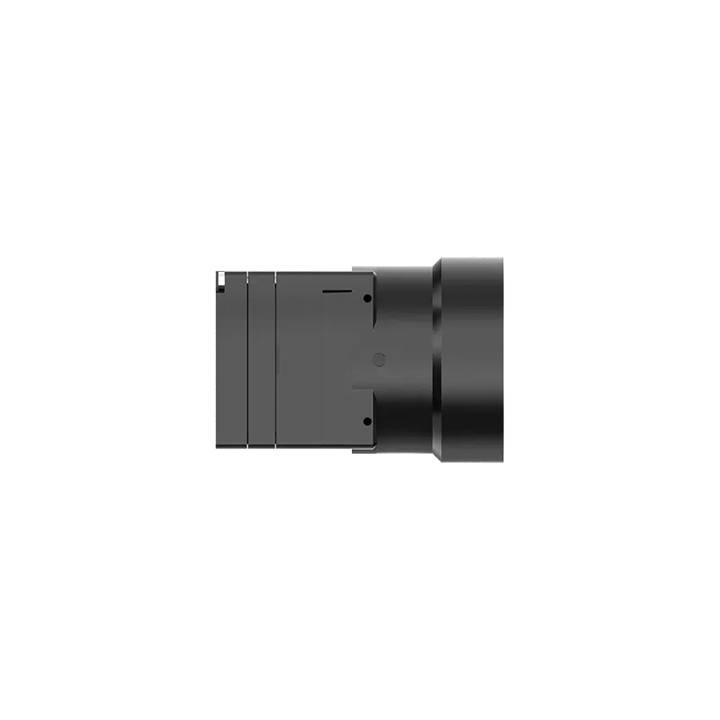

Turing M640H Uncooled Infrared Module

The Turing M640H uncooled infrared module offers reliable answers to high-reliability application scenarios by providing several serialized lenses and a variety of user expansion components. It is extensively used in the domains of driving assistance, integrated pods, and outdoor observation.

Categories: ,
Description

Feature

1. Military-Grade Durability

  • Extreme impact resistance: Withstands 1000g mechanical shock at 0.3ms duration
  • Vibration resistant: Operational under 5Grms vibration conditions
  • Robust construction: IP67-rated environmental protection

2. Uninterrupted Imaging Performance

  • Advanced shutterless technology eliminates image blackout
  • 50Hz high frame rate for real-time monitoring
  • Adaptive image enhancement maintains clarity in dynamic scenes

3. Customizable Configuration

  • 10+ a thermalized lens options:
    • Wide-angle (60° FOV) for panoramic monitoring
    • Standard (25° FOV) for general applications
    • Telephoto (7° FOV) for long-range detection
  • Versatile interface support:
    • High-speed digital: USB 3.0 (5Gbps), LVCMOS
    • Legacy digital: DVP, BT656
    • Analog video: PAL/NTSC composite output
    • Optional expansion: GigE, Camera Link

4. Intelligent Features

  • Auto-scene adaptation for optimal image quality
  • Multi-mode operation (continuous/triggered)
  • On-board image processing (AGC, DDE, 3DNR)

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 640×512
Frame Rate 50Hz (60Hz, optional)
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤40mK at 25℃, F#1.0
Image Adjustment
Polarity Black-hot/White-hot
Palette Support
Reticle Display/Blank/Move
Digital Zoom 1.0~8.0 continuous zoom (step size:0.1)
Image Processing Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.9~5V DC, 5~18V DC supported by user extension components
Typical Power Consumption at 25°C Without Extension ≤0.7W
Power Protection Overvoltage, undervoltage, and reverse connection supported by user extension components
Interface
Digital Video BT.656/DVP/LVCMOS
Analog Video 1-channel PAL system
Serial Communication Interface RS232/UART (3.3V)
Extension Components MIPI/USB/Analog video/BT.656/DVP
Physical Characteristics
Dimensions (Without lens and extension components) 26mm×26mm×19.8mm
Weight (3.2mm, without extension components) 21g±1g
Environment Adaptability
Operating Temperature -40°C~+80°C
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Vibration 6.06g, random vibration, all axes
Impact 1000g@0.3ms, optical axis direction

Application Scenarios

  • Outdoor Observation
  • Security Monitoring
  • UAV
  • Driving Assistance
