Home » Unmanned System Products » Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control
China Moneypro MHT160 Heavy-lift Hexacopter Drone with 1600mm Wheelbase and 120min Flight Time
Back to products
1.4G/2.4GHz Frequency Wireless Uav Drone Video Transmitter & Receiver Transmission Radio

Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control

Engineered for professional FPV pilots and tactical drone operations, this air-to-ground data link redefines long-range connectivity with 20km stable transmission and ultra-low latency performance. Delivering HD video streaming and precise drone control in a single integrated tactical radio, it ensures real-time situational awareness critical for high-speed flight, surveillance missions, or industrial inspections. Built with robust anti-interference technology, the system maintains reliable communication even in complex environments, while its lightweight, compact design seamlessly integrates with most drone platforms. Whether for competitive FPV racing or mission-critical tactical applications, this data link balances long-distance capability, low latency, and high-definition clarity to elevate drone operation efficiency and safety.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20 Work Mode TDD
Usage Radio, Satellite, Plane, Ship, Car Information Content Text, Picture, Video
Grams Weight 160 Grams Mode Point to Multi-Point
Design Dual Antenna MIMO Data Rate 24Mbps @ 10MHz (Peak)
Frequency Range 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.) Security Protection AES128
Transmission Distance 20km Air-to-Ground RF Power 25dBm ± 2
Dimension ≤ 102 × 65 × 22mm Interfaces Eth × 1, Ttl × 1, Pwr × 1
Transport Package Carton&Wooden&Flight Case Package Specification 160 Grams weight
Trademark China Moneypro Origin China
HS Code 8517799000 Production Capacity 5000PCS/Month
Package Size 10.20cm * 6.50cm * 2.20cm
Package Gross Weight 0.160kg

Product Description

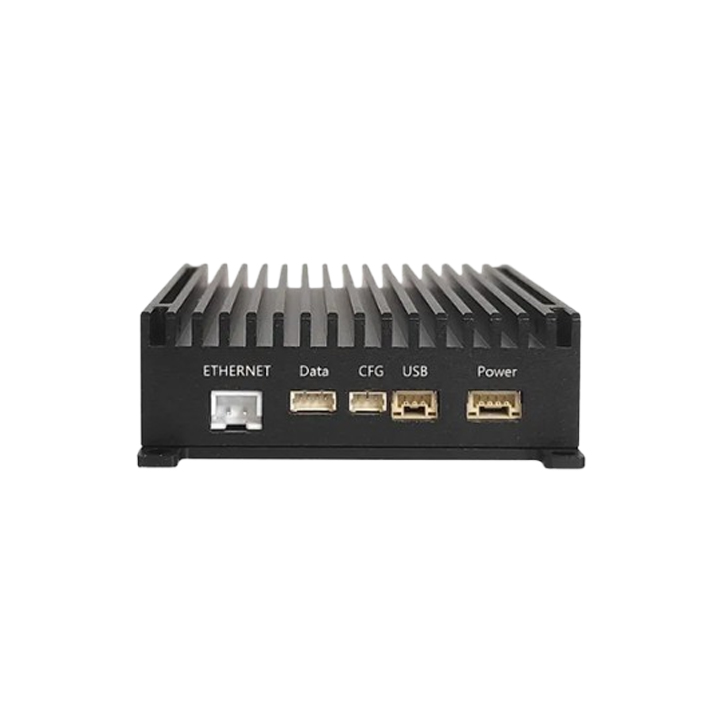

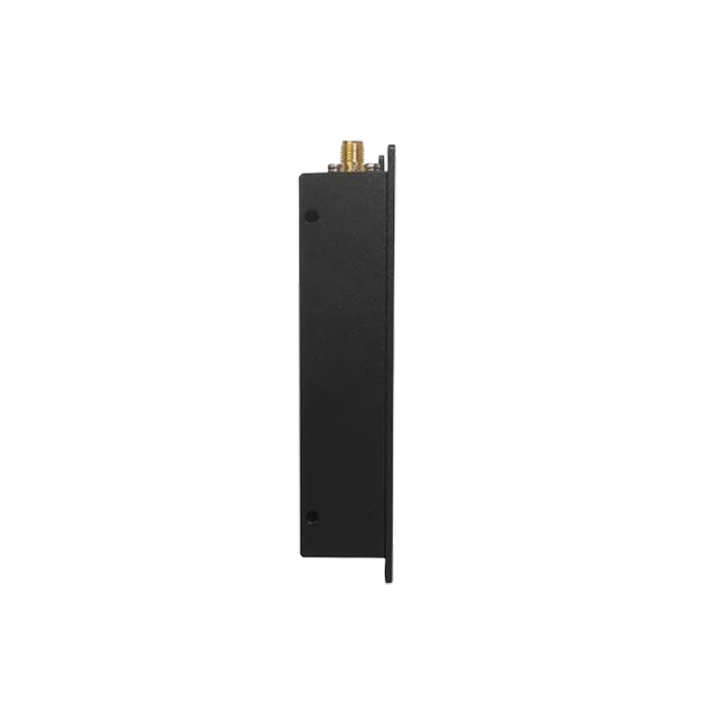

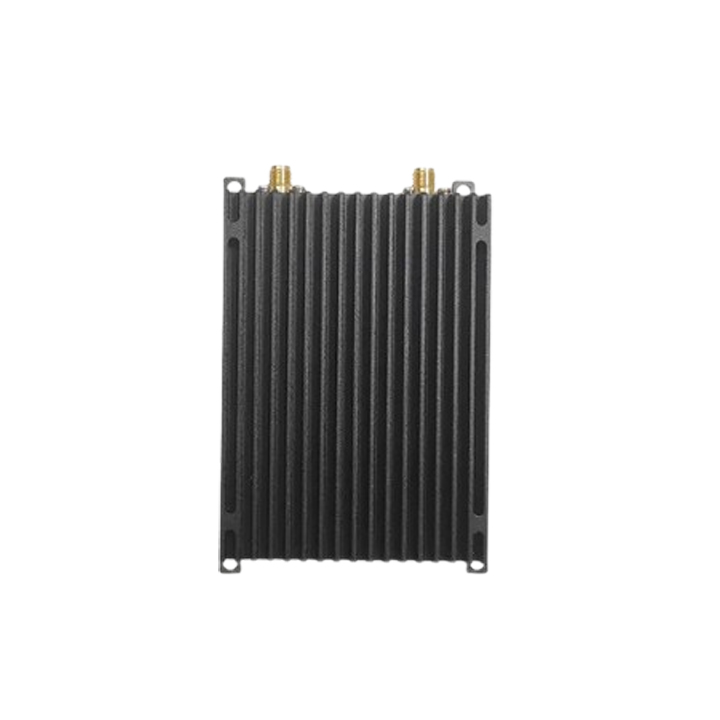

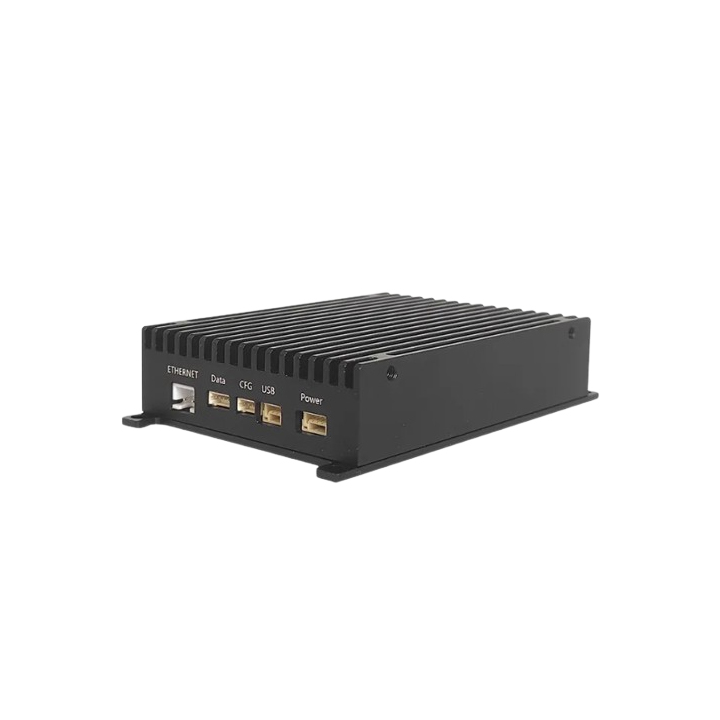

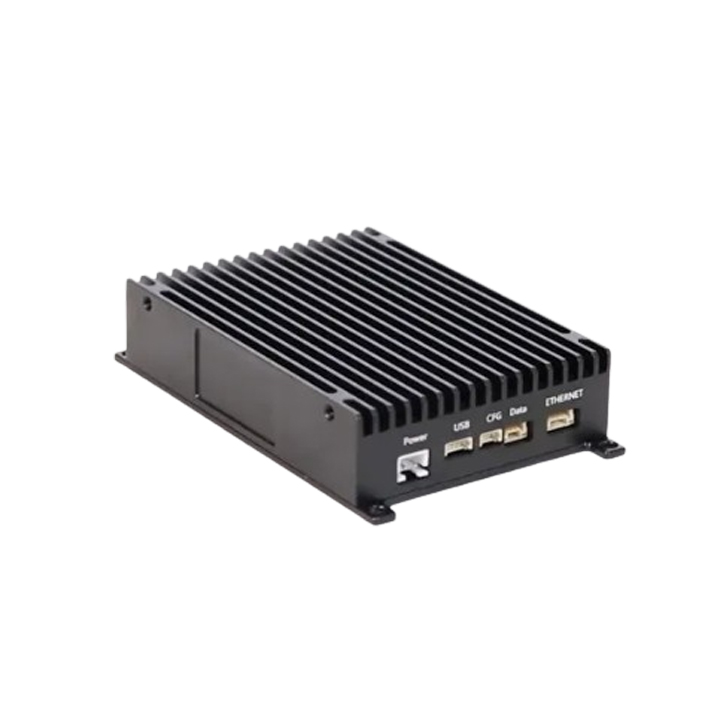

M20 Drone Video Transmission Radio

160 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control
Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control
Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control
Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control

Specification

Wireless
Technology
TDD-OFDM / MIMO / 1T2R
Modulation
QPSK / 16QAM / 64QAM
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
25dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL
Video Port
1 ETH
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 6W @ DC12V Power
Consumption (Air)
Interfaces
RF Antenna
SMA × 2
Serial Port Interface
JST × 1
S.BUS Interface
N/A
Video Port Interface
JST(ETH) × 1
Power Input
JST × 1
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2
ETH Cable × 1; JST Serial Cable × 1;JST Power Cable × 1

Packing & Delivery

Ultra-Low Latency 20km Air-to-Ground Video Link HD Uav Data Link Tactical Radio for Fpv & Drone Control
