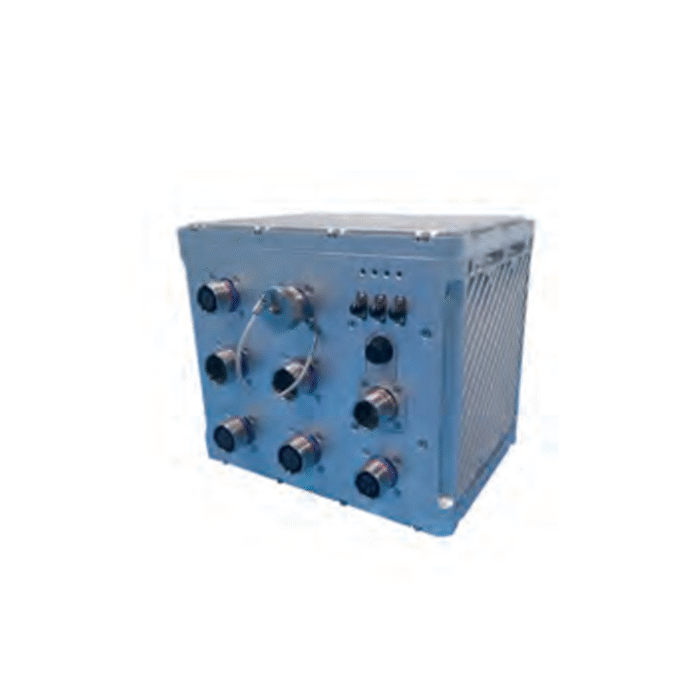

VCU module

VCU stands for Vehicle Controller Unit. It is the core electronic control unit that enables vehicle control decisions. It can collect vehicle information, conduct automatic navigation, control vehicle operation, and diagnose vehicle faults, etc.

Categories: ,
Description

VCU module Parameter

Navigation processor CPU Use the Rockchip RK3588M eight-core 64-bit dual processor
NPU computing power >12T（6T+6T)
 Memory 16GBDDR4
SSD 64GB
MSATA hard drive 256GB solid-state drive
Main control processor GD32F45011H6
Chassis interface 1 1.25G optical port, 12 gigabit network ports, 1 RS232 serial port, 1 RS485 serial port, 6 ports CAN bus interface
Navigation interface 2-channel CAN bus interface, 3-channel USB 2.0 interface, 3-channel RS232 serial port, 2-channel RS422 serial port
 Power supply DC18-72V
Temperature range Working temperature: 40°C to +85°C; Storage temperature: 40°C to +90°C
 Work humidity 90%, no condensation
