China Moneypro Mh02 Handheld IP Mesh Wireless Bridge Radio MES-256 Secure Wireless Communication for Tactical & Emergency Networks
Back to products
China Moneypro Drone Mesh Radio Wireless Datalink Technology for Uav & Drones

Wireless Drone and Robotics Uav Data Link Technology Long Range Datalinks for Unmanned Systems

Our cutting-edge Long-Range Data Link Technology is engineered to redefine connectivity for wireless drones, robotics, and unmanned aerial vehicles (UAVs), delivering unparalleled performance for mission-critical operations. Designed to overcome distance barriers, this robust data link enables stable, low-latency communication over extended ranges—supporting seamless transmission of high-definition video, control signals, and sensor data even in challenging environments such as remote terrain, urban canyons, or industrial sites. Built with industrial-grade reliability, it integrates advanced anti-interference capabilities and adaptive modulation to ensure consistent connectivity, while its lightweight, compact design ensures easy integration with a wide range of unmanned platforms (fixed-wing drones, multi-rotors, ground robots, and more). Whether for surveillance, inspection, logistics, or research, this data link empowers unmanned systems to operate with confidence beyond visual line of sight (BVLOS), unlocking new possibilities for long-distance, high-precision missions.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MD02
Information Content Text, Picture, Video, Audio
Frequency Range 1300~1500MHz
Networking ≥ 52 Nodes
Security Protection AES128/256
Power Consumption ≤ 30W
Specification 350Grams
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Packaging & Delivery

Package Size 10.70cm * 8.40cm * 3.70cm
Package Gross Weight 0.350kg

Product Description

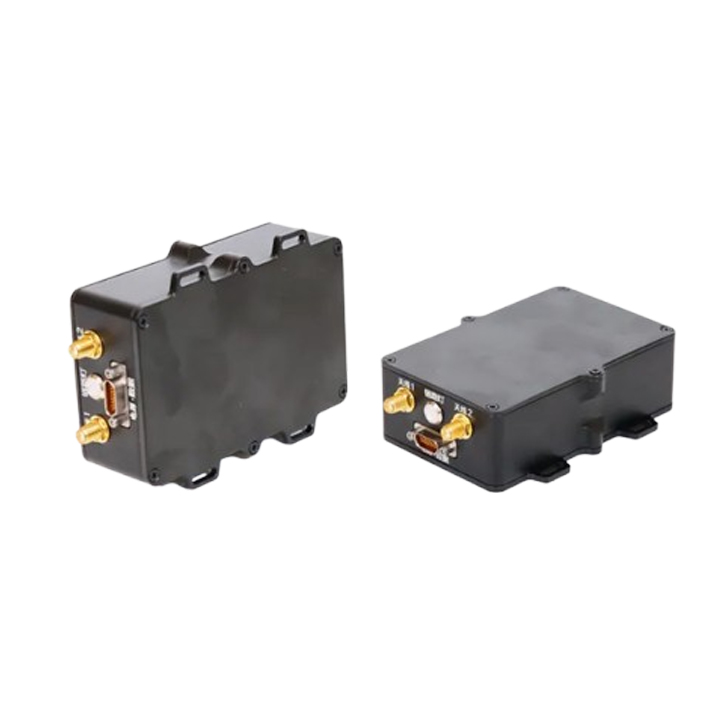

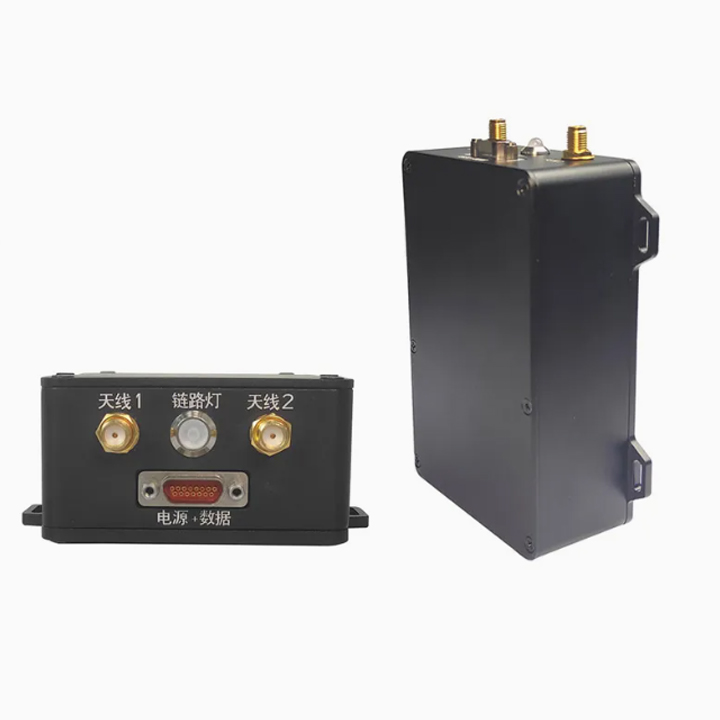

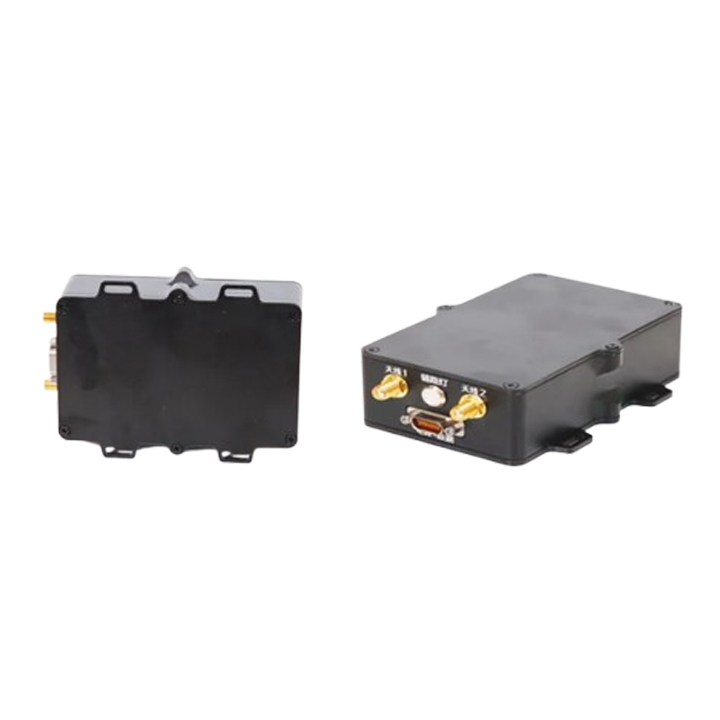

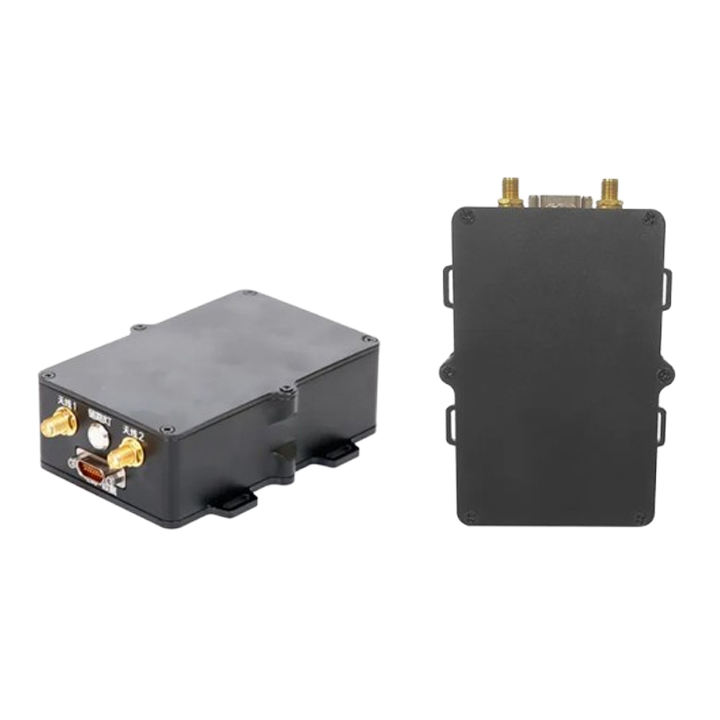

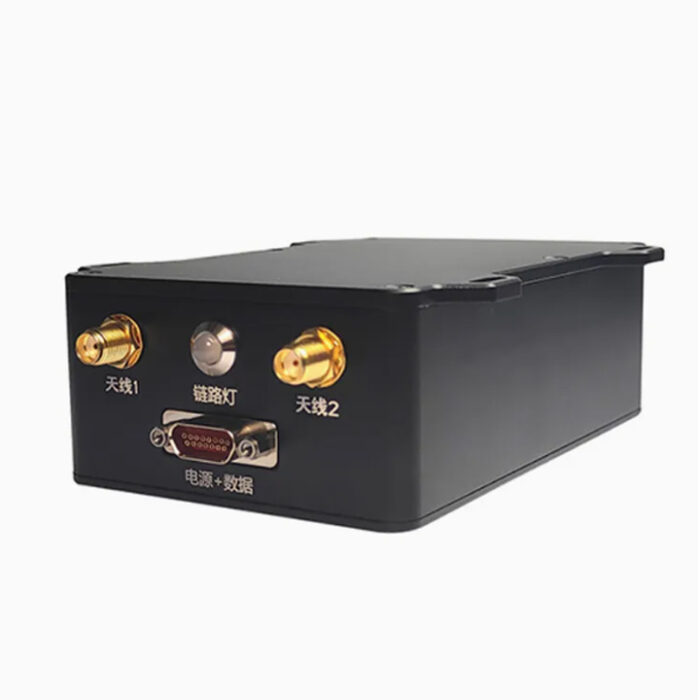

MD02 Drone Mesh Radio

Small Size & Light Weight
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
30KM Air-to-Ground Transmission Distance

Mesh Radio – Typical System Solution

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
SMA × 2
GPS Antenna
N/A
WIFI Antenna
N/A
Ethernet Interface
J30J Connector
Serial Port Interface
J30J Connector
Power Interface
J30J Connector
Physical
Dimension
≤ 107 × 84 × 37mm
Weight
≤ 350g (Host Only)
Protection Level
IP65
Operating Temperature
-30°C-+65°C

Packing & Delivery

China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module

Application

IP Mesh Radio Application Case

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver
