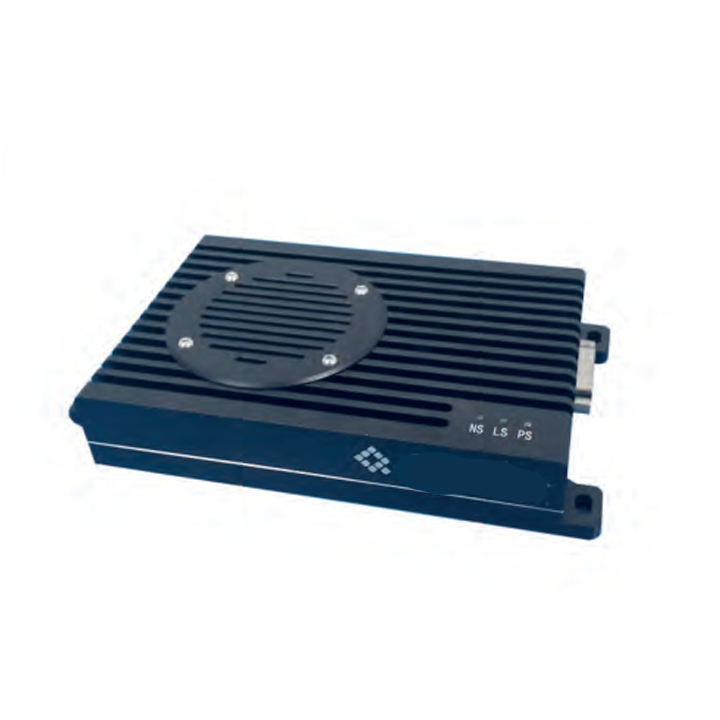

Wireless video transmission 4W data link module

This module’s physical layer employs TDD-OFDMA, a modulation and coding method that has low spectral requirements and high spectral utilization. Support
64QAM, 16QAM, QPSK multiple data rates are dynamically adjustable. It supports CA and MIMO transmission and reception diversity. Single carrier ranges from 1.4 MHz to 20 MHz. Bandwidth can be configured, enabling a maximum transmission rate of 90 Mbps, a maximum transmission distance of 3 km (ground line-of-sight), and supports a speed of 1000 km/h in high-speed movement. It supports point-to-point and point-to-multipoint communication around the central node.

Categories: ,
Description

Wireless video transmission 4W data link moduleParameter

Working frequency 1427-1530MHz
Wireless output power 0-33dBm士2*2
Transmission distance 3500 meters (1.5-meter tower height, line of sight, 4db antenna, one 2Mbps data stream)
Data bandwidth 85Mbps
 Modulation method BPSK/QPSK/16QAM/64QAM
Ethernet transmission delay <150ms (typical 35ms)
Management method Interface Web interface management
Power supply 2 network ports (100Mbps)
Power consumption 20 – 26V (typical 24V)
Size and dimensions Maximum 23W 152mm*89mm²26mm
Operating temperature 40°C~55°C
 Work humidity 10% to 90% (no condensation)
