T18 active phased array radar
The T18 is a lightweight and portable short-range defense frequency-modulated continuous wave active phased array radar. It employs DBF digital beamforming and simultaneous multi-beam technology; capable of detecting target movement speeds of 1-180 m/s; elevation angle range of -5 to 60°; angular accuracy of 0.4° and range accuracy of 5 m; data refresh rates of 1s/2s/3s; can simultaneously and stably track over 300 targets; scanning coverage includes an area with altitude ≥2000 m and radius ≥15 km; with a portable turntable, the entire system has a power consumption ≤350 W, and the radar's total weight is <30 kg; for micro DJI mini-series drones, it supports a detection range of ≥5 km; with a transmission power of only ≤30 W, it offers extremely high operator safety and urban environment compatibility; on the battlefield, due to its minimal transmission power, it has an extremely low probability of interception, significantly enhancing battlefield survivability.
T20 high precision three coordinate active phased array radar
The T20 is a lightweight, portable short-range continuous-wave radar featuring DBF digital beamforming and simultaneous multi-beam technology. It detects target speeds from 1 to 180m/s, with a pitch angle range of-5 to 60 degrees. The radar delivers angular accuracy of 0.3 degrees and distance resolution of 5 meters, with data refresh rates of 1/2/3 seconds. Capable of tracking over 500 targets simultaneously, it operates within a scanning range of 3000 meters altitude and 20 kilometers radius. Powered by a portable swivel mechanism, the system consumes less than 450W while weighing under 30kg. Even when paired with the compact DJI Mini series drones, it maintains detection ranges exceeding 6.5 kilometers. With a maximum transmission power of 40W, it ensures exceptional operator safety and urban environmental adaptability. Its ultra-low transmission power significantly reduces interception risks, enhancing battlefield survivability. Among low-power anti-unmanned/loitering radar systems, the T20 stands unmatched in technical performance.

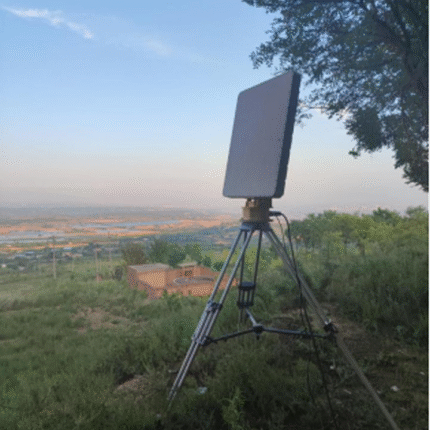

T30 high precision three coordinate active phased array radar
The T30 is a lightweight, portable short-range defense continuous-wave radar system. Utilizing DBF digital beamforming and simultaneous multi-beam technology, it can detect target motion speeds from 1 to 300m/s, with pitch angles ranging from-5 to 60 degrees. The radar achieves angular accuracy of 0.3 degrees and distance resolution of 5 meters, featuring data refresh rates of 1/2/3 seconds. It supports stable tracking of over 500 target groups simultaneously. Its scanning range covers areas with altitudes ≥4500m and radii ≥30km. The portable rotating platform consumes ≤450W, while the radar unit weighs less than 30kg. For the smallest DJI mini series UAVs, it provides detection ranges ≥6.5km, and for DJI mavic3 Pro models, ≥10km. With a maximum transmission power of ≤40W, it ensures exceptional operator safety and urban environmental compatibility. On battlefields, its minimal transmission power significantly reduces interception probability, enhancing operational survivability. Among low-power anti-unmanned/loitering radar systems, its technical performance stands unmatched.
