MY-70D Anti Jamming Radio Altimeter

Operating in the C-band, the MY-70D radio altimeter employs a frequency-modulated continuous wave (FMCW) operating system and incorporates closed-loop tracking measurement technology, equipping it with the capability to resist same-frequency asynchronous interference. This ensures that when multiple aircraft take off and fly simultaneously, their altimeters do not interfere with one another. To achieve resistance against active interference, the altimeter adopts a range of measures, including anti-blocking, anti-burnout, power control, beam control, frequency agility, and frequency modulation (FM) technology. Furthermore, it features silent power supply control for its microwave components; its antenna is fitted with a band-pass filter, and a customized radome with frequency-selective functionality is utilized—these design elements enable the altimeter to achieve a wave transmission rate of ≥85% for the operating frequency within the band and less than 10% for out-of-band frequencies, thereby realizing stealth capabilities.

MYQ-02A High Precision Atmospheric Processor

The air data processor is designed to detect the total static pressure or distributed pressure of the airflow approaching an aircraft, thereby enabling the measurement of key flight parameters including Mach number, barometric altitude, vertical velocity, and indicated airspeed. The barometric pressure signals, which are collected from outside the aircraft and serve as the input for the air data processor, undergo processing via a solving circuit. Based on specific algorithms—tailored to factors such as the number of pressure channels, the carrier’s shape, and the distribution of pressure-measuring points—the processor outputs atmospheric parameters (e.g., static pressure, total pressure, barometric altitude, indicated airspeed, and flight Mach number) and transmits these parameters to the flight control unit in digital form.
The MYQ-02A High-Precision Air Data Processor, developed by Hangtai Technology, utilizes a high-precision vibrating cylinder pressure sensor and is specifically engineered for large unmanned aerial vehicles (UAVs). Compliant with aerospace standards, this product can withstand harsh operating environments and is widely applicable for atmospheric parameter measurement in aerospace scenarios, such as high-altitude high-speed UAVs and near-space ultra-long endurance UAVs. Key characteristics of the MYQ-02A include its compact size, lightweight design, high measurement accuracy, wide operational range, and excellent stability.

MYQ-10A Barometric Altimeter

The barometric altimeter calculates the gravitational potential height of the carrier by utilizing the atmospheric static pressure surrounding the flight vehicle. This height data is then transmitted to key avionic systems, including the flight management system, inertial navigation system, autopilot, satellite navigation system, and transponder. As a critical component of the air data system, the barometric altimeter serves as an essential navigation instrument for all types of aircraft.
The MYQ-10A barometric altimeter is a dual-channel device engineered specifically for a particular unmanned aerial vehicle (UAV) model. It incorporates silicon piezoresistive pressure-sensing elements and complies with aerospace industry standards. Designed to withstand harsh operational environments, this altimeter is well-suited for measuring atmospheric parameters across various aerospace applications, such as high-altitude high-speed UAVs and near-space ultra-long endurance UAVs. Key attributes of the MYQ-10A include its compact size, lightweight design, high measurement accuracy, broad operational range, and excellent stability.

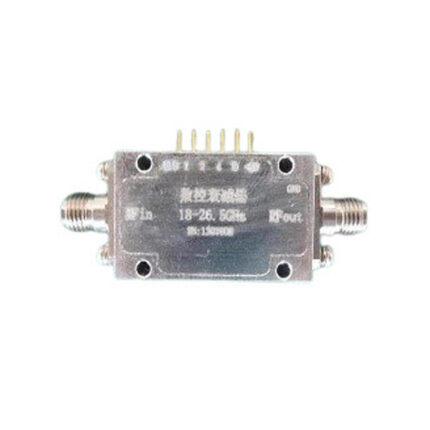

Numerical Control Attenuator

Drawing on the expertise of its seasoned microwave team, process team, and management team, Hangtai Technology has been continuously elevating the R&D and production standards of microwave components. The microwave components developed by this division not only meet the requirements of the company’s radar systems and radio altimeters but also extend their application to serve societal needs.

Power Amplifier

Leveraging its seasoned microwave team, process team, and management team, Hangtai Technology has steadily elevated its R&D and production standards for microwave components. The microwave components developed by this division not only satisfy the company’s own requirements for radar and radio altimeters but also extend their applications to serve the wider society.

Pulse Radar Altimeter MY-600L、MY-800L

The MY-600L altimeter is a fixed-frequency pulse radar altimeter developed for a specific type of aircraft, while the MY-800L altimeter is a frequency-agile pulse radar altimeter designed for another particular aircraft model. Both altimeters find wide application in cruise missiles and aircraft, serving to measure the relative height above the sea or ground. Notably, the MY-600L features a design approach centered on serialization, standardization, and modularization, which endows it with favorable product inheritance, high maturity, and reliable performance.

PXI Bus Type Universal Echo Precision Delay Module (Miniature Universal Continuous Simulation)

The PXI Radio Altimeter Simulator Module is a specialized signal simulation module that adheres to PXI bus technical specifications. Boasting key attributes including high accuracy, a wide attenuation range, simplified system configuration, and reliable stability with strong repeatability, it finds extensive application in factory testing for radio altimeter manufacturers, maintenance and inspection of altimeters, and on-site aircraft detection. As a critical module for verifying the performance and functionality of airborne radio altimeters, it serves as an indispensable foundational component for PXI bus-based automatic test systems of airborne avionics equipment.
It features communication capability with radio altimeter interfaces.
It is equipped with high-information simulation functionality.
It provides sensitivity detection for altimeters.

Radar Altimeter Working Scene Simulation System

The Radar Altimeter Echo Simulation System is designed to replicate the real-world operating scenarios of various radar altimeter systems. It generates and outputs radar altimeter echo excitation signals under complex working conditions, serving as a key tool for evaluating the comprehensive performance of radar altimeters.
This system is capable of simulating multiple critical signal scenarios, including radar altimeter echoes, surface target echoes, multi-path propagation of radar echoes during aircraft landing phases, radar altimeter echoes under different flight attitudes, forward and backward Doppler effects, and antenna direct wave signals. It is widely applied in testing the altitude-measuring performance of radar altimeters, as well as in verifying the functionality of altimeter control systems or integrated monitoring systems.

Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System

The Radar Target Echo & Radio Altimeter Target Echo and Jamming Simulation Simulator is a specialized device designed to generate RF/IF radar target echo signals, radio altimeter target echo signals, and jamming signals. It serves as dedicated equipment for hardware-in-the-loop (HIL) simulation testing and verification of radar systems and radio altimeters. Adopting a universal modular architecture, this simulator features high-performance indicators, excellent consistency, and superior interchangeability—ensuring reliable adaptability and stable operation in relevant test scenarios.
