Technical Index
- Working frequency: C-band;
- Working bandwidth: 150MHz;
- Antenna gain: not less than 8dB;
- Beam width: not less than 45 degrees.

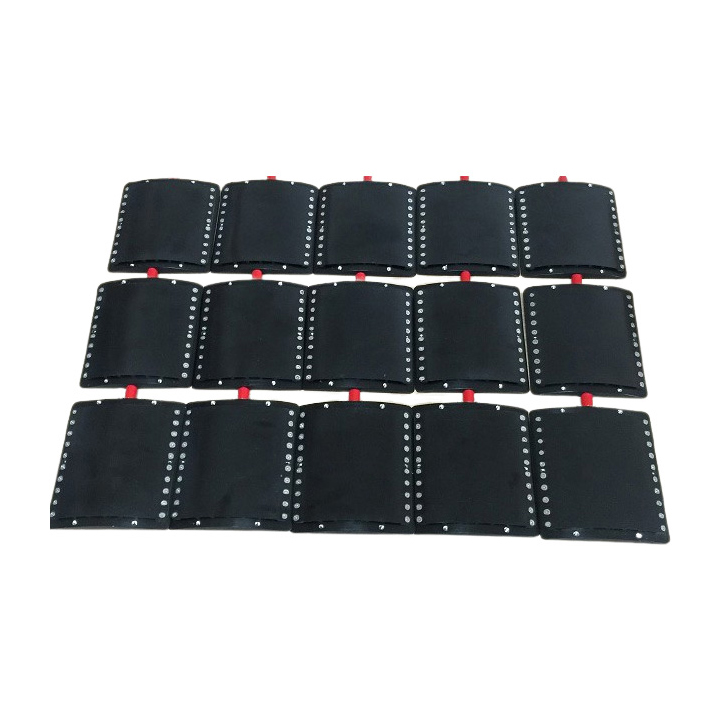

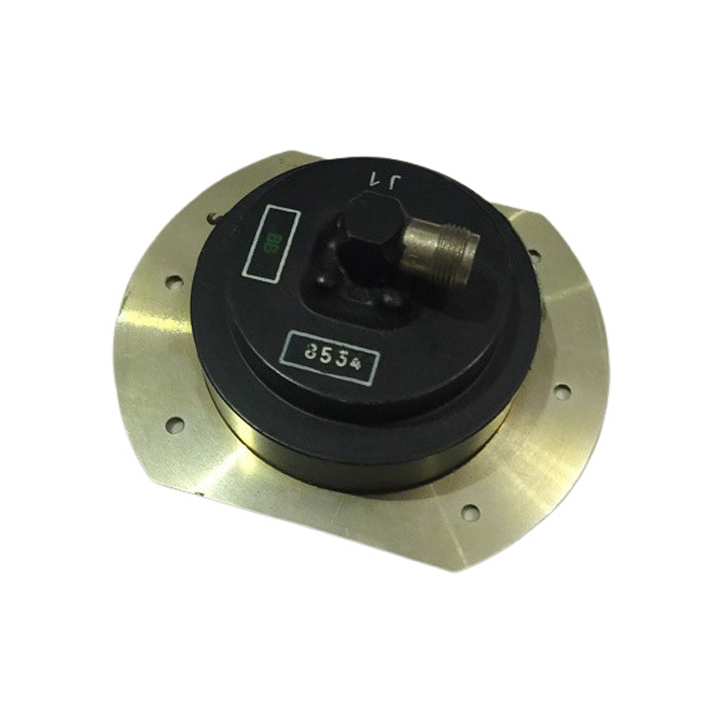

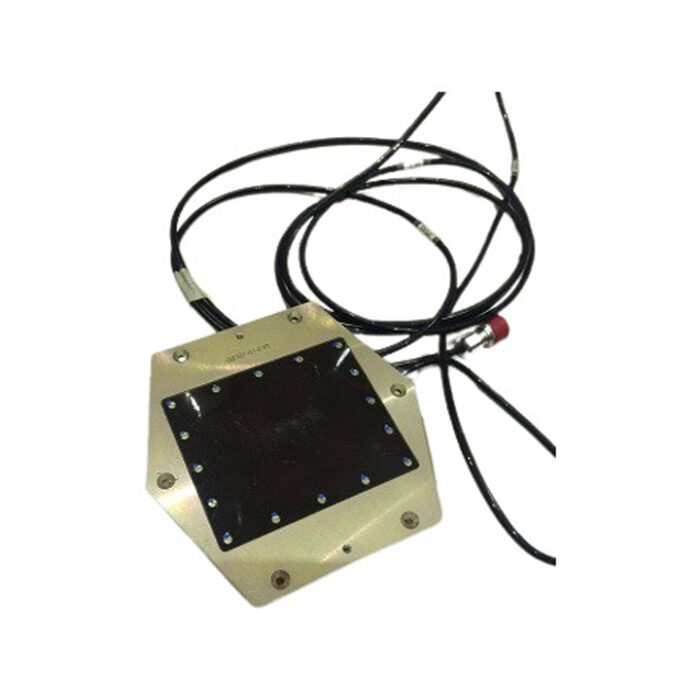

Altimeter Antenna
To accommodate different types of aircraft, a variety of altimeter antennas have been developed, with microstrip antennas constituting the majority of these designs.
Description
