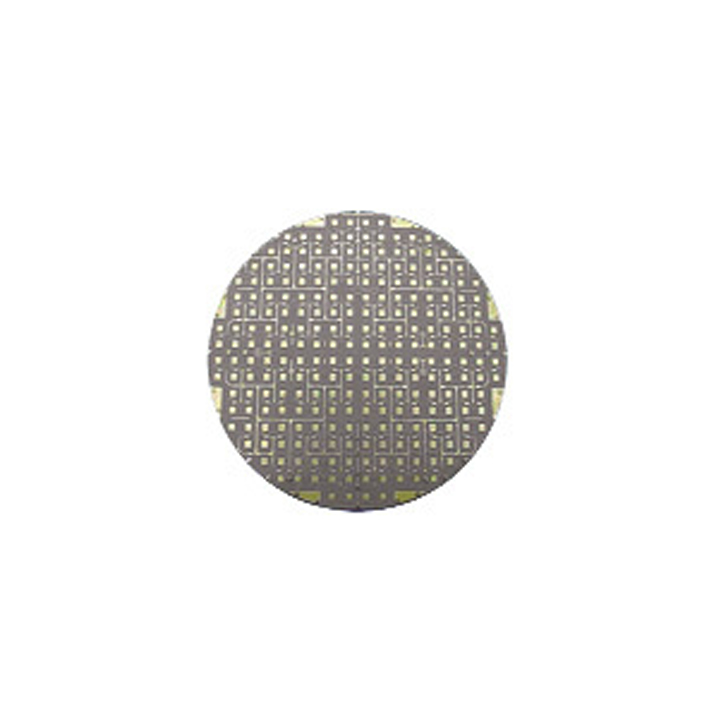

Microstrip Patch Standing Wave Array Antenna

This product is made up of a feed network and a multi-layer microstrip printed circuit board. It boasts advantages including light weight, low cost and simple manufacturing process, and can be easily integrated with active devices and microwave circuits.

Categories: , , , ,
Description

Technical Indicators: (Take X-band As An Example)

  • Antenna aperture: round aperture, 8 times aperture wavelength ratio;
  • Bandwidth: fo ± 200MHz;
  • Gain: ≥ 25.5db;
  • Port standing wave: ≤ 2;
  • Sidelobe level: ≤ – 17dB;
  • Zero depth: ≤ – 30dB.

The planar or conformal microstrip patch array antennas with different frequency bands, sizes and polarization modes can be customized according to the needs of users.
