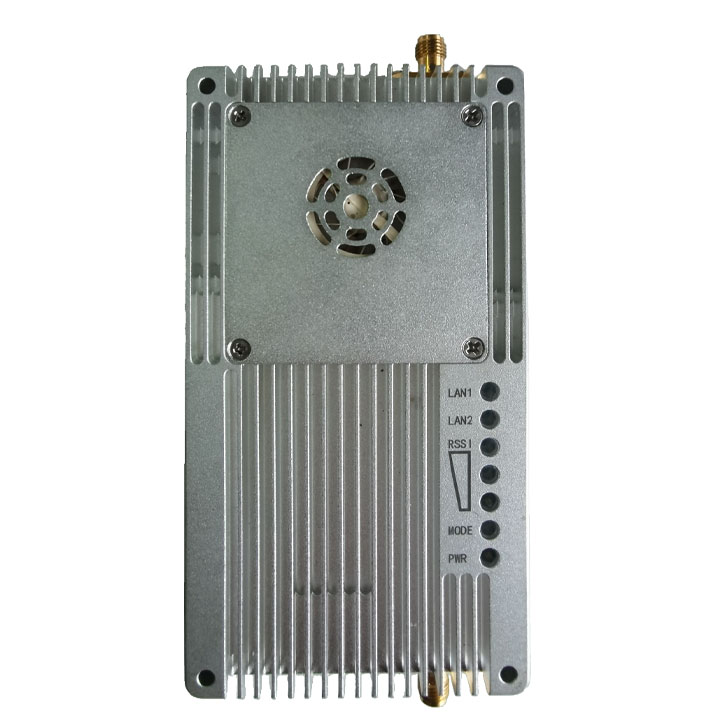

C Series MYD-C33 20KM Multiple Bandwidth Allocations & Star Networking Features
- P2MP broadband access and data transmission, up to 16 slave nodes.
- Supports TTL, RS32, RS485, CAN.
- Supports large bandwidth, point-to-point payload is up to 30Mbps.
- Supports frequency hopping.
- Transmitting power: up to 33dBm.
- Supports 3MHz,5MHz,10MHz,20MHz.
C Series MYD-C33 20KM Multiple Bandwidth Allocations & Star Networking Parameters
Parameters
- Working frequency
- 806～826MHz /1427～1447MHz/1420~1530MHz
- Signal BW
- 3M,5M,10M,20M
- Output power
- 2W（33dBm）
- Receiving sensitivity
- -96 dBm@10MHz
- Number of slave nodes
- Up to 16
- Rate
- Up to 30Mbps
Interface index
- Network interface
- 100M network port*2
- Data interface
- TTL*2/RS232*2/RS485*2/CAN*1
- Antenna interface
- SMA
Electrical specifications
- Voltage range
- DC9~28V
Physical specifications
- Dimensions(L*W*H)
- 114mm*62mm*16.5mm
- Weight
- 160g
- Working temperature
- -40℃~+65℃
