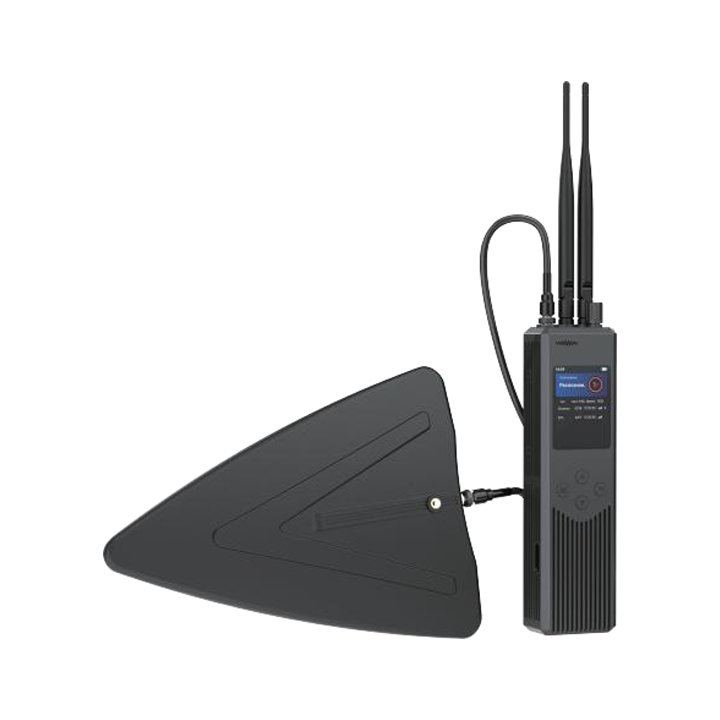

A lightweight (1.05kg) handheld device designed for real-time drone threat detection across 1.1GHz, 1.2GHz, 1.4GHz, 2.4GHz & 5.8GHz frequencies—with zero electromagnetic emissions for covert operations.
Key Features (H3)
✔ 2km Max Detection Range – Covers large perimeters with directional precision
✔ Multi-Frequency Scanning – Targets DJI, Autel, FPV, & commercial drones
✔ Rapid Threat ID (<2s) – Detects ≥10 UAVs simultaneously
✔ IP65 Weatherproof – Operates in -20°C to 65°C (rain/dust/sand)
✔ 6-Hour Battery Life – LiPo-powered for extended field missions

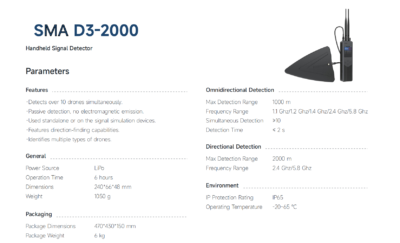

Technical Specifications (H3)
- Frequency Bands: 1.1GHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.8GHz (covers 90% of consumer drones)
- Scan Speed: <2s per omnidirectional sweep
- Detection Modes: Direction-finding + standalone/simulator integration
- Power: Rechargeable LiPo | Runtime: 6 hours
- Dimensions: 240×66×48mm | Weight: 1.05kg (backpack-portable)
Deployment Advantages (H3)
- Handheld Mobility – No fixed installation required
- Silent Operation – Passive RF sniffing avoids drone counter-detection
- Interoperability – Pairs with jammers/signal simulators for active defense
Operational Scenarios (H2)
- Law Enforcement – Event security, prison UAV surveillance
- Military Recon – Forward deployment for hostile drone detection
- VIP Protection – Rapid handheld sweeps for drone threats
- Industrial Sites – Oil rigs, factories, no-fly zone enforcement
Why Choose the SMA D3-2000? (H2)
✔ Ultra-Portable – Lighter than a tablet—ideal for foot patrols
✔ Plug-and-Play – No calibration; power-on-and-scan
✔ Low False Alarms – AI-powered RF fingerprint library
