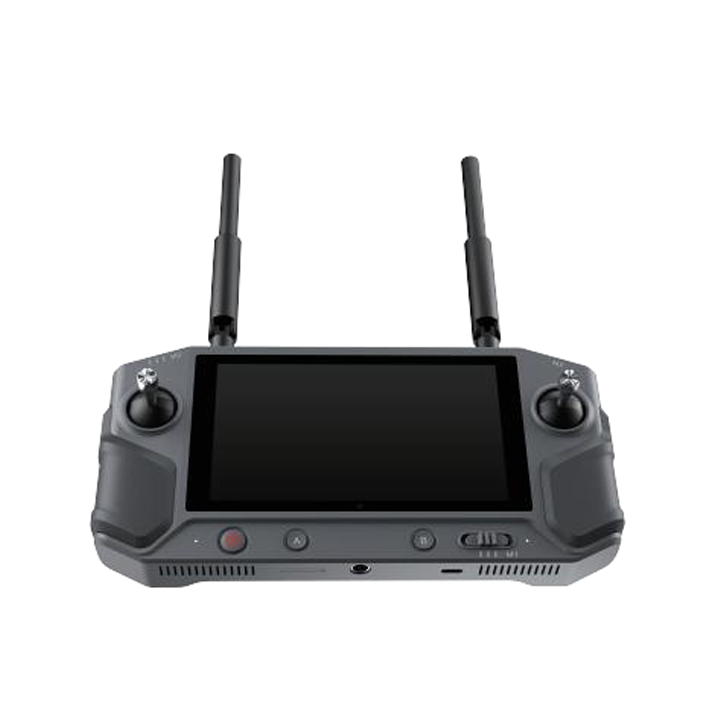

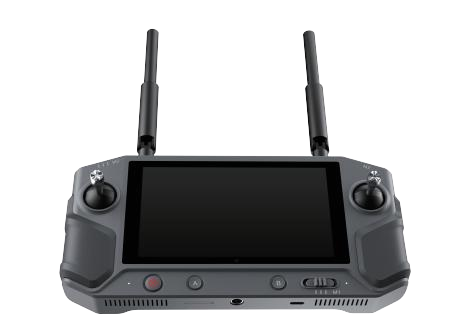

China Moneypro Ground Control Station MLS2

Lightweight, Ultra-Portable Drone Control with Real-Time HD Transmission

Ideal for field operations, the MLS2 GCS combines a compact design with powerful drone control capabilities, featuring 20km transmission range, dual antennas, and a 10-point touchscreen for seamless UAV management in demanding environments.

Category:
Description

Product Details

1. General Specifications

✔ Battery Capacity: 6900mAh
✔ Run Time: 3.5 hours (continuous operation)
✔ IP Rating: IP54 – Dust and splash-proof for rugged use
✔ Operating Temperature: -20°C to 50°C
✔ Dimensions: 218×106×32 mm (Ultra-slim, field-deployable)
✔ Weight: 530g (Lightweight for easy mobility)
✔ Package Dimensions: 265×165×72 mm
✔ Package Weight: 1.2kg

2. Video & Data Transmission

  • Max. Transmission Distance:
    • FCC: 20km | CE/SRRC/MIC: 12km
  • Operating Frequency: 2.4GHz (Stable signal in urban/rural areas)
  • Real-Time Image Quality: 720p@30fps / 1080p@60fps (Crystal-clear FPV)
  • Bit Rate Range: 20 MHz bandwidth (Adjustable for optimal performance)
  • Min. Transmission Delay: 110 ms (Near real-time feedback)
  • Reception Sensitivity: -99dBm@20MHz (Excepts. weak-signal performance)
  • Channels: 13ch (Flexible frequency hopping)

3. Antenna System

Dual-Antenna Setup:

  • 1× Omnidirectional Antenna – Wide coverage for stable connection
  • 1× Directional Antenna – High-gain focus for long-range missions

4. Control & Display

Touchscreen (5.5” FHD LCD Panel)

  • Resolution: 1920×1080
  • Brightness: 1000 nits (Sunlight-readable)
  • Touch Control: 10-point multi-touch (Responsive UI for fast operation)

Secondary Display (15.6” HD Monitor)

  • Resolution: 1920×1080
  • Brightness: 400 nits (Vivid details in all lighting)

5. Hardware & Connectivity

Internal Hardware:

  • OS: Windows 10 (Pre-installed for app compatibility)
  • Processor: 3.1GHz CPU | 4MB Cache (Smooth mission control)
  • Memory: 8GB RAM (Supports heavy-duty mapping/AI software)
  • Storage: 128GB SSD (Fast boot-up & data logging)

Peripheral Ports:

  • 2× USB 3.0 (For external devices)
  • HDMI Type-A (External monitor support)
  • RJ45 Ethernet (Hardwired data transfer)
  • 4-Pin Aviation Connector (Compatible with drone peripherals)

Why Choose the MLS2?

  • Ultra-Portable – Weighs only 530g, ideal for on-the-go operators.
  • Military-Grade Reliability – IP54 ruggedized for harsh conditions.
  • Long-Range & Low Latency (<110ms) for precision drone control.
  • Dual HD Displays – Intuitive touchscreen + secondary monitor.

Perfect for: Surveying, Search & Rescue (SAR), Inspection, and Defense Operations.

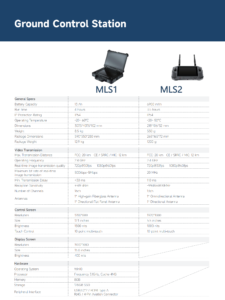

China Moneypro Ground Control Station MLS1

China-Moneypro-Ground-Control-Station-MLS1-MLS2-Download
