Technical Specifications

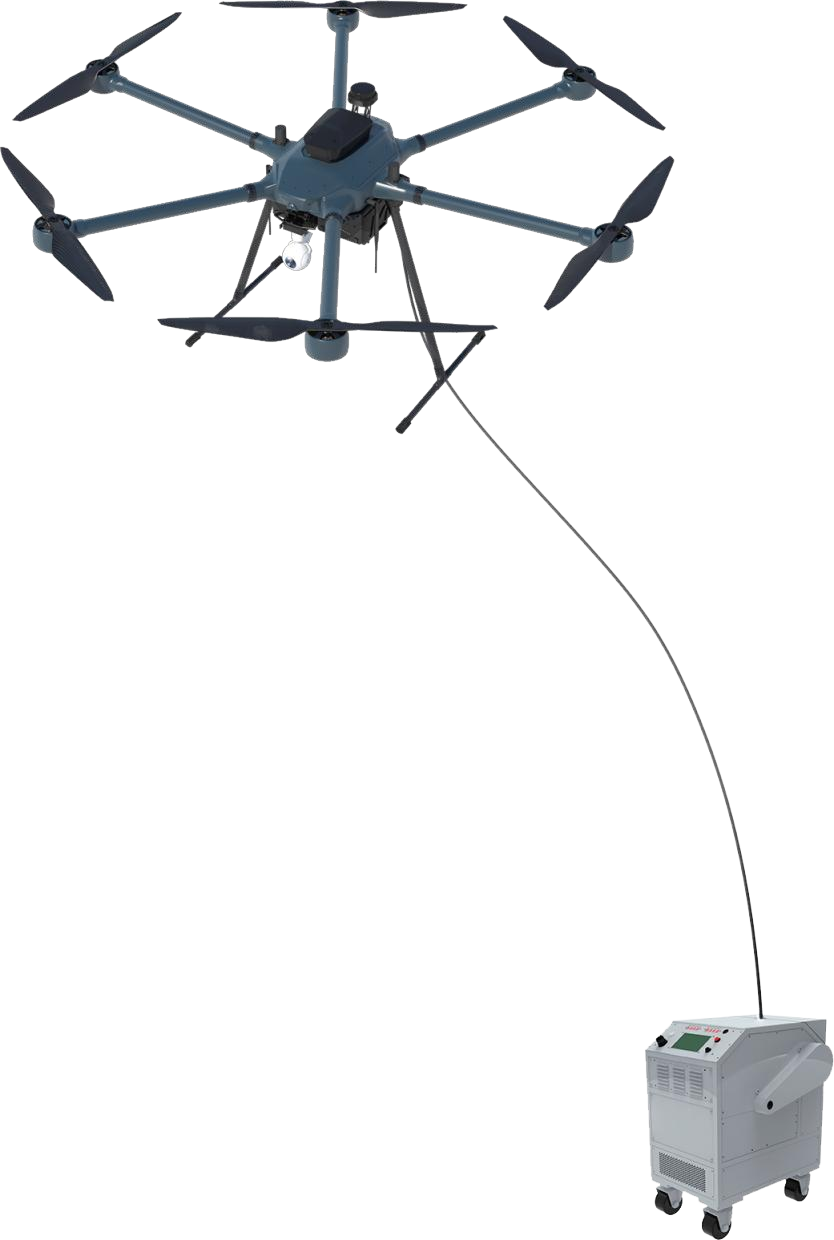

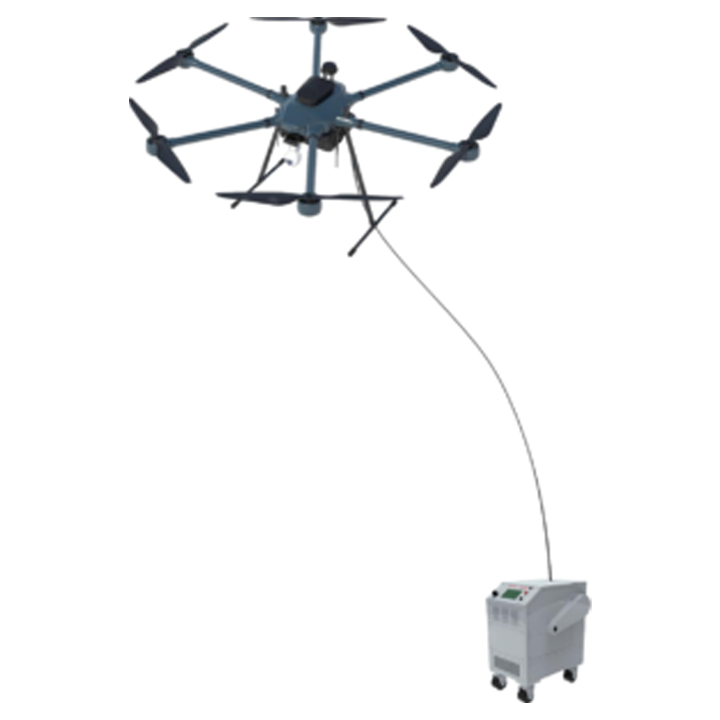

1. Airborne Unit (Mounted on Drone)
- Dimensions: 282 × 143 × 98 mm (Compact, low aerodynamic drag)
- Weight: 2 kg (Minimal flight impact)
- Input Voltage: DC 400V
- Output Voltage: DC 50V
- Max. Power: 5 kW (Supports heavy-lift drones)
- Protections: Short-circuit / Over-temperature auto-cutoff
- Operating Temp.: -20°C to 50°C
2. Ground Unit (Power & Control Hub)
- Dimensions: 450 × 300 × 460 mm
- Weight: 20 kg (Tethered Integration Unit)
- Input Voltage: AC220V/380V (Grid or generator compatible)
- Output Voltage: DC 400V
- Power Capacity:
- Rated: 7 kW | Peak: 8.1 kW (Instant high-load support)
- Protections: Short-circuit / Over-temperature
- Cable Specs:
- Length: 120 m (customizable)
- Diameter: Ø4.5 mm (Flexible, abrasion-resistant)
- Resistance: 1.1Ω per 100m (single conductor)
- Operating Altitude: <5,000 m
3. Core Features
- Automatic Payoff/Take-Up: Motorized spool for tangle-free deployment.
- Active Voltage Compensation: Stable power even at full cable length.
- Plug-and-Play: Compatible with standard smart batteries.
Why Choose Moneypro Tethered System?
✔ Endurance Unlimited – No battery swaps; continuous flight for hours/days.
✔ Industrial Resilience – IP-rated components for rain, dust, and extreme temps.
✔ High-Payload Flexibility – Lift cameras, LiDAR, or comms relays up to 10 kg.
✔ Safety Guaranteed – Multi-layer electrical protections prevent damage.
Ideal for:
- Public Safety: 24/7 surveillance & crowd monitoring.
- Energy Sector: Power line inspections.
- Defense: Border patrol & persistent ISR.
