Key Features & Capabilities
- All-Weather Operation: Stable performance under rain, fog, dust, and electronic warfare conditions.
- High Precision Measurement: Range accuracy ≤ 3 m, angle accuracy ≤ 1°, velocity accuracy ≤ 0.1 m/s.
- Advanced Tracking Performance: Simultaneously tracks >100 aerial and ballistic targets, including high-maneuverability threats.
- Guidance Capability: Calculates real-time trajectory deviation of friendly rockets; guides munitions with sub-meter terminal accuracy.
- Anti-Jamming Resilience: AESA with frequency agility, adaptive beamforming, and >60 dB sidelobe cancellation, ensuring lock under >100 dB J/S environments.
- Modular Design: Open-architecture modules (antenna array, T/R units, processing units) for easy upgrade and maintenance.

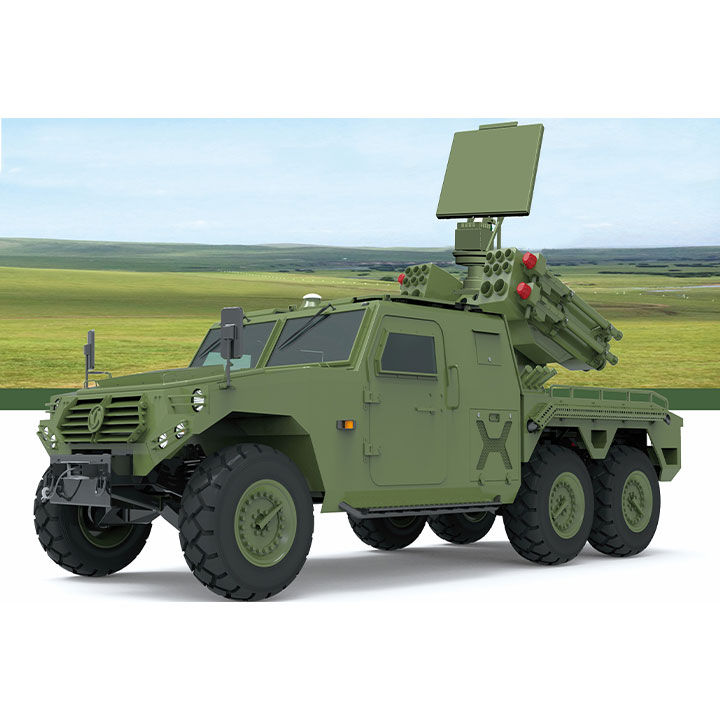

- Deployment Flexibility: Vehicle-mounted radar deployable in <15 minutes, adaptable to integrated air defense systems.
Technical Specifications
- Detection Range:
- Fighter-sized aerial targets (RCS 3 m²): ≥180–200 km
- Ballistic rockets/missiles: ≥150 km(with trajectory tracking)
- Tracking Capacity: >100 simultaneous targets
- Update Rate: ≥1000 Hz beam refresh for high-dynamic target tracking
- Frequency Band: Multi-band (S/X/Ku) AESA with GaN T/R modules
- Mobility: Vehicle-mounted, system setup <15 min, 24h continuous operation
- Reliability: MTBF >1200 hours
Applications
- Air Defense: Rapid detection and precision tracking of incoming missiles, aircraft, and UAVs.
- Fire-Control & Guidance: Provides deviation parameters for rockets and missiles, enabling high-precision terminal strike capability.
- Battlefield Surveillance: Integrates with C4ISR systems for real-time battlefield awareness.
- Counter-Drone & Counter-Missile Operations: Reliable lock-on against low-RCS, high-speed, or evasive targets.
Comparison with Leading International Systems
| Parameter | Raytheon MPQ-64 Sentinel A4 (USA) | Thales Ground Master 200 (France) | China MoneyPro MPY186 Guidance/Tracking Radar |
| Detection Range (Fighter, 3 m² RCS) | ~120–150 km | ~170 km | ≥180–200 km |
| Missile Tracking Range | ~100 km | ~130 km | ≥150 km |
| Tracking Capacity | ~60–80 targets | ~80–100 targets | >100 targets |
| Range Accuracy | ~5 m | ~4 m | ≤3 m |
| Angle Accuracy | ~0.2° | ~0.15° | ≤0.1° |
| ECCM Performance | Frequency agility | Frequency agility + beamforming | Adaptive ECCM, >100 dB J/S resilience |
| Mobility | Vehicle-mounted, ~20 min deployment | Vehicle-mounted, ~20 min deployment | Vehicle-mounted, <15 min deployment |
| Fire-Control Integration | Limited missile guidance | Surveillance-focused | Direct precision rocket/missile guidance |
Why Choose China MoneyPro – MPY186 Guidance/Tracking Radar GTR?
- Superior Accuracy & Range: Extended detection and sub-meter guidance accuracy.
- Multi-Role Versatility: Performs both battlefield trackingand precision strike guidance.
- Unmatched ECCM: Survives in the most contested electromagnetic environments.
- Compact & Modular: Designed for rapid deployment, scalable upgrades, and easy maintenance.
- Future-Proof: Fully integrable with next-generation C4ISR and UAV-based fire-control systems.
The China MoneyPro MPY186 Guidance/Tracking Radar sets a new global benchmark for battlefield engagement, combining AESA agility, precision tracking, and missile guidance into one system. It is the ideal choice for advanced air defense and precision strike missions, offering performance that meets or exceeds the world’s most advanced radar solutions.
