Engineering Superiority
Advanced Carbon Fiber Integration | 29″ Precision Propellers | Optimized Flight Stability

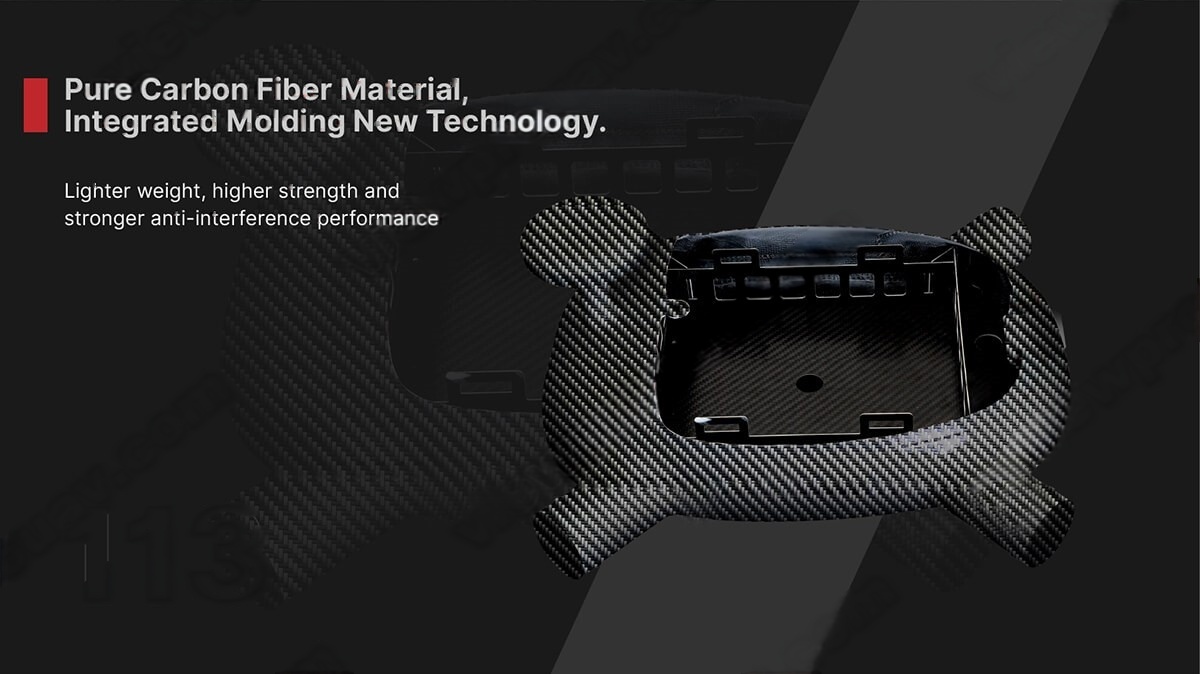

- ✅ Ultra-Light Durability: Pure carbon fiber molding for 40% weight reduction + 300% structural strength

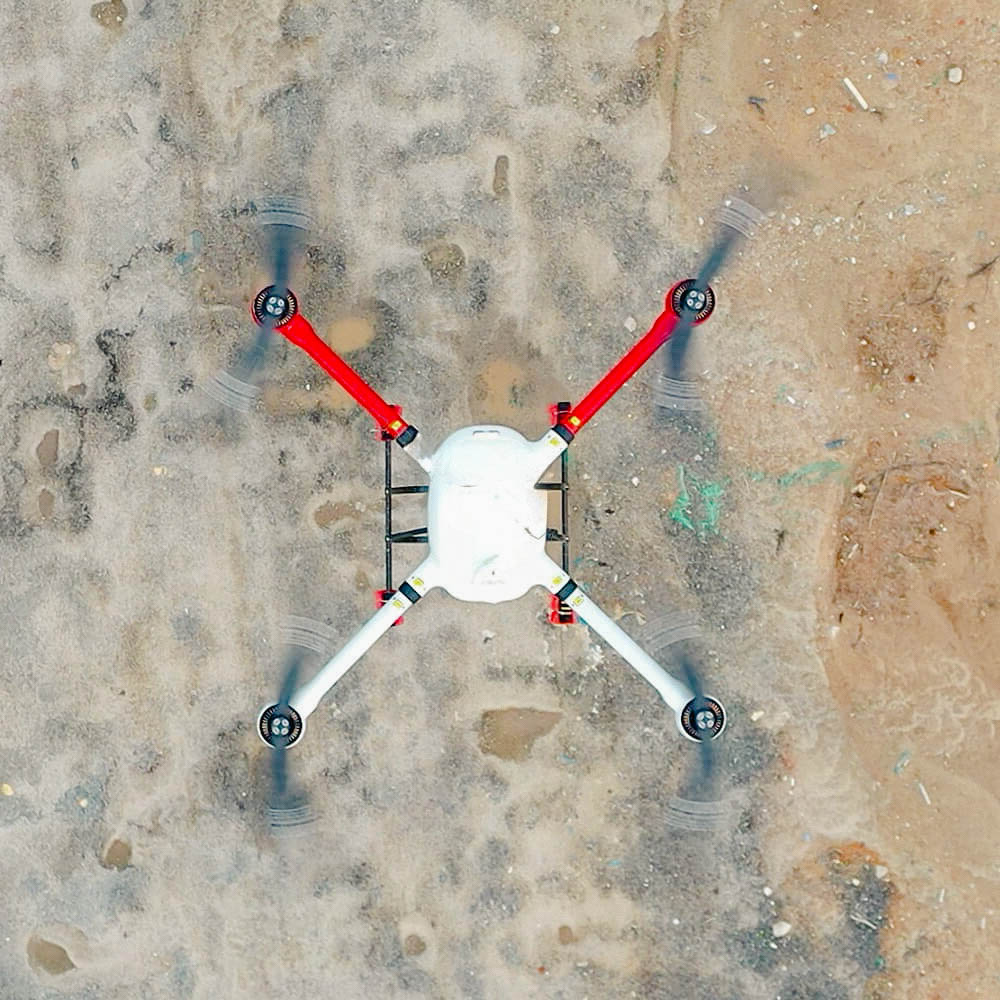

- ✅ X-Frame Aerodynamics: 210mm elevated GPS mount prevents signal interference in urban/forest terrain

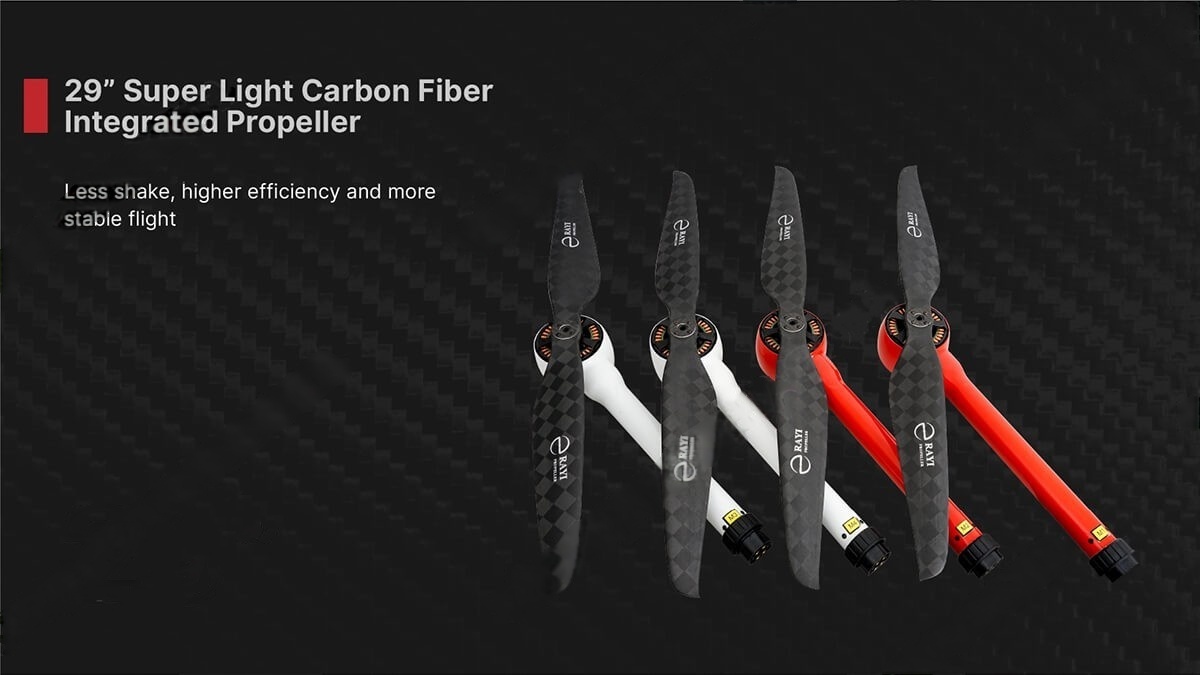

- ✅ Patented 29″ Propellers: Vibration-free flight for crystal-clear imaging at 20m/s speeds
Specifications & Deployment Efficiency
1. Revolutionary Portability

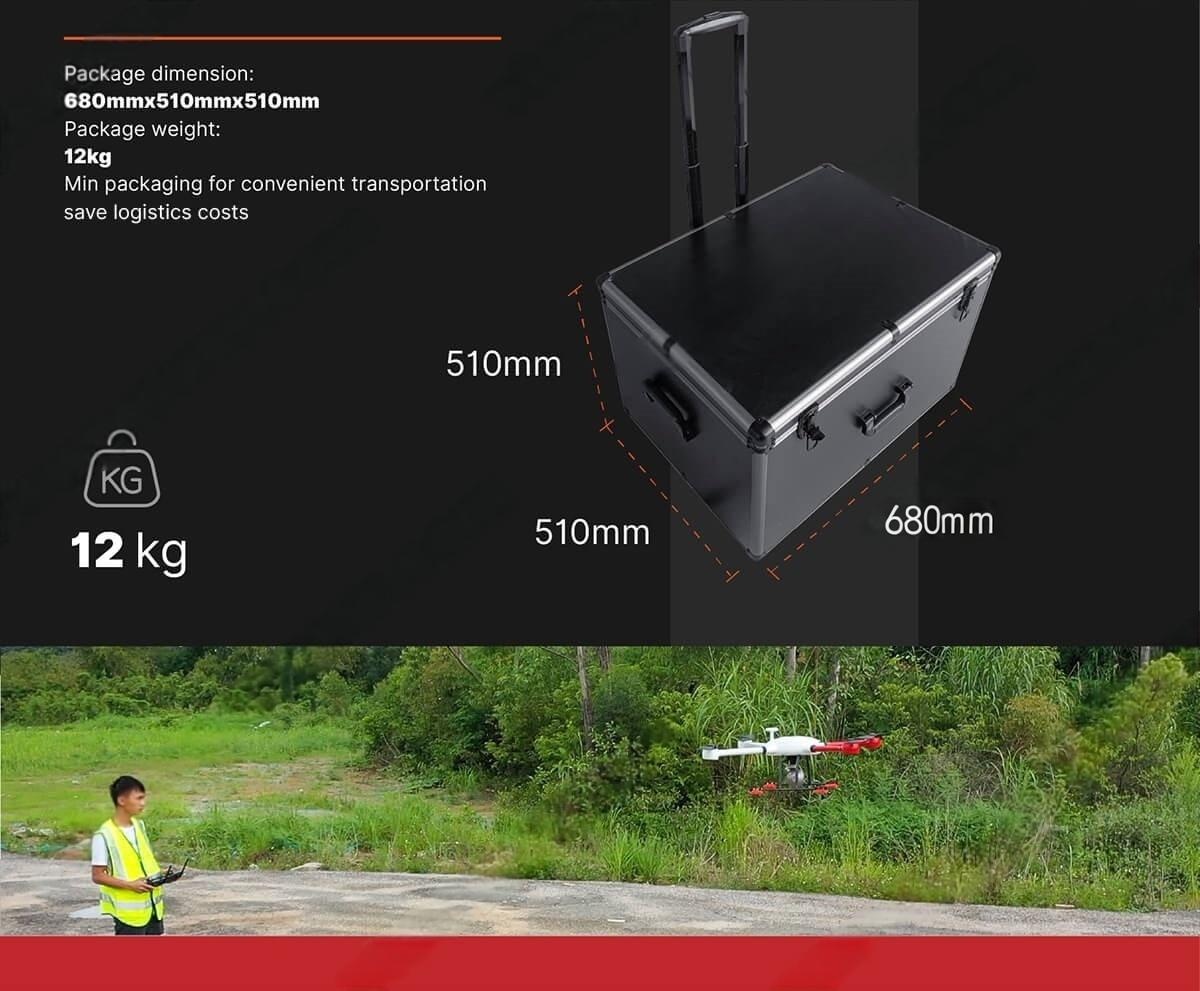

- Folded Dimensions: 680×510×510mm (12kg) – Compact enough for backpack transport

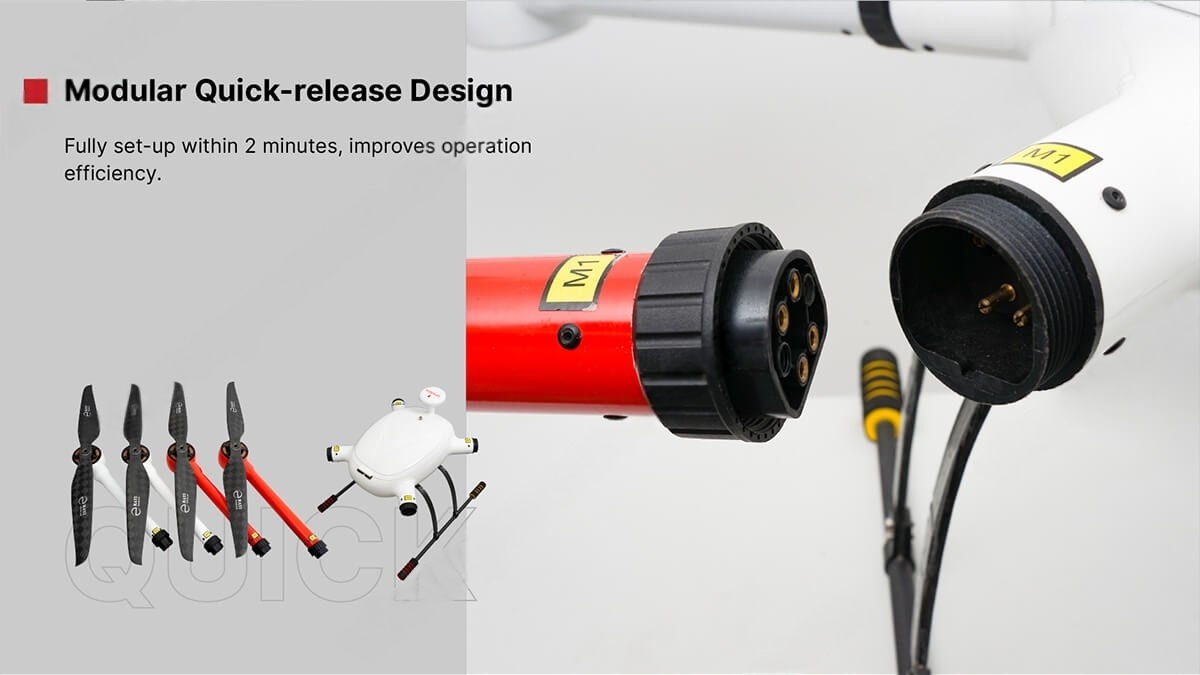

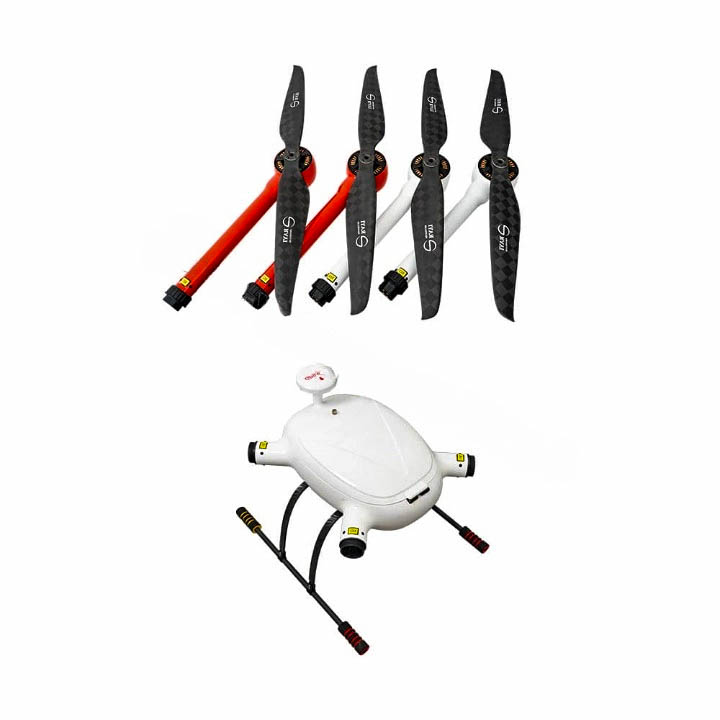

- 2-Min Field Assembly: Tool-free modular locking arms + auto-calibration system
- Payload Bay: 210×180×180mm compartment (supports 15kg total takeoff weight)
2. All-Terrain Flight Dynamics

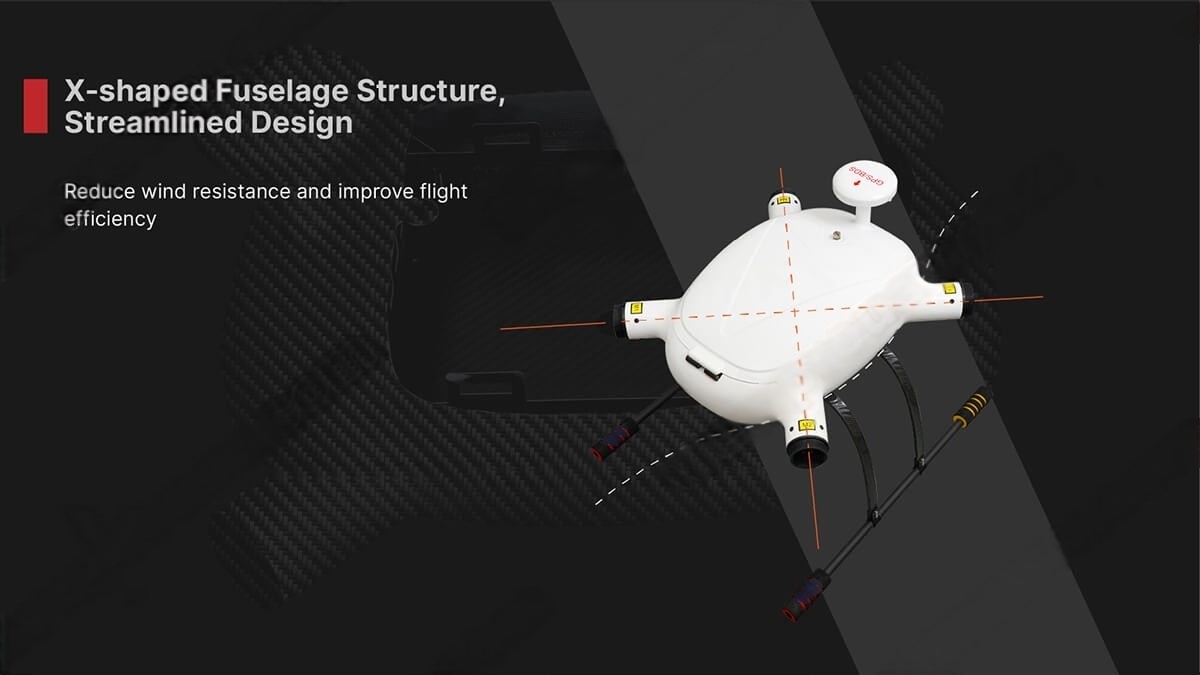

- Streamlined X-Body: 30% reduced wind resistance versus traditional frames
- Multi-Layer Vibration Dampening: For millimeter-accurate LiDAR scanning
- Operational Ceiling: 2000m+ altitude (with payload)
Mission-Ready Payload Ecosystem
Core Payload Capabilities
| Type | Functionality | Application Scenarios |
|---|---|---|
| Gimbal Cameras | 4K/60fps + 32× zoom | Illegal activity documentation |
| Mapping LiDAR | 10cm-accuracy 3D point clouds | Dam/bridge structural analysis |
| 100dB Speaker | Remote audio commands + emergency alerts | Crowd control & disaster evacuation |
| Gas Sensors | Real-time air quality/pollution mapping | Environmental compliance enforcement |

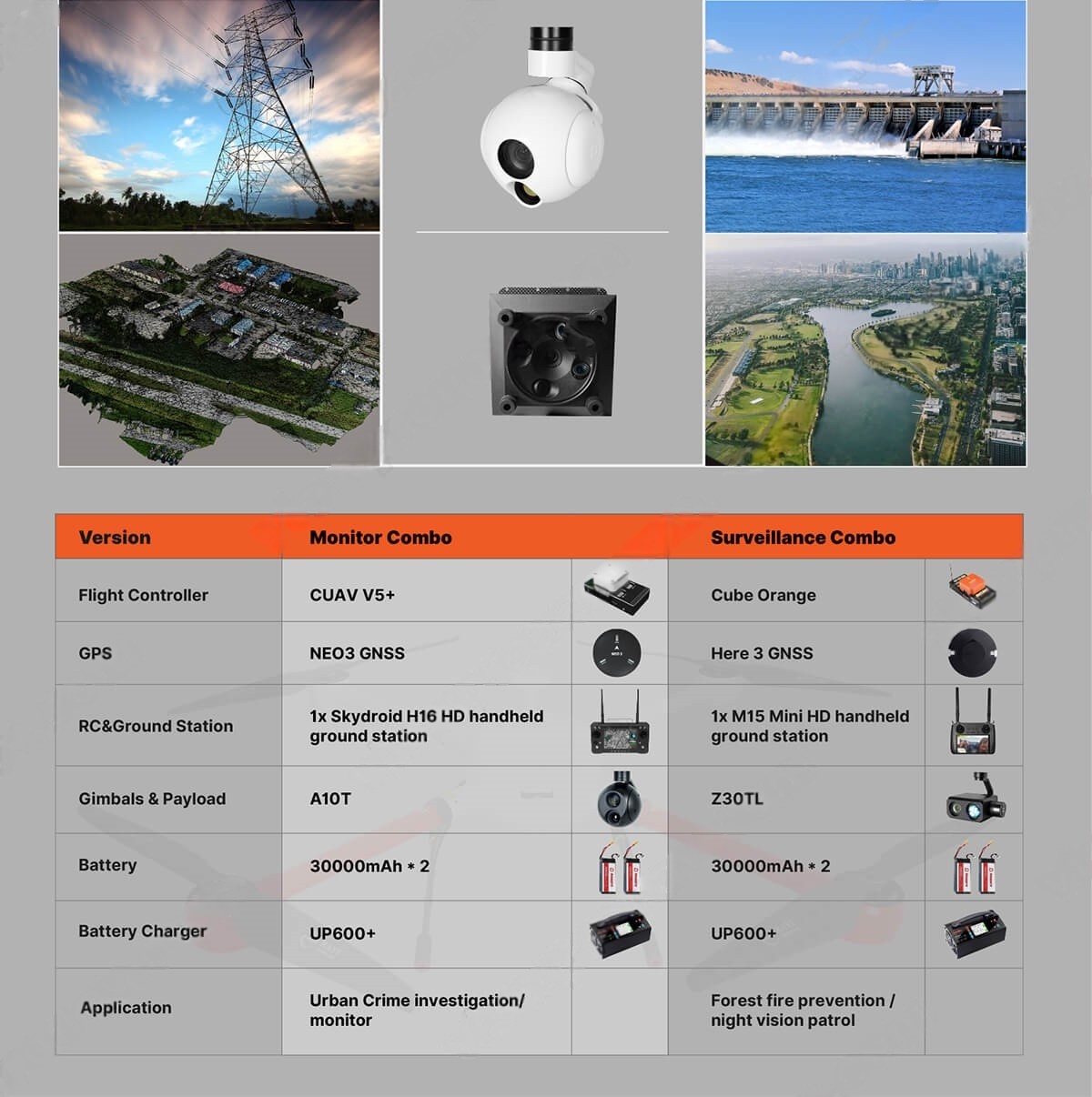

Deployment Packages
- Security Patrol Kit: Night-vision camera + speaker + spotlight
- Fire Rescue Kit: Thermal imager + chemical sniffer + comms relay
- Conservation Kit: Multispectral camera + seed dispersal module
Industry-Specific Applications
Public Safety & Defense
- Border Surveillance: 8-hour autonomous patrols with AI intruder detection
- SWAT Operations: Silent nighttime recon via >15km encrypted transmission
Environmental & Infrastructure
- Forest Fire Response: Burn-area mapping + evacuation broadcast
- Hydropower Inspection: Turbine defect detection in GPS-denied canyons
Urban Governance
- Illegal Construction Monitoring: Automated weekly site comparisons
- Pandemic Response: Contactless temperature screening + public announcements

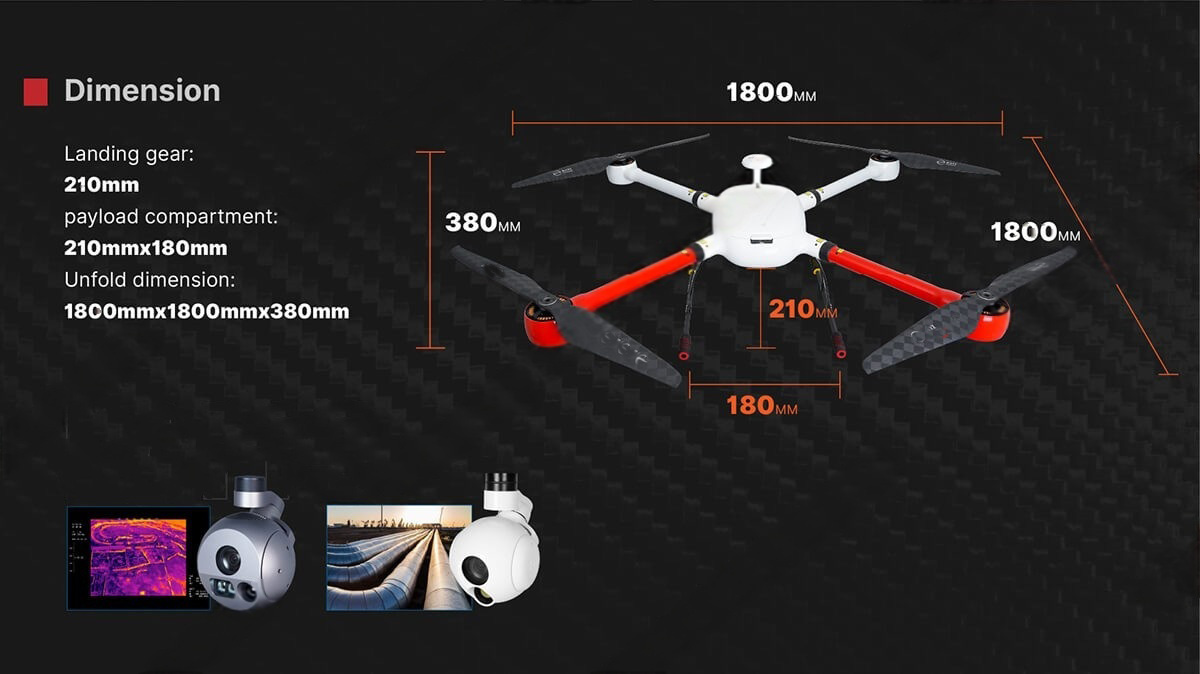

Technical Specifications
| Parameter | Specification |
|---|---|
| Unfolded Dimensions | 1800×1800×380mm |
| Landing Gear Height | 210mm (terrain clearance) |
| Max Transmission Range | 15km (OcuSync 3.0 anti-interference) |
| Wind Resistance | Level 6 (13m/s) |
| Operating Temperature | -10℃ to 50℃ |
| Battery System | Hot-swappable dual 10,000mAh (90 min flight) |
Operational Advantages
- Rapid Response: Faster than helicopters at 1/20 operational cost
- Signal Integrity: Elevated GPS + triple-redundancy IMU for jamming zones
- Payload Flexibility: Open SDK for custom sensor integration (radiation, gas, etc.)
- Logistics Savings: 60% smaller storage vs. competitors – ships as checked luggage
