Engineering Innovation
Six-Axis Stability | Double-Folded Landing Gear | Optimized Aerodynamics
- 1140mm Wheelbase: Enhanced stability for windy operations
- SUV-Transportable: Fits folded in car trunks (50% smaller than M600)
- Modular Payload Bay: 210×180mm space for quick swaps
Specifications & Portability

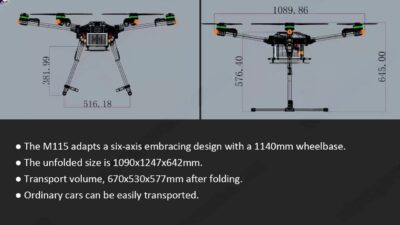

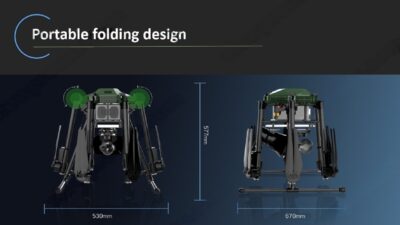

1. Space-Smart Folding System
- Unfolded Size: 1090×1247×642mm (max operational coverage)
- Folded Dimensions: 670×530×580mm — Carry-on ready for remote sites

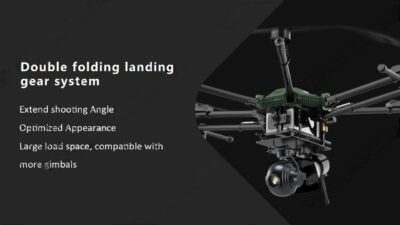

- Double-Fold Landing Gear: 210mm lift height for unobstructed 360° imaging
2. Heavy-Lift Performance
- 60min Endurance (no load) | 45min under 5kg payload
- Hexacopter Redundancy: Safe landings after motor failure
- High-Altitude Operation: Capable up to 3000m for mountain rescue

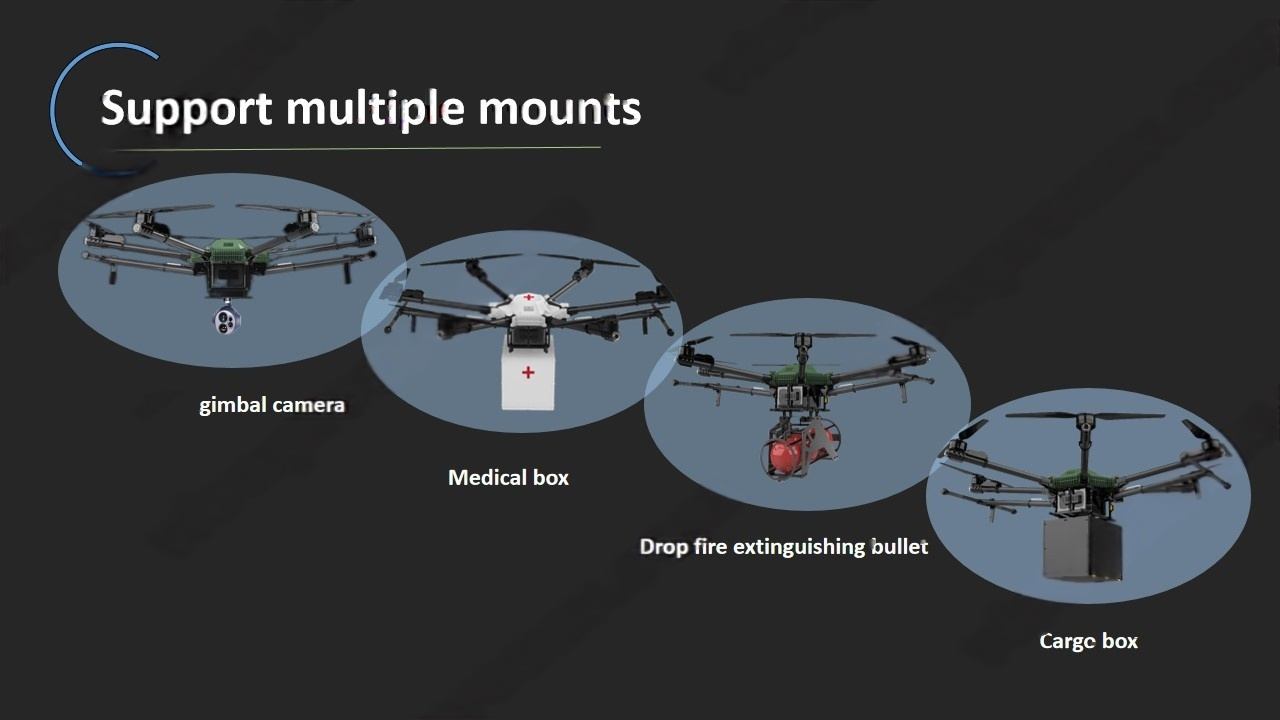

Multi-Role Payload Integration
| Payload Type | Function | Application |
|---|---|---|

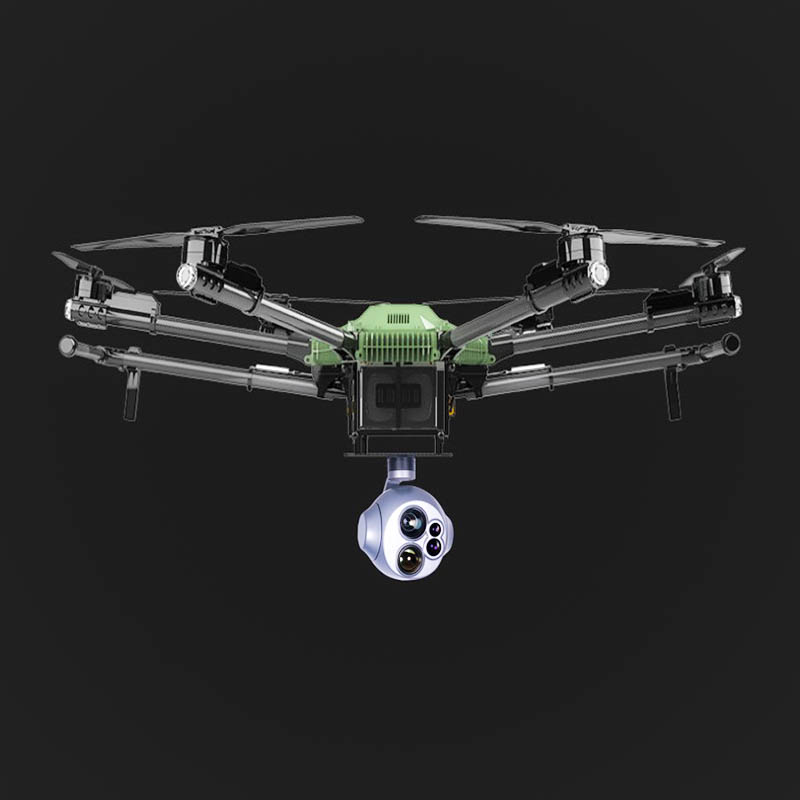

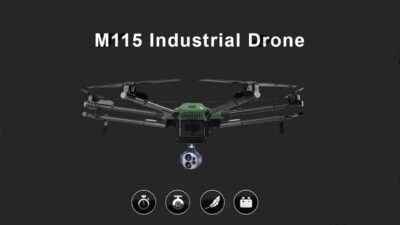

| Moneypro Gimbal | 4K/30fps infrared + day/night vision | Electrical grid thermal inspections |

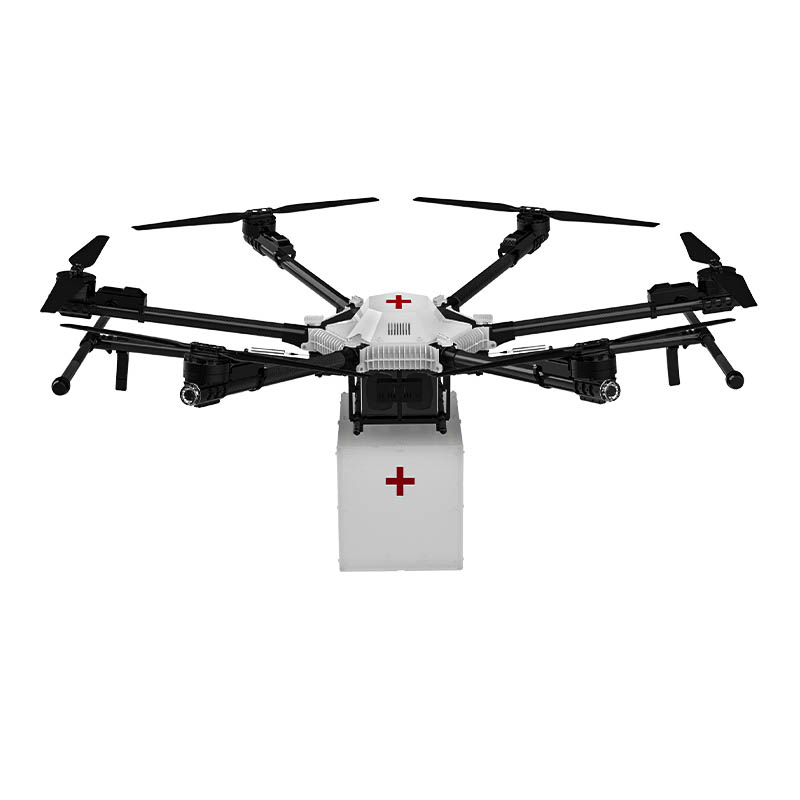

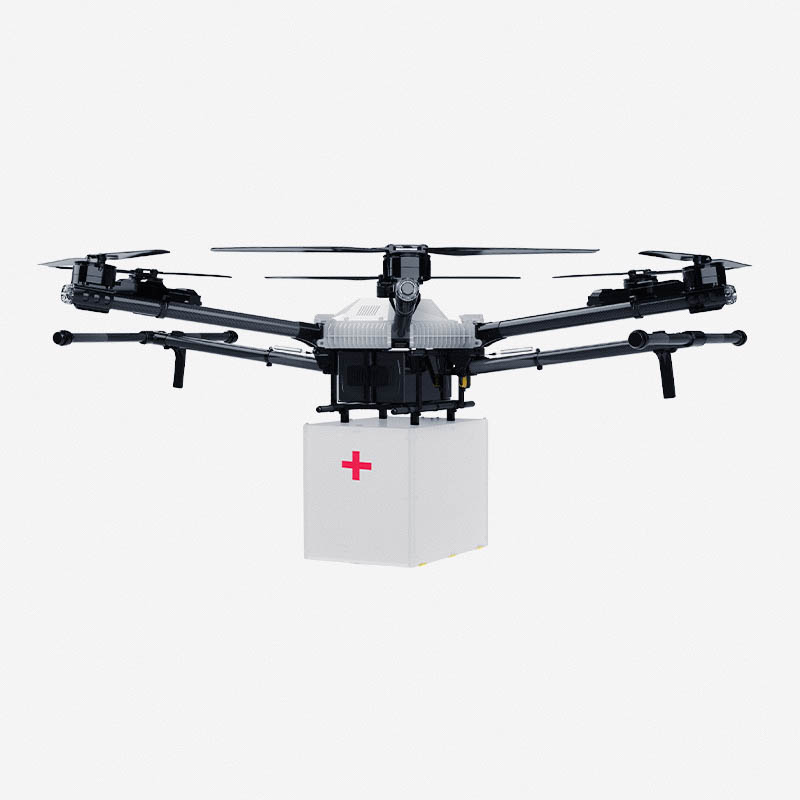

| Medical Box | Urgent blood/antibiotics delivery | Disaster zone triage support |
| Fire Extinguisher | 8kg dry-chemical drop bullets | Forest fire rapid suppression |

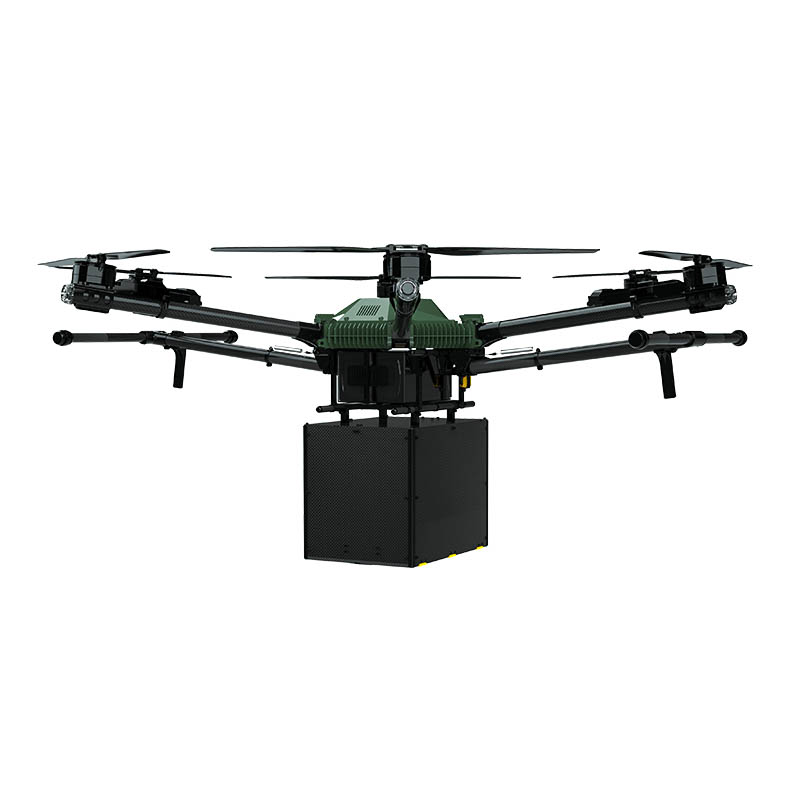

| 60L Cargo Box | Repair tools/supply transport | Offshore platform resupply |
Industry-Specific Kits:
- Firefighting: Thermal camera + extinguisher bullets
- Search & Rescue: Loudspeaker + medical pod + spotlight
- Power Inspection: Laser-scanner + corrosion sensor
Sector Applications
Emergency Response
- Earthquake Rescue: Infrared detection of survivors in rubble
- Flood Relief: Medical supply airdrops to isolated communities
Infrastructure Protection
- Forest Fire Prevention: Early smoke detection + fireline creation
- Power Line Inspection: 120KV transmission tower corrosion scans
Public Safety
- Night Patrol: Border monitoring with 10km infrared range
- Hazardous Material: Gas leak mapping in industrial zones

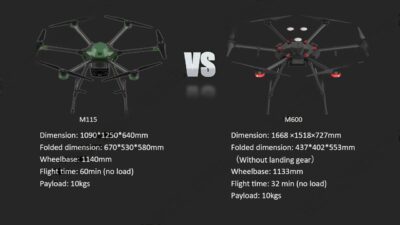

Technical Comparison: M115 vs. DJI M600
| Parameter | MONEYPRO M115 | DJI M600 |
|---|---|---|
| Flight Time | 60min (0 payload) | 32min (0 payload) |
| Folded Size | 670×530×580mm SUV-friendly | 437×402×553mm (without gear) |
| Payload Access | Front-loading bay (210×180mm) | Top-mount only |
| Landing Gear | Dual-fold height adjust | Fixed height |
Operational Advantages
- 90-Second Deployment: Tool-free arm unfolding + auto-calibration
- Weather Resilience: IP55-rated for rain/dust operations
- Cost Efficiency: 40% lower operating cost than helicopters
- Signal Integrity: GPS holder far from rotors to prevent RF interference
- Modular Swaps: Change payloads mid-mission (speaker➜medical kit)
Full Specifications
| Category | Metric |
|---|---|
| Wheelbase | 1140mm |
| Max Takeoff Weight | 21kg (UAV + payload) |
| Transmission | Ocusync 3.0 Pro (15km HD video link) |
| Wind Resistance | Level 7 (15m/s) |
| Operating Temp | -20℃ to 60℃ (arctic to desert) |
