Core Features
20x Continuous Optical Zoom
- 8.51MP 4K resolution (3840×2160) – see license plates at 500m+.
- Embedded video: Zoom from wide-FOV to detailed close-up.

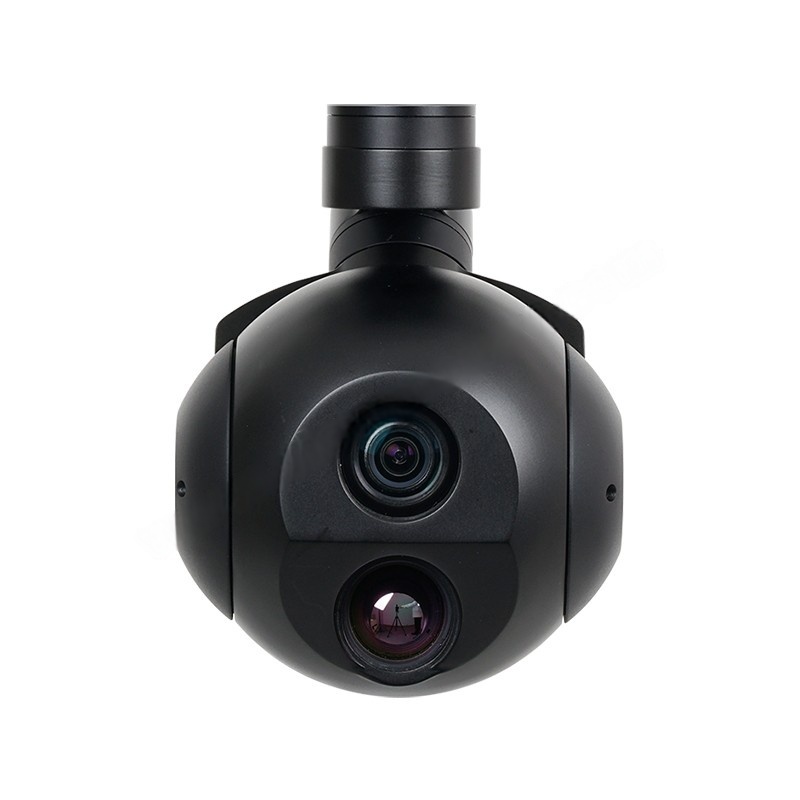

Dual-Sensor Fusion
- EO Camera: 8.15MP Ultra HD + 20x zoom for daylight clarity.

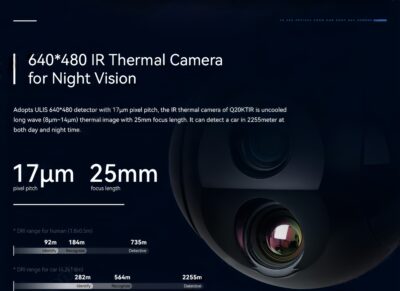

- IR Thermal: 640×480 uncooled (17μm) with 25mm lens – detect cars at 2,255m.
AI-Powered Tracking
- ActiveTrack locks onto moving targets (humans/vehicles) automatically.
- Demo: AI tracking a speeding car during zoom.

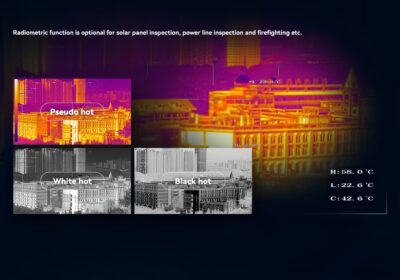

Radiometric Option
- Measure temperatures (-20°C to 1500°C) for firefighting/solar panel inspections.

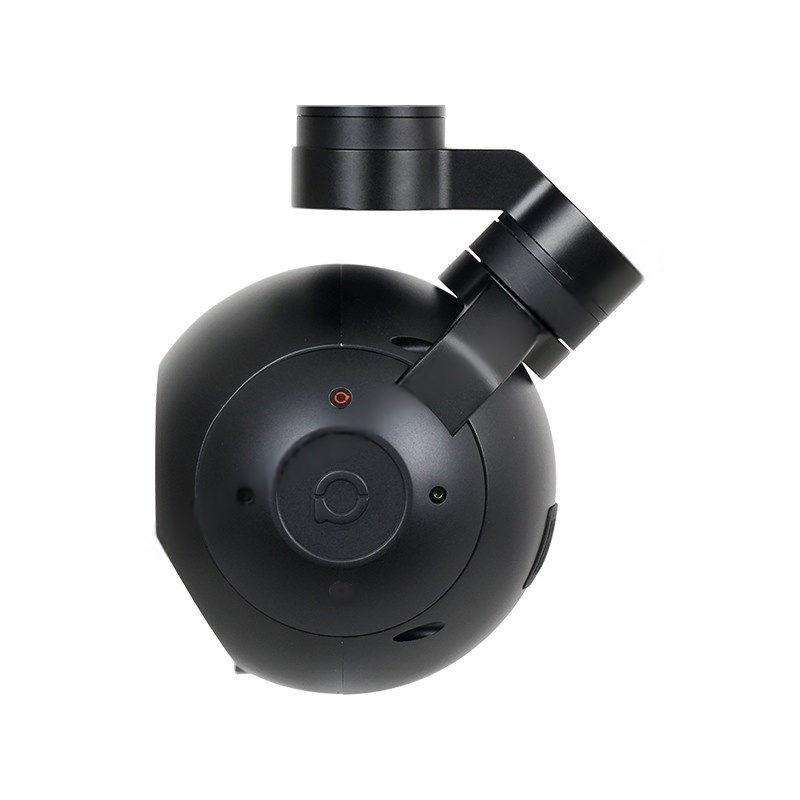

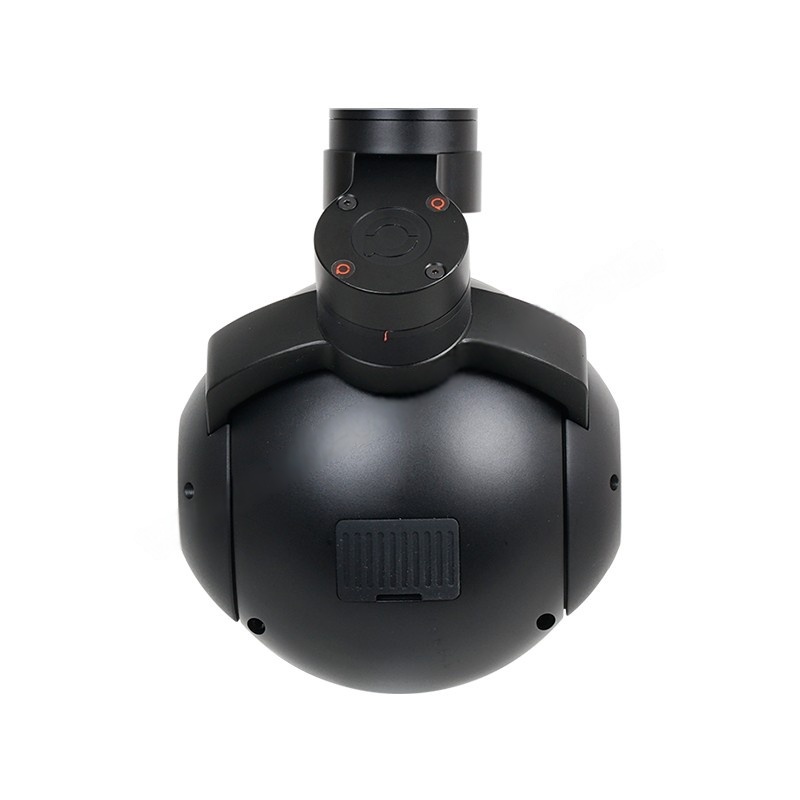

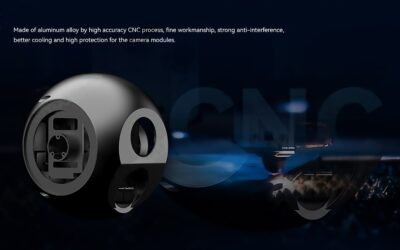

Aerodynamic CNC Aluminum
- Wind-resistant ball shape – 20% less drag than box designs.
- IP67-rated for dust/moisture protection.
Technical Highlights
| Feature | M20KTIR | Competitor A |
|---|---|---|
| Optical Zoom | 20x Continuous | 10x Stepped |
| Thermal Resolution | 640×480 (17μm) | 320×240 (25μm) |
| Max Detection Range | 2.25km (Car) | 1.2km |
| Output Options | RTSP/RTMP/UDP/HDMI/SDI | RTSP Only |
| Weight | 1.1kg (With housing) | 1.8kg |
Mission Scenarios
Firefighting & Rescue
- Thermal pinpoints victims in smoke; 20x zoom assesses structural damage.
Energy Infrastructure
- Radiometric mode detects overheating power lines (solar/wind farm compatible).
Defense & Border Patrol
- ID vehicles at 2.25km + track smuggling boats at night.
Urban Surveillance
- Zoom from crowd overview to individual faces without losing resolution.
Why Choose M20KTIR?
- Dual-Sensor Advantage – No payload switching; seamless EO/IR workflow.
- Moneypro’s Optical Expertise – 20x zoom with zero focus drift (100+ gimbal models’ R&D).
- Made for China Moneypro Drones – Plug-and-play with VTOL/fixed-wing UAVs.
- Global Logistics – Ships from Shenzhen in 72 hours.

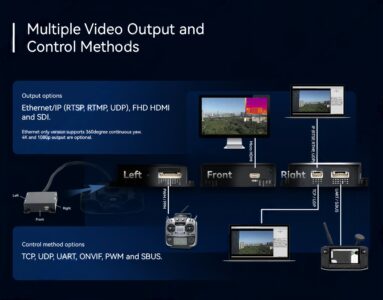

Integration & Support
- Control: SBUS/PWM/UART/ONVIF.
- Outputs: 4K HDMI + IP (RTSP/RTMP) – compatible with Moneylink/Mstation apps.

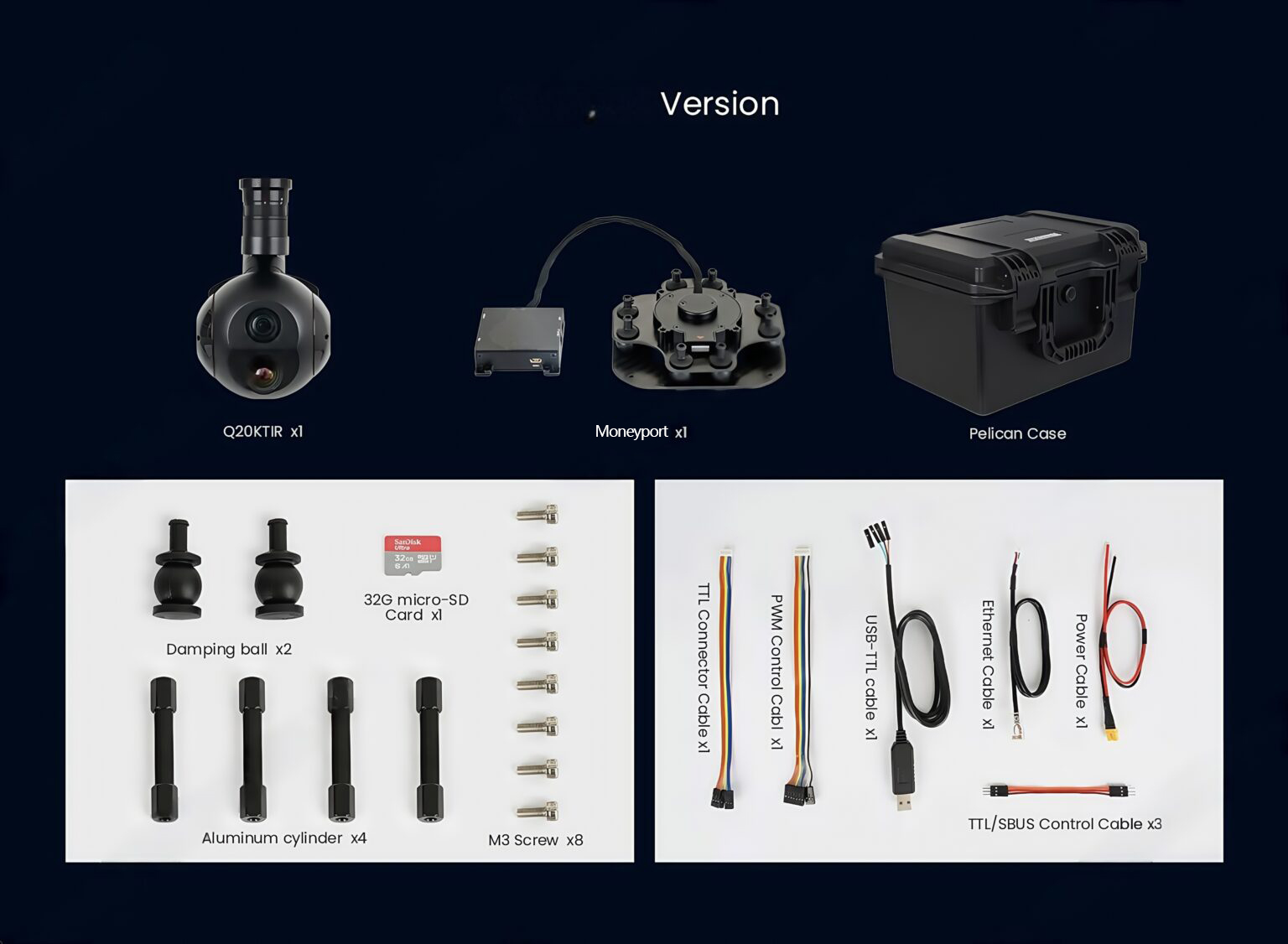

- Package Includes: Pelican case, TTL/PWM cables, damping balls.
Social Proof
- The 20x zoom resolved turbine blade cracks our old 10x systems missed.
- Radiometric data helped contain 3 wildfires this season.
FAQ
Q: Can it output 4K and thermal simultaneously?
A: Yes – via HDMI (4K) + Ethernet (thermal stream).
Q: Is the zoom stable during high-speed flight?

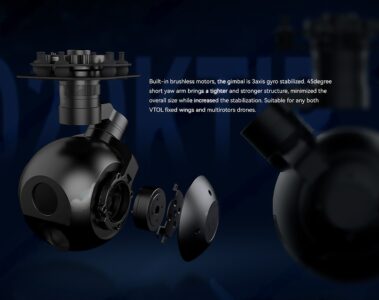

A: 3-axis gyro stabilization + aerodynamic housing minimizes vibration.
Q: Custom detection algorithms?
A: Yes – train AI for specific targets (e.g., drones, wildlife).
