Technical Specifications Breakdown
Sensor Suite Performance
| Feature | EO Camera | Thermal Imaging |
|---|---|---|
| Resolution | 25.9MP (6192×4128) | 640×480 @30Hz |

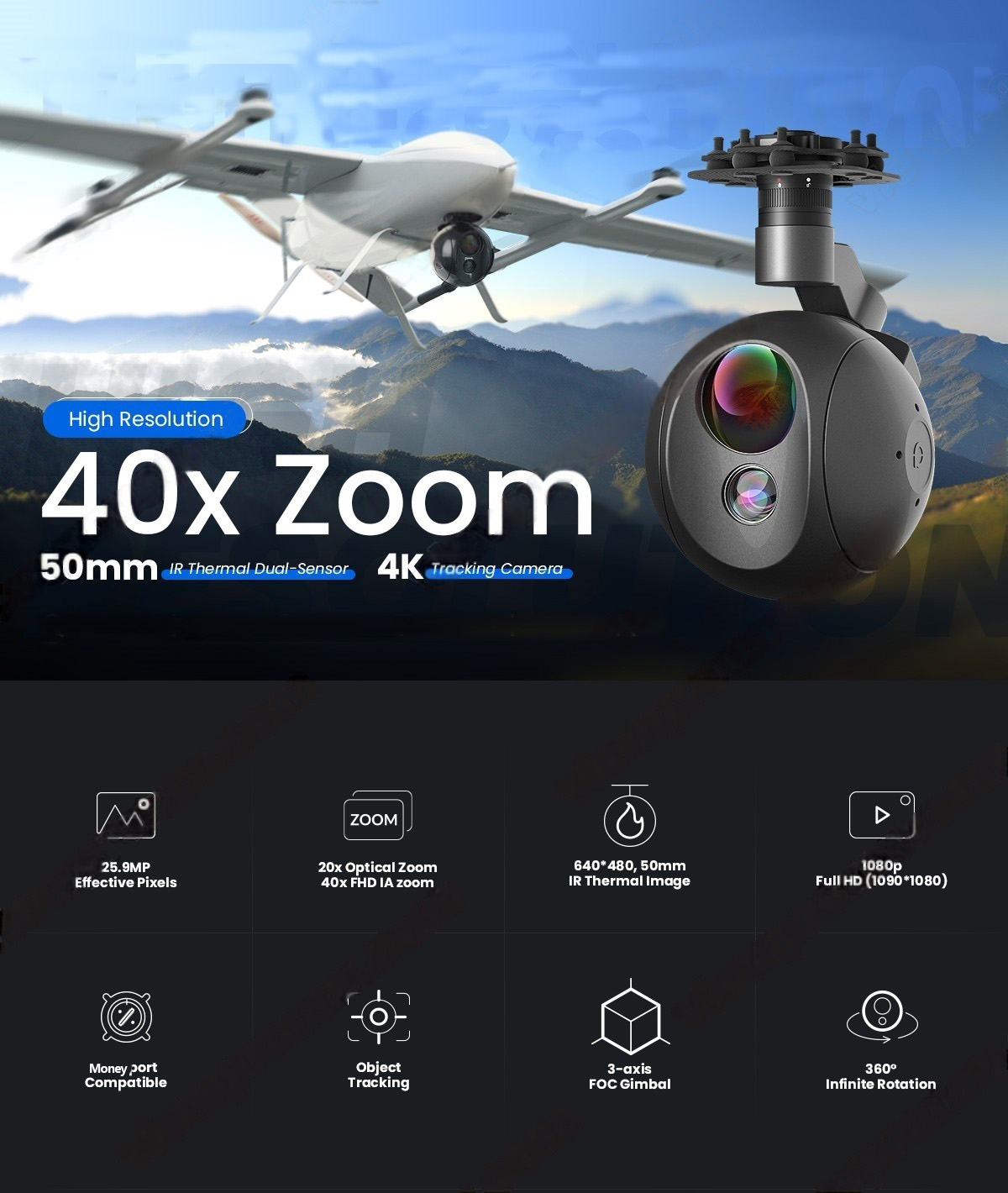

| Zoom Range | 40x optical / digital expansion | 50mm lens |
| Detection | License plates @3KM | Human @1.5KM |
| Special | 0.001lux starlight | 0℃-120℃ measurement |
Stabilization & Control

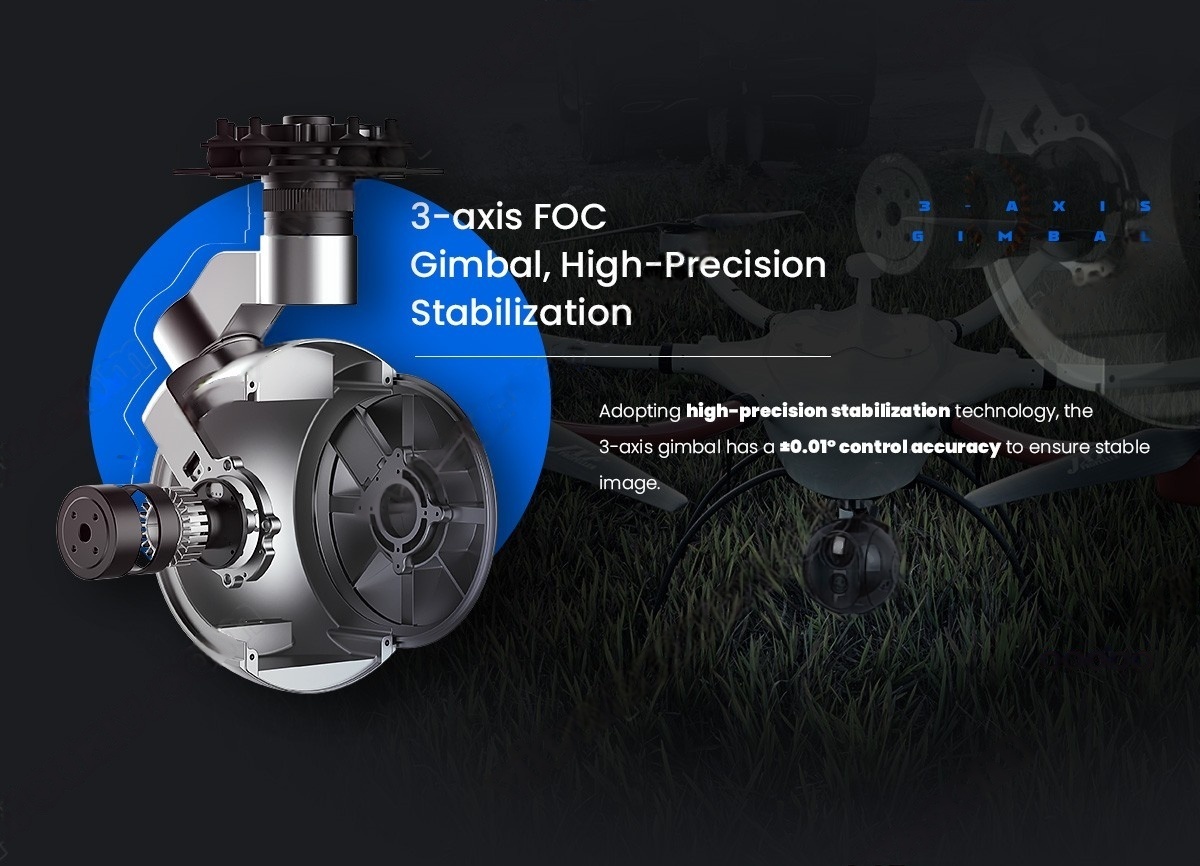

- 3-Axis FOC Gimbal (±0.01° accuracy)
- 360° Continuous Yaw – No rotation limits

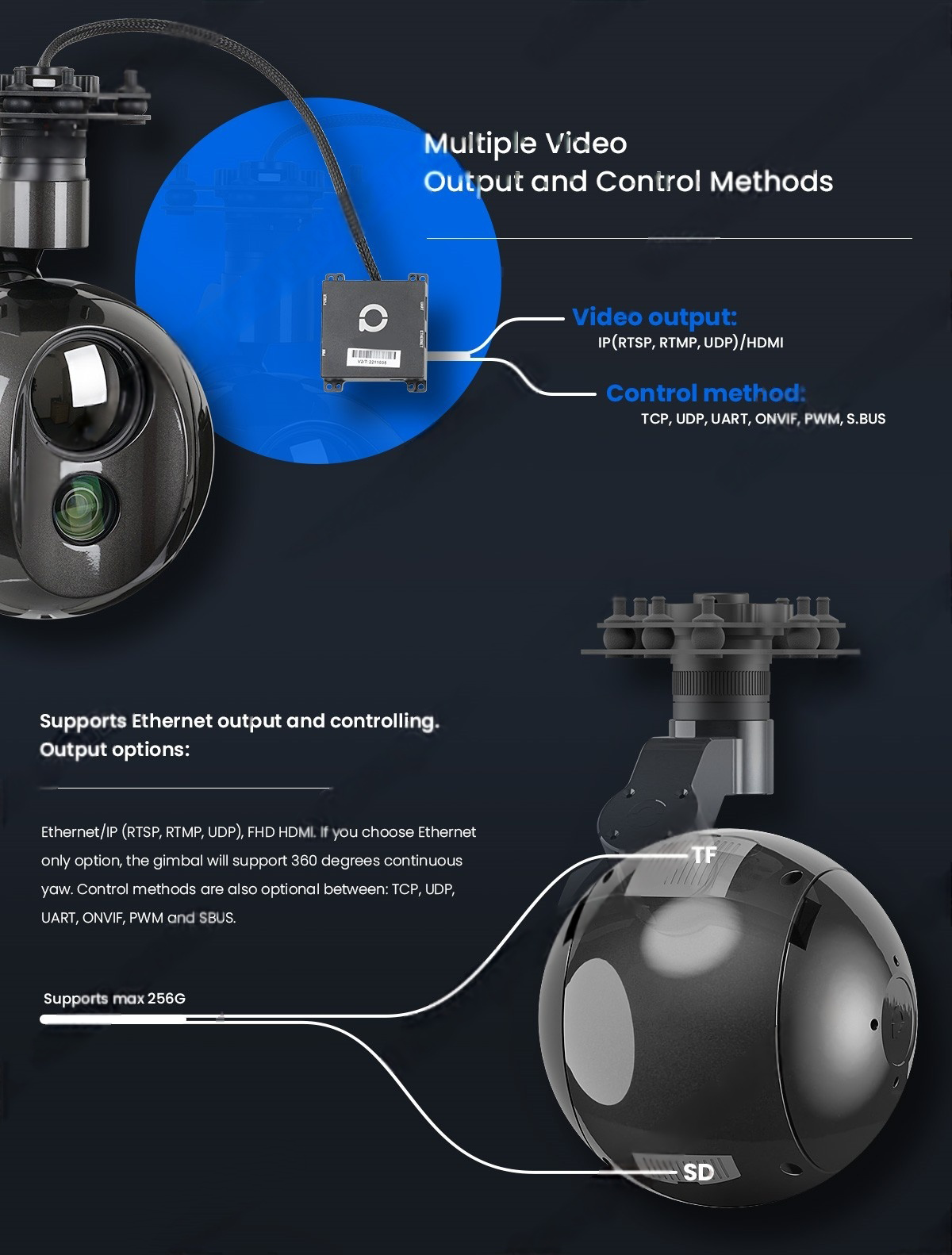

- Multiple Control Protocols
Advanced Features

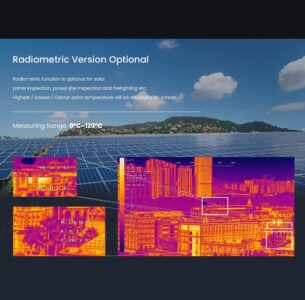

- Radiometric Option – For solar panel/power line inspections

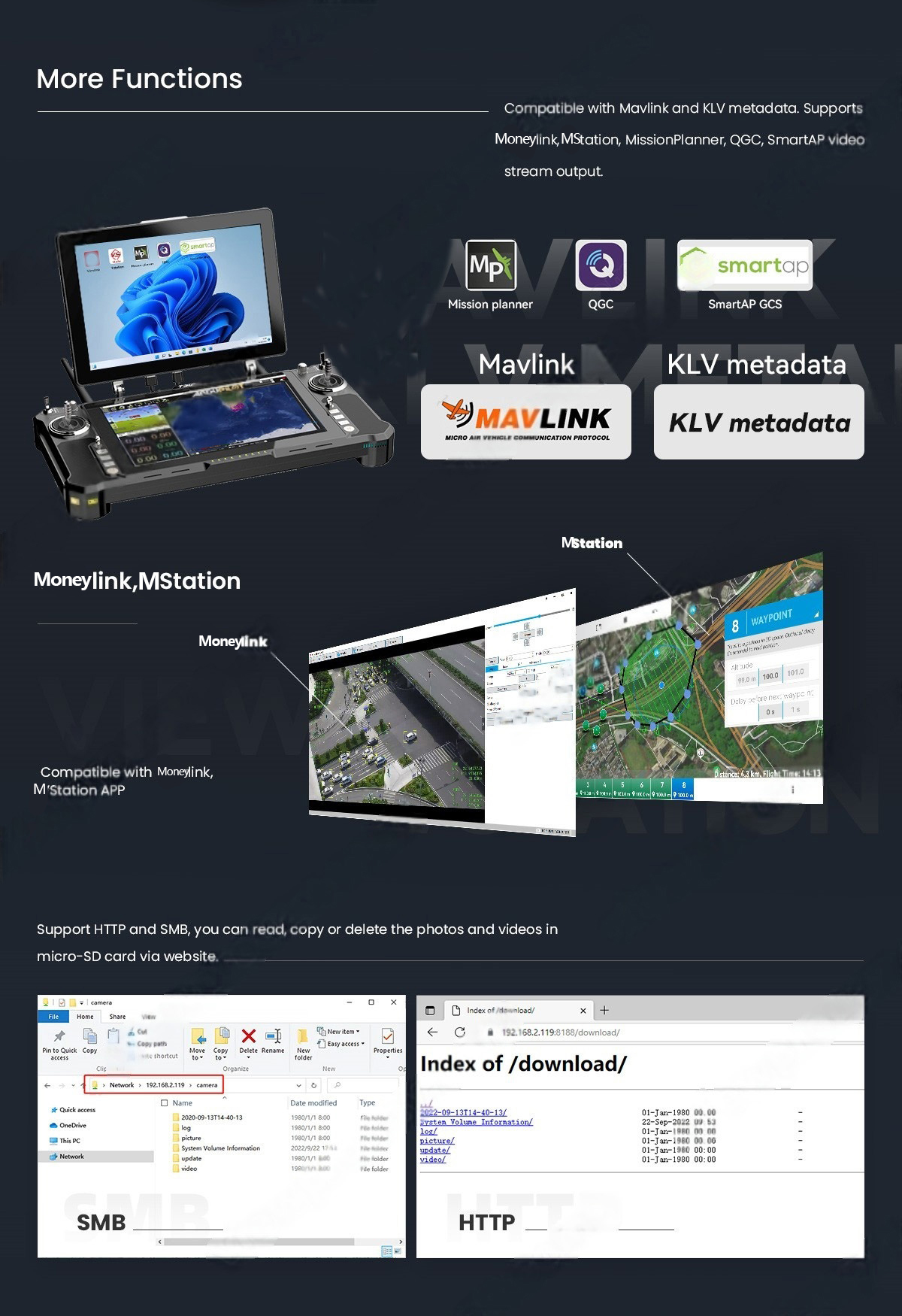

- KLV Metadata Embedded – Full geotagging capability

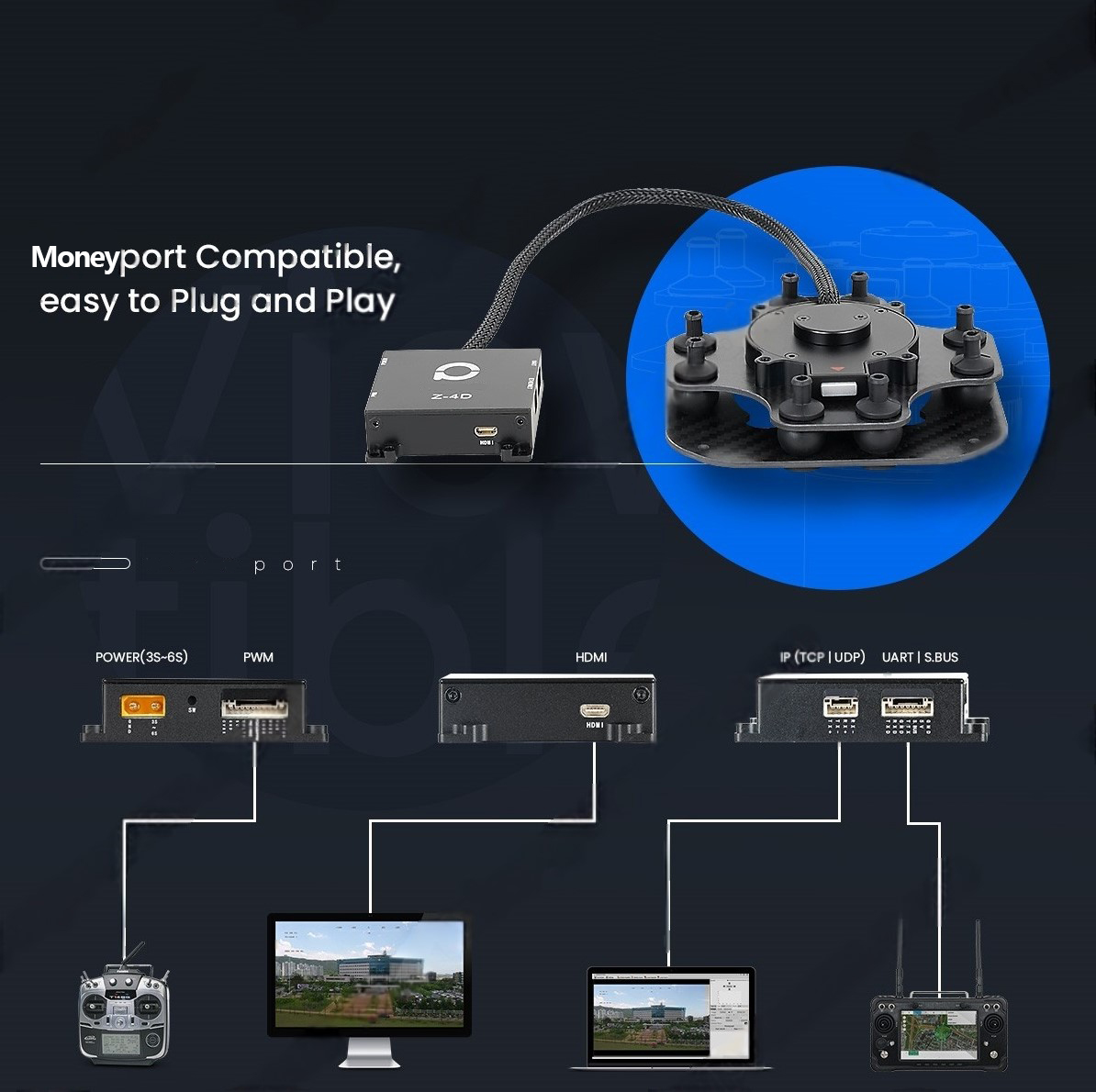

- Dual Output Options – HDMI + Ethernet/IP simultaneous
Target Industries & Applications
| Industry | Use Case | M40TIR Advantage |
|---|---|---|
| Border Security | Long-range illegal activity monitoring | 40x zoom + thermal fusion |
| Energy Inspection | Solar farm hotspot detection | Radiometric thermal option |
| Law Enforcement | Evidence collection & suspect ID | 25.9MP forensic-quality imaging |
| Disaster Response | Nighttime search operations | Starlight + thermal dual mode |
| Infrastructure | Bridge/tower defect inspection | Pinpoint 40x zoom capability |
Marketing Execution Plan
Digital Campaign
Website Experience:
- Interactive “Zoom Calculator” showing detection ranges
- “Day/Night Comparison” video slider
- Virtual demo of AI tracking capabilities
Content Strategy:
- Hero Video: “From 1x to 40x – See the Difference”
- Case Study: “How [Border Patrol] Increased Detection Range by 300%”
- Tech Note: “The Science Behind 40x Optical Stabilization”
Trade Show Activation
- “Find the Target” Challenge Booth – Visitors use 40x zoom to identify hidden objects
- Thermal Imaging Demo – Show heat detection through smoke/foilage
- Live Flight Demo – Integrated with CM-800 Hybrid VTOL
Sales Enablement
- Competitive Comparison Toolkit (vs DJI Zenmuse H20T)
- Application-Specific Presets (pre-loaded inspection profiles)
- ROI Calculator – Cost savings vs manned aircraft
Competitive Advantage Matrix
| Feature | M40TIR | DJI H20T | FLIR Vue TZ50 |
|---|---|---|---|
| Optical Zoom | 40x | 20x | 8x |
| Thermal Resolution | 640×480 | 640×512 | 320×240 |
| Stabilization | ±0.01° | ±0.02° | ±0.05° |
| Output Options | HDMI+IP | HDMI Only | HDMI Only |
| Weight | 1.4kg | 1.4kg | 1.6kg |
Why China Moneypro?
- Complete Solution Provider – From drones to gimbals to control systems
- Moneypro Optical Expertise – 100+ successful gimbal designs
- Rapid Global Delivery – Shenzhen-based with 7-day express shipping
