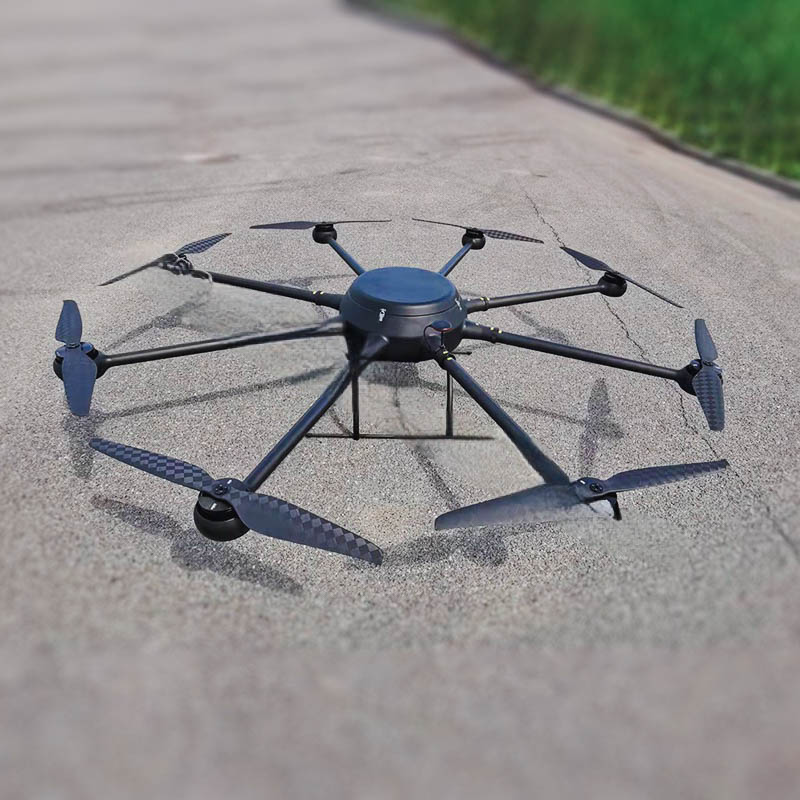

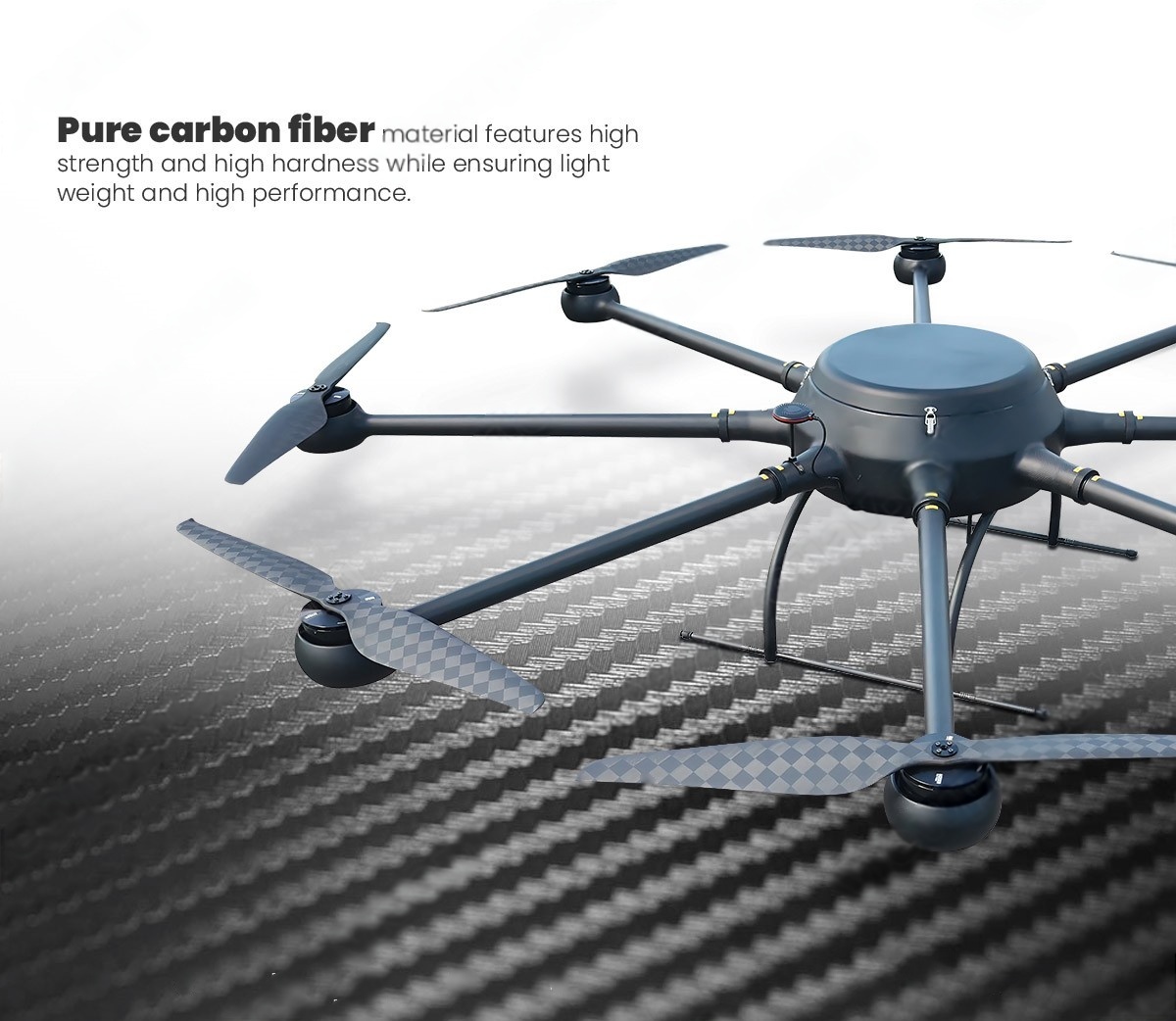

Carbon Fiber Mission Architecture

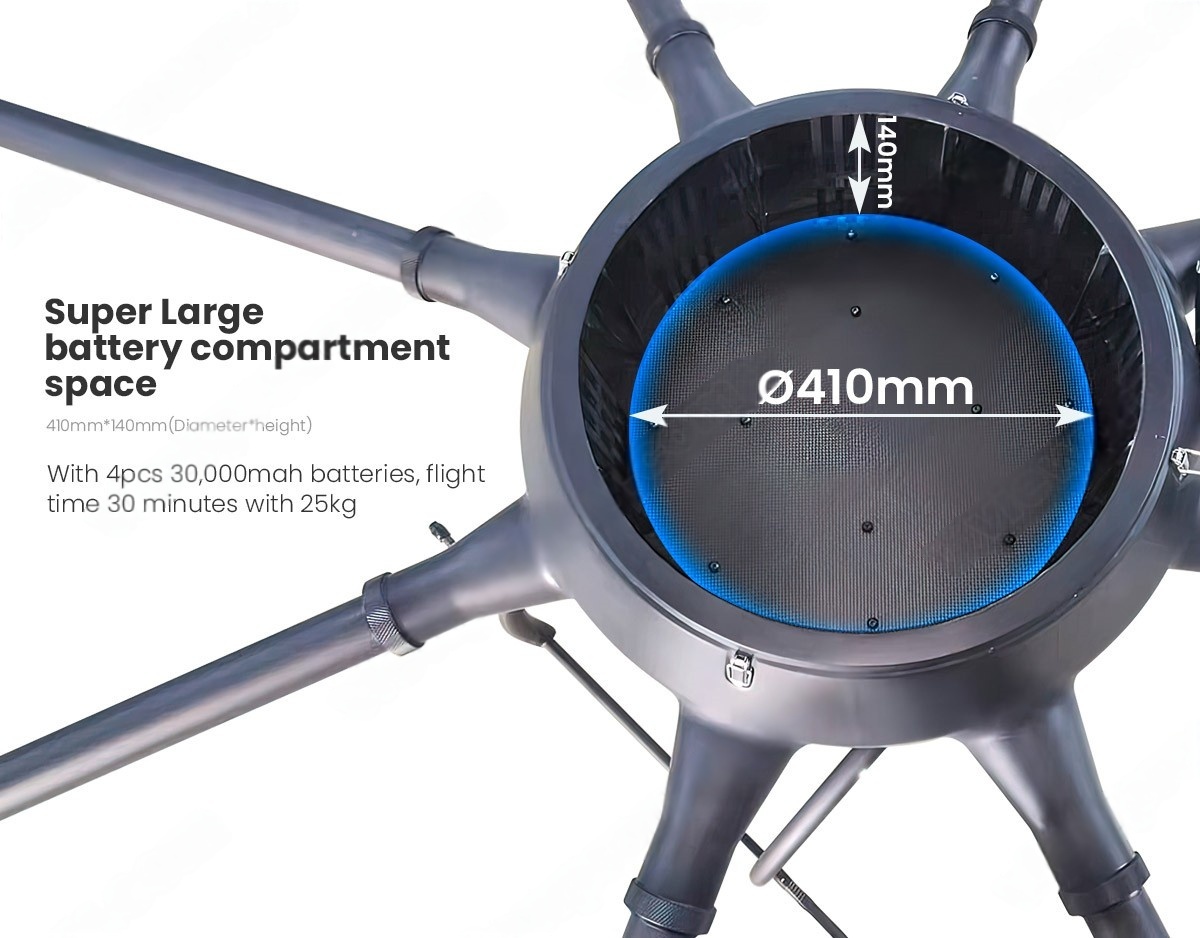

Aerospace-Grade Monocoque Frame | 410×140mm Battery Bay | High-Clearance Landing Gear
- Weight-to-Strength Ratio: 68% lighter than aluminum frames

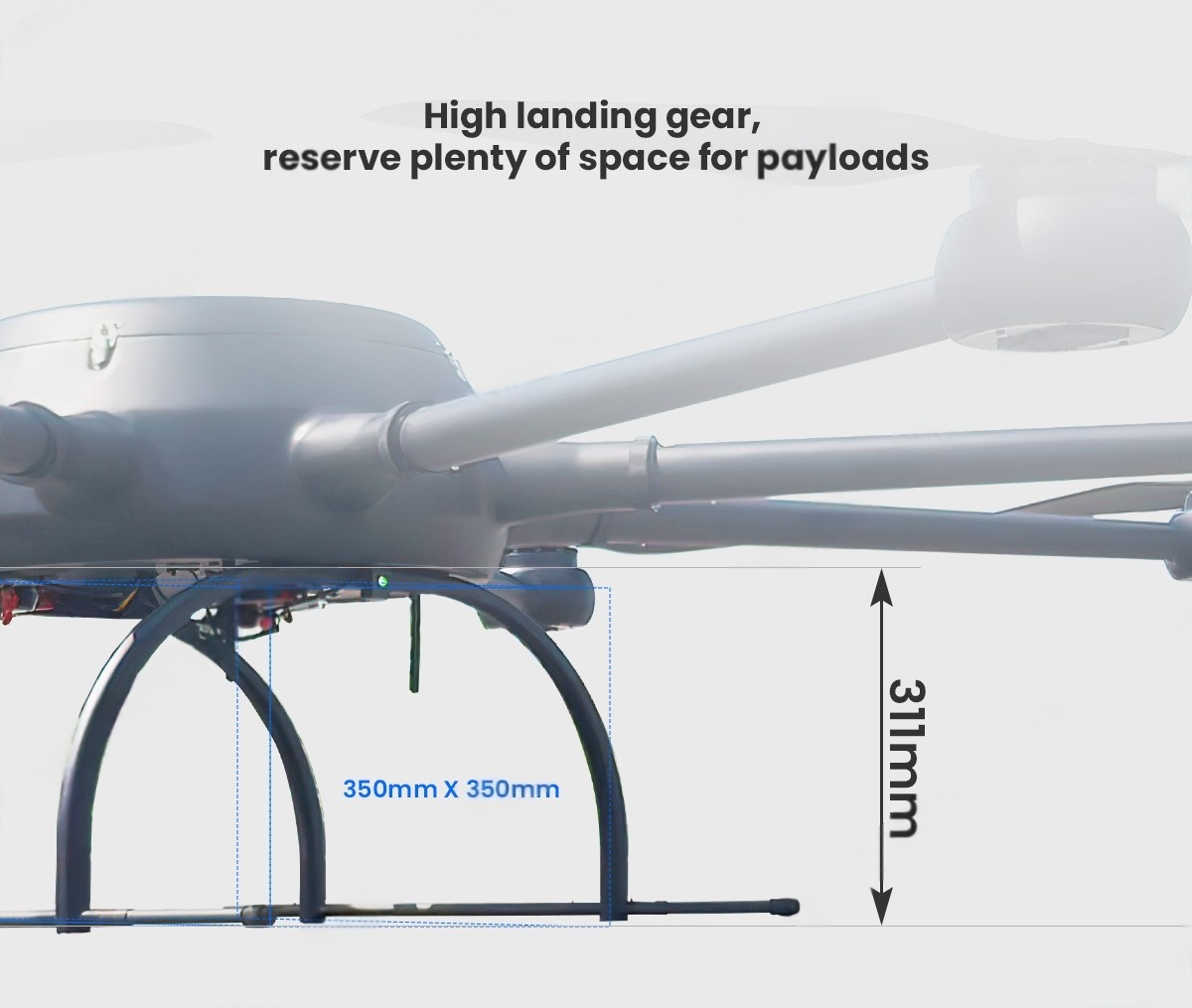

- Payload Clearance: 40cm undercarriage space for oversized cargo
- Rapid Battery Swap: 4×30,000mAh packs inserted in 90 seconds
“Deploy fire suppressants or rescue gear through hurricane-force winds”
Payload Endurance Matrix
| Mission Profile | Flight Time | Payload Capacity |
|---|---|---|
| Long-Range Mapping | 120 min | 0kg (Lidar/camera) |
| Urban Firefighting | 30 min | 25kg (extinguisher bombs) |
| Law Enforcement | 45 min* | 15kg (tear gas launchers) |
| *Estimated with mid-weight tactical payloads |
Extreme Environment Propulsion

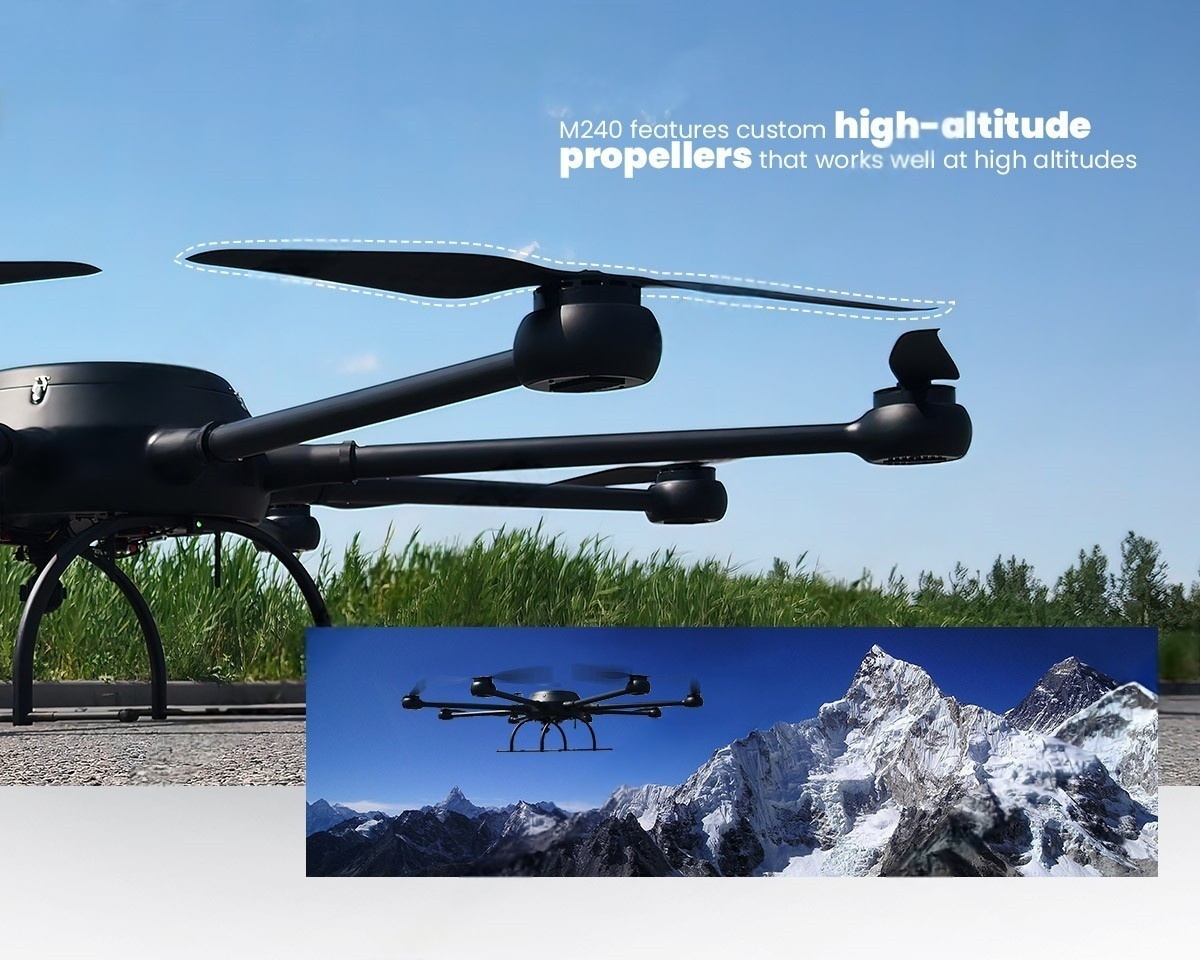

1. Death Zone Propeller Tech
- 3D-Printed Blades: 27° adaptive pitch at 6000m elevations
- Vortex Tip Design: 40% reduced air resistance
- Anti-Ice Nanocoating: -30°C operational threshold
2. Power Core System
- 120kWh Total Capacity: 4×30,000mAh intelligent packs
- Hot-Swap Protocol: <2min battery replacement field operations
- Cross-Power Redundancy: Triple-circuit failsafe

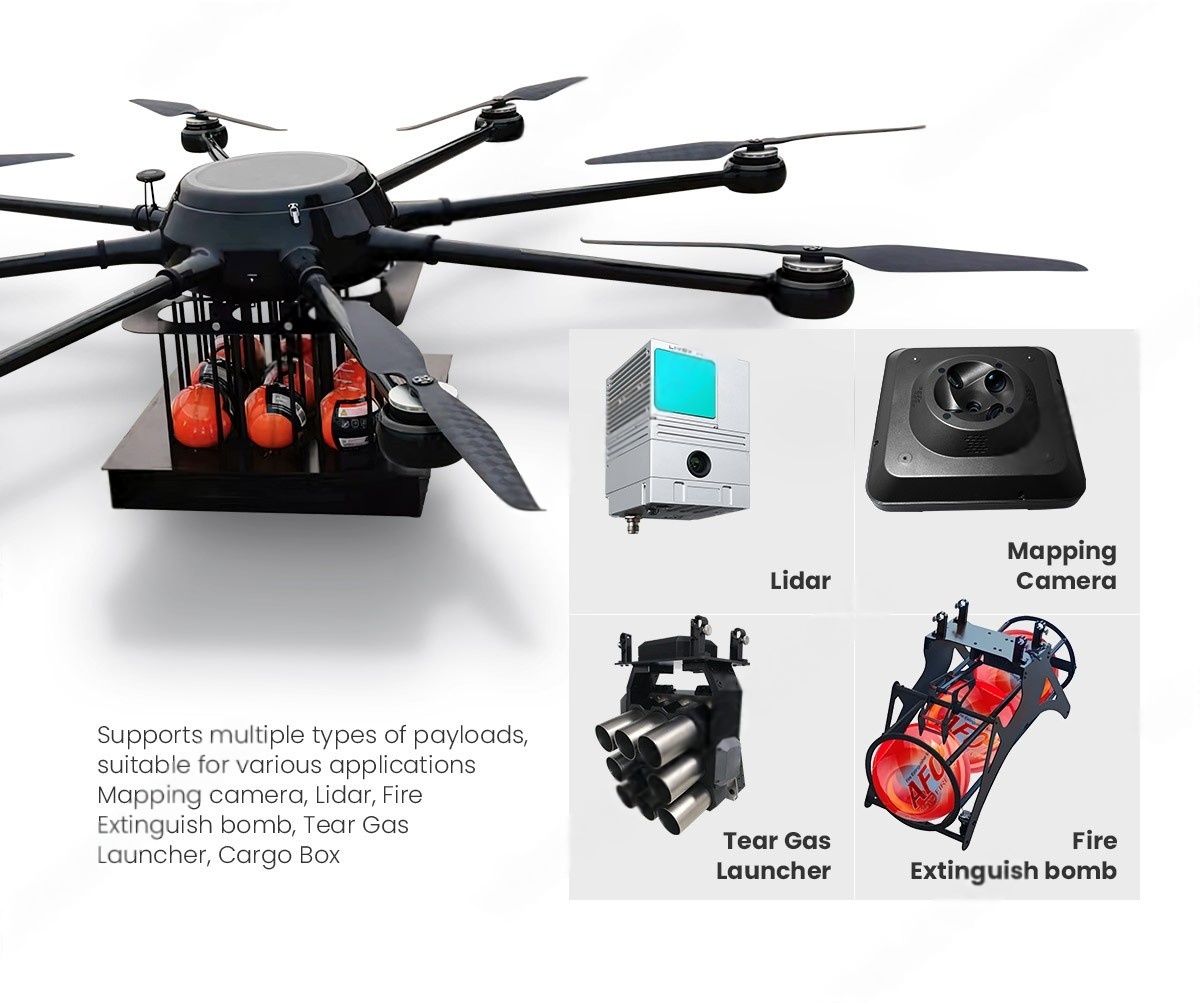

Multi-Role Payload Hub
| Module | Capability | Critical Mission |
|---|---|---|
| Fire Extinguisher Bomb | 25kg retardant capacity | Urban high-rise firefighting |
| Tactical Gas Launcher | 360° remote dispersion | Riot control operations |
| Lidar Mapping Pod | 15cm resolution at 300m altitude | Disaster zone reconstruction |
| Cargo Container | IP67 waterproof 45L volume | Medical supply delivery |
Sector-Defining Applications
Fire & Rescue Ops
- Skyscraper fire suppression (30-storey penetration)
- Wildfire containment line deployment
Strategic Logistics
- Remote construction site resupply (25kg cement/battery packs)
- Island medical emergency deliveries
Law Enforcement
- Non-lethal crowd control operations
- Hostage situation reconnaissance
Critical Infrastructure
- Dam structural scanning with 3D Lidar
- High-voltage transmission tower inspection
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Takeoff Weight | 72kg (52kg frame + 20kg payload reserve) |
| Operational Ceiling | 6000m ASL (Andes mountain proven) |
| Wind Resistance | 52km/h (Beaufort Scale 9) |
| Transmission Range | 15km (dual-frequency anti-jamming) |
| Frame Material | Toray T1100G carbon fiber |
