Core Technology Breakdown

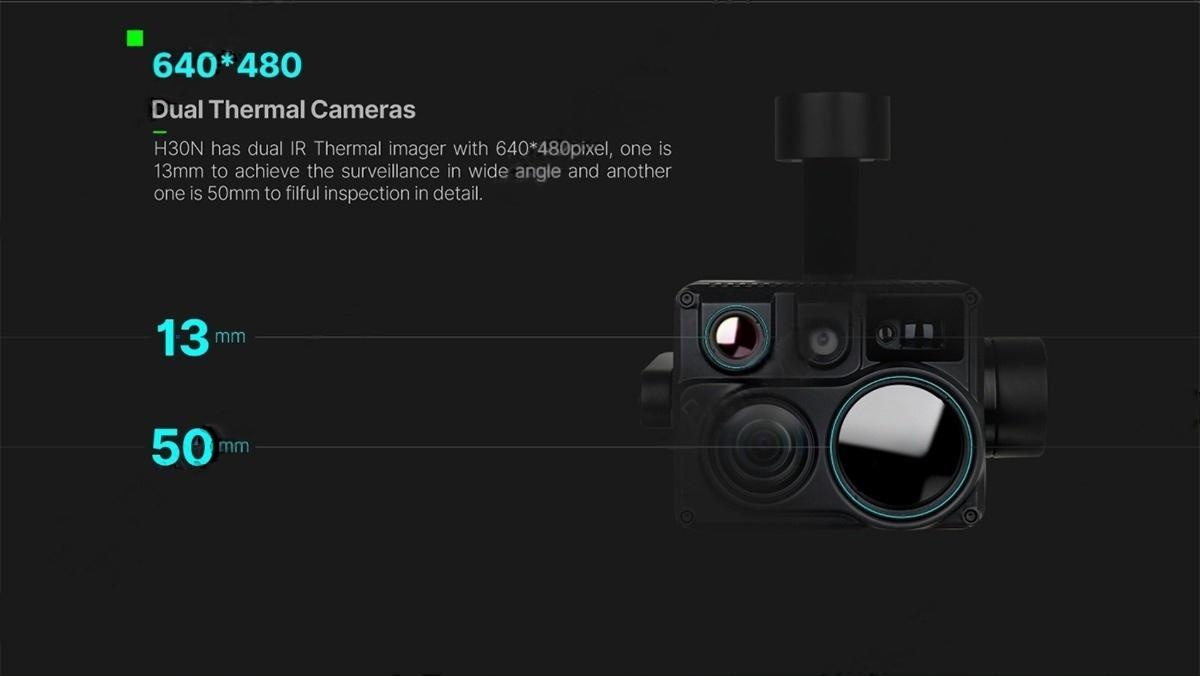

Dual Thermal Cameras
- Wide-Angle (13mm): Scene surveillance (human detection ≥500m)
- Telephoto (50mm): Target identification (vehicle recognition ≥1,200m)
- Radiometric Option: Temperature measurement (-20°C~550°C)
Dual EO Cameras
- 4K Main Camera

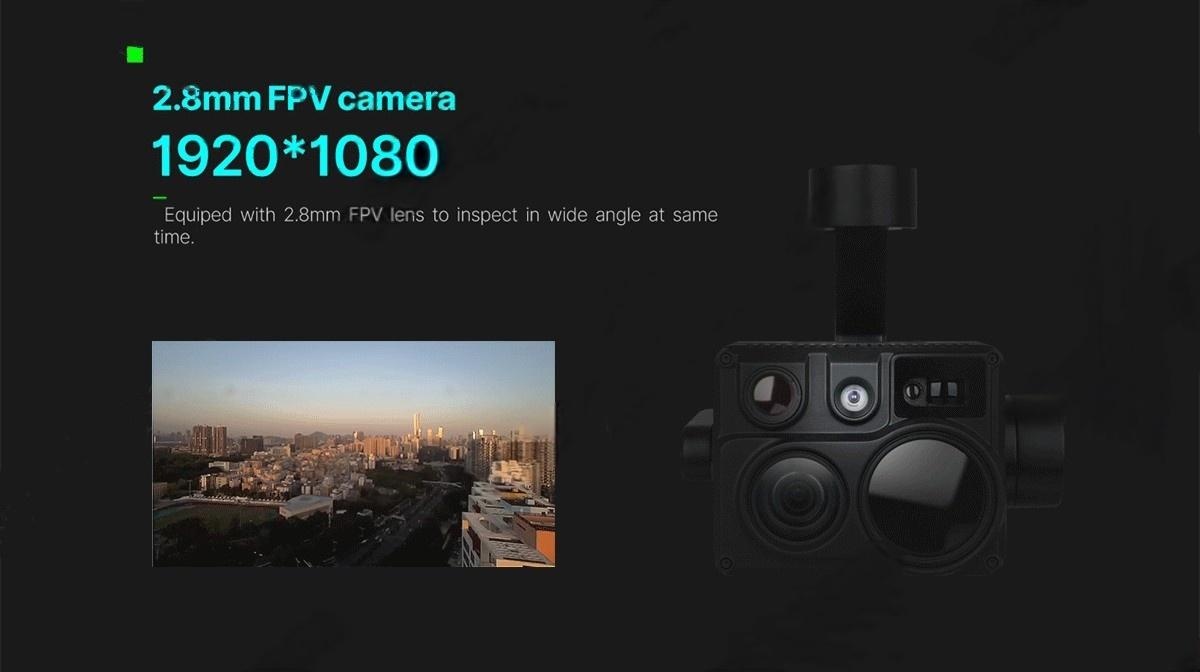

- 1080P FPV Camera

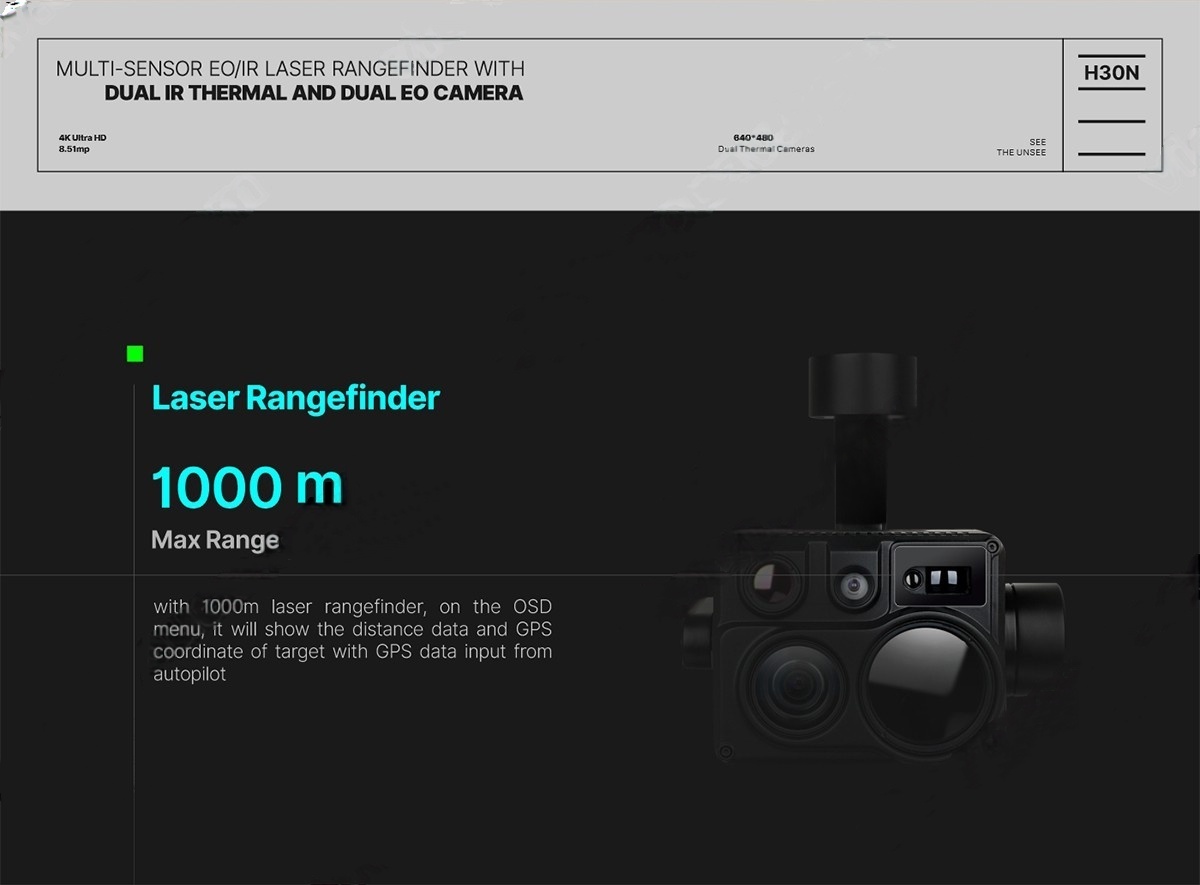

1000m Laser Rangefinder + Geo-Targeting
- OSD Integration: Displays target GPS coordinates (when paired with RTK drone)

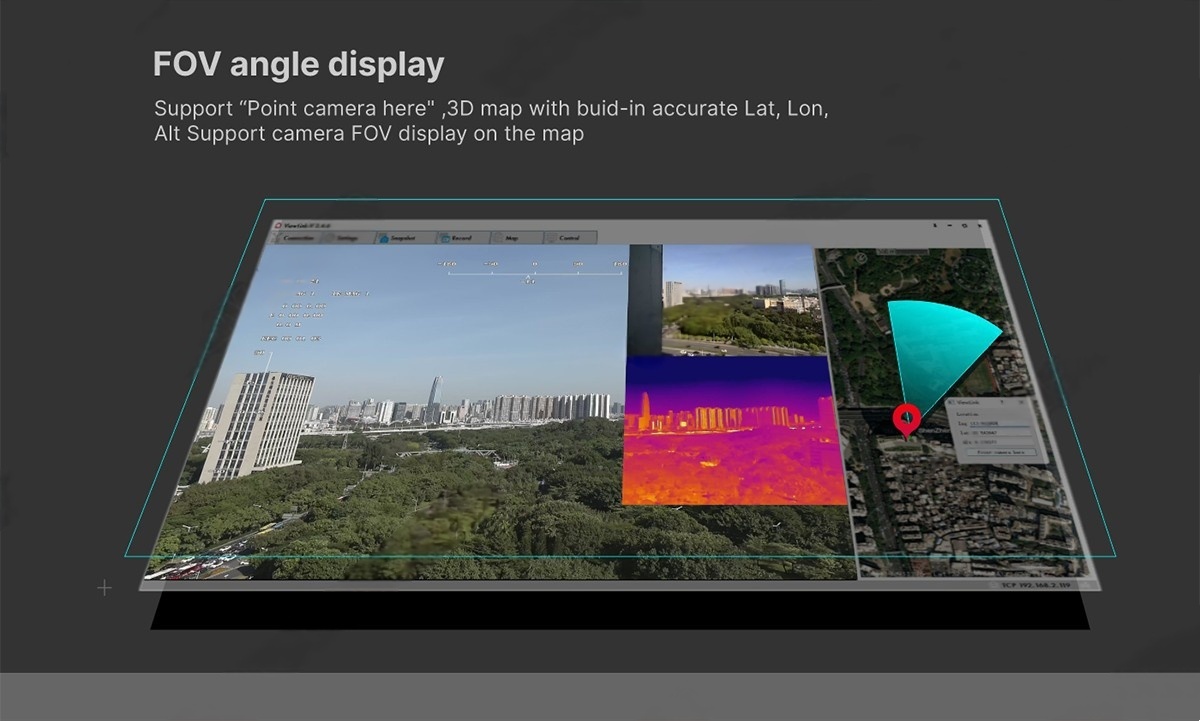

- 3D Map Compatibility: “Point camera here” function for mission planning
Advanced Stabilization & Control

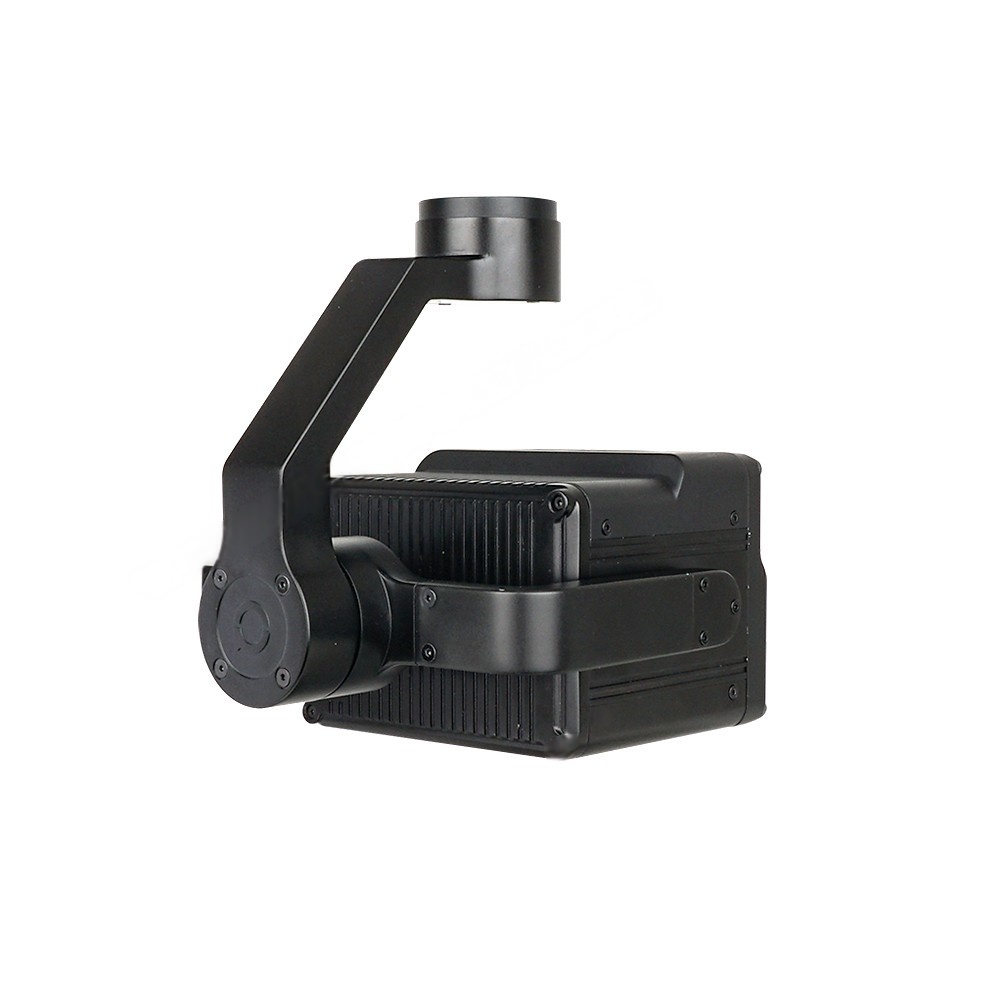

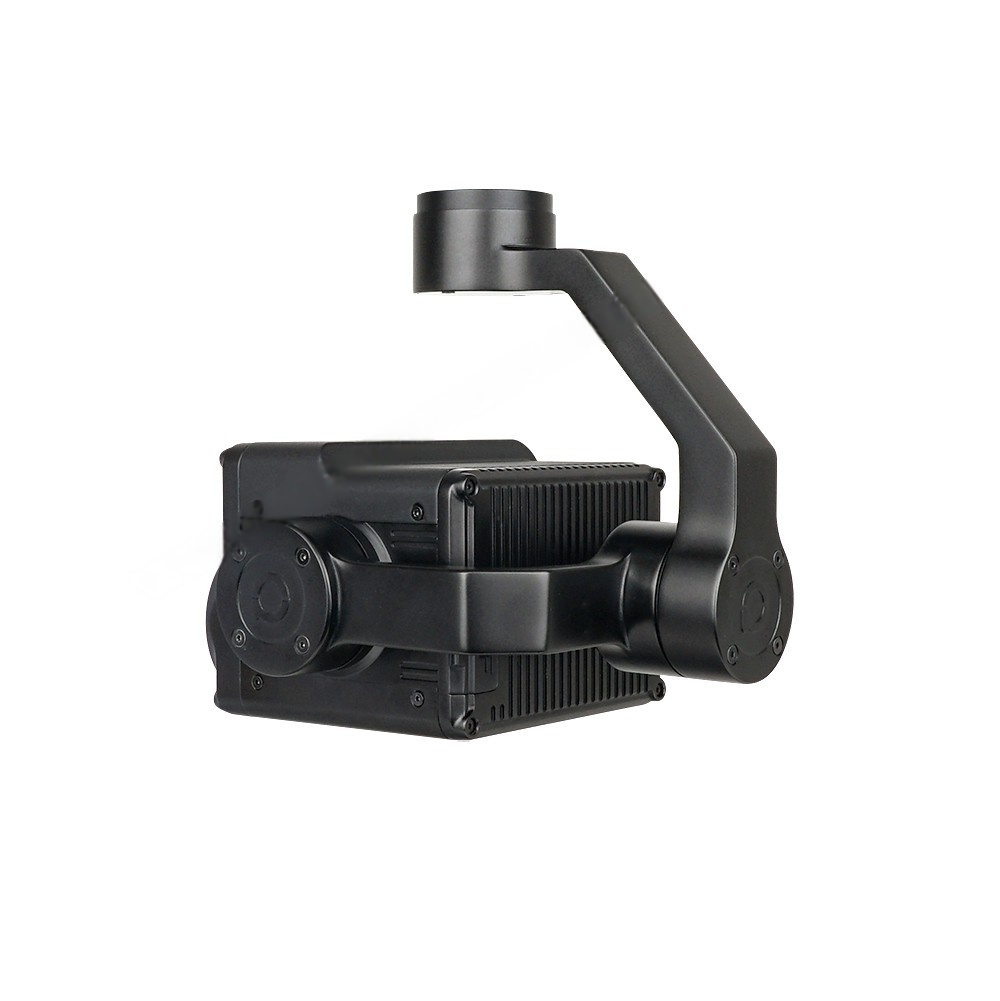

- 3-Axis FOC Gimbal – Works in high-wind conditions

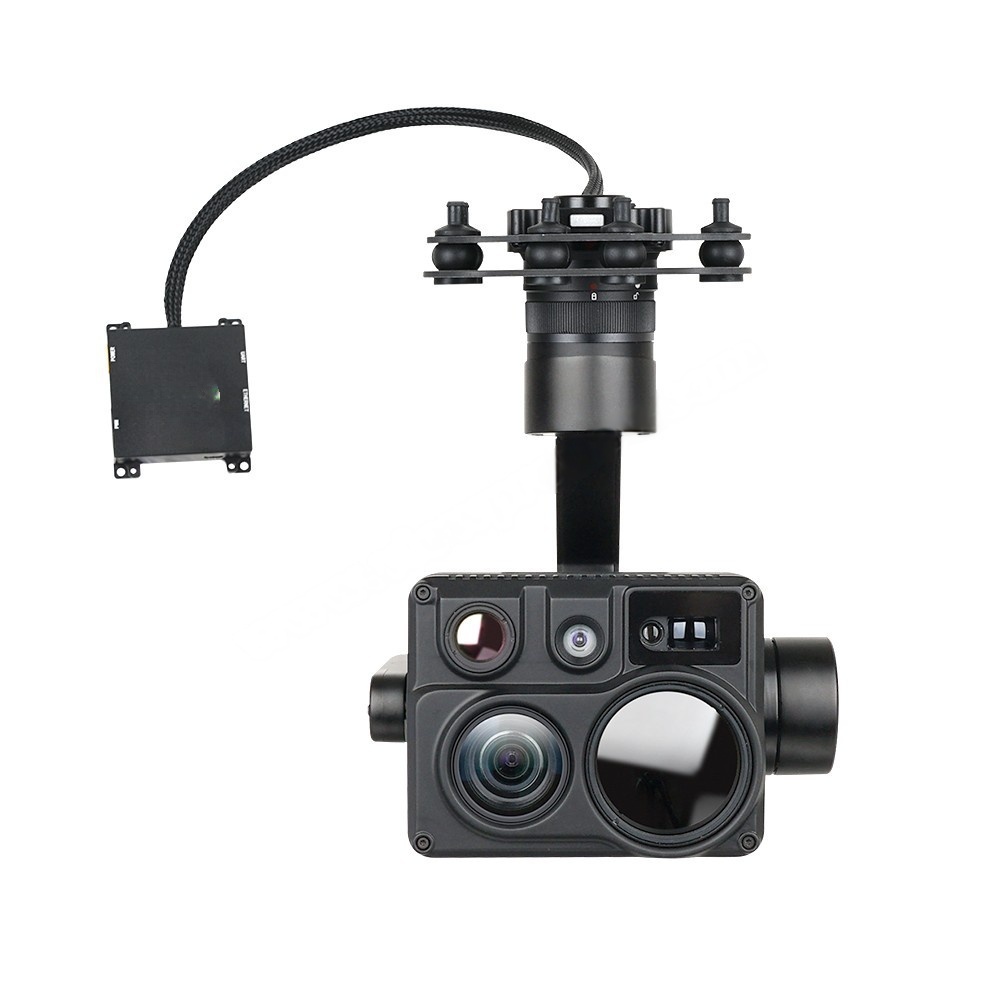

- Modular Quick-Release – Swap between drones in seconds
Military & Defense Applications
| Application | How M30N Enhances Operations |
|---|---|
| Border Patrol | Track illegal crossings (day/night) + GPS log movements |
| Search & Rescue | Thermal detects humans in smoke; LRF guides rescue teams |
| Special Ops | Silent reconnaissance with dual-EO/IR and real-time coordinates |
| Artillery Support | Laser-designate targets for precision strikes |
- Works with China Moneypro VTOLs & Multirotors (Plug-and-play)

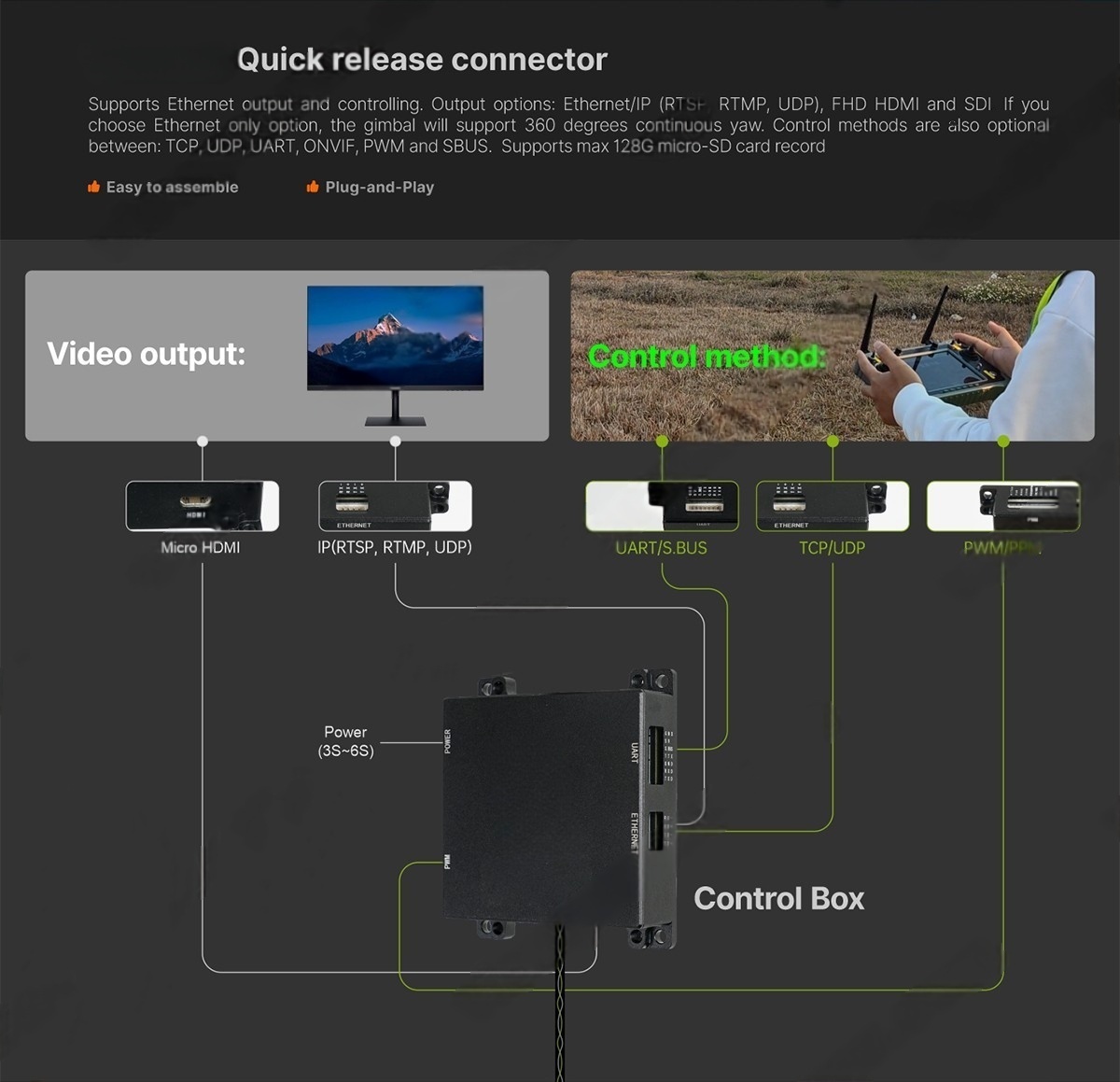

- Video Outputs: 4K HDMI + IP (RTSP/RTMP) + SDI
- Control Methods: SBUS/PWM/TCP-UDP/ONVIF
- Storage: 128GB microSD recording
Why Choose M30N Over Competitors?
| Feature | M30N | FLIR StarLynx | DJI Zenmuse H20T |
|---|---|---|---|
| Thermal Cameras | Dual 640×480 | Single 640×512 | Single 640×512 |
| EO Zoom | 20x Optical | 8x Optical | 20x Hybrid |
| Laser Rangefinder | 1,000m | 1,200m | 1,200m |
| Geo-Targeting | Yes (GPS+LRF) | No | Basic |
| FPV Camera | 1080P 2.8mm | No | No |
Global Support & Logistics
- Shenzhen-Based Manufacturing – Fast lead times (3-5 days for urgent orders)
- Military-Grade QA Testing – Vibration, waterproofing, EMI resistance certified
- 24/7 Technical Support – Firmware updates & field troubleshooting
