Core Value Proposition
- Dual-Sensor Tactical Advantage – Combining high-definition EO and thermal imaging in one stabilized platform
- Long-Range Identification Capability – 30x optical zoom for detailed daytime observation
- All-weather Operation – Professional thermal imaging with ≤50mK sensitivity
- Ready-to-Fly Integration – Seamless compatibility with China Moneypro’s UAV ecosystem
Key Features Highlight
Optical Imaging System
- 30x Optical Zoom Lens (50mm large aperture)
- 2.13MP Sony CMOS Sensor (1/2.8″)
- Full HD 1080P Output
- Minimum Illumination: 0.01lux @ F1.6 (excellent low-light performance)
- Wide Field of View to Tight Zoom – Rapid target acquisition
Thermal Imaging System
- 640×480 High-Resolution IR Sensor
- Pixel Size: 17μm
- Thermal Sensitivity (NETD): ≤50mK (detects subtle temperature differences)
- Frame Rate: 25Hz (smooth thermal video)
- Temperature Measurement (with alarm functions)
Precision Stabilization
- 3-Axis Brushless Gimbal
- High Torque Motors for vibration resistance

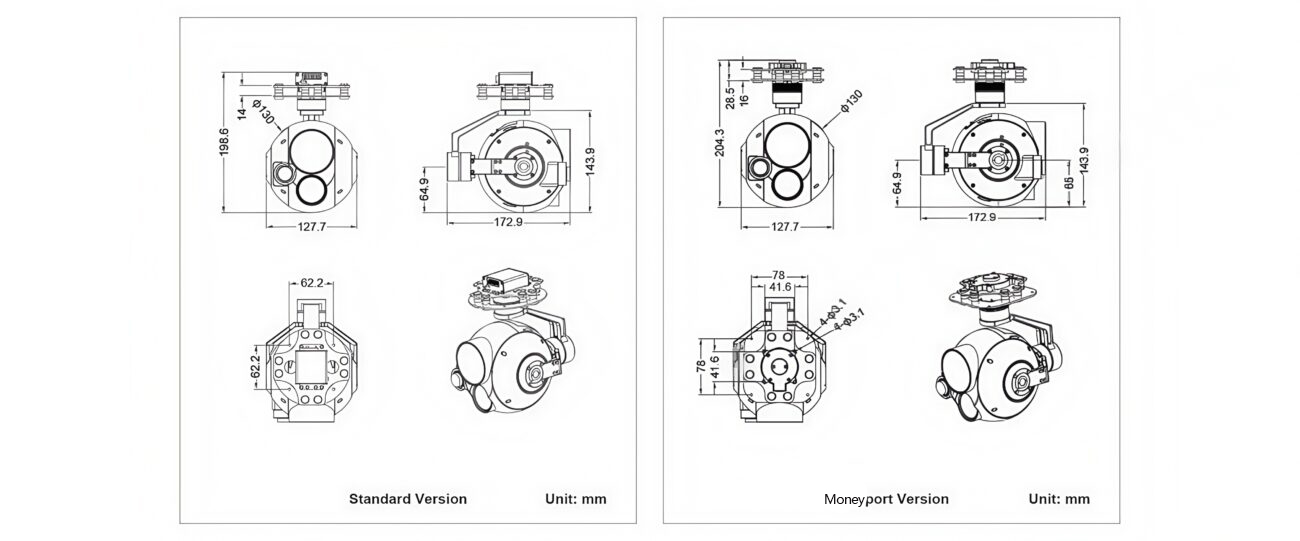

- Compact & Lightweight Design (view standard and moneyport dimensions)
- Works in Challenging Conditions (high winds, fast movements)
Target Applications
| Industry | Use Cases | M30TIR-50 Advantage |
|---|---|---|
| Public Safety | Police surveillance, suspect tracking, evidence collection | 30x zoom for positive ID; thermal for night ops |
| Fire & Rescue | Fire hotspot detection, search & rescue in smoke/darkness | Temperature measurement saves lives |
| Energy Inspection | Power line, pipeline, and solar farm inspections | Detects overheating components early |
| Border Security | 24/7 perimeter monitoring | Sees through darkness, fog, and light camouflage |
| Industrial Inspection | Telecom towers, wind turbines, construction sites | Detailed visual + thermal assessment in one flight |
Competitive Differentiation
| Feature | M30TIR-50 | DJI H20T | FLIR Vue TZ20 |
|---|---|---|---|
| Optical Zoom | 30x | 23x | None |
| Thermal Resolution | 640×480 | 640×512 | 640×512 |
| Temperature Alarms | √ | × | √ |
| Integration Options | PWM/SBUS/TTL/UDP | DJI Ecosystem | Limited |
| Price Point | Competitive | Premium | Mid-Range |
