Core Competitive Advantages
- Unmatched Sensor Fusion: HD EO + Thermal + Laser Rangefinder in one compact package

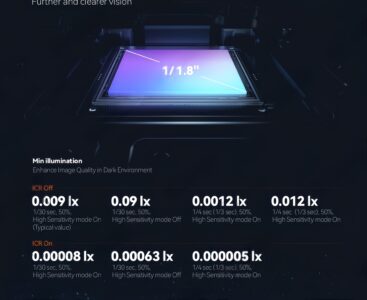

- Military-Grade Night Vision: STARVIS sensor sees in 0.000005lux darkness
- Field-Proven Ruggedness: IP44 rated, CNC aluminum housing withstands harsh environments
- Seamless Integration: Ready-to-fly with China Moneypro’s VTOL and multirotor drone ecosystem
Product Feature Breakdown
 Advanced Imaging Capabilities

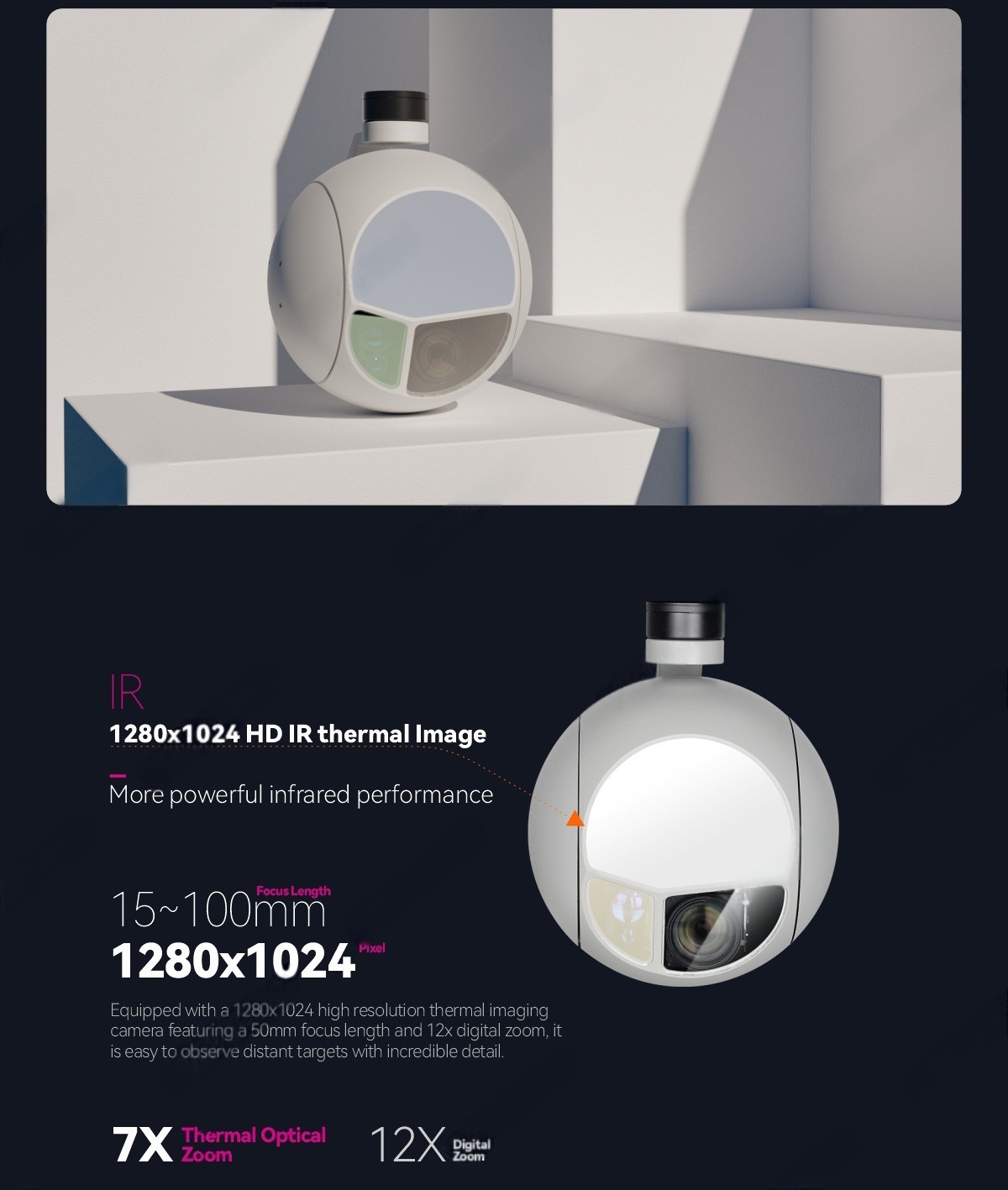

- 7x Thermal Optical Zoom (1280×1024 resolution)
- 30x EO Zoom (STARVIS sensor, 0.000005lux sensitivity)
- 10KM Laser Rangefinder with coordinate marking
 Professional Stabilization System
- 3-Axis FOC Gimbal (±0.01° stabilization accuracy)
- Yaw: ±360° continuous
- Pitch: -45° to +120°
- Roll: ±60°
- Aerodynamic CNC Aluminum Housing for wind resistance

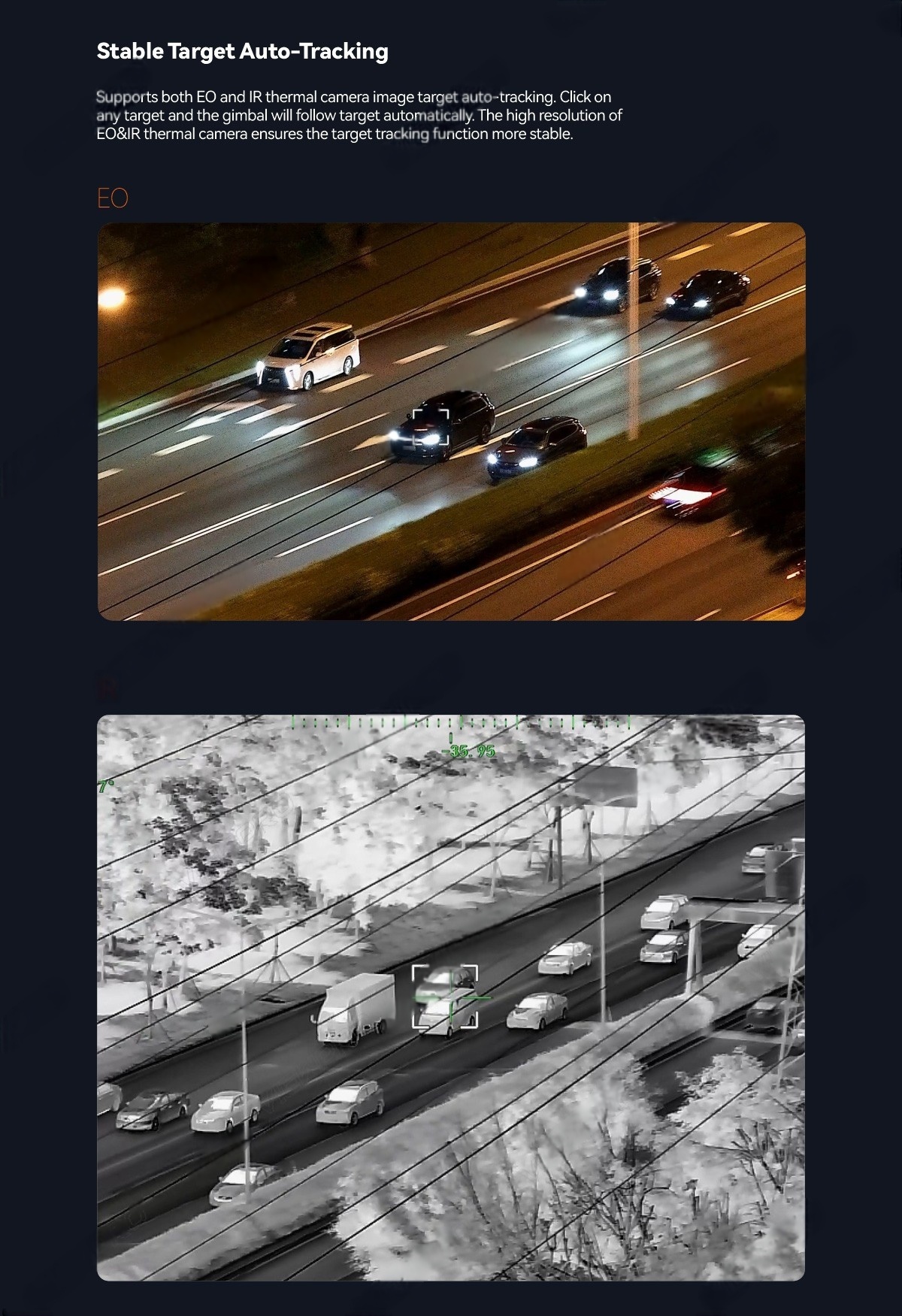

 Intelligent Tracking Features
- Auto-Tracking in both EO and IR modes
- Target Lock with distance overlay
- AI-Assisted Detection for vehicles/persons
 Environmental Resilience

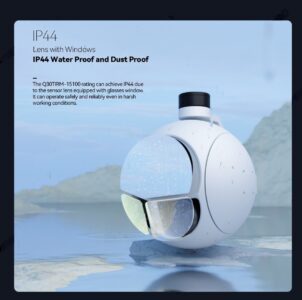

- IP44 Protection (dust/water resistant)
- Operating Temp: -20°C to +60°C
- Quick-Release Mount for rapid payload swaps
Target Market Applications
| Industry | Key Use Cases | Technical Advantage |
|---|---|---|
| Border Security | Night patrols, smuggling detection | 10KM LRF + thermal zoom |
| Firefighting | Hotspot identification through smoke | 7x thermal optical zoom |
| Oil & Gas | Pipeline inspections | HD thermal + rugged design |
| Search & Rescue | Missing person location | STARVIS night vision |
| Maritime Patrol | Illegal fishing monitoring | IP44 saltwater protection |
Technical Comparison
| Feature | M30TIRM-15100 | DJI Zenmuse H20T | FLIR Tau 2 |
|---|---|---|---|
| Thermal Res | 1280×1024 | 640×512 | 640×512 |
| Thermal Zoom | 7x Optical | Digital only | None |
| Laser Range | 10KM | 1.2KM | N/A |
| Low-Light | 0.000005lux | 0.001lux | N/A |
| Price Point | Value Leader | Premium | High |
Why China Moneypro?
- Complete System Provider – From drones to payloads to ground control
- Moneypro Camera Expertise – 100+ successful gimbal designs
- Rapid Shenzhen Delivery – Global shipping within 5-7 business days
