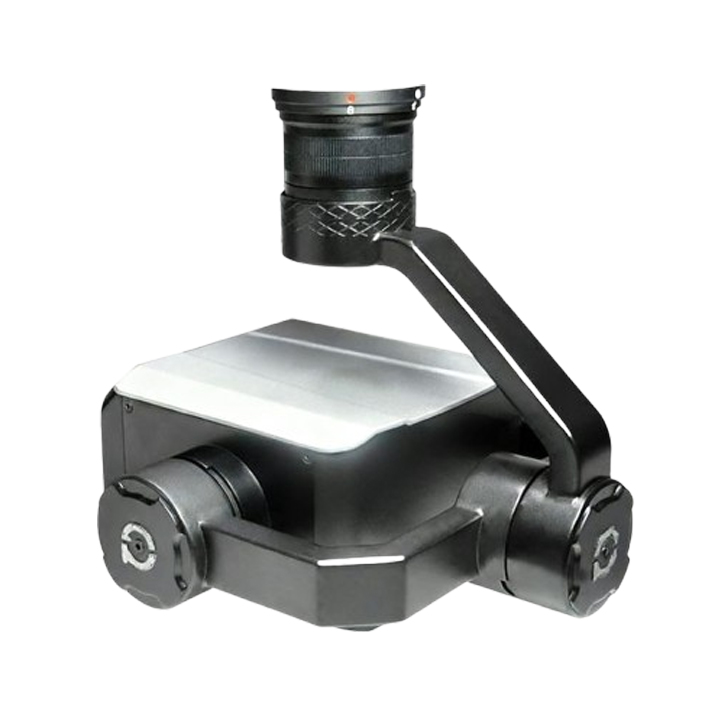

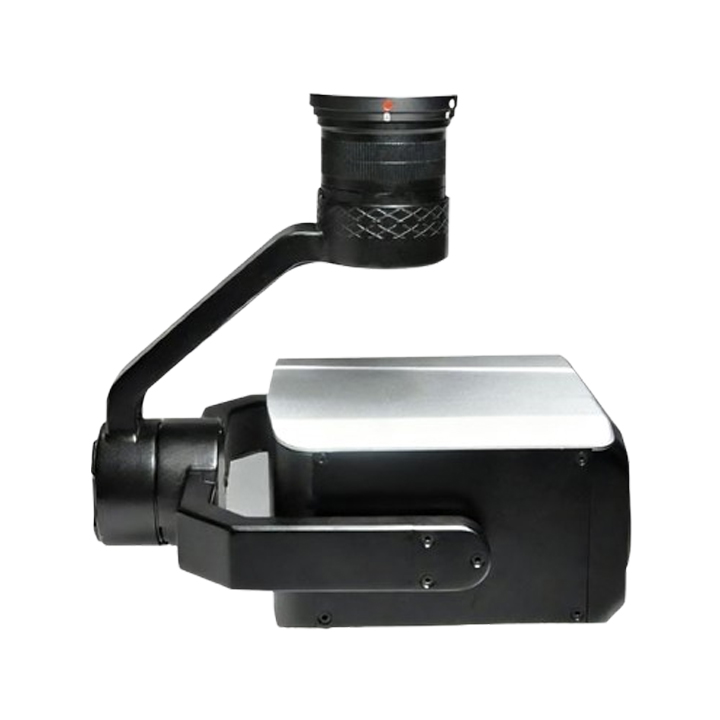

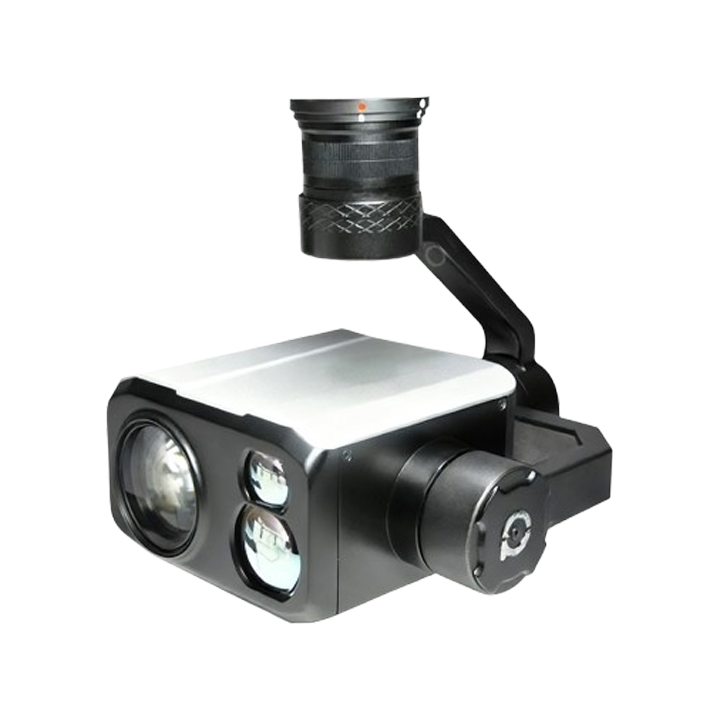

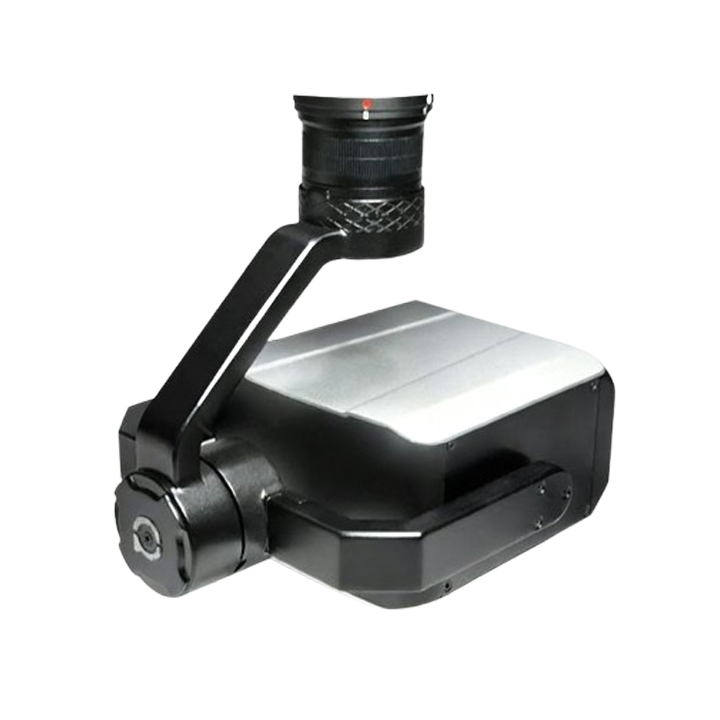

China Moneypro M30TM LRF Optimized 3-axis Camera Gimbal GPS Location Resolving 30x Optical Zoom Camera Camera Object Tracking

The M30TM integrates a suite of high-performance features to deliver reliable situational awareness and precision monitoring. It is equipped with an optimized 3-axis camera gimbal that ensures stable, shake-free imaging, paired with a 30x optical zoom camera for capturing fine details even at long distances.
The device also includes a Laser Range Finder (LRF) for accurate distance measurement and GPS location resolving for real-time positioning, while its camera object tracking function enables automatic following of targets—making it ideal for scenarios requiring continuous, precise observation.
Categories: ,
Description

Product Detail

The M30TM features a highly optimized 3-axis camera gimbal, engineered for exceptional stability. It leverages a dedicated processor to drive motor rotations with pinpoint precision, achieving a control accuracy of ±0.02°.
Unlike many conventional gimbals that depend on electrical slip rings, the M30TM adopts a unique mechanically limited design paired with concealed wiring. This innovative approach ensures more stable data transmission while significantly boosting overall durability.
To further enhance performance, the gimbal integrates four damping balls and a lightweight damping board. These components work together to eliminate vibration entirely, resulting in seamlessly smooth video output.

30x Optical Zoom Camera

The M30TM is equipped with a highly optimized 3-axis camera gimbal, which serves as its core stabilization component. Powered by a dedicated processor, this gimbal enables pinpoint-precise motor rotation, achieving an impressive control accuracy of ±0.01°.
Despite its advanced stabilization, the gimbal still supports 360° rotation—this functionality is maintained directly through the gimbal’s own rotational movement.
Even in high-speed flight scenarios, the M30TM’s gimbal system remains effective. It ensures the capture of stable, smooth footage and clear images, without compromising quality due to rapid movement.

Camera Object Tracking

The system incorporates built-in normalization, cross-correlation, and tracking algorithms, which work in tandem with an object re-acquisition algorithm to deliver stable target tracking.
It offers versatile functionality to enhance usability, including support for user-defined OSD (On-Screen Display) characters, an adaptive gate, a crosshair cursor, and the display of tracking trajectory information.
In terms of performance metrics, the system achieves a tracking speed of up to 32 pixels per frame and accommodates target sizes ranging from 16×16 pixels to 160×160 pixels. It operates effectively with a minimum signal-to-noise ratio (SNR) of 4 dB, and the root mean square (RMS) value of pulse noise in the target position is less than 0.5 pixels—all of which significantly boost tracking accuracy and overall performance.

GPS Location Resolving

The system employs an advanced location-calculation algorithm, capable of measuring the distance to a target within 1,500 meters. It also accurately analyzes the target’s longitude and latitude, with these coordinates displayed directly on the screen.
This functionality provides significant auxiliary support for military operations and enforcement tasks.

Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 530~1300mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)/ Skyport
Local-storage TF card (Up to 512G, class 10, FAT32)
Photo storage format JPG(1920*1080)
Video storage format MP4 (1080P 30fps)
Card reading online SMB read / HTTP read
Control method PWM  / TTL / S.BUS / TCP(IP output) /DJI Pilot/UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt: -60°～120°,      Roll: ±60°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°～115°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center √
Camera Spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
IR Laser Rangefinder
Range 5~2000 meters
Resolution 0.5m
Working current: 80mA （max）
Light Beam 905nm pulse laser
Divergent Angle 3 mrad
Laser pulse frequency 1HZ
Power ＜ 1 mW (safe for eye)
Ranging mode Pulse
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
Packing Information
N.W. 673g / 912g(Viewport Version)
Product meas. 145.9*138*160mm / 146*138*165.7mm(Viewport version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W. 3017g
Package meas. 300*250*200mm
