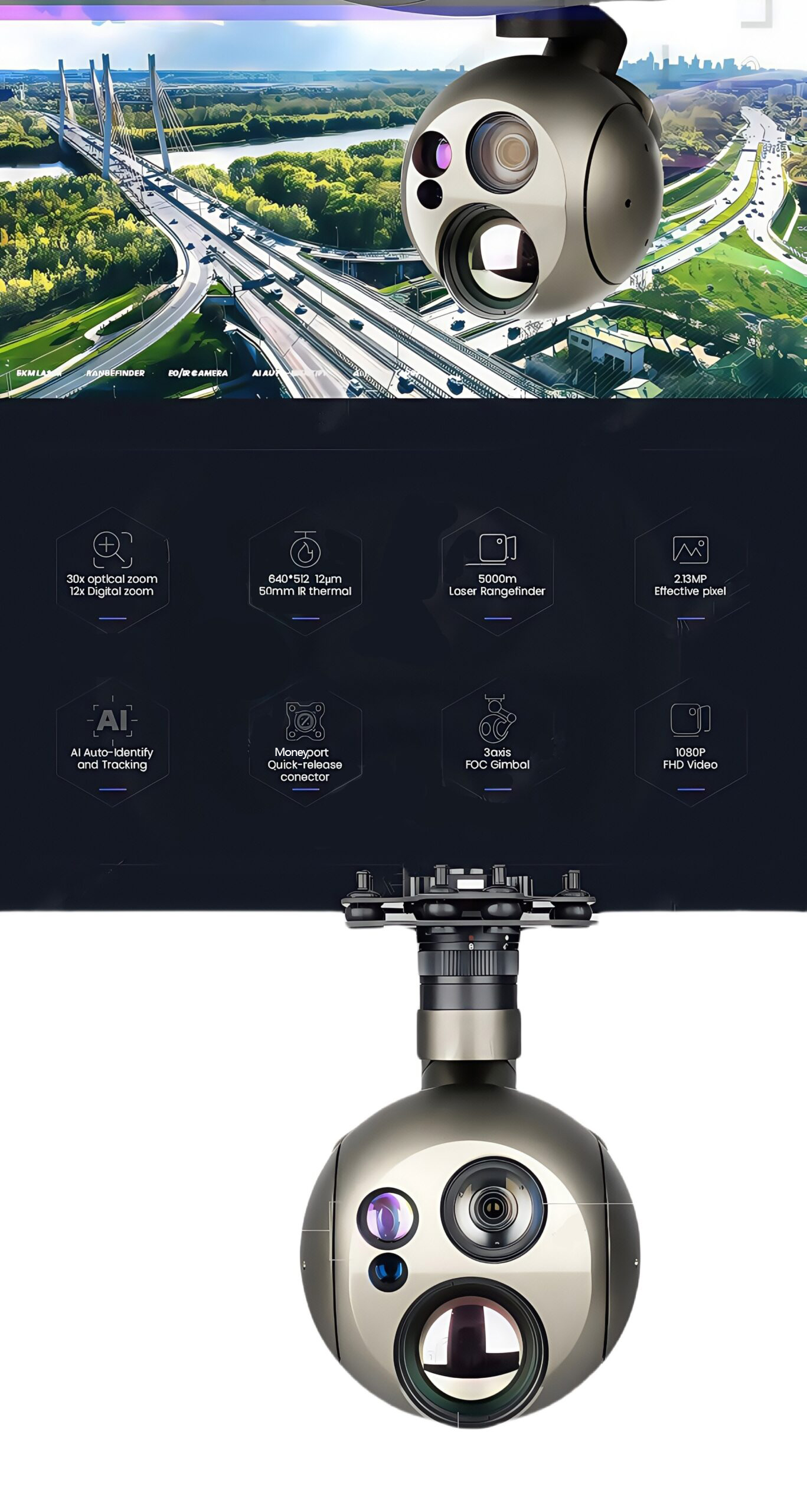

Technical Superiority

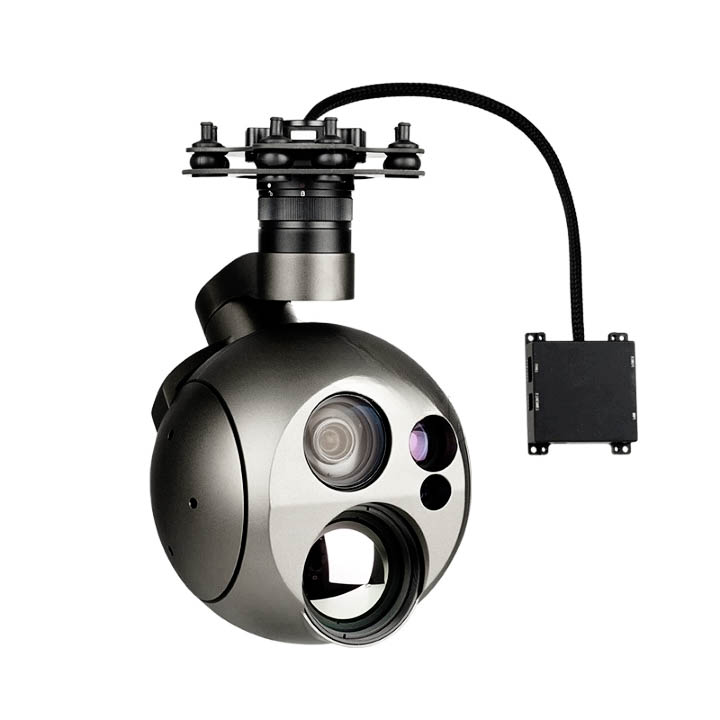

Dual-Sensor Imaging Suite
| Sensor | Specifications | Detection Range |
|---|---|---|
| EO (Day) | 2.1MP • 30x Optical • 12x Digital • 1080P FHD | Human Detected @2KM+ |
| IR (Night/Thermal) | 640×512 • 12μm Pixel • 50mm Lens | Heat Signatures @1.5KM |

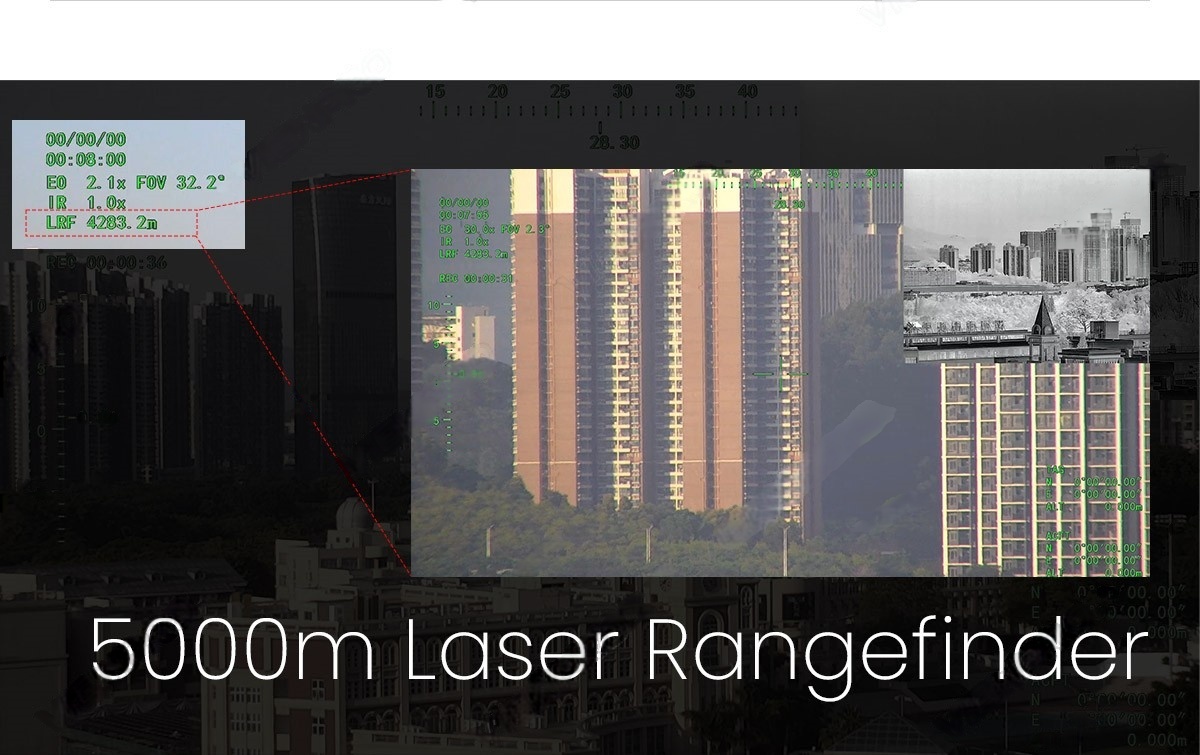

| Laser Rangefinder | 5000m Max Range • GPS Targeting | Coordinates Overlay |
AI Auto-Tracking & Identification
- Click-to-Track – Lock onto moving vehicles/people
- Dual-Sensor Tracking – Works in both EO & IR modes
- Object Classification – Person/Vehicle/Animal detection

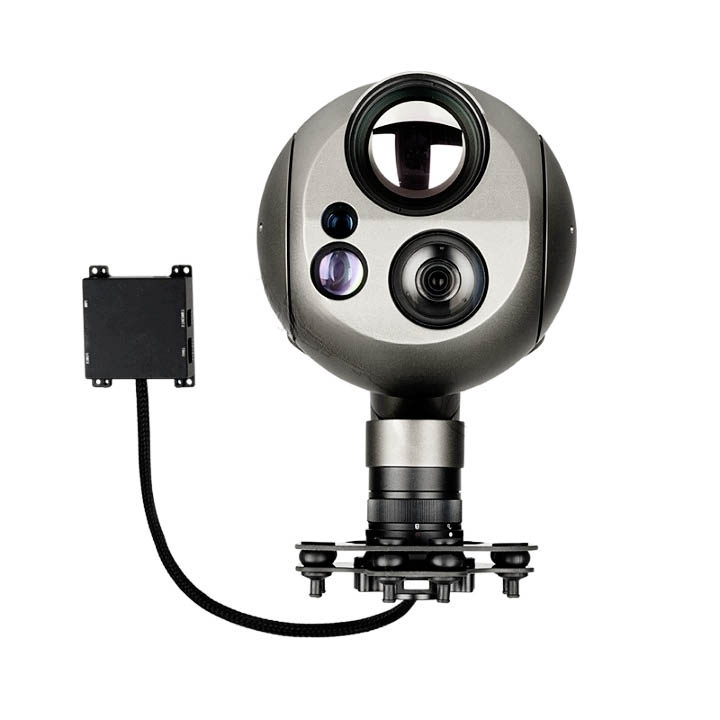

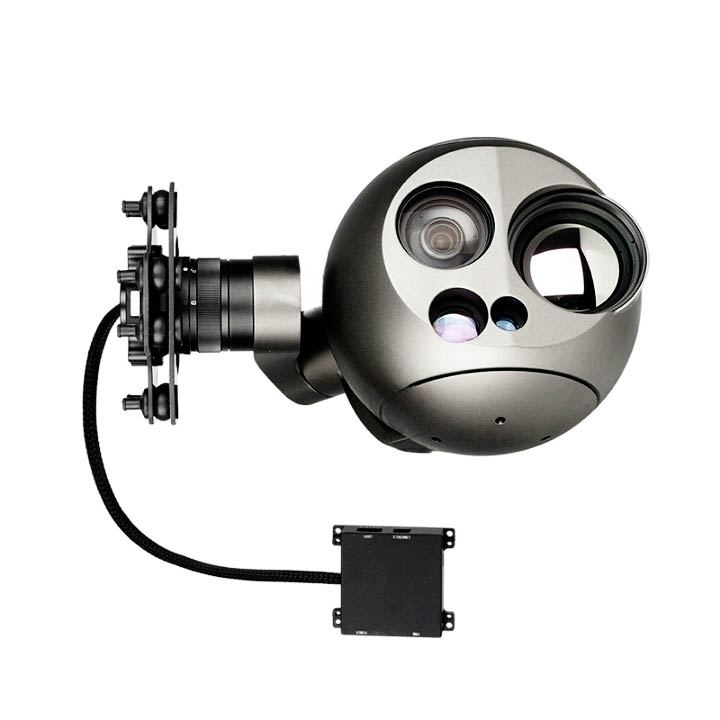

Fully Stabilized Gimbal
- 3-Axis FOC (Field-Oriented Control) – ±0.01° accuracy
- 360° Yaw, 120° Pitch, ±60° Roll
- CNC Aluminum Housing – Vibration dampening for VTOL flights
Seamless Integration

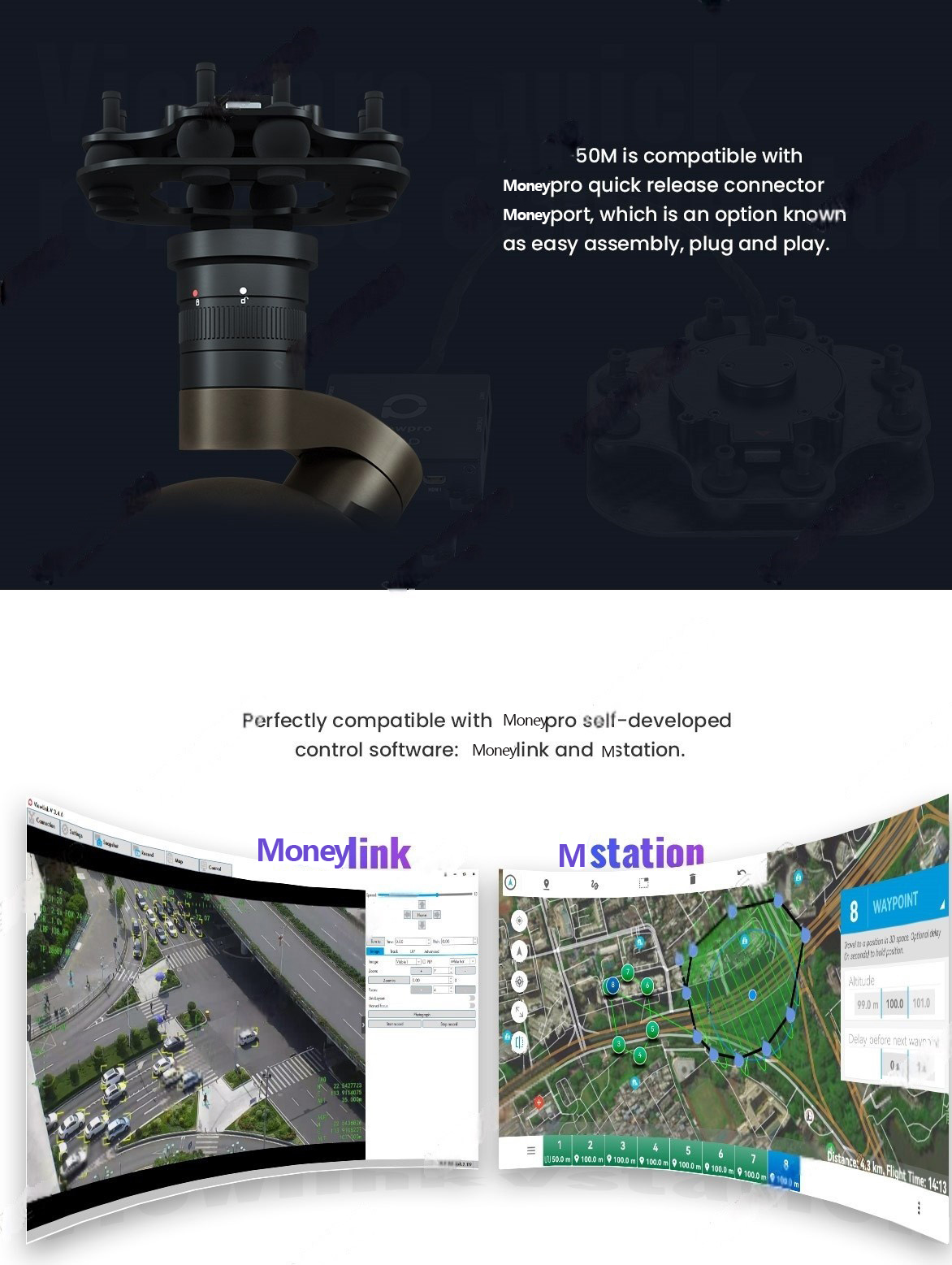

- Quick-Release Moneyport Mount – Plug-and-play in seconds
- SDK for Custom Software – Works with MoneyLink & VStation control

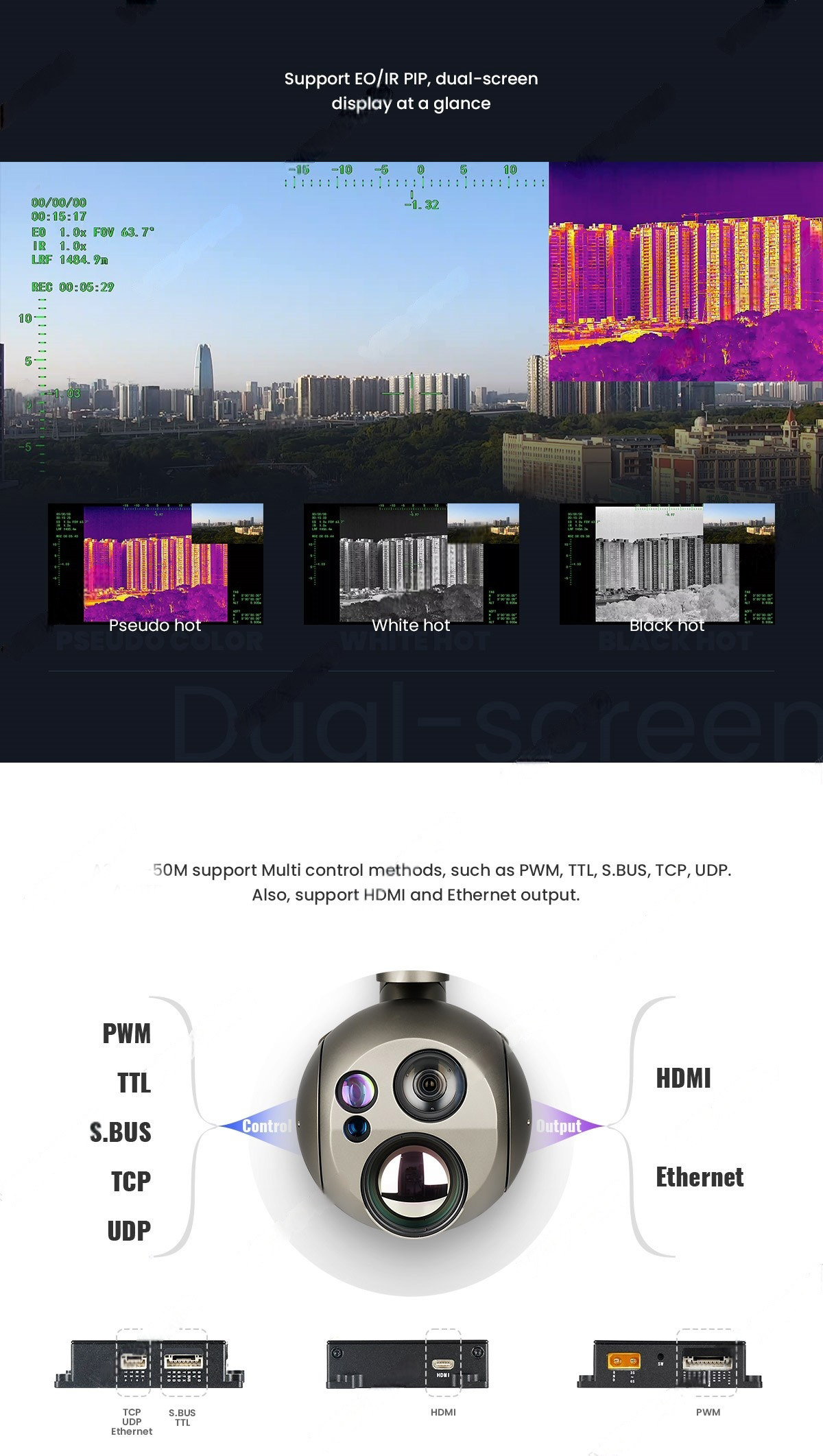

- Multi-Protocol Support – PWM/SBUS/TTL/TCP/UDP

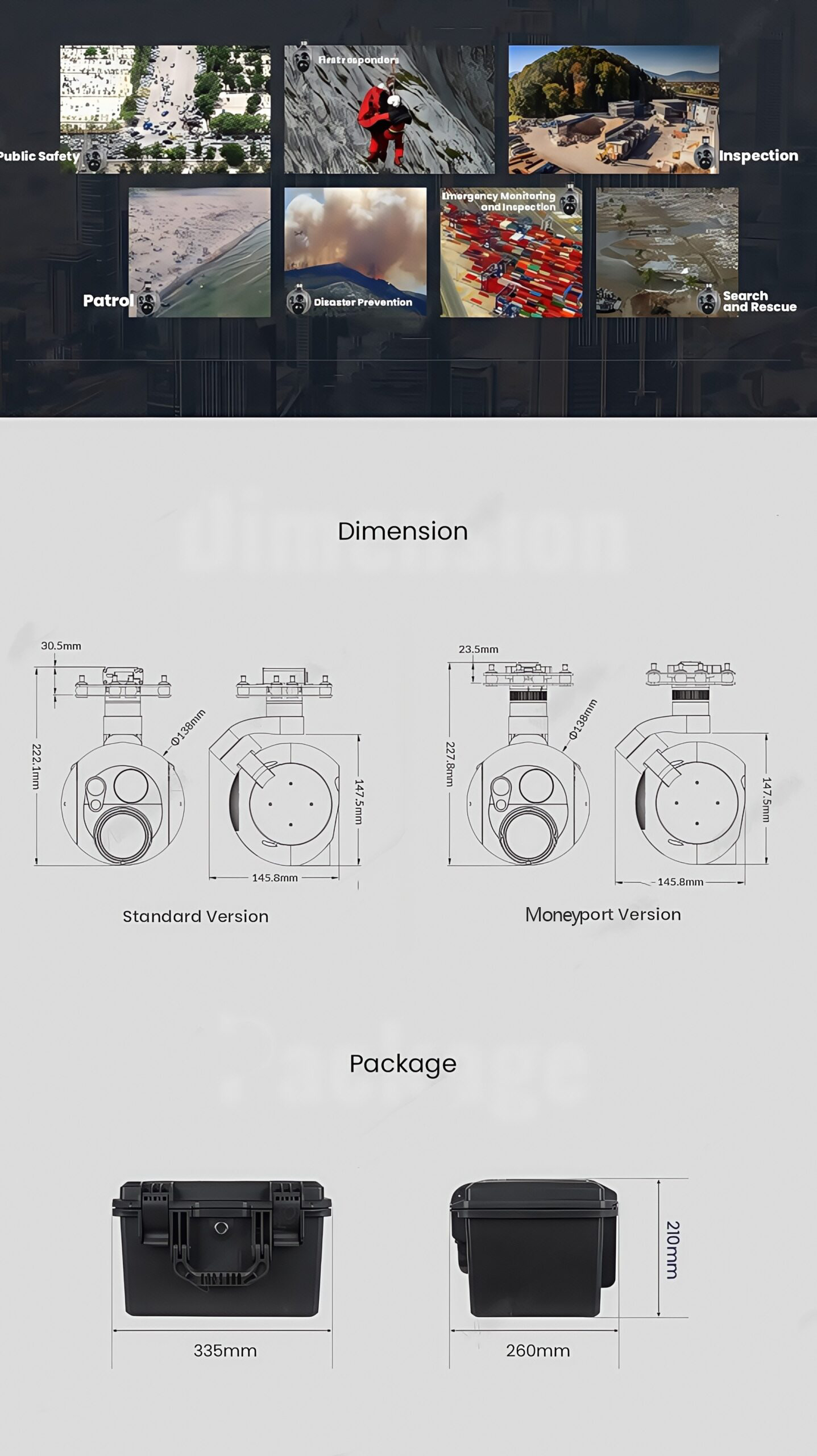

Target Applications
| Industry | Use Case | Why M30TR-50M? |
|---|---|---|
| Border Patrol | Illegal activity tracking | 5KM LRF + AI follow |
| Search & Rescue | Nighttime victim location | Thermal + STARVIS fusion |
| Oil & Gas | Pipeline leak detection | 50mm IR thermal zoom |
| Military/Defense | Reconnaissance & targeting | Silent, long-range UAV ops |
| Infrastructure Inspection | Power line monitoring | AI defect recognition |
Competitive Advantage
| Feature | M30TR-50M | DJI H20T | FLIR Vue Pro R |
|---|---|---|---|
| Laser Range | 5,000m | 1,200m | N/A |
| AI Tracking | ✔ Auto-identify | Manual | None |
| Zoom | 30x Optical | 20x | 8x |
| Software | MoneyLink + MStation | DJI Pilot | Third-party needed |
| Control Options | PWM/SBUS/TTL/TCP/UDP/HDMI | Limited | Basic |
Why China Moneypro?
- Complete Solutions – From drones to AI-enabled payloads
- Fast Shenzhen Logistics – Ships globally in 5-7 business days
- Moneypro Integration Expertise – 100+ gimbal models developed
