Product Detail
 Specification
| Hardware Parameter | |
| Working voltage | 12V(3S) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 650~1000mA @ 12V |
| Idle current | 650mA @ 12V |
| Working environment temp. | -20℃~+60℃ |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4Â (1080P 25fps) |

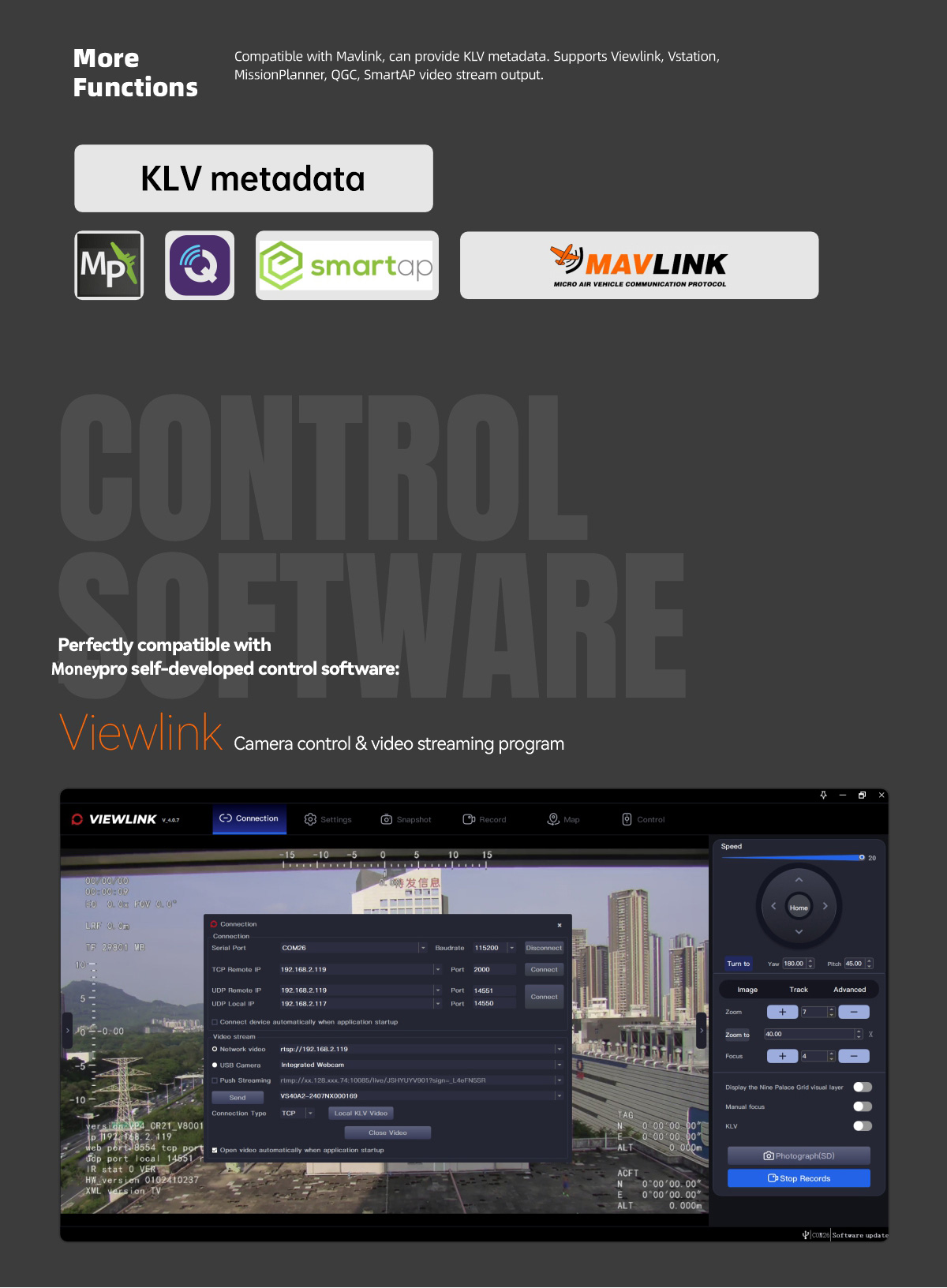

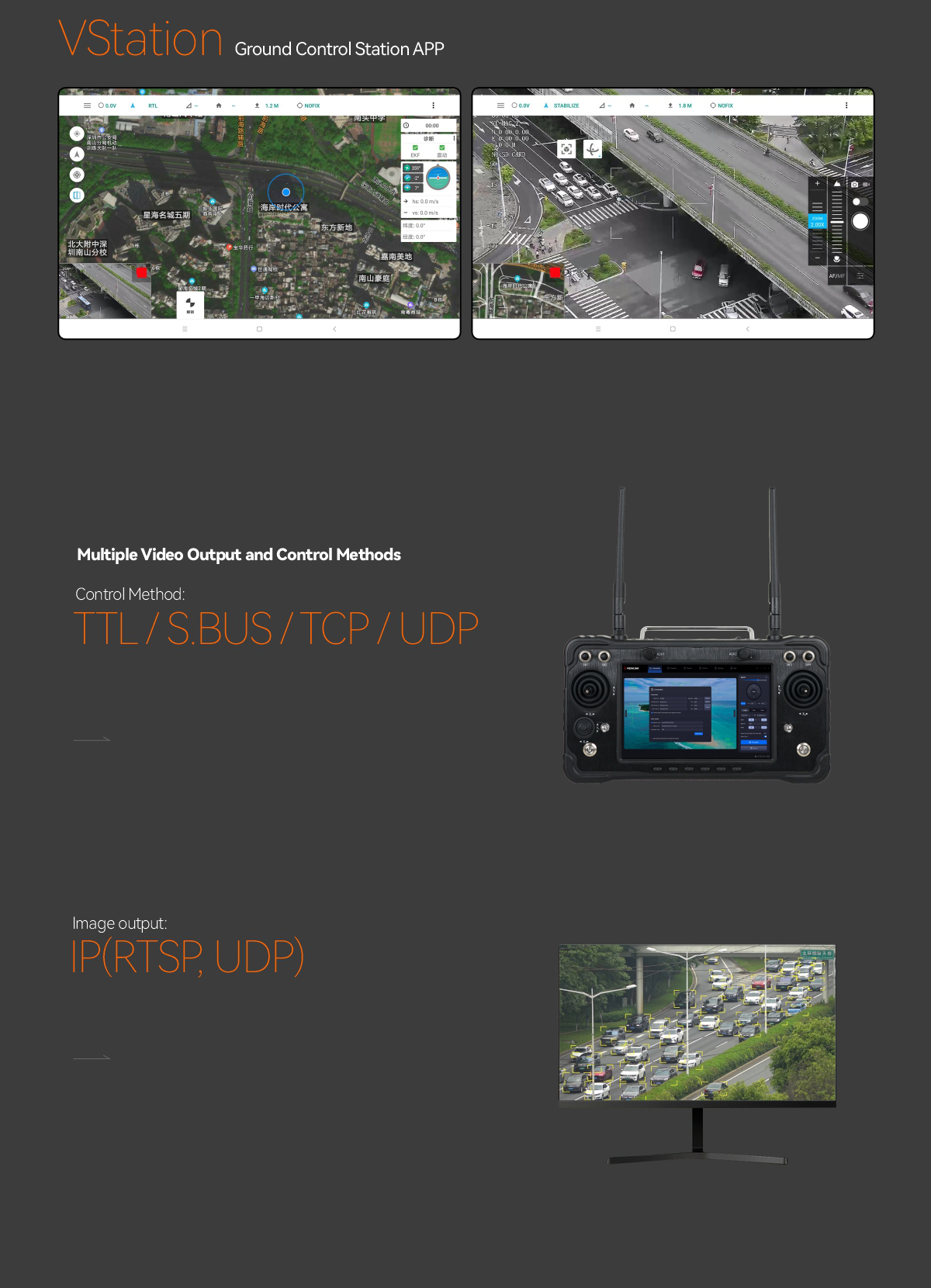

| Control method | TTL / S.BUS/ TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -35°～105°,   Yaw/Pan: ±360°*N |
| Angle scope of software design | Pitch/Tilt: -30°～90°,  Yaw/Pan: ±360°*N |
| Vibration angle | Pitch: ±0.02°, Yaw: ±0.02° |
| One-key to center | √ |

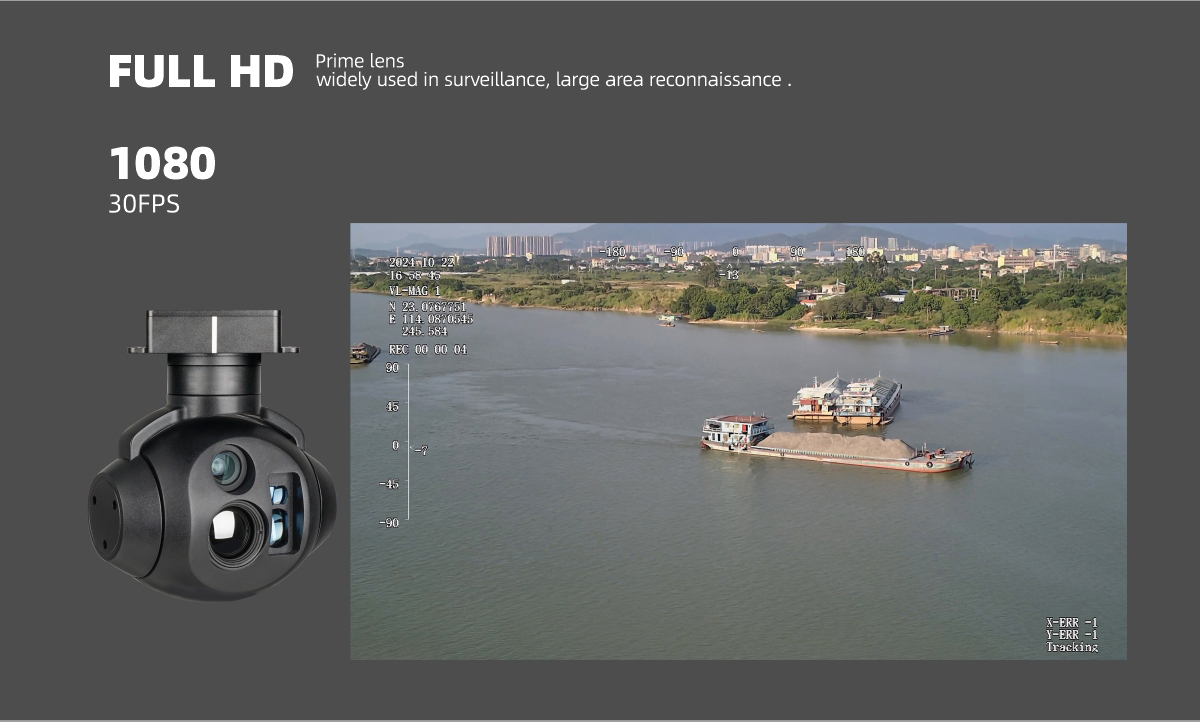

| EO Camera Spec | |
| Imager Sensor | CMOS Sensor |
| Resolution | 1920*1080(3.68MP) @60fps |
| Focus Length | 8mm |
| Pixel Pitch | 3μm |
| Angle of View | 51°*30° |
| Recognize Distance (Car: 6.5x3m) | ≥3.6km |
| Digital zoom | 1x ~ 4x |
| Defog | Yes |

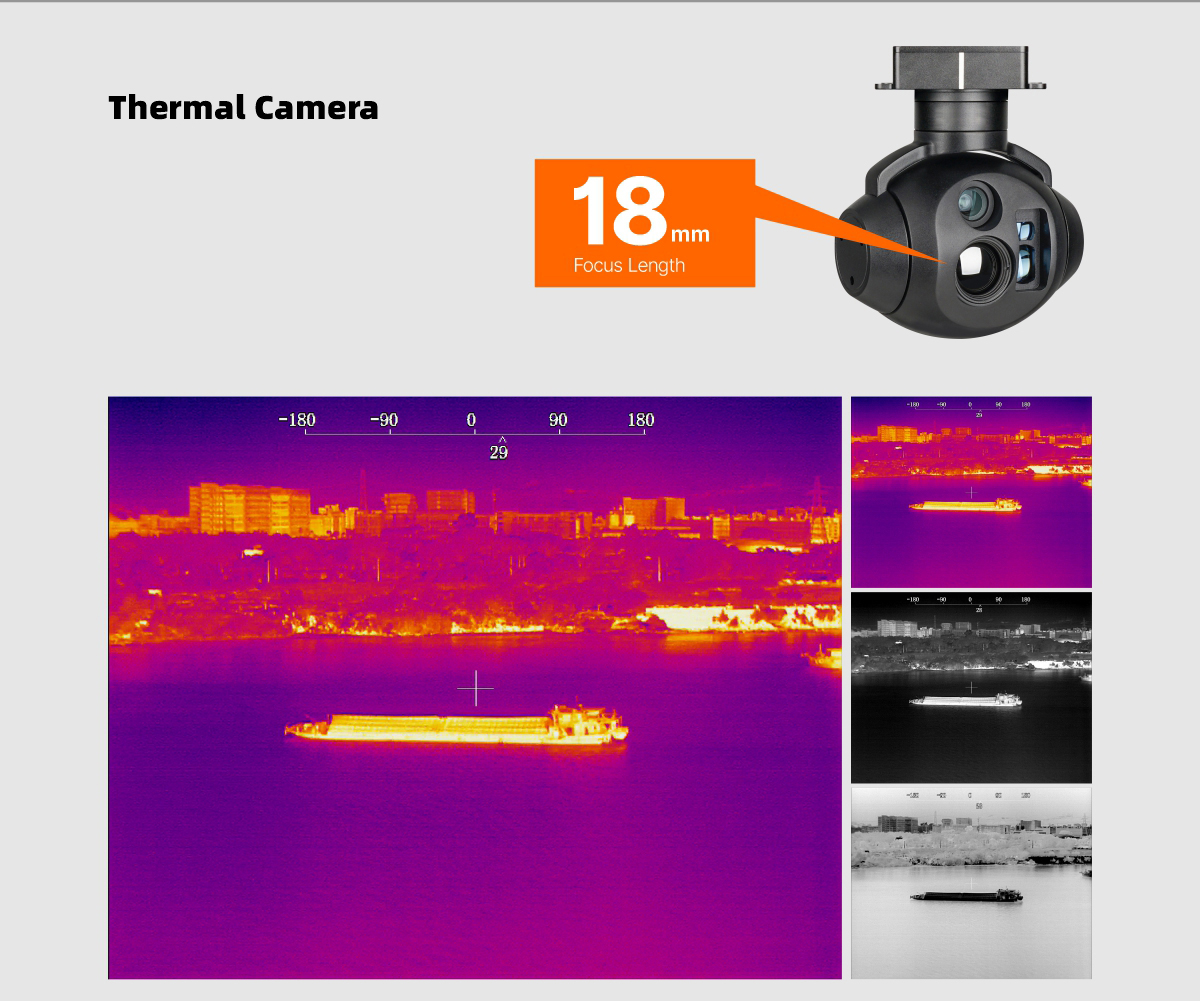

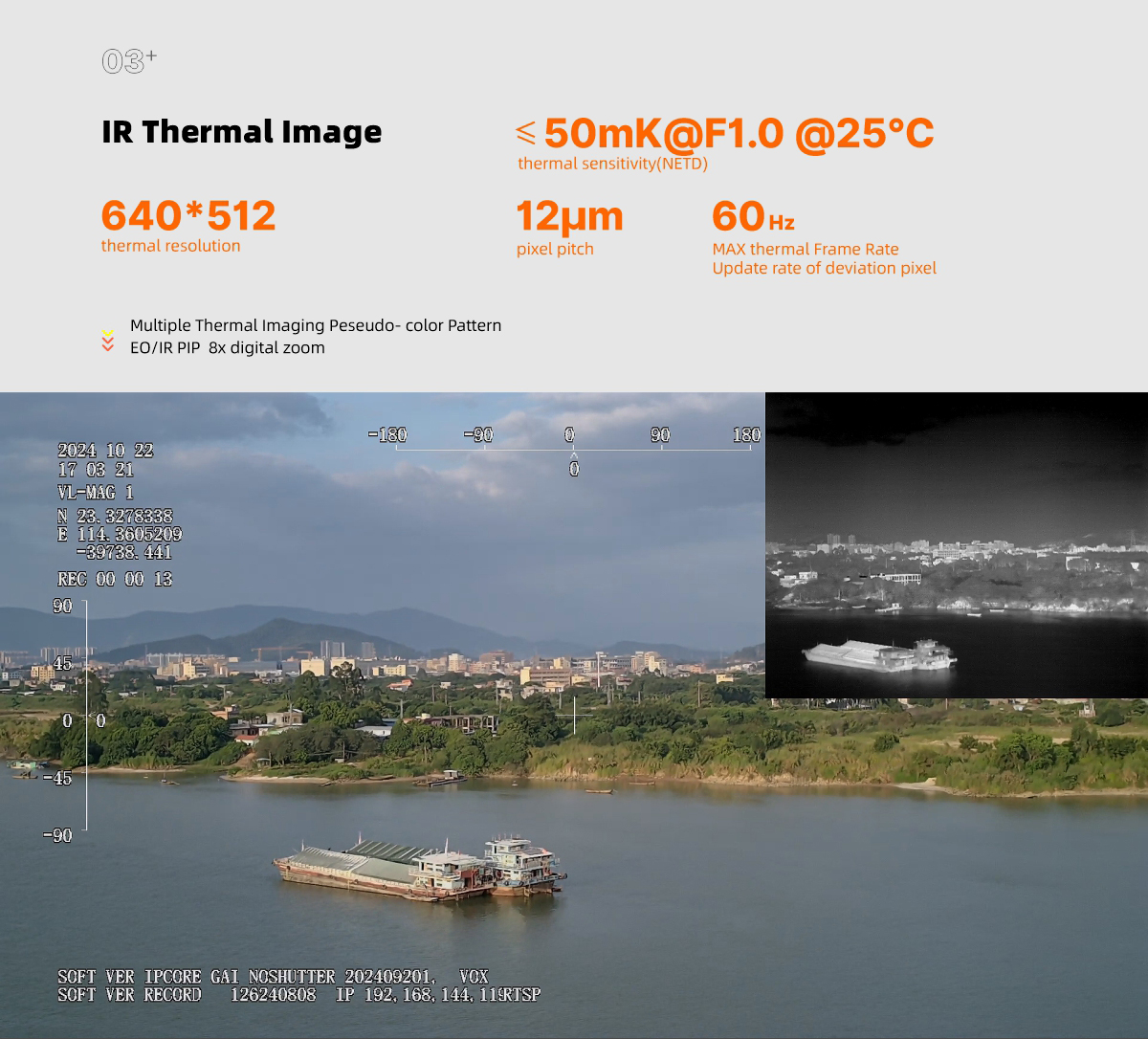

| IR Thermal Imager Spec | |
| Focus Length | 18mm |
| Horizontal FOV | 24° |
| Vertical FOV | 18° |
| Recognize Distance (Car: 6.5x3m) | ≥1km |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| Color palette | White hot, pseudo color |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

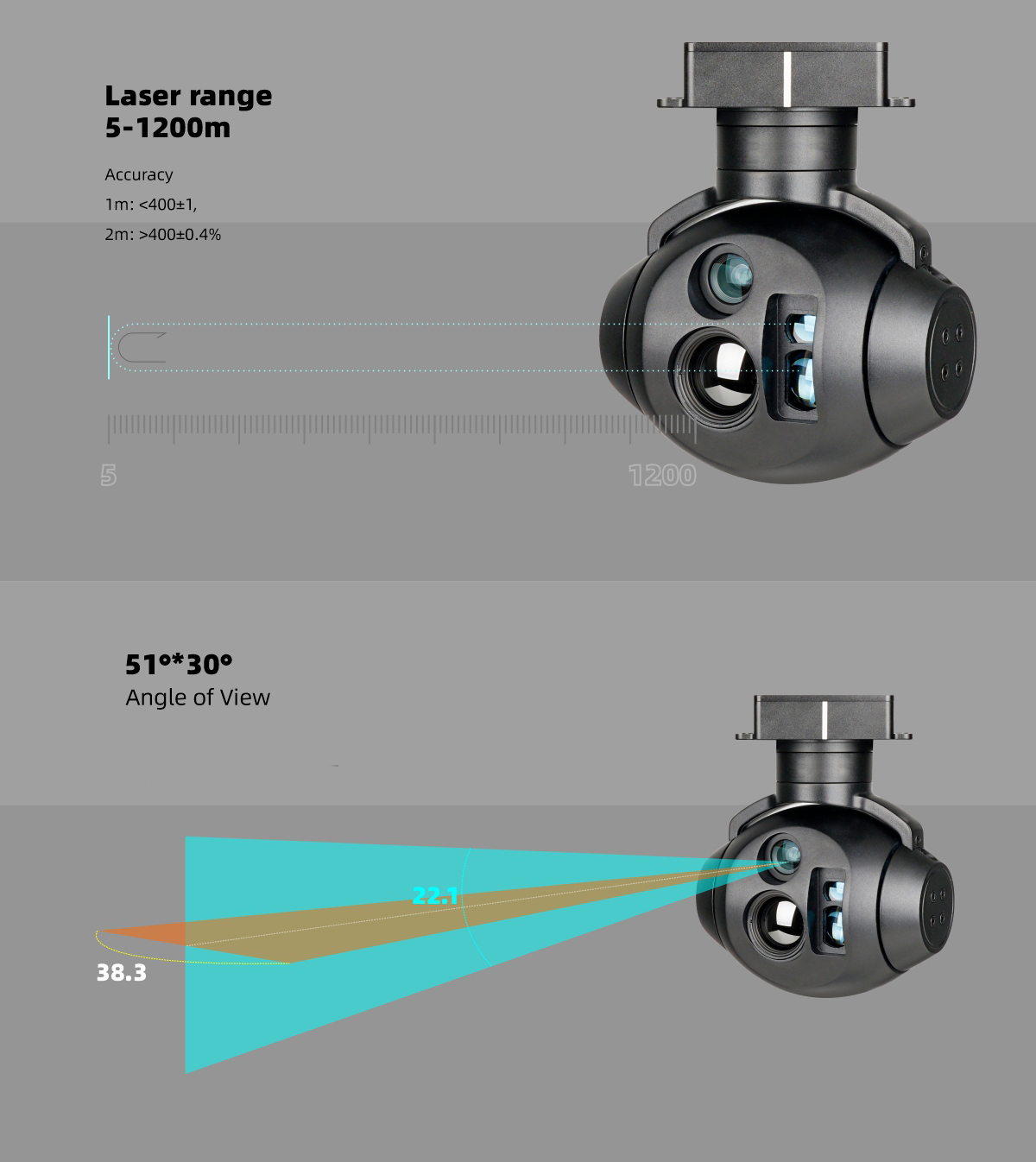

| IR Laser Rangefinder | |
| Range | 5~1200 meters |
| Resolution | 1m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~4Hz |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |

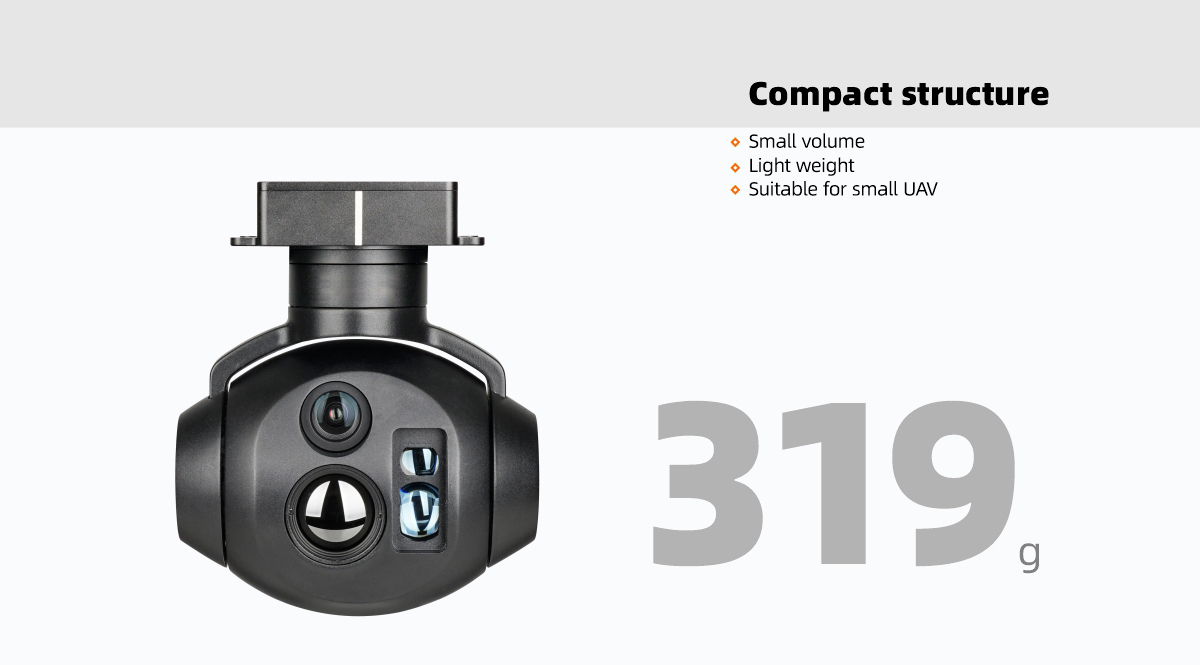

| N.W. | 305g (with damping system) |

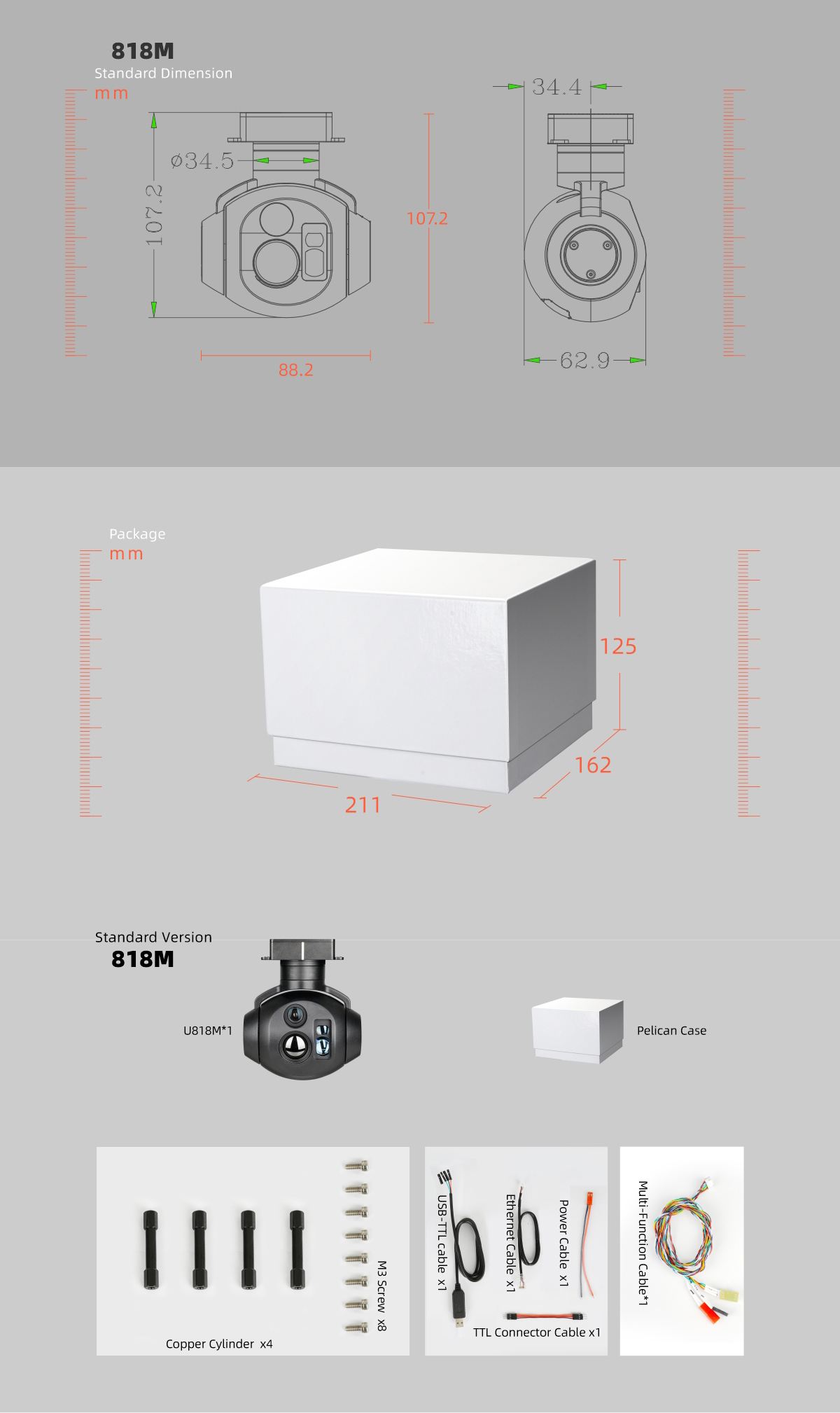

| Product meas. | 83.7*72.5*110.6mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 200*200*150mm |
