Core Value Proposition

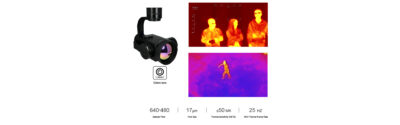

- 50mm High-Resolution Thermal Lens – Unmatched detection range (up to 2,000m)
- 3-Axis FOC Gimbal Stabilization – ±0.02° jitter-free performance
- 25Hz Real-Time Imaging – Critical for fast-moving operations

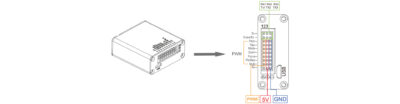

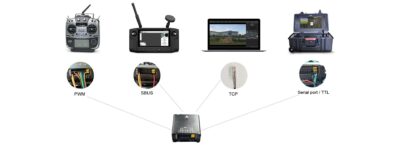

- Multi-Interface Control (SBUS, PWM, TCP, Serial) – Seamless UAV integration
Key Features & Competitive Advantages
| Feature | ZIR50T Advantage | Competitor Comparison |
|---|---|---|
| Thermal Sensor | 640×480 @ 17µm (High sensitivity) | Typically 320×240 or 640×512 (higher noise) |
| Lens | 50mm Narrow FOV (Long-range detection) | Most drones use 9-19mm (wider but shorter range) |
| Stabilization | 3-axis FOC (Field-Oriented Control) – Military-grade precision | Cheaper gimbals use servo motors (less smooth) |

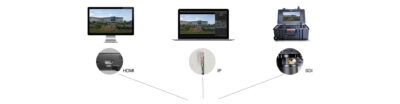

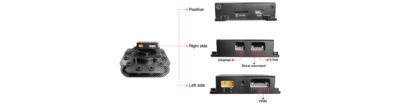

| Output Options | HDMI + SDI + SBUS + TCP/IP + Serial – Ultimate compatibility | Limited to HDMI or single network output |
| Weight & Size | Compact & UAV-Optimized | Bulkier alternatives affect flight time |
Target Applications & Use Cases
Firefighting & Disaster Response
- “See Through Smoke with Precision” – 50mm thermal lens penetrates obscurants
- Case Study: Thermal mapping of wildfire hotspots from safe altitudes
Law Enforcement & Security
- “Suspect Tracking in Total Darkness” – AI-assisted human detection at 1,200m+
- Feature Highlight: Real-time streaming to command centers
Industrial & Energy Inspections
- “Pinpoint Heat Leaks in Power Grids” – High-res thermal for substation inspections
- Bundle Offer: ZIR50T + Fixed-Wing UAV for Long-Range Surveys
Search & Rescue (SAR)
- “Find Missing Persons Faster” – High-contrast thermal imaging in dense forests
- Demo Video: Side-by-side comparison vs. standard thermal cameras
Why China Moneypro?
- Military-Grade Stabilization – Best-in-class FOC gimbals for critical operations
- End-to-End Thermal Expertise – From sensors to UAV integration
- Fast Shenzhen Production – Custom orders in 10 business days
- Global Support Network – OEM/ODM services with local technicians
