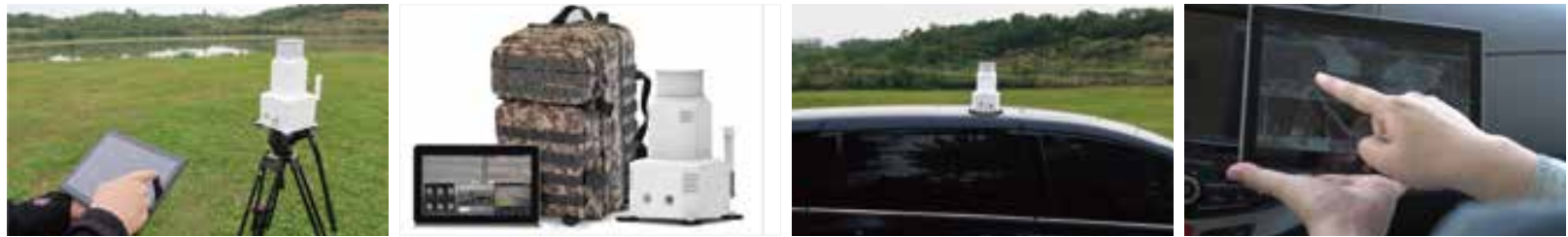

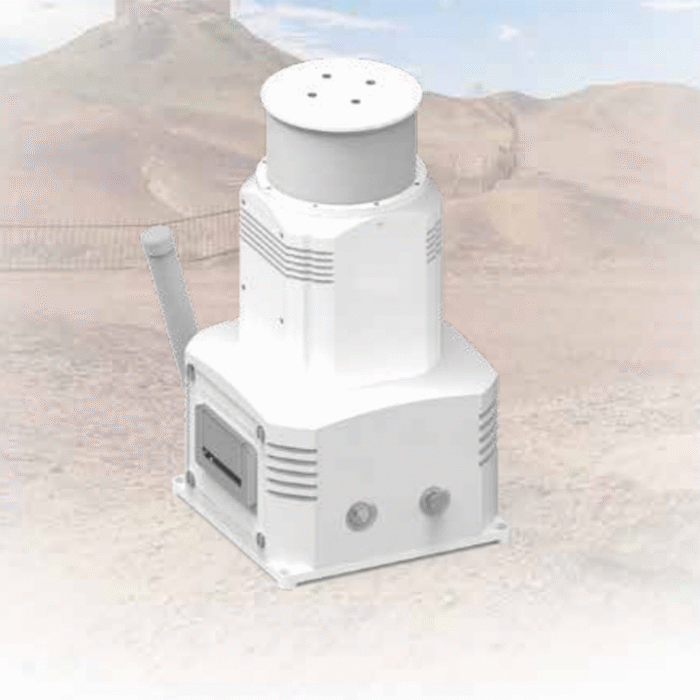

China Moneypro MMB 360 Series – 360° Infrared Panoramic Portable Radar

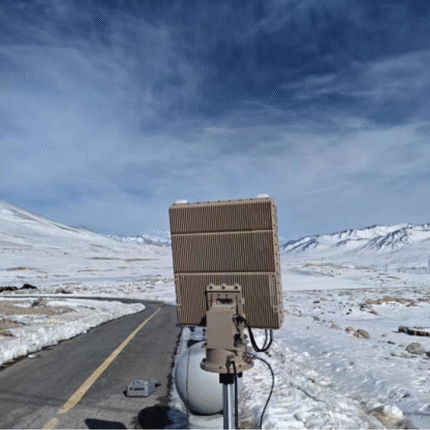

The T18 is a lightweight and portable short-range defense frequency-modulated continuous wave active phased array radar. It employs DBF digital beamforming and simultaneous multi-beam technology; capable of detecting target movement speeds of 1-180 m/s; elevation angle range of -5 to 60°; angular accuracy of 0.4° and range accuracy of 5 m; data refresh rates of 1s/2s/3s; can simultaneously and stably track over 300 targets; scanning coverage includes an area with altitude ≥2000 m and radius ≥15 km; with a portable turntable, the entire system has a power consumption ≤350 W, and the radar's total weight is <30 kg; for micro DJI mini-series drones, it supports a detection range of ≥5 km; with a transmission power of only ≤30 W, it offers extremely high operator safety and urban environment compatibility; on the battlefield, due to its minimal transmission power, it has an extremely low probability of interception, significantly enhancing battlefield survivability.

The T10 Tri-Coordinate Active Phased Array Radar System employs a DBF Digital Beamforming architecture with simultaneous multi-beam technology, delivering exceptional detection sensitivity and superior anti-jamming capabilities. It achieves over 5km detection range for DJI Phantom 4 and Yi3Pro drones (RCS=0.01㎡) (with a measured maximum of 8km), while maintaining an 8km detection range against ground infantry (RCS=0.5㎡). With a scanning radius of 10km and coverage exceeding 1000 meters, the system provides high-precision target acquisition and trajectory tracking capabilities. The T10 radar boasts robust data processing capabilities, perfectly adapted to complex near-Earth ultra-low-altitude operational environments. It can distinguish micro-drone targets like the DJI Mini 3 Pro (249g) from intricate background clutter while maintaining stable tracking performance. Powered by a high-performance computing architecture, the T-series 3D radar supports a 1S data refresh rate, enabling rapid target acquisition and radar guidance to seize fleeting battlefield opportunities. The T10 radar is a low-interception-rate system designed for battlefield applications. Its transmission power is only one-tenth of conventional pulse radar, with antenna gain reduced by half. At the same range, its power density drops to 1/60-1/40 of standard pulse radar, while the signal interception distance is merely 1/10-1/5 of conventional systems. This configuration grants it superior battlefield survivability. Compared with the same power rival products, T10 tri-coordinate radar has nearly 1/4 of the power consumption (mobile power supply can support), nearly half of the weight (portable emergency) of the rival products, the highest detection accuracy in the industry; the highest data refresh rate in the industry; in terms of anti-jamming interference, it can also reach the highest level in the radar industry. In addition, the T10 radar antenna has built-in satellite navigation and positioning and direction finding self-calibration capability. After unfolding the tripod turntable and installing the radar panel, it can automatically locate and direction find, and then start working after being powered on, accurately reporting the three-dimensional coordinates and motion parameters of the target. Therefore, the T series radar with its light weight, low power consumption, high precision and high speed is particularly suitable for emergency deployment requirements supported by mobile power supply. Two or three soldiers can carry the full set of equipment, and the deployment can be completed within 5 minutes after arriving at the predetermined location and entering the working state.
