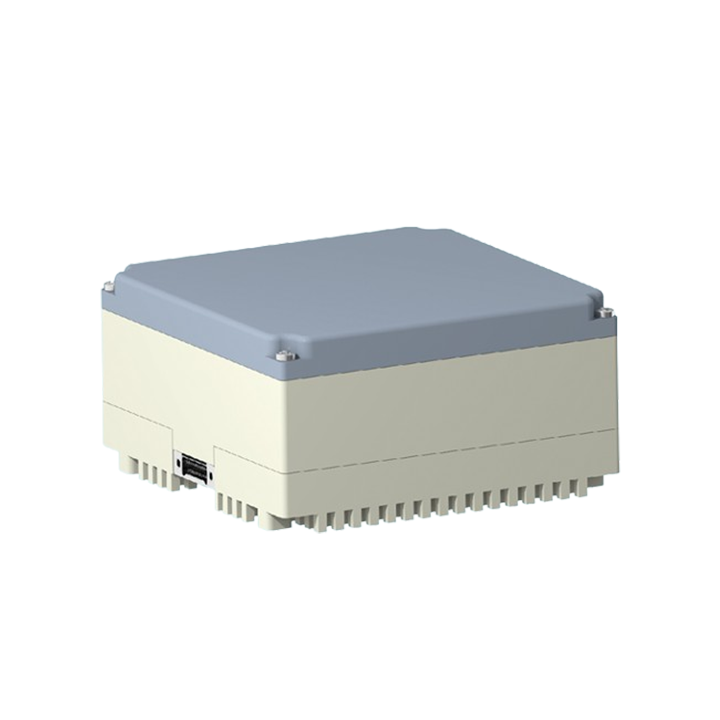

Key Features
- 4 channels Beidou B1/GPS L1/Galileo L1 signal reception, filtering, amplification, and down-conversion processing;
- The antenna capable of suppressing 3 external broadband jammers with space time adaptive anti-jam processing function in Beidou B1/GPS L1/Galileo L1 frequency bands;
- 1 up-conversion channel;
- The Built-in receiver completes the PVT calculation at GNSSL1 frequency band and outputs the results;
- Ultra small size, low power consumption, light weight andsimple application.
Antenna array
- 4 Beidou B1/GPS L1/Galileo L1 antenna array elements
- VSWR:<2.0;
- Polarization:RHCP;
- Coverage:azimuth:0-360°,pitch: 0-90°;
- Antenna vertex gain:>1.0dBi;
LNA
- GAIN:Beidou B1/GPS L1/Galileo L1:20±1dB;
- Noise Figure:<2.2dB;
- Out-of-band inhibition:>50dB@fO±50MHz;
- VSWR:<2.0;
- Feed voltage:5V±10%;
- Feed current:<70mA@5V;
External Interface
- 1 Serial interface: J63A-2F2-21。
Anti-jam processing
- Used for GNSS Beidou B1/GPS L1/Galileo L1;
- Mitigates multiple CW, partial band, broadband andpulsed jammers even under high dynamics;
- Greater than 85dB J/S of jamming suppression against
- single jammer;
- Greater than 75dB J/S of jamming suppression against 3jammers.
Built-in receiver
- Built-in full frequency GNSS navigation module(customizable):
- Narrow-band anti-jam technologyl ; Outputs PVT
- information based on the NEMAO183 protocol.
Power supply
- Input voltage:5V-5.5V(5V default);Supply power: <12W.
Temperature
- Operation temperature:-40°C~70°℃:Storage temperature:-40°C~85℃℃;

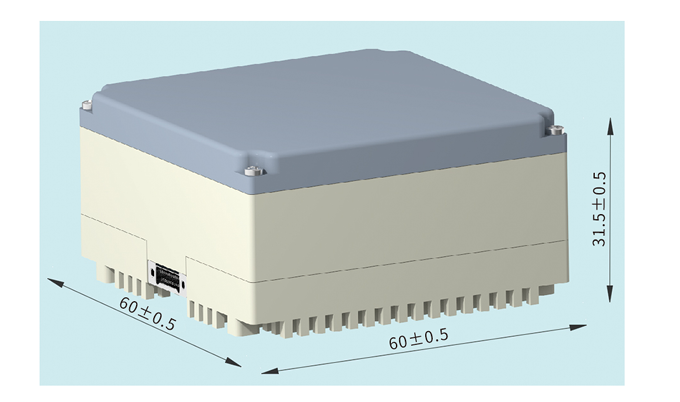

Outline dimensions
- The dimension :<60.0±0.5mm x60.0±0.5mmx31.5+0.5mm
Weight
- <1759。
