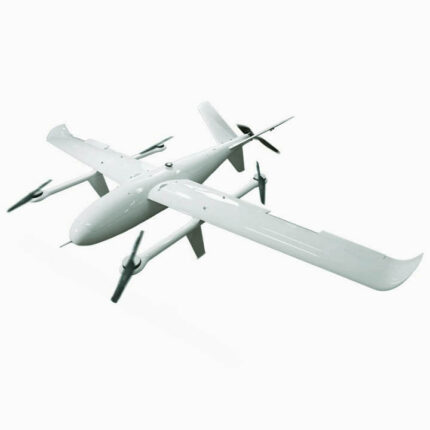

MCW-100 VTOL UAS
Back to products

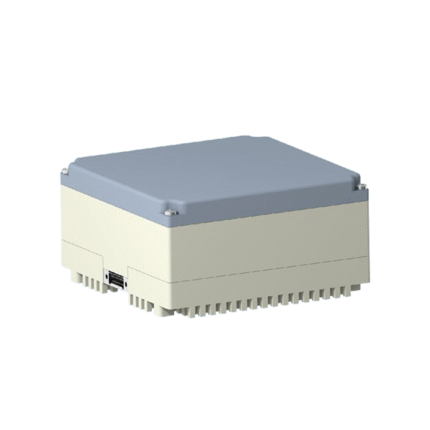

China Moneypro MOA9044C Anti-jam GNSS Antenna

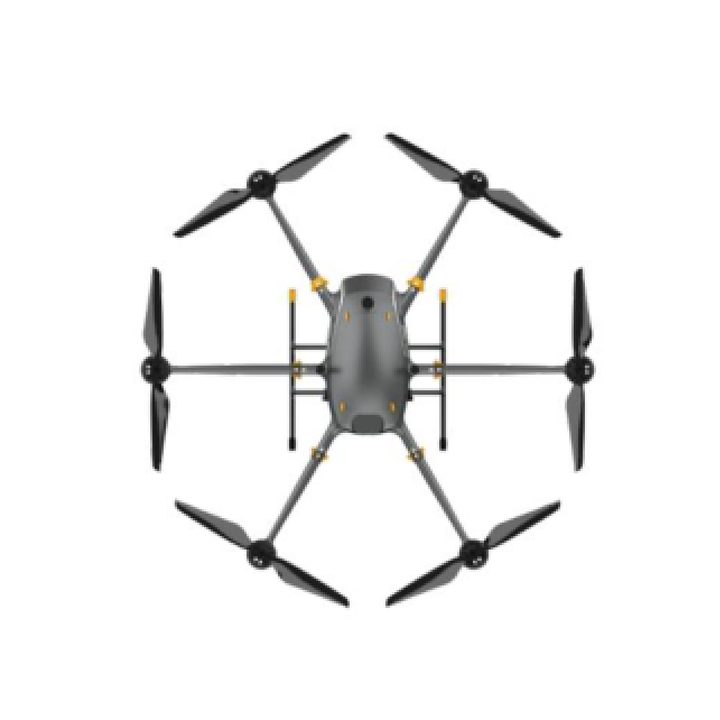

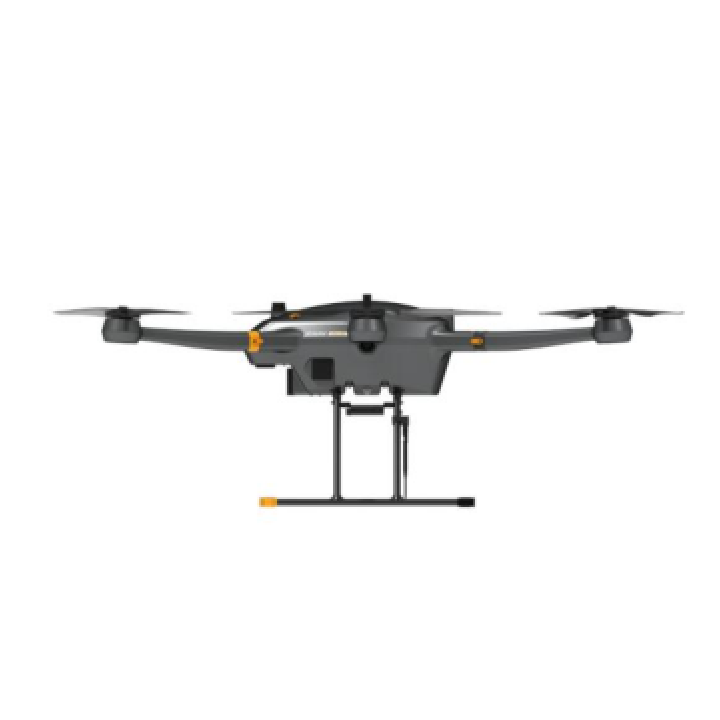

MCW-20 UAS

Moneypro MCW-20 UAS: Unmatched Versatility & Power. This robust multirotor delivers a superior 10kg payload capacity and 55-minute endurance. Built for demanding scenarios, it excels in high-wind conditions (Level 8) and offers versatile payload options for autonomous or manual operation.

Categories: ,
Description

Features Of MCW-20 UAS

1. Long endurance and large payload capacity
2. Versatile payloads for multi-scenario applications
3. Supports manual and autonomous flight
4. Backup GNSS and magnetic compass sensors
5. Multiple fail-safe mechanisms

Technical Spec. Of MCW-20 UAS

TECHNICAL SPEC. OF MCW-20 UAS
Items Technical Spec. Items Technical Spec.
Wheelbase 1690 mm Power Pure electric(battery)
MTOW 24.9 kg Max. Endurance 55min(with 10kg load)
Payload capacity 10kg Control range 25 km(LOS)
Max. Level 72km/h Air-frame Material Carbon, glass, composite material
flight speed
Max. Flying altitude 4500m(AMSL) Wind resistance Level 8

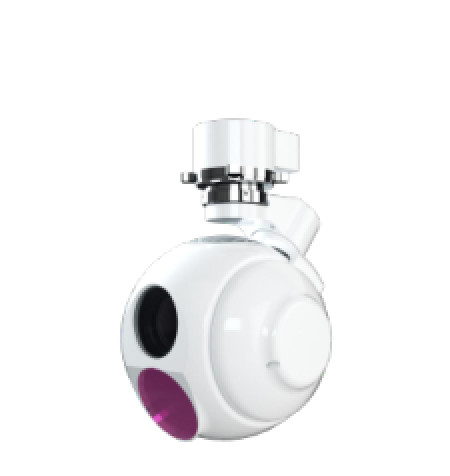

Related 3-axis EO/IR STABLIZED GIMBAL Specification

MCW-20 UAS

3-axis EO/IR STABLIZED GIMBAL
Model MG-120E
EO 30x optical zoom
1920*1080 resolution
IR 640*512 resolution
Uncooled,35mm lens

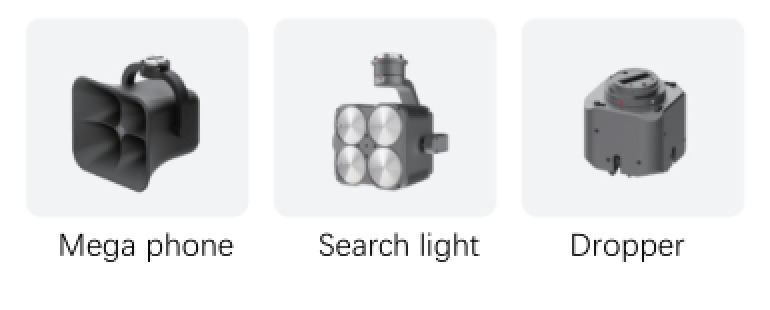

Payload expansion, versatile applications

MCW-20 UAS

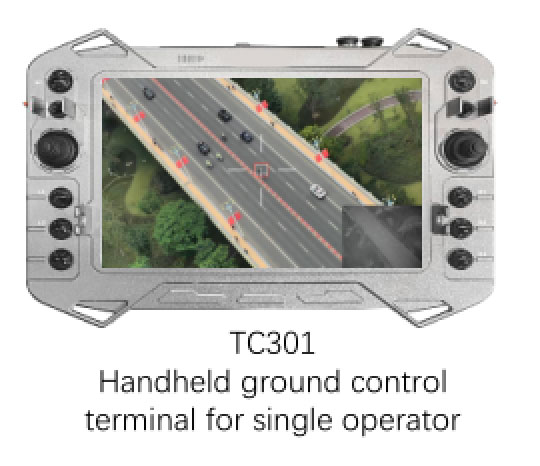

TC301 Handheld ground control terminal for single operator

MCW-20 UAS
