Product Features
Default outputs include:
- Position information
- Navigation angles (heading, roll, pitch)
- 3-axis velocity
- 3-axis angular velocity
- 3-axis linear acceleration
- Time information
- System temperature
Applications
- Vehicle positioning and navigation
- Track inspection systems
- Post-processing surveying applications
- Aerospace and ground mapping
- Stabilized platform attitude reference
- Guidance and control systems
Performance Specifications
| Parameter | Specification |
| Integrated Navigation Accuracy (Single Point) | |
| Alignment Time | ≤ 5 min |
| Heading Accuracy | ≤ 0.015° (1σ) |
| Attitude Accuracy | ≤ 0.01° (1σ) |
| Horizontal Position | ≤ 1.5 m (RMS) |
| Altitude | ≤ 3 m (RMS) |
| Velocity | ≤ 0.05 m/s (RMS) |
| Integrated Navigation Accuracy (RTK) | |
| Alignment Time | ≤ 5 min |
| Heading Accuracy | ≤ 0.01° (1σ) |
| Attitude Accuracy | ≤ 0.008° (1σ) |
| Horizontal Position | 1 cm + 1 ppm (1σ) |
| Altitude | 2 cm + 1 ppm (1σ) |
| Velocity | ≤ 0.01 m/s (1σ) |
| Pure Inertial Navigation Accuracy | |
| Horizontal Position | ≤ 1 nm (CEP, 1 h) |
| Heading | ≤ 0.05° |
| Attitude | ≤ 0.01° |
| Velocity | ≤ 1 m/s |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Bias Stability (1σ, 10 s) | ≤ 0.01°/h |
| Bias Repeatability (1σ) | ≤ 0.01°/h |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Bias Stability (1σ) | ≤ 0.05 mg |
| Bias Repeatability (1σ) | ≤ 0.05 mg |
| System | |
| Data Update Rate | ≤ 200 Hz |
| Interfaces | RS422 / RS232 / CAN / Ethernet |
| Power Supply | 18 V ~ 36 V |
| Power Consumption | < 24 W |
| Weight | < 5 kg |

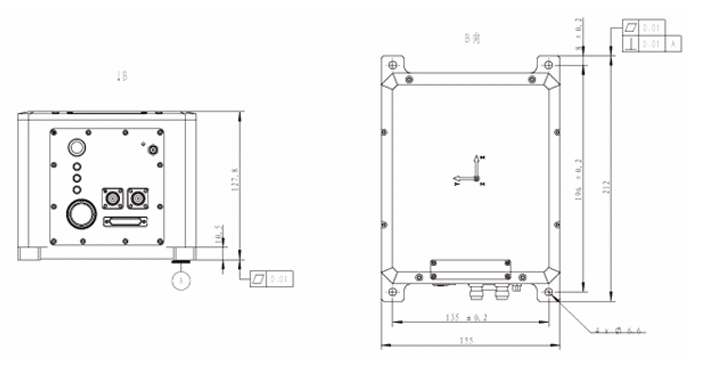

| Dimensions | 212 mm × 155 mm × 127.8 mm |
| Color | Black |
| Operating Temperature | –40 °C ~ +60 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- Built-in north-seeking capabilityfor autonomous initialization
- Centimeter-level RTK positioningwith multi-sensor fusion algorithms
- High-precision attitude measurement (≤ 0.008°)and heading accuracy (≤ 0.01°)
- Excellent GNSS-denied performancewith ≤ 1 nm/h horizontal drift in pure inertial mode
- Flexible integration with multiple communication interfaces (RS422, RS232, CAN, Ethernet)
- Rugged design with wide temperature adaptability for aerospace, defense, and industrial applications

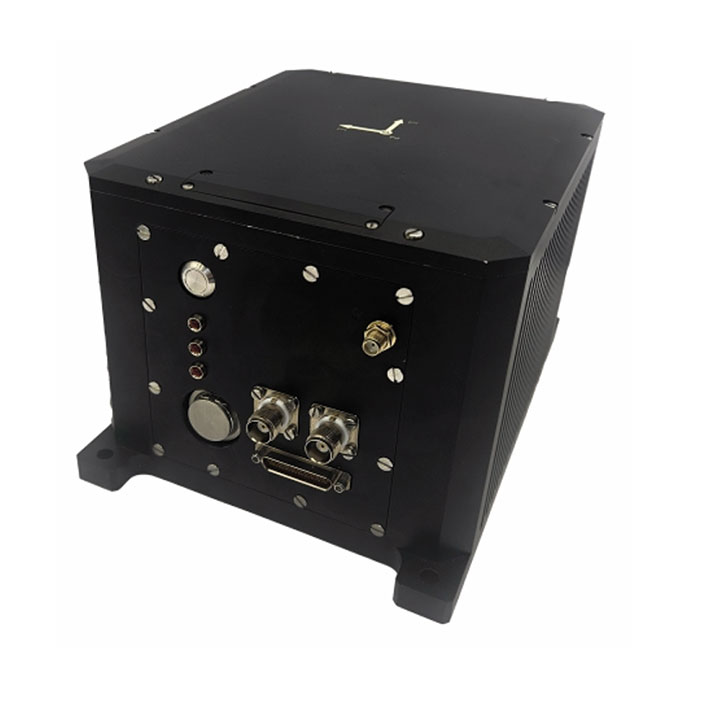

Q1: What makes China Moneypro MP-GI0125 unique compared to other navigation systems?
A1: China Moneypro MP-GI0125 fiber optic integrated navigation system is equipped with a built-in north-seeking capability, allowing it to autonomously determine orientation without external references. Combined with FOG-based high-precision sensors, it delivers reliable navigation data even in GNSS-denied or jammed environments.
Q2: How accurate is China Moneypro MP-GI0125 in pure inertial mode without GNSS?
A2: China Moneypro MP-GI0125 pure inertial navigation system achieves exceptional accuracy, with:
- Heading accuracy ≤ 0.05°
- Attitude accuracy ≤ 0.01°
- Velocity accuracy ≤ 1 m/s
- Horizontal drift ≤ 1 nautical mile per hour (CEP, 1h)
This makes it ideal for missions requiring independent navigationwhere GNSS is unavailable.
Q3: What are the RTK-enhanced positioning capabilities of China Moneypro MP-GI0125?
A3: With RTK correction, China Moneypro MP-GI0125 provides centimeter-level navigation accuracy, including:
- Horizontal position: 1 cm + 1 ppm (1σ)
- Altitude: 2 cm + 1 ppm (1σ)
- Heading: ≤ 0.01°
- Attitude: ≤ 0.008°
This performance supports aerospace mapping, geodesy, precision surveying, and defense-grade applications.
Q4: Which industries benefit most from China Moneypro MP-GI0125?
A4: China Moneypro MP-GI0125 is widely used in:
- Military and defense navigation systems(where anti-jamming is critical)
- Aerospace and ground surveying(high-precision mapping, flight control)
- Stabilized platforms and EO/IR payloadsrequiring continuous attitude reference
- Vehicle, ship, and railway guidancein GNSS-limited environments
- Scientific exploration and geophysical researchwhere precision is paramount
Q5: What integration features make China Moneypro MP-GI0125 suitable for advanced platforms?
A5: China Moneypro MP-GI0125 navigation system supports RS422, RS232, CAN, and Ethernet interfaces, ensuring broad compatibility. With a wide voltage input (18–36 V), power consumption < 24 W, and robust construction (212 × 155 × 127.8 mm, < 5 kg), it is designed for aerospace, industrial, and defense platforms demanding long-term operational stability.
